Apply Kirchhoff’s voltage principle by ensuring the sum of potential differences around any closed loop equals zero. This method eliminates guesswork in analyzing complex wiring setups, whether in power grids or small-scale embedded systems. Begin by identifying all branches and junctions, then label each segment with its respective voltage drop or rise. Accurate labeling prevents errors when verifying calculations against measured values.
Use a step-by-step approach to isolate loops in multi-path configurations. Start with the outermost loop and move inward, solving for unknowns in each segment before progressing. This technique reduces computational complexity, especially in circuits with nested feedback paths or parallel branches. For precise results, measure resistance and voltage sources with calibrated tools–errors compound quickly in cascading loops.
Visual schematics must follow a logical flow: power sources at the top, ground at the bottom, and intermediate components arranged in hierarchical order. Color-code voltage drops (e.g., red for positive, blue for negative) to enhance clarity, particularly in dense layouts with multiple interacting elements. Avoid diagonal wiring; orthogonal paths simplify tracing and debugging. When documenting, include annotation tables specifying component values, tolerances, and node identifiers for reproducibility.
In high-frequency or transient analysis, account for parasitic inductance and capacitance, which distort ideal voltage balance. Simulate using SPICE-based tools to predict deviations before physical implementation. For critical applications–medical devices, aerospace systems–validate loop calculations with both software modeling and empirical testing. Discrepancies exceeding 2% warrant reexamination of component specifications or assembly integrity.
Mastering Loop Analysis in Electrical Networks
Begin by identifying all closed paths in your schematic. Mark each loop with a distinct arrow indicating a consistent direction–clockwise or counterclockwise–for voltage drop calculations. Errors in this step propagate through calculations, so verify each loop independently before proceeding.
Label every passive component (resistors, inductors, capacitors) with numerical values in ohms, henries, or farads. Active sources (voltage, current) must include polarity or direction. Missing or ambiguous labels cause misalignment between theory and practical measurements, especially in AC or transient response scenarios.
Apply Kirchhoff’s voltage principle by summing all potential differences around each marked loop. For resistors, use V = IR; for inductors, V = L(dI/dt); for capacitors, V = (1/C)∫Idt. Replace derivative and integral terms with jωL and 1/(jωC) in phasor domain for sinusoidal steady-state analysis.
Cross-check loop equations for consistency. If a branch belongs to multiple loops, ensure its voltage contribution appears with opposite signs in adjacent loops. This prevents double-counting or omission of shared elements, which distorts impedance matrices in nodal or mesh formulations.
For circuits containing dependent sources, express controlling variables in terms of loop currents. A voltage-controlled voltage source, for instance, may require substitution like Vx = k·Iloop. Solve the resulting system of equations using substitution or matrix methods–Cramer’s rule for small systems, LU decomposition for larger networks.
Simplify complex loops by combining series or parallel elements where possible. A series chain of resistors transforms into a single equivalent value; parallel branches use reciprocal addition. This reduction minimizes computational overhead without altering the network’s behavior, provided no intermediate current measurements are needed.
Validate results against known benchmarks. For DC circuits, ensure the sum of voltage drops equals applied potentials. For AC circuits, verify magnitude and phase relationships using simulation tools or oscilloscope traces. Discrepancies often trace back to incorrect initial loop directions or omitted reactive component contributions.

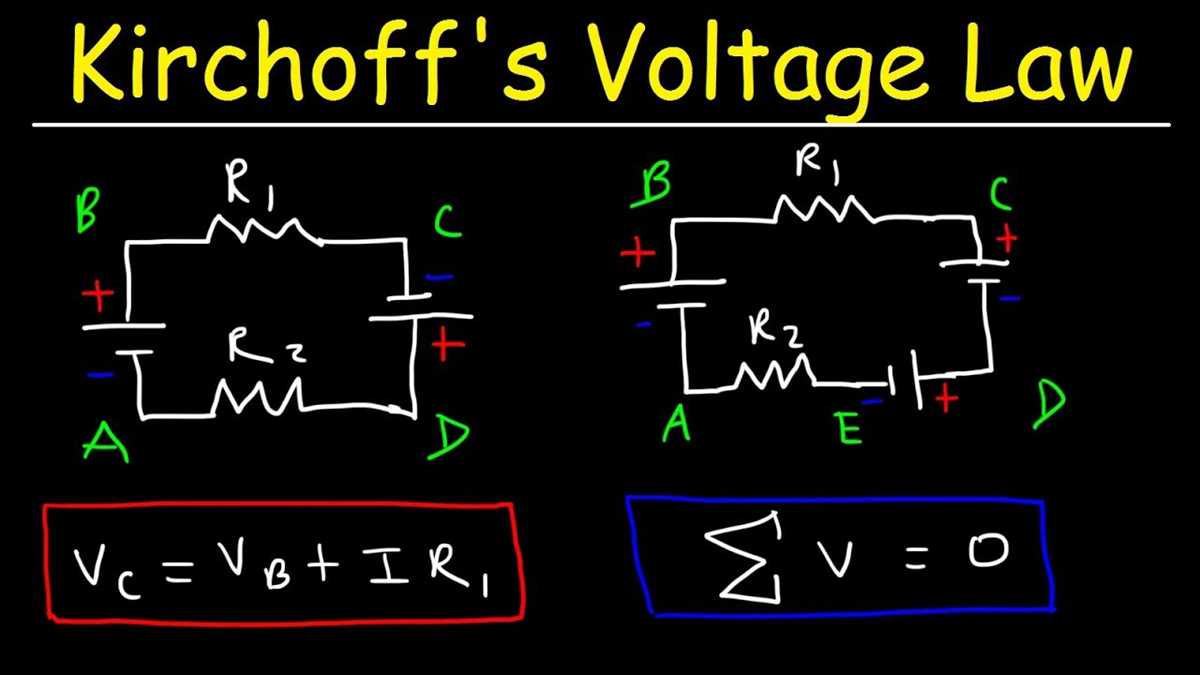

How to Identify Loops and Apply Kirchhoff’s Voltage Principle Step-by-Step
Label every closed path in the network explicitly before calculations. Assign a unique identifier (e.g., Loop A, Loop B) to each independent route where current flows without interruption. Skip partial routes or overlapping segments–they introduce redundancies. Use colored pens or digital layers to trace each path distinctly on schematics; avoid misidentifying shared branches as separate loops.
Count the number of nodes and branches first. Subtract the node count from the branch tally, then add one–this yields the quantity of independent loops in planar arrangements. Example: A configuration with 5 nodes and 7 branches has 3 loops (7 – 5 + 1 = 3). Non-planar setups require additional steps; verify connectivity before proceeding.
- Pick a starting node and follow any branch in a consistent direction (clockwise or counterclockwise).
- Continue along connected branches until returning to the origin–no branch should be traversed twice in one loop.
- If the path splits, choose one branch and note the alternative for subsequent loops.
- Record all component polarities as encountered; voltage rises or drops depend on traversal direction.
For each identified path, list every element in sequence, noting their voltage contributions. Passive components (resistors, inductors) drop voltage proportional to current; active sources add or subtract based on orientation. Example: In a loop containing a 10V source, 3Ω resistor, and 2V drop elsewhere, the algebraic sum must equal zero.
Write the algebraic equation for each closed route immediately after tracing it. Use terminal markings (positive/negative) to determine signs–sum all voltages, ensuring they cancel out. Example equation:
- +Vsource − VR1 − VR2 + Vsource2 = 0
If calculations don’t balance, retrace the route for missed elements or sign errors.
Check for linear independence among equations. If one repeats another or combines existing loops, discard it–only unique paths contribute valid constraints. For complex networks, use matrix methods (e.g., mesh analysis) to solve simultaneously, ensuring determinant isn’t zero.
Measure actual component values if equations resist resolution. Replace theoretical resistances with multimeter readings; verify battery emfs with a voltmeter. Tiny discrepancies (e.g., 0.1V) often stem from internal resistances or meter inaccuracies–recalculate with adjusted values if necessary.
Compare summed voltages against ground reference. If the total deviates from zero by more than ±1%, revisit node connections–missed parasitic drops (e.g., solder joints, wire resistance) skew results. For high-frequency arrangements, account for inductive/capacitive phase shifts; neglecting them invalidates steady-state assumptions.
Frequent Errors in Voltage Loop Representations and Corrections
Assign inconsistent polarities to passive components. Resistors, inductors, and capacitors must show directionality matching the assumed current flow. A resistor marked with + at one end and – at the other reverses signs during summation if current enters the negative terminal. Verify every sign against the chosen loop direction before applying summation rules.
| Component | Incorrect Polarity | Correct Polarity | Summation Impact |
|---|---|---|---|
| Resistor | Current enters (+) | Current enters (–) | Voltage subtracts |
| Inductor | Current exits (–) | Current exits (+) | Voltage adds |
| Capacitor | Same sign at both ends | Opposite signs | Sign flips |
Omit voltage sources in hidden branches. A 5 V battery hidden behind a parallel branch still contributes to the loop. List every source in every mesh equation–missing one throws off nodal balance by the source’s full magnitude.
Confuse loop direction with current direction. Mesh current flows clockwise unless stated, but actual electron drift may oppose it. Label arrows explicitly; reverse signs for opposing flows.
Ignore mutual inductive coupling signs. If two inductors share flux, their dots dictate polarity. A 2 H inductor coupled at 0.8 with another must include ±1.6 V in the summation depending on dot alignment–omitting it skews transient response predictions.
Misapply supermesh boundaries when current sources intersect loops. Break the source, solve the surrounding paths separately, then combine using the current source as a constraint. Skipping this creates redundant unknowns.
Fail to rename variables in overlapping loops. Two adjacent paths sharing R3 must distinguish currents as i1–i2 across R3. Use distinct subscripts; reuse causes algebraic conflicts.
Precise Simulation Tools for Electrical Loop Analysis
LTspice XVII stands out for steady-state and transient behavior modeling in closed conductive paths. The native SPICE engine handles nonlinear components, feedback loops, and parasitic effects with minimal convergence issues. Key advantages include zero-cost licensing, no simulation node limits, and seamless integration of vendor-provided semiconductor models. For accurate power dissipation estimates, enable the “LTspice Command” syntax .four to decompose current waveforms into Fourier components.
PLECS excels in switched-mode configurations, offering fixed-step solvers optimized for pulse-width modulation analysis. The thermal library allows simultaneous electrical-thermal co-simulation, critical for high-power loss environments. Users can export encrypted models preserving IP while sharing with collaborators. The built-in State-Space Averaging tool reduces simulation time for multi-kilohertz switching cycles by removing fast-switching transients without sacrificing accuracy.
PSIM delivers accelerated simulation speeds via native compiled code execution. The DigiWatt module supports real-time emulation, bridging software models with hardware-in-the-loop testing. For precise impedance boundary tracking, utilize the Impedance Analyzer component to sweep frequency ranges without manual recalculations. License includes access to pre-built examples of resonant tank structures and active filter networks.

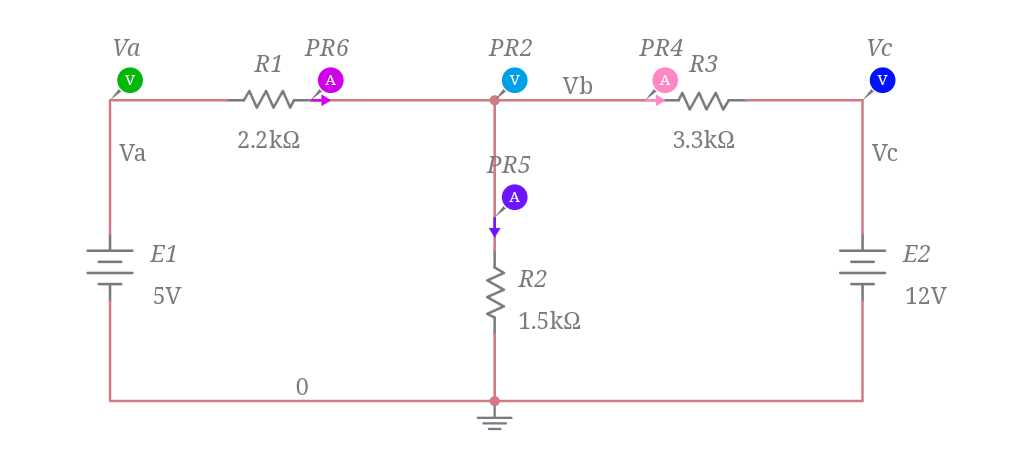

Multisim integrates schematic capture with SPICE-based solver, offering interactive virtual instruments like oscilloscopes and bode plotters. The NI ELVISmx compatibility extends simulation accuracy by comparing measured hardware data alongside virtual models. For noise-sensitive paths, the Advanced Analysis pack includes Monte Carlo and worst-case tolerance analysis to quantify manufacturing variances.
SIMetrix/SIMPLIS combines event-driven and analog solvers, ideal for mixed-signal closed paths. The SIMPLIS Magnetics Design Module enables custom inductor-core modeling using Jiles-Atherton hysteresis curves. Transient analysis runs up to 100× faster than traditional SPICE for switching converters. Users can import measured S-parameter data for distributed network segments, ensuring high-frequency parasitic accuracy.
OrCAD PSpice provides reliability-centered features like automated smoke analysis and stress mapping across conductive segments. The Optimizer tool adjusts component values to meet target performance metrics, while the A/D Interface connects subsystem models for large-scale architectures. License includes an extensive model library covering electromagnetic interference filters and transient voltage suppressors.
Qucs-S offers open-source transient and AC sweep capabilities with Verilog-A support. The Symbolic Analysis feature generates analytical expressions for transfer functions, bypassing numerical approximations. For GNU Radio integration, Qucs converts microwave bandpass filter responses into C++ blocks, enabling software-defined radio co-design without proprietary toolchains.
