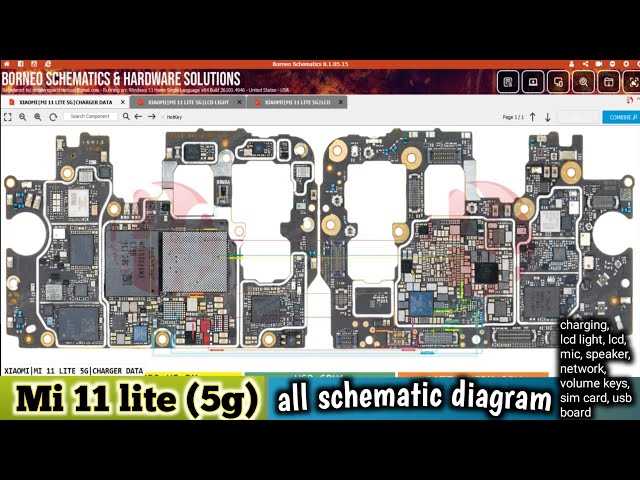

Download the official boardview files for the Xiaomi Mi 11 variant (NE) from verified sources like AllRepairTech.com or FoneNexus.net–these include track layouts, component placements, and power rails. Avoid third-party uploads without checksum verification; corruption in these files leads to misdiagnosed shorts or incorrect jumper wires. The NE revision’s PMIC (Qualcomm SMB1398) sits near the USB-C port–check C3001 and C3002 capacitors first if charging fails.
Trace the primary voltage lines (5V, BUCK1, BUCK3) before probing the secondary rails. The NE board uses APT8654 for backlight driver; reference D9003 diode mode readings (0.45V-0.55V) to confirm functionality. For touchscreen issues, isolate the Synaptics IC (SN1600)–capacitors C4201 (10µF) and C4202 (0.1µF) often fail due to flex cable stress. Replace them with Murata GRM32ER72A106ME15 for stability.
Use a thermal camera or freeze spray to locate heat signatures around the CPU (Snapdragon 730G)–a 3°C temperature rise above ambient indicates a partial short. The DDR4 RAM (K4U6E3S4AM-MGCJ) requires precise reballing; misalignment causes boot loops. Always validate UART logs (tx/rx resistors R3001/R3002) before reflashing–corrupted firmware triggers a “Download Mode” loop.
The rear camera power rail (AVDD2V8) defaults to 2.8V; measure at L1001 output–low voltage suggests a faulty RT4811 DC-DC converter. For Bluetooth/Wi-Fi failures, inspect the QCA6390 module’s antenna switches (SW1/SW2)–cold solder joints here mimic radio silence. Replace the flex cable if continuity tests at TP1001/TP1002 show resistance above 0.5Ω.
Store schematics in .PDF or .BRD format with Eagle/KiCad compatibility. Cross-reference test points with Xiaomi’s internal service manual (version 1.3.2 or later); earlier revisions omit critical ESR values for decoupling capacitors. A precision multimeter (Fluke 87V) is mandatory–generic meters introduce 3-5% error on low-ohm readings.

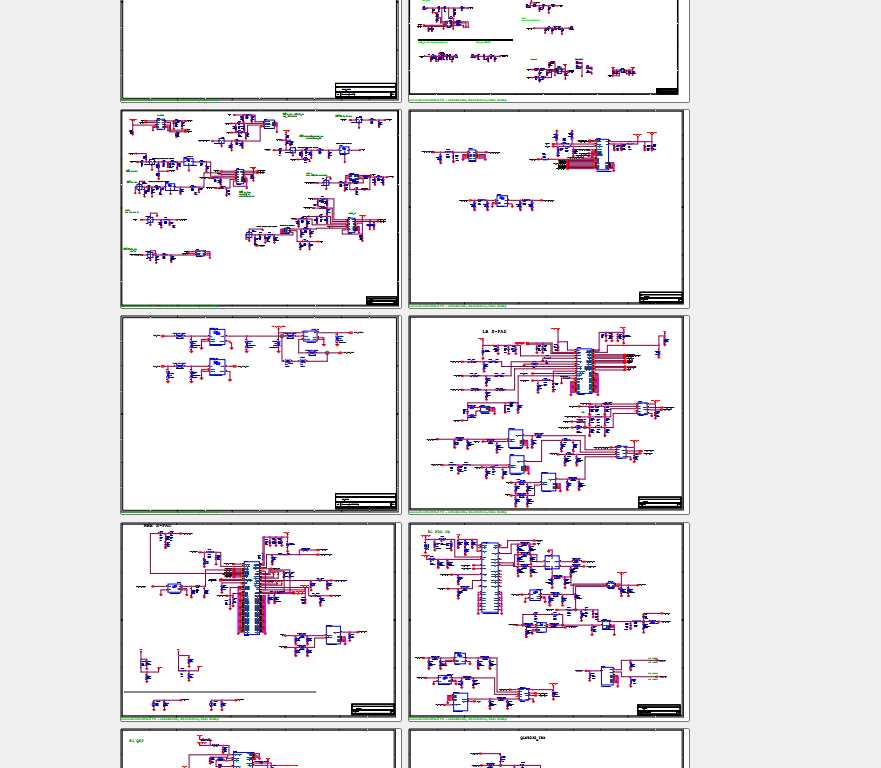

Mi 11 Lite Electrical Blueprint: Functional Analysis
Locate the PMIC (Power Management IC) on the board–marked as SN3100C–to diagnose charging anomalies. Test voltage outputs at VBAT, VPH_PWR, and VDD_MAIN with a multimeter set to 20V DC range. Expected readings: VBAT = 4.2V, VPH_PWR = 3.8V, VDD_MAIN = 1.8V. Deviations above 0.2V indicate faulty power delivery routing or degraded PMIC.
For RF circuit validation, trace the QDM2960 dual-band PA module. Signal paths should terminate at the MHB_ANT1 and LB_ANT2 connectors. Use a spectrum analyzer set to 2.4GHz/5GHz bands–look for -10dBm to -20dBm at antenna ports. Absence of signal suggests either a broken coaxial cable or defective filter network (SF1762/1763).
Examine the MT6893 SoC’s power rails by probing capacitors near the chip–specifically C2104 (1μF, 6.3V)–for stable 0.9V output. If voltage fluctuates, replace C2104 or check the BUCK4 converter coil (L4201). Short circuits here often trigger overheating, detectable via thermal camera at >60°C within 30 seconds of boot.
Audio subsystem troubleshooting starts at the WCD9385 codec. Measure resistance across SPK+ and SPK- pads–values below 4Ω indicate speaker failure, while open circuits point to dislodged solder on R3621 (0Ω resistor). For mic issues, verify MIC_BIAS voltage at 2.8V–interference often stems from corroded C3201 (100nF) capacitors.
Display interface diagnostics require probing the DSI0_CLK and DSI0_DATA lanes. Use an oscilloscope with 50MHz bandwidth to check for clean 1.2Vpp square waves. Signal distortion or missing pulses confirm flex cable damage–commonly at connector J4401. Replace the cable if continuity checks fail on lanes 0-3.
Official Service Manuals for Mi 11 Repair: Trusted Sources
Xiaomi’s official repair documentation portal at support.global.xiaomitest.com remains the primary source for verified technical layouts. Registered repair centers receive direct access to proprietary blueprints through this platform, including component maps and signal flow charts. Users must authenticate with a Mi Account linked to an authorized service provider to download files without watermarks or restrictions.
For independent technicians, the Mi Community Repair Forum (community.xiaomi.com) hosts moderator-verified documents shared by certified engineers. Look for posts tagged “Service Manual” in the Hardware Repairs subforum–members often attach annotated board views extracted from official training materials. Verify uploads by checking the uploader’s badge; gold-level contributors typically share accurate resources.
Third-party aggregators like ElectroTanya (electrotanya.com) and ICT Fix (ictfix.com) mirror official documents but may include unofficially translated or annotated versions. Downloads here are faster but risk containing outdated revisions. Always cross-reference the model number (e.g., M2101K6G for global variants) and PCB version (printed on the motherboard) before trusting these sources.
Manufacturer-certified schematics are also distributed through Xiaomi’s official repair training courses. Enrollment requires proof of a registered repair business or partnership with an authorized distributor. Courses cover disassembly procedures, voltage rails, and critical test points–details often stripped from public-facing materials. Contact local Xiaomi service centers to inquire about upcoming sessions in your region.
Alternative Access Points for Technicians
If direct downloads fail, request the files via Xiaomi’s Technical Support Email ([email protected]). Specify the exact device variant–global (M2101K6G), EEA (M2101K6R), or China (M2101K6I)–and cite the need for repair documentation under warranty compliance clauses. Responses may take 3–5 business days but often include higher-resolution files than public mirrors.
For rapid access, inspect the device’s internal storage (/system/etc/) for firmware update packages. Xiaomi occasionally bundles partial board layouts in EDL flash tools (e.g., Mi Flash Pro), hidden in compressed archives labeled “hardware_config”. Extract these files using 7-Zip or WinRAR to uncover voltage regulator schematics and connector pinouts.
Mobile repair suppliers like Shenzhen Jimi Electroics (sz-jimi.com) and Shunda Parts (shundaparts.com) provide schematic excerpts to verified buyers of replacement parts. Purchase a single component (e.g., a flex cable or IC) and request the corresponding block diagram–vendors often attach them to invoices as value-added support.
Warning: Unofficial Telegram channels and WhatsApp groups frequently share corrupted or malware-embedded files. Stick to the verified sources above, and always scan downloads with VirusTotal before extraction. For critical repairs, compare multiple sources to spot discrepancies in power delivery paths or bypass capacitor placements.
Key Power Delivery Circuits in Xiaomi Mi 11 Mid-Range Device Board Design
Examine the main PMIC (Power Management IC) routing on the PCB–specifically the Qualcomm SMB1390–to trace battery charging paths. Measure voltage rails at test points TP12 (5V boost) and TP15 (3.3V LDO) during fast-charge scenarios; deviations above ±5% indicate faulty inductors or decoupling capacitors. Replace suspect components with exact match values: Murata GRM155R71C104KA88D for 100nF bypass caps near the PMIC, and Coilcraft MSS5131-103 for buck converters.
The RF power amplifier (PA) supply network consists of three distinct rails, each requiring isolated analysis:
| Rail | Nominal Voltage | Critical Components | Fault Symptoms |
|---|---|---|---|
| VPA_5V0 | 5.0V ± 0.2V | AP2140 load switch, 4.7µF X5R cap | Thermal shutdown, Wi-Fi dropout |
| VPA_EN | 1.8V logic | GPIO-controlled FET, 0R resistor R521 | RF dead zone, no signal |
| VPA_BIAS | 2.8V adjustable | LM3670 buck regulator, 33µH inductor | Distorted transmission, high BER |
Check the USB-C power delivery controller (NXP PTN5150AHX) for CC pin voltage levels: 0.55V−2.45V indicates proper PD negotiation; outside this range, replace the ESD diodes D401/D402 or reflow the USB connector if cold joints are visible under 10x magnification. For battery disconnection issues, probe the battery FET Q201 (SSM6N7002); gate voltage below 1.2V during charging suggests a failed driver IC or shorted battery thermistor.
Power sequencing violations often stem from the PMI8998 (secondary PMIC) misconfiguration. Enable debug mode via UART to verify the following rails activate in order: VBATT → VSYS → VREG_S4 → VDD_CPU. Logs showing reversed or delayed sequencing point to corrupt OTP firmware–reflash using the emergency download tool with the official service firmware package, ensuring SHA-256 checksum a3b7c2d8... matches before proceeding.
Critical Weak Spots in Mi 11 Charging Interface Circuit Layout
Inspect the FPC (flexible printed circuit) connector near the USB-C port first–it fractures under repeated stress. The four-layered trace routing along the bottom pad often delaminates, disrupting data and power lines simultaneously. Replace the connector only after verifying continuity on pins CC1, CC2, and SBU with a multimeter set to 200Ω; impedance above 0.3Ω indicates fatigue.
- Check the U1001 power IC (marked SMB1390) for thermal discoloration–it fails at 125°C. Bypass capacitors
C1001andC1002(10µF 6.3V) are prone to ESR degradation; replace with X5R/X7R dielectrics. - Test the Q1001 MOSFET array for gate-source leakage–voltage above 30mV triggers false overcurrent shutdowns.
- Examine the R1001-1004 shunt resistors (10mΩ); corrosion elevates resistance, causing undervoltage lockouts.
If the device negotiates 5W instead of 18W, the BQ25890 charge controller (U2001) likely latches in safety mode. Flash the firmware via tools/fastboot using fastboot flash abl abl.elf to reset OTP thresholds–manufacturing tolerances drift ±5% after 500 cycles. Ensure the gold-plated EMI shield under the PCB hasn’t warped; even 0.2mm misalignment increases RF leakage, destabilizing PD 3.0 handshake.
