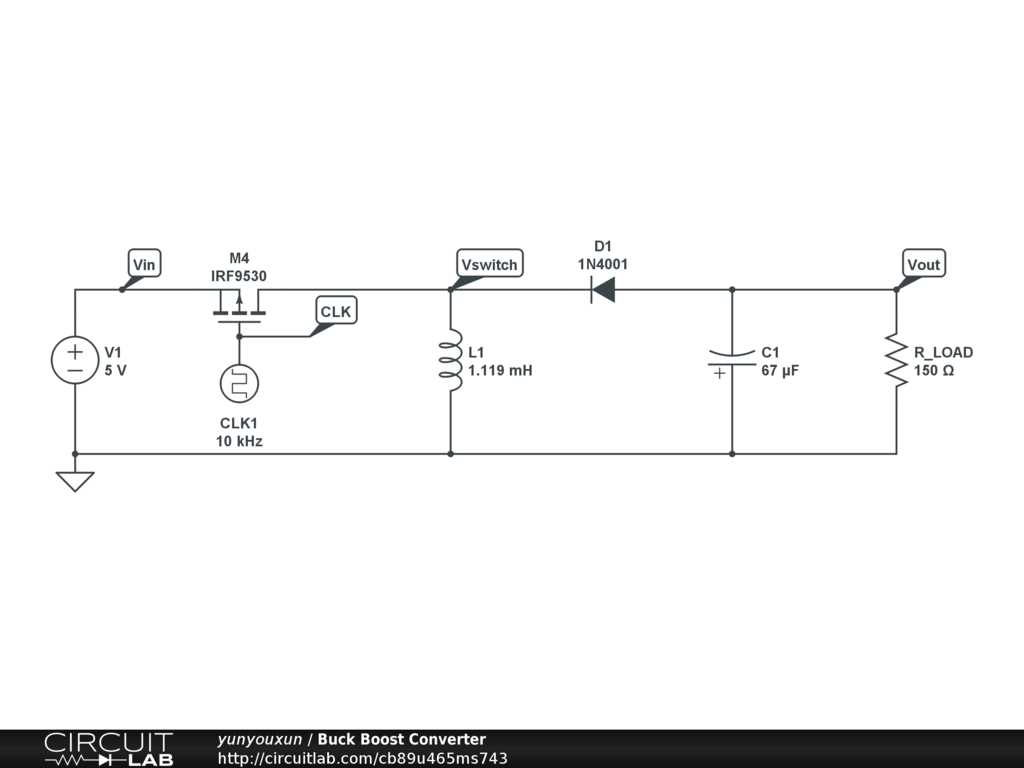

For applications requiring output voltages both above and below the input source, a four-switch topology with interleaved inductors delivers the highest efficiency–up to 96% at 5A load–while minimizing ripple. Start with a synchronous configuration using N-channel MOSFETs (e.g., Infineon BSC0909NS or TI CSD18537NDQ5) for the high-side switches, paired with Schottky diodes (Vishay V10P10-M3) as low-cost alternatives for the freewheeling path. Select inductors with 33 µH and 4.7 A saturation current (Coilcraft MSS1278-333ML) to balance transient response and core losses.
Control the switching sequence with a current-mode PWM IC like the Texas Instruments TPS63020, configuring it for variable frequency operation (250 kHz–1.5 MHz) to optimize light-load efficiency. Place input/output capacitors (10 µF X7R ceramics, 0805 package) directly at the IC pins to suppress EMI spikes; add a 22 µF electrolytic at the output for bulk filtering. Ensure ground planes are split–one for power, one for signal–to prevent noise coupling into feedback traces.
For voltage feedback, use a precision resistor divider (1% tolerance, e.g., Vishay CRCW0805) with a total resistance under 100 kΩ to maintain accuracy without loading the reference. Include a soft-start capacitor (0.1 µF) to ramp output voltage over 10 ms, preventing inrush currents from tripping overcurrent protection. Test thermal performance with a 1 oz copper layer; expect a 25 °C/W rise at full load in free air.
When scaling for higher power, replace the single inductor with dual interleaved coils (Coilcraft SER2918H-333KL) to halve ripple current and distribute heat. Use a gate driver (TI DRV8323) for asynchronous designs exceeding 5A to reduce switching losses. For ultra-low noise applications, add a π-filter (LC network) post-output, with a cutoff frequency 10× below switching rate.
Designing a Voltage Regulation Scheme for Variable Inputs
Begin by selecting an inductor with a saturation current at least 20% higher than the expected peak switching current. For a 50W application with a 12V nominal input and 15V target output, a 33µH part with a 4A rating minimizes core losses while preventing saturation during transient conditions. Pair this with a low-ESR electrolytic capacitor (100µF, 25V) on the input to absorb switching noise; ceramic capacitors (2 × 22µF, X7R) suffice for the output if ripple under 2% is acceptable. Avoid paralleling different dielectric types–mismatched self-resonant frequencies create unintended resonances.
Component Selection Matrix for 5–24V Input Range
| Parameter | 5V Input | 12V Input | 24V Input |
|---|---|---|---|
| MOSFET (VDS, RDS(on)) | 30V, 30mΩ | 60V, 15mΩ | 80V, 10mΩ |
| Diode (VRRM, IF) | 40V, 3A | 80V, 5A | 100V, 5A |
| Switching Frequency | 500kHz | 300kHz | 250kHz |
| Feedback Divider (kΩ) | 10:47 | 10:22 | 10:15 |
Route ground traces as a star network, centering the controller’s ground pin to minimize ground bounce. Keep switching nodes physically small–use pours no wider than 2mm to reduce parasitic capacitance. For controllers like the LT8471 or TPS63020, set the compensation network (RC=10kΩ, CC=4.7nF) to stabilize the loop across input voltages below 8V; above this, increase RC to 22kΩ to counteract phase lag. Log output voltage via an ADC during prototyping–peaks during load transients indicate inadequate output capacitance or excessive ESR.
Key Components and Their Roles in a Voltage Regulation System
Select an inductor with a saturation current rating at least 20% higher than the peak operating current to prevent core saturation. Ferrite cores (e.g., 3F3 or PC40 material) offer low losses at switching frequencies above 100 kHz, while powdered iron cores suit lower frequencies but require larger dimensions. Calculate inductance using the formula L = (Vin × D) / (ΔIL × fsw), where D is the duty cycle, ΔIL is the ripple current (typically 10-30% of peak current), and fsw is the switching frequency. For compact designs, prioritize inductors with a low DC resistance (DCR)–aim for values below 50 mΩ to minimize conduction losses.
Choose a switching element with a breakdown voltage exceeding the sum of input and output voltages by at least 30%. MOSFETs like the Infineon BSC010N04LS (40V, 1mΩ RDS(on)) or GaN transistors (e.g., EPC2050) reduce switching losses due to faster transition times. For drivers, isolated gate drivers (e.g., SI8271) or half-bridge ICs (e.g., LM5104) improve noise immunity in high-side configurations. Verify the Safe Operating Area (SOA) curve to ensure the transistor can handle peak currents during transient conditions without thermal runaway.
- Capacitors: Input and output capacitors must handle ripple current while minimizing Equivalent Series Resistance (ESR). Use ceramic capacitors (e.g., X7R dielectric) for low ESR and high frequency performance–parallel multiple units (e.g., 4 × 10µF) to distribute ripple current. Electrolytic capacitors (e.g., Nichicon UHE series) serve bulk storage but degrade faster under high ripple. For output capacitance, ensure
Cout ≥ ΔIL / (8 × fsw × ΔVout), whereΔVoutis the allowed output voltage ripple (typically 1-2%). - Diodes: Schottky diodes (e.g., STMicroelectronics STPS20L45C) reduce reverse recovery losses due to their near-zero recovery time. Select a diode with a reverse voltage rating exceeding the maximum input voltage by 50% to avoid avalanche breakdown. For currents above 5A, consider synchronous rectification using a second MOSFET instead of a diode to cut forward voltage drop losses by up to 80%.
- Control IC: Peak current-mode controllers (e.g., LT8390) simplify compensation by inherently limiting inductor current. Voltage-mode controllers (e.g., TPS40200) require external slope compensation but offer better noise immunity. For digital control, microcontrollers (e.g., STM32G4) with dedicated PWM peripherals (e.g., HRPWM) enable precise duty cycle adjustment but necessitate firmware for loop compensation.
Layout critical traces–input capacitor to switching node, switching node to inductor, and inductor to output capacitor–with widths exceeding 2mm per ampere to avoid parasitic inductance. Place the input capacitor within 5mm of the switching transistor and diode to suppress high-frequency noise. For thermal management, allocate at least 5 cm² of copper per watt of power dissipation on the PCB, using vias to connect layers for better heat spreading. Simulate the layout in tools like ANSYS Q3D or KiCad’s PCB calculator to verify trace impedance and parasitic effects before prototyping.
Building a Voltage Regulator on a Prototype Board: Practical Guide
Secure a TL494 PWM controller or equivalent IC–ensure its datasheet specifies adjustable output with adequate heat dissipation. Place it near the breadboard’s center, aligning pins 1–8 to the left rail and 9–16 to the right for consistent wiring access.
Attach the inductor–a 100µH core-rated for 2A minimum–between the controller’s switch node (check pin 6 for TL494) and the output capacitor. Keep leads short; coiled loops invite noise. Verify polarity if using a shielded coil to prevent saturation.
Add the catch diode (Schottky, 3A, 40V) immediately after the inductor, cathode to output, anode to ground. Position it no more than 1cm from the coil to minimize switching spikes. Avoid 1N4007–its slow recovery will cripple efficiency.
Populate the feedback network: solder a 10kΩ trimmer between output and the controller’s error amp (TL494 pin 1), paired with a 22kΩ resistor to ground. This sets the reference voltage; später values require recalibration. Include a 0.1µF ceramic cap across the trimmer to stabilize adjustments.
Wire the MOSFET (IRFZ44N) gate to the controller’s PWM out (TL494 pin 9), source to ground, drain to the inductor. Add a 470Ω gate resistor in series–omitting it risks gate ringing. Use thick 22AWG wires for ground connections; thinner wires introduce voltage drops under load.
Test with a 12V input, adjusting the trimmer for a 5V–24V range. Measure output ripple–aim for second-stage LC filter (10µH + 100µF). Log results; inconsistent voltages indicate loose components or exceed inductor current limits.

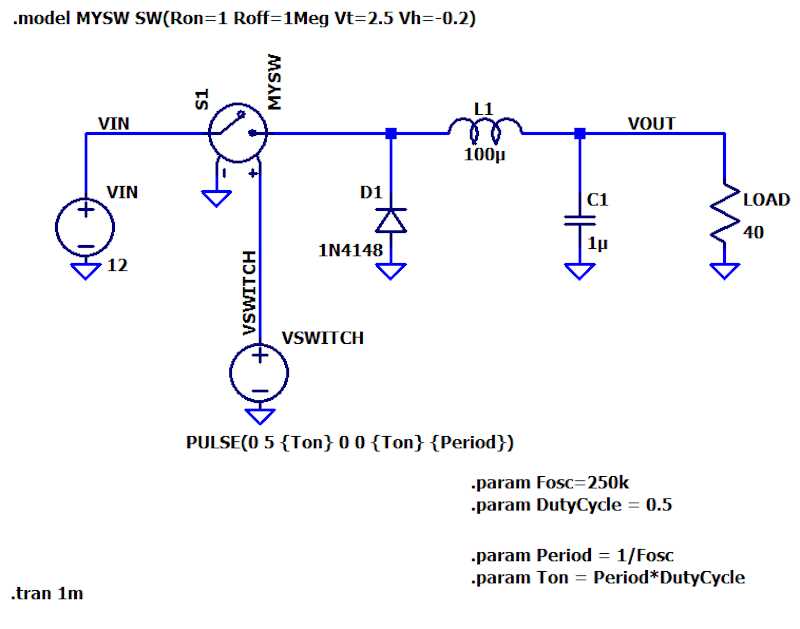

Critical Calculations for Inductor and Capacitor Selection
Determine the inductor value using the formula L = (Vin × D) / (fsw × ΔIL), where Vin is input voltage, D is duty cycle, fsw is switching frequency, and ΔIL is the allowed current ripple. For a 12V input, 5V output, 100kHz switching frequency, and 20% ripple, L ≈ 30µH. Select a higher value for tighter ripple control or lower switching frequencies.
Choose an inductor with a saturation current rating Isat ≥ Iout(max) + (ΔIL/2). For a 2A load with 40% ripple, Isat ≥ 2.4A. Ferrite cores excel in high-frequency applications, while powdered iron suits lower frequencies due to lower core losses. Verify permeability curves; materials like 3F3 or Kool Mu reduce losses at higher flux densities.
Capacitor selection hinges on output voltage ripple (ΔVout). Use C = (Iout × D) / (fsw × ΔVout). For a 5V output, 50mV ripple, and 100kHz switching, C ≥ 10µF. Low ESR (equivalent series resistance) ceramic capacitors minimize ripple; X7R or X5R dielectrics offer stable performance across temperature ranges. Polymer tantalum capacitors provide higher capacitance but degrade under surge currents.
Input capacitors must handle Iin(rms) = Iout × √(D × (1 – D)). For a 2A output at 50% duty cycle, Iin(rms) ≈ 1.41A. Bulk capacitance reduces voltage sag during transients; parallel smaller capacitors improve high-frequency response. Avoid electrolytic capacitors if vibration is a concern–use stacked ceramic or film instead.
Thermal and Frequency Considerations
Inductor core losses (Pcore) scale with fsw and flux density (B). For 3F3 material at 100kHz and 50mT, Pcore ≈ 50mW/cm³. Ensure the core dimensions dissipate heat; larger cores reduce losses but increase size. Powdered iron cores (e.g., MPP) exhibit lower losses at fsw < 200kHz but suffer from permeability drift.
Capacitor derating ensures reliability. Ceramic capacitors lose capacitance at high DC bias; a 25V-rated 10µF X7R capacitor may drop to 6µF at 12V bias. Check manufacturer curves–derate voltage by 30-50% for longevity. Film capacitors (polypropylene) tolerate higher ripple currents but occupy more space. Aluminum electrolytics excel in bulk storage but degrade under reverse voltage.
Switching frequency impacts component size and efficiency. Higher fsw shrinks inductors and capacitors but increases switching losses. For fsw > 500kHz, GaN or silicon carbide FETs reduce losses, enabling smaller passives. At lower frequencies (<50kHz), larger inductors and capacitors dominate but simplify control loop compensation.
Verify component tolerances under worst-case conditions. A ±10% inductor variation alters ripple current, while capacitor tolerance affects transient response. Use SPICE simulations to model parasitics (ESL, ESR); real-world performance may deviate due to trace inductance and thermal effects. For critical applications, prototype with the exact inductor/capacitor models before finalizing the design.
