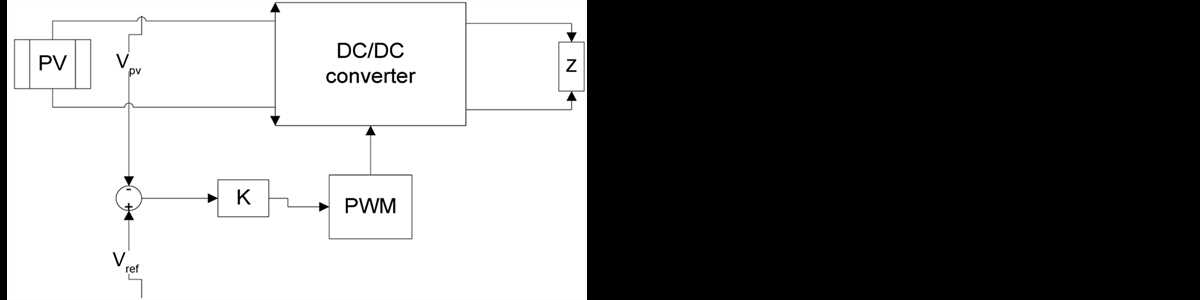

The most reliable approach begins with a Perturb and Observe (P&O) algorithm integrated into your design. Use a boost converter (e.g., LM2577) paired with a current-sensing resistor (0.1Ω for 5A systems) and a microcontroller (STM32F103 or ATmega328P) to dynamically adjust the duty cycle. Ensure the input voltage range matches your panel’s VOC (typically 18–22V for 12V nominal systems) with a 10–20% overhead for temperature fluctuations.
For rapid prototyping, adapt an off-the-shelf MPPT block like the LT3652 or TPS61094. These ICs require minimal external components: a 68μH inductor, 2× 10μF ceramic caps (X7R dielectric), and a Schottky diode (1N5822) for reverse polarity protection. The feedback loop should sample both voltage and current at 10ms intervals to avoid oscillation near the peak efficiency point.
Thermal management dictates long-term stability. Mount the MOSFET (IRFZ44N) on a 5°C/W heatsink if operating above 3A. For noise-sensitive applications, isolate the ADC inputs with a 200Ω series resistor and a 1nF decoupling cap to ground. Verify performance under load dump conditions (e.g., load switching from 10% to 90% capacity) to confirm the controller’s recovery time remains under 500μs.
Field testing requires adjusting the perturbation step size. Start with a 0.5% duty cycle increment; if oscillations exceed 10mV, reduce it to 0.2%. For low-light conditions, incorporate a LDO pre-regulator (e.g., MCP1700) to maintain MCU operation when panel output drops below 3V. Finally, log efficiency metrics across varying irradiance levels (200–1000W/m²) using a calibrated reference cell (e.g., Fraunhofer ISE standard).

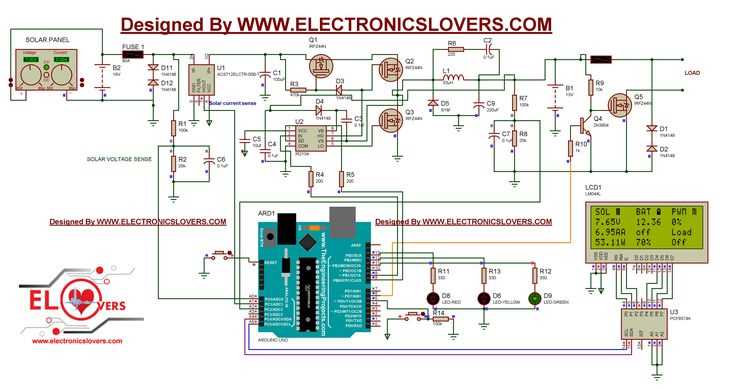

Optimizing Solar Harvesting with Smart Control Schematics
Select a synchronous buck converter for your adaptation system, ensuring a switching frequency between 50–200 kHz. Low RDS(on) MOSFETs–like Infineon’s OptiMOS series (
- Use electrolytic capacitors (Panasonic EEU-FM1V221, 220 μF, 35 V) at input/output nodes to absorb voltage spikes.
- Implement Kelvin sensing with 0.1% tolerance resistors for precise feedback (Vishay Z-Foil, TCR
- Add a snubber network (RC = 10Ω/10nF) across the switching node to suppress ringing.
- Employ a microcontroller (STM32G4) with embedded op-amps for real-time impedance matching via perturb-and-observe (P&O) algorithm at 1 kHz sampling rate.
For thermal stability, mount the board (2 oz copper, FR-4) with vias under heat-generating components–thermal resistance 95% at peak output. Log data via UART at 115,200 baud; store in an SD card formatted with FAT32 for post-analysis. Avoid ceramic capacitors at the output–they risk piezoelectric microphonics under vibration.
Essential Elements for an Optimal Solar Charge Controller Build
Start with a high-frequency switching converter–the backbone of energy conversion in photovoltaic systems. Choose between buck, boost, or buck-boost topologies based on panel voltage and battery requirements. For 12V setups, a buck converter suffices, while 24V or higher systems demand boost configurations to maintain efficiency above 95%. Ensure the converter handles input voltages 1.5x the open-circuit panel rating to prevent saturation under low-light conditions.
Integrate a microcontroller with dedicated peripherals for real-time sampling. ARM Cortex-M or ESP32 variants offer the best balance between processing speed and low standby current. Allocate at least two 12-bit ADCs: one for panel voltage and another for current, sampled at ≥10kHz to capture rapid fluctuations. Avoid software-based MPPT algorithms–they introduce noticeable lag; opt for perturb-and-observe or incremental conductance methods implemented in fixed-point arithmetic for predictable execution times.
- Current sensing: Use a 50μΩ shunt resistor with a high-side differential amplifier (e.g., Texas Instruments INA226). For currents exceeding 10A, consider Hall-effect sensors (ACS712) to isolate the control loop from high currents, though they add ≈2mV/A error.
- Voltage sensing: Employ resistive dividers with 0.1% tolerance resistors to minimize drift. Add a 1nF ceramic capacitor to filter switching noise without attenuating dynamic responses.
- Gate driver: Isolated drivers (Si8271) prevent ground loops in high-side switching. For non-isolated designs, bootstrap circuits (IR2104) work, but ensure the bootstrap diode has a reverse recovery time <50ns to avoid shoot-through.
Select MOSFETs with RDS(on) <10mΩ and Coss <500pF to minimize conduction and switching losses. Infineon OptiMOS or ST STripFET series strike the balance between cost and thermal performance. Operate at switching frequencies between 50kHz–200kHz–higher frequencies reduce inductor size but increase switching losses; below 50kHz requires bulky magnetic components.
Inductor selection hinges on ripple current and saturation margin. Target a ripple ≤20% of nominal current. For 10A systems, use a 30μH inductor with ≥15A saturation rating. Powdered iron cores (Kool Mu) offer better temperature stability than ferrites for wide input ranges. Wind the inductor with litze wire for frequencies above 100kHz to mitigate skin effect losses.
Input capacitance must suppress panel voltage ripple. Use low-ESR polymer capacitors (Nichicon UPM) in parallel with ceramic capacitors (5x 22μF, 50V X7R) to handle high-frequency transients. Place capacitors as close as possible to the MOSFET drain/source pins to reduce loop inductance, critical for minimizing voltage spikes during switching.
Battery protection requires dual-level monitoring: overcharge (≈14.6V for 12V lead-acid) and undervoltage (≈10.5V). Implement hysteresis (≥1V) to prevent oscillation. For lithium, use a dedicated BMS or a comparator with adjustable thresholds. Add a 1A fuse in series with the battery to interrupt short circuits–thermal fuses are unreliable for intermittent faults.
Software debugging demands a UART interface (115200 baud) for real-time data logging. Log panel voltage, current, and duty cycle at 10Hz intervals. Calibrate ADC readings using precise voltage references (MCP1501, 2.5V, ±0.1%). Include a watchdog timer to reset the microcontroller if the MPPT algorithm stalls–set the timeout to 1s to balance responsiveness with false triggers.
- Test under controlled conditions: Use a variable DC source (e.g., Rigol DP832) mimicking panel I-V curves. Record efficiency across input voltages from 0.5x to 1.5x nominal to identify dead zones.
- Measure thermal performance: Attach a thermocouple to the MOSFET and inductor. Expect <60°C rise under full load–excessive heat indicates poor component selection or layout issues.
- Validate stability: Introduce 10% step changes in input voltage. The system should reacquire optimal conditions within 50ms without overshooting the panel voltage or oscillating.
Step-by-Step Assembly of a Solar Charge Optimizer Buck Converter
Gather components before soldering: Select a 100V Schottky diode (e.g., SB5100), a 30A N-channel MOSFET (IRFP4668), and a 47μH inductor with at least 5A saturation current. Use a 22μF 50V ceramic capacitor for input and output filtering. Verify the microcontroller (STM32F103) has PWM outputs configured for 20-100kHz.
Assemble the switching stage first: Mount the MOSFET on a heatsink rated for 5W dissipation. Connect the gate to the microcontroller via a 10Ω gate resistor. Solder the inductor to the MOSFET drain, ensuring minimal trace length to reduce parasitic inductance. Attach the Schottky diode from the inductor’s output to ground, cathode facing the output.
Input/output conditioning: Place the 22μF ceramic capacitor within 5mm of the MOSFET source and diode anode. Add a 100nF bypass cap directly on the microcontroller’s VDD pin. For voltage sensing, use a 100kΩ resistor divider with 1% tolerance–this scales the panel voltage to 3.3V for the ADC.
Route feedback carefully: The output voltage divider should use 47kΩ and 10kΩ resistors to scale the battery voltage to 3.3V. Connect this to the microcontroller’s ADC pin with a 10nF filter capacitor. Ensure the ground reference for sensing ties back to the microcontroller’s ground plane, not the power ground.
Isolate control and power grounds: Use a star grounding topology. Connect the microcontroller’s ground to the power stage ground at a single point–preferably near the input capacitor. Avoid daisy-chaining grounds to prevent noise coupling into the feedback loop.
Program the algorithm: Implement perturb-and-observe logic with 100ms intervals. Adjust PWM duty cycle in 0.1% increments based on voltage and current readings. Set PWM frequency to 50kHz for inductors below 50μH. Include a soft-start routine to ramp duty cycle from 0% to target over 500ms.
Test incrementally: Apply a bench supply set to 15V and 1A limit. Verify the output voltage stabilizes at 12V (±0.5V). Monitor MOSFET temperature–it should not exceed 60°C under full load. Use an oscilloscope to check for ringing on the gate; add a 1kΩ resistor in series if overshoot exceeds 5V.
Final calibration: Tune the voltage divider ratios using a precision multimeter. Adjust the perturb step size (e.g., 0.05%) until load regulation is within 1%. If efficiency drops below 92%, recheck diode forward voltage drop and inductor core losses.
Microcontroller Selection for Solar Harvesting Optimization Logic
For implementing sunlight-to-energy conversion algorithms, prioritize microcontrollers with dedicated hardware multipliers and fast analog-to-digital converters (ADC). The Texas Instruments MSP430FR2433 stands out with its 12-bit sigma-delta ADC sampling at 200 ksps and an integrated 16×16 hardware multiplier, reducing processor load during real-time adjustments. Alternatively, STMicroelectronics’ STM32G0 series offers a 12-bit ADC with 2.5 Msps sampling, ideal for applications requiring sub-millisecond response times to irradiance fluctuations.
Critical Performance Metrics Comparison
| MCU Model | ADC Resolution (bits) | ADC Sample Rate | Hardware Multiplier | Flash (KB) | Active Current (µA/MHz) |
|---|---|---|---|---|---|
| MSP430FR2433 | 12 (sigma-delta) | 200 ksps | 16×16 | 15.5 | 100 |
| STM32G031 | 12 (SAR) | 2.5 Msps | 32×32 | 64 | 60 |
| PIC18F46K22 | 10 | 1 Msps | None (software) | 64 | 200 |
| AVR128DA28 | 12 (SAR) | 1 Msps | None | 128 | 40 |
Ensure the selected microcontroller supports simultaneous sampling of input voltage and current with less than 10 µs skew between channels. The STM32G0 series includes dual ADCs capable of synchronized conversions, while the MSP430FR24xx family requires external multiplexing for parallel measurements. For perturb-and-observe methods, prioritize MCUs with low-latency interrupt handling–STM32G0 achieves 6-cycle latency, compared to MSP430’s 12-cycle delay.
Cost-sensitive deployments benefit from Microchip’s AVR DA family, offering 12-bit ADCs and 4KB SRAM at sub-$1 pricing, though lacking hardware multipliers. For linear regression-based algorithms, allocate at least 32KB flash (STM32G031 or PIC18F46K22) to store historical irradiance data. Exclude 8-bit MCUs for frequency-modulated control schemes–their limited arithmetic precision introduces >2% efficiency loss under partial shading conditions.
