Start by matching the amplifier’s terminals to your vehicle’s factory wiring harness. The RCA inputs (labeled Front/Rear) should connect to preamp outputs from your head unit. Use shielded cables for signal integrity–standard 5-meter lengths work without noise issues in most vehicles. Ground the amplifier directly to bare metal, preferably near the mounting location, using at least 4 AWG wire. Avoid daisy-chaining grounds or attaching to painted surfaces.
Power cables require proper sizing: 4 AWG for runs under 5 meters, 2 AWG for longer distances or higher current demands. Install a fuse within 18 inches of the battery–use a 60A fuse for this model if running a single power cable. Remote turn-on wire (typically blue/white) connects to the head unit’s remote output or an aftermarket harness adapter. Verify voltage at this connection (12V when the system powers on) to prevent damage to the amplifier’s internal circuitry.
Speaker outputs (Front +/-, Rear +/-) follow standard polarity. For bridged mode, combine Front Left (+) with Rear Left (-) and Front Right (+) with Rear Right (-) using 8-14 AWG wire, depending on subwoofer impedance. Never bridge 2-ohm loads unless specified–this unit supports 4 ohms minimum bridged. Capacitors (0.5-1.5 Farad) help stabilize voltage drops during peak bass but aren’t mandatory for basic setups.
After installation, set gains with a multimeter: adjust while playing a 1 kHz test tone at -10dB. Target 0.5V from preamp outputs (RCA) and 4-5V at speaker terminals (for 1V RCA input). Crossovers default to “full-range”–adjust low-pass (for subs) or high-pass (for woofers) as needed. Bass boost on this model peaks at 45 Hz–set conservatively (
Troubleshooting starts with voltage checks at the amplifier’s +12V and ground terminals (should match battery voltage). No sound often indicates incorrect remote turn-on or blown internal fuses–located near the power terminals. Whining noises usually stem from ground loops: relocate the ground connection or add a ground loop isolator to RCAs.

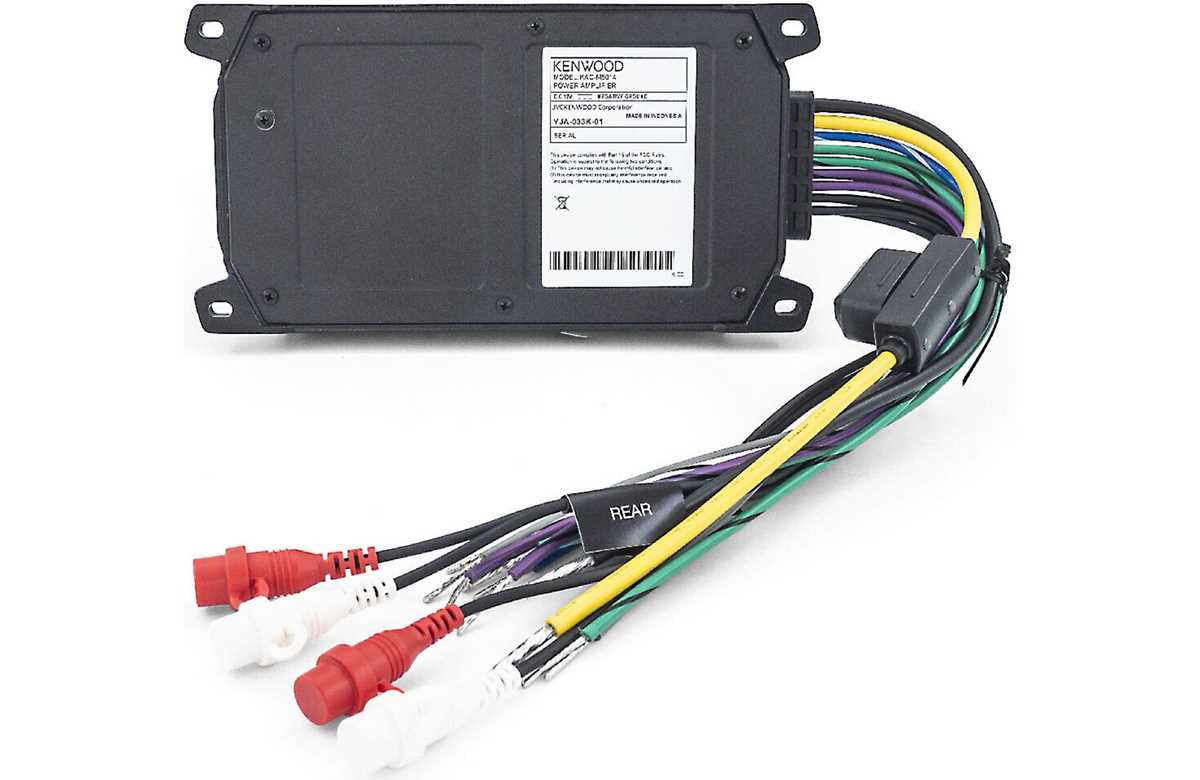

Guide to Connecting the K Series Compact Amplifier
Start by identifying the power wires: the red terminal (+12V) connects to the car battery’s positive lead, while the black (ground) attaches directly to the vehicle chassis using an 8-gauge cable for optimal conductivity. Ensure the fuse–typically a 30A inline–is positioned within 18 inches of the battery to prevent short circuits. For signal inputs, locate the RCA jacks (labeled “Input”) and match them to the head unit’s preamp outputs; use shielded cables to minimize interference from the alternator or ignition system.
Speaker Terminal Configuration
| Terminal | Wire Color | Purpose | Recommended Gauge |
|---|---|---|---|
| Front Left (+) | White | Positive speaker lead | 16 |
| Front Left (–) | White/Black | Negative speaker lead | 16 |
| Front Right (+) | Gray | Positive speaker lead | 16 |
| Remote Turn-On | Blue/White | Activation trigger | 18 |
Test connectivity before finalizing: switch the ignition to auxiliary mode and measure voltage at the amplifier’s power terminals–expect 11.5V to 14.4V. If readings fluctuate, verify the ground connection isn’t shared with high-draw accessories like power seats, which can introduce noise. For systems bridged into mono, combine the left and right channels by connecting the front-left negative and front-right positive terminals to a single subwoofer; adjust the gain to 50% of maximum to prevent clipping.
Mapping Critical Audio Amplifier Connections
Begin by locating the Battery (+) terminal–marked with a bold red cable clamp. Connect this directly to the car’s 12V constant power source, ensuring a secure 8-gauge or thicker wire to handle the 60A fuse rating. Avoid splicing into accessory circuits; voltage drop under load will distort signal integrity.
Ground and Speaker Terminals
Attach the amplifier’s chassis ground (black bolted eyelet) to an unpainted, bare metal surface within 18 inches of the unit. Use a 4-gauge cable to prevent ground loop hum. For speaker outputs, match the impedance: 4-8Ω on the front/rear channels. Cross-check polarity–swapped connections invert soundstage imaging.
Signal input comes via RCA jacks labeled Front In and Rear In. Route these from the head unit using shielded cables, keeping them 12+ inches away from power wires to reduce alternator whine. The remote turn-on (blue/white) must draw 0.5A or less; connect it to the stereo’s antenna control or a relay-triggered circuit to avoid frying the onboard processor.
Step-by-Step Power Wire Installation for Your Car Audio Booster
Select a 4-gauge power cable for optimal current delivery–thinner wires risk voltage drops under heavy load. Route the cable from the battery through the vehicle’s firewall, avoiding sharp edges or moving parts. Use a grommet to protect the wire where it passes through metal.
Secure the cable along the vehicle’s frame with zip ties every 12 inches to prevent sagging or interference with pedals, steering columns, or exhaust systems. Leave extra slack near the installation point to simplify future adjustments. Ground the amplifier to a bare-metal chassis point within 18 inches of the unit, scraping away paint for a solid connection.
- Attach the power cable’s fuse holder no more than 18 inches from the battery terminal–this ensures protection before the current reaches the vehicle’s interior.
- Strip ½ inch of insulation from the wire ends, crimp on ring terminals, and secure with a wrench to avoid loose connections.
- Test for resistance with a multimeter–values above 1 ohm indicate corrosion or loose grounding, requiring rework.
Speaker Wire Configuration for Optimal Amplifier Performance
Select 16-gauge oxygen-free copper (OFC) cables for 4-ohm loads under 50 watts RMS to minimize resistance and signal loss. For 75-150 watts RMS, upgrade to 14-gauge OFC to prevent voltage drop across longer runs exceeding 12 feet. Twisted pair configurations reduce electromagnetic interference by up to 30% compared to parallel runs, critical in environments with high-powered electronics.
Terminate connections with gold-plated spade lugs rather than pin connectors or bare wire to ensure corrosion resistance and consistent conductivity. Crimp connectors firmly using a dedicated tool, then solder for mechanical strength–avoid relying solely on crimping, which can degrade over time under thermal cycling. Heat-shrink tubing should cover the entire joint to prevent short circuits from vibration or accidental contact.
Match impedance precisely: connect a single 4-ohm speaker per channel, or wire two 8-ohm drivers in parallel to achieve the amplifier’s rated 4-ohm stability. Avoid bridging unless the amplifier explicitly supports it at the spec’d impedance–bridging two channels into a 2-ohm load can exceed thermal limits within 15 minutes at full power.
Route cables away from power lines and ground loops; maintain at least 6 inches of separation from RCA cables and alternator wiring to prevent induced noise. When routing through vehicle panels, use nylon grommets to protect insulation from sharp edges–chafed cables can create intermittent shorts that manifest as distortion or channel imbalance.
Verify polarity at both the amplifier and speaker ends using a 9V battery test: positive terminal should produce outward cone movement when connected. Reversing polarity on one speaker causes phase cancellation, reducing bass output by up to 6dB and creating a “hollow” soundstage. Label each wire at both ends during installation to simplify future troubleshooting.
For bi-amping setups, dedicate a separate channel pair to midrange/tweeter drivers with dedicated crossovers. Use 12-gauge wire for these higher-frequency signals, as thinner wires increase capacitance and roll off response above 10kHz. Always confirm crossover points match the amplifier’s frequency response curves to prevent midrange drivers from operating outside their designed bandwidth.
Diagnosing Frequent Hookup Mistakes in Amplifier Installations
Measure voltage at the power terminals before connecting the unit to avoid damaging internal components. Use a multimeter set to 20VDC and check for 11–14V between the positive terminal and chassis ground. Anything outside this range indicates a faulty power supply or incorrect fuse rating–common issues when batteries degrade or alternators fail.
Verify speaker impedance matches the output specifications listed in the manual. Most installations default to 4-ohm loads, but bridging configurations halve this value. Connecting lower impedances risks overheating, leading to thermal protection shutdowns. Use a multimeter to confirm impedance before attaching cables; mismatches often stem from mislabeled wires or incorrect bridging.
Inspect signal leads for loose connections or short circuits. RCA inputs should click securely into the amplifier’s jacks, and bare wires must be tightly crimped in screw terminals. A weak or intermittent signal typically causes distortion, which users often misdiagnose as speaker failure. Remove the cover and tug lightly on each wire–any movement suggests a poor connection requiring re-termination.
Check for ground loops if hum or buzz persists after installation. Disconnect all source inputs and reconnect one at a time while listening for noise. If the issue disappears with a specific input removed, the ground loop originates from that source. Solutions include relocating the ground wire closer to the amplifier or adding a ground loop isolator in the signal path.
Common mistakes when integrating with aftermarket systems include reversed polarity and incorrect remote turn-on connections. Polarity errors result in phase cancellation, reducing output volume and bass response. Remote turn-on wires must carry 12V from the head unit; using accessory power instead causes the amplifier to stay on permanently, draining the battery. Test with a 12V test light–if the light doesn’t illuminate when the head unit powers on, the trigger wire is misrouted.
Overheating is frequently caused by inadequate airflow or mounting errors. Ensure the amplifier isn’t enclosed in tight spaces or stacked against other heat-generating components. Thermal shutdowns occur when temperatures exceed 85°C; relocate the unit or add cooling fans if this happens repeatedly. Dust accumulation on internal heatsinks also traps heat–clean with compressed air during routine maintenance.
- Fuses blow repeatedly: Inspect for shorted speaker wires or incorrect fuse ratings.
- No sound from one channel: Swap speaker wires between channels to isolate the fault.
- Amplifier powers on but no audio: Confirm remote turn-on voltage and RCA signal continuity.
- Distortion at high volumes: Check for clipping by reducing gain settings incrementally.
- Intermittent operation: Test for loose power connections or corroded terminals.
