Begin with a Hall-effect sensor like the Allegro ACS712 or DRV5055 for robust, linear field detection. These components deliver 185 mV/mT sensitivity with a 3.3V–5V supply, ideal for low-power applications. Connect the sensor’s VCC pin to a regulated voltage source–capacitors (100 nF ceramic) near the power pins stabilize readings against noise. Ground the sensor’s GND directly to the board’s ground plane to minimize interference.
For analog output systems, amplify the signal using an op-amp like the TLV2371. Configure it in non-inverting mode with a gain of 10 (feedback resistor: 10 kΩ, input resistor: 1 kΩ) to boost resolution. Add a low-pass RC filter (1 kΩ resistor + 10 µF capacitor) at the op-amp’s output to suppress high-frequency fluctuations. Ensure the op-amp’s supply voltage matches the sensor’s range to avoid clipping.
Digital interfaces require an ADC with 12-bit resolution or higher. The ADS1115 (I2C) or MCP3008 (SPI) are reliable choices, offering 2-volt reference voltages for precise conversions. Connect the sensor’s output to the ADC’s input with a 10 kΩ series resistor to protect against voltage spikes. Calibrate the system by measuring zero-field offsets–subtract this value from subsequent readings to improve accuracy.
Shield sensitive traces with a grounded copper pour on the PCB’s top and bottom layers. Route signal paths away from high-current lines and switching components (DC-DC converters, microcontrollers). For environmental correction, integrate a thermistor (e.g., NTC MF52) to compensate for temperature drift–use a lookup table or polynomial curve-fitting in firmware. Test the assembly with a known field strength (1 Gauss from a small neodymium magnet at 10 mm) to verify linearity.

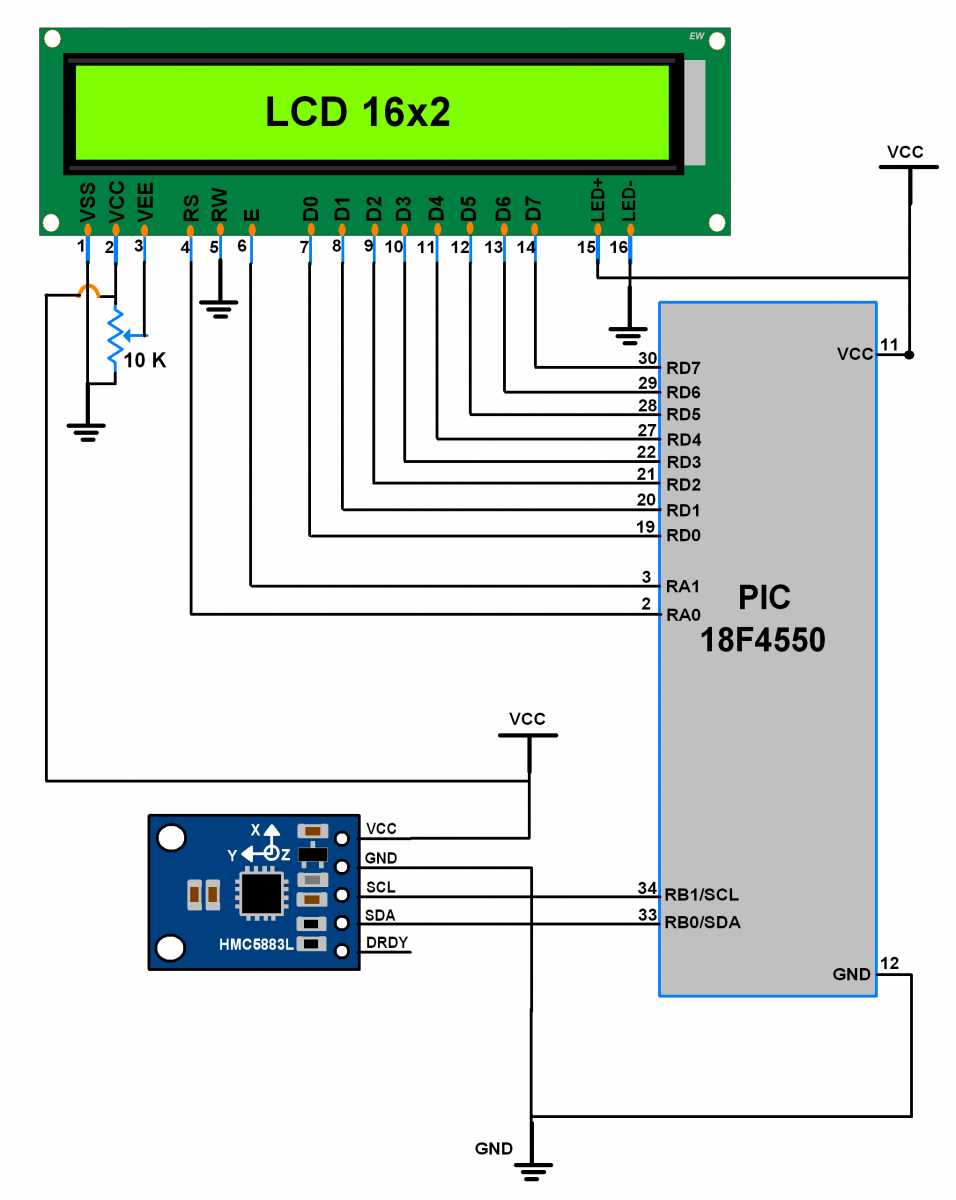

Designing a Precision Magnetic Field Sensor Schematic
Begin with a Wheatstone bridge configuration using anisotropic magnetoresistive (AMR) elements–Honeywell HMC1001 or equivalent–to detect field variations down to 20 nT. Provide a stable ±5V supply via a low-noise LD1117V50 regulator, bypassed with 0.1µF and 10µF tantalum capacitors at the sensor VDD and VSS pins. Route differential outputs through a precision instrumentation amplifier such as the INA125, configured for a gain of 100, to reject common-mode noise while preserving signal integrity.
Ground reference planes beneath sensor traces must be continuous and unbroken to minimize electromagnetic interference. Use a star grounding topology: connect all ground returns (sensor, amplifier, analog-to-digital converter) to a single point near the power supply’s negative terminal. Avoid daisy-chaining grounds, as it introduces voltage gradients detrimental to low-level measurements. For shielding, enclose the assembly in a mu-metal case with a 0.8 mm thickness, ensuring no seams align with sensitive axes.
Calibration requires a Helmholtz coil system generating a known field–typically 50 µT with 0.1% uniformity. Compensate for temperature drift by embedding a thermistor (Vishay NTCLE100E3) adjacent to the AMR sensor. Feed its output into an ADC channel for real-time correction via firmware. For dynamic range extension, introduce a feedback coil wound around the sensor, driven by a DAC output adjusted to null the external field–this increases resolution for weak signals without amplifier saturation.
Digitize outputs using a 24-bit delta-sigma ADC (e.g., AD7793) with a 10 Hz data rate to avoid aliasing. Implement a third-order anti-aliasing filter with a 5 Hz cutoff before the ADC, using a Sallen-Key topology. Store coefficients in firmware for digital post-processing: apply a 10-tap finite impulse response filter to suppress 50/60 Hz power line noise, followed by a least-squares fit to remove baseline drift. Validate performance by exposing the setup to a rotating 10 µT field; total error should not exceed ±0.5% over a 0–70°C range.
Key Components for a Basic Magnetic Field Sensor Design
Select a Hall-effect sensor (e.g., Allegro A1324 or Texas Instruments DRV5055) with a sensitivity range of 1–5 mV/Gauss and a linear output within ±100 Gauss. Ensure the chosen component operates on a 3.3V–5V supply to match common microcontroller logic levels while avoiding saturation in typical Earth-field measurements (≈0.25–0.65 Gauss). Verify the sensor’s bandwidth–opt for DC to 10 kHz for static field detection or 100 Hz–1 MHz for dynamic applications like gear-tooth sensing.

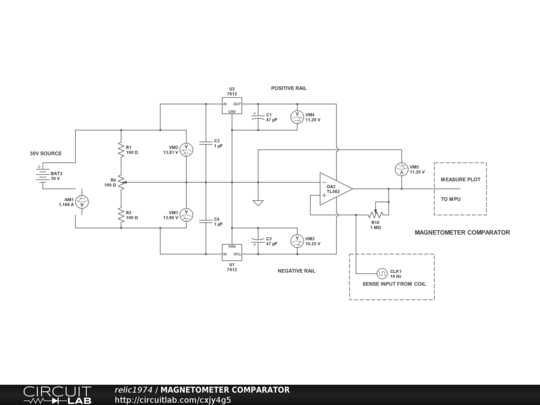

Low-noise analog front end requires a precision operational amplifier (op-amp) such as the OPA333 or AD8605, configured for a gain of 10–100× to boost weak signals without introducing drift (). Include a 2.5V reference IC (e.g., REF3325) to establish a stable midpoint for single-supply amplifiers. For filtering, pair a 10–100 nF ceramic capacitor across the sensor’s output with a 1 kΩ resistor in series to form a low-pass filter cutting off above 1 kHz, reducing high-frequency noise from nearby switching regulators or PWM signals.

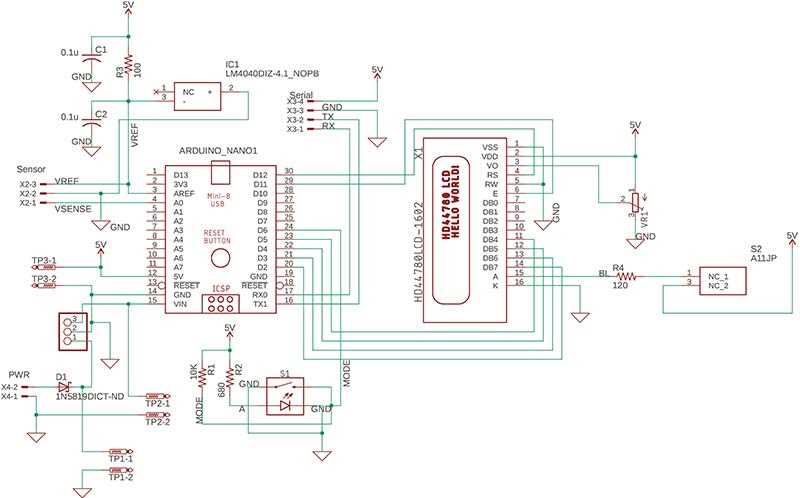

Integrate a microcontroller with a 12-bit or higher ADC (e.g., STM32F103 or ATmega328P) sampling at ≥1 kSPS to capture field variations accurately. Use twisted-pair wiring for sensor connections, shielding with braided copper grounded at a single point to block RF interference. Calibrate offset errors by rotating the assembly in a zero-field chamber or applying a known Helmholtz coil-generated field (±1 Gauss) at startup, storing correction values in EEPROM. For battery-powered units, add a low-dropout regulator (e.g., TPS79933) with 60 µA quiescent current to extend runtime.
Integrating a Hall Effect Sensor for Magnetic Field Measurements
Begin by selecting a linear Hall effect sensor with a sensitivity of at least 5 mV/G, such as the Allegro A1302, to ensure precise analog output proportional to magnetic flux density. Connect the sensor’s VCC pin to a stabilized 5V supply via a 100nF decoupling capacitor placed within 2mm of the pin to suppress high-frequency noise. The GND pin must tie directly to the system ground plane, avoiding shared traces with inductive loads that induce transient voltage spikes.
Route the sensor’s output (VOUT) through a shielded twisted-pair cable to an instrumentation amplifier like the AD8221 with a gain of 100, compensating for typical Hall sensor output in the 2.5V–3.5V range. Apply a low-pass RC filter (R=1kΩ, C=100nF) on the amplifier output to eliminate 50/60Hz interference and higher harmonics from power lines. For dynamic measurements, sample the filtered signal at ≥1kHz using a 16-bit ADC to capture subtle field variations down to 1μT.
- Position the Hall sensor at least 5cm from ferromagnetic materials to prevent distortion of the measured field.
- Use a temperature-compensated reference voltage for VOUT if operating across 0°C–70°C; the A1302’s sensitivity drifts by –0.05%/°C.
- Avoid placing the sensor near switching regulators; their AC fields can couple into the output at 20–100kHz, requiring additional filtration.
- For 3-axis configurations, align each sensor orthogonally (±0.5° tolerance) and mount on a non-conductive, diamagnetic fixture (e.g., FR4 or polycarbonate).
Calibrate the setup by exposing the sensor to a known homogeneous field generated by a Helmholtz coil at 10μT increments. Record the ADC readings and derive a third-order polynomial correction curve to linearize the response. Update the polynomial coefficients in firmware if environmental conditions (e.g., temperature, supply voltage) vary by more than ±2%. Store calibration data in EEPROM to avoid recalibration after power cycles.
Power Supply Stability and Interference Mitigation for Precision Sensors
Use a low-dropout regulator (LDO) with a noise density below 30 µV/√Hz for frequencies above 10 Hz. Linear Technology’s LT3045 delivers 0.8 µVRMS noise from 10 Hz to 100 kHz at 200 mA, outperforming switching regulators by an order of magnitude in this band. Bypass the LDO output with a 10 µF ceramic capacitor (X7R dielectric) placed within 2 mm of the load to suppress high-frequency transients.
Ground return paths should follow a single-point star topology at the sensing element’s analog reference pin. Any shared impedance between analog and digital grounds injects switching noise; maintain a minimum 5 Ω separation between the two domains. A 1 Ω series resistor in the analog supply path, combined with a 1 µF tantalum capacitor at the sensor, forms a pole at ~160 kHz that attenuates digital hash by 40 dB.
Ferrite beads rated for 1 GHz impedance (e.g., Murata BLM18PG121SN1) inserted in series with the supply line reject conducted emissions above 1 MHz. Pair each bead with a 100 nF ceramic capacitor on the downstream side to prevent resonance overshoot; the bead’s impedance must exceed 600 Ω at the target frequency to ensure adequate damping.
Thermal drift on the reference voltage can exceed 1 ppm/°C. Choose a shunt reference like the ADR4540B, which specifies 2 ppm/°C max, and place it inside a copper pour tied to the analog ground plane to improve thermal coupling. Avoid switching references–they introduce sub-µs glitches that no filter can fully remove.
For battery-powered deployments, connect Li-ion cells through a TPS62743 buck converter programmed to 2.5 V with a 2.2 MHz switching frequency. The converter’s internal soft-start of 1.2 ms prevents inrush currents from disturbing adjacent channels. Add a 22 µH ferrite-core inductor (Coilcraft LPS5030) and two 4.7 µF input/output capacitors to meet CISPR Class B conducted emissions limits.
Shield susceptible traces with at least two vias per cm connecting top and bottom ground planes; each via reduces radiated coupling by 6 dB at 100 MHz. Keep high-impedance nodes shorter than 8 mm to limit capacitive coupling–the parasitic capacitance to a nearby trace can exceed 0.1 pF/mm, translating to measurable crosstalk above 1 MHz.
