To construct a reliable photoplethysmographic sensor, begin with an infrared LED (940 nm) and a red LED (660 nm) paired with a photodetector–typically a photodiode–positioned opposite the light emitters. The spacing between components should not exceed 10-12 mm to avoid signal attenuation, with the detector angled at 90° to minimize ambient interference. A current-limiting resistor (330 Ω) must be in series with each LED to prevent thermal damage while maintaining a forward current of 10-20 mA.
The operational amplifier (op-amp), such as the LM358 or TL072, should amplify the photodiode’s output with a gain of 100-1000, depending on signal strength. A 0.1 µF decoupling capacitor across the op-amp’s power supply pins stabilizes the output by filtering high-frequency noise. For DC offset removal, a 10 µF electrolytic capacitor in series with the input stage eliminates baseline drift, ensuring only AC pulsatile components are processed.
For microcontroller integration, route the amplified signal to an analog-to-digital converter (ADC) with at least 10-bit resolution. Ensure the sampling rate is ≥50 Hz to capture arterial pulsations accurately. The firmware must calculate the ratio of ratios (R)–derived from the red and infrared PPG signals–then apply the empirical calibration curve (typically R = 0.4 → ~100% SpO₂, R = 1.0 → ~85% SpO₂) to estimate oxygen saturation. Avoid common pitfalls: excessive finger pressure distorts waveforms, while ambient light leaks corrupt measurements–use black silicone tubing to shield the sensor assembly.
Power the device with a 3.3V or 5V regulated supply, isolating the analog and digital grounds to prevent cross-talk. For battery-operated designs, a low-dropout regulator (LDO) extends runtime while maintaining stable voltage. Test the prototype under controlled conditions–SpO₂ values should stabilize within 5-10 seconds on a healthy subject, with deviations ±2% compared to commercial devices like the Masimo Radical-7.

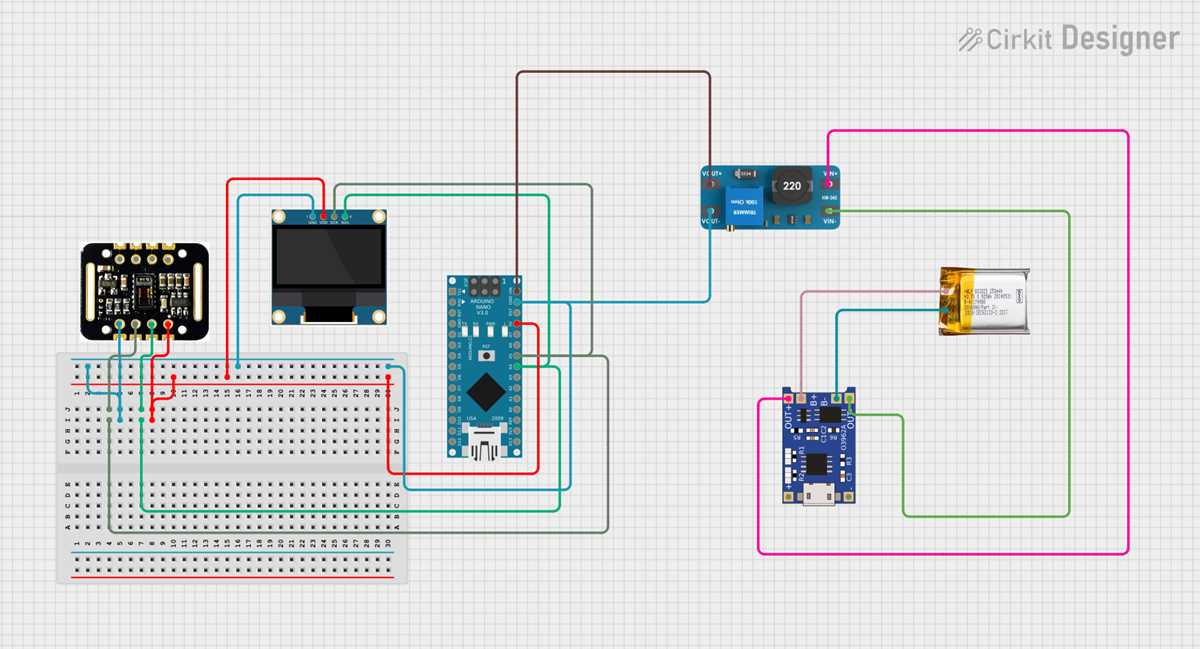

Building a SpO₂ Measurement Schematic
Use a red LED (660 nm) and an infrared LED (940 nm) as light sources, pairing them with a single photodiode (e.g., BPW34) for signal detection. Position the LEDs at a 90-degree angle relative to the photodetector to minimize direct light leakage, ensuring the detected signal originates primarily from arterial blood modulation. Drive the LEDs with alternating current at 500 Hz–1 kHz using a microcontroller (like ATmega328P) to prevent ambient light interference and enable synchronous detection.
Amplify the photodiode’s output with a transimpedance amplifier (OPA340 or similar) set to a gain of 10⁶ V/A, followed by a bandpass filter (0.5–10 Hz) to isolate the pulsatile component. Convert the analog signal to digital via a 10-bit ADC (minimum 1 kS/s sampling rate) and process it in firmware: apply a moving-average filter (window size: 20 samples) to smooth noise, then extract AC and DC components for each wavelength using Fast Fourier Transform or peak detection. Calculate oxygen saturation with the ratio R = (ACred/DCred) / (ACIR/DCIR) and reference an empirical calibration curve (e.g., SpO₂ = 110 – 25R for R ≤ 1.0).
Critical Component Selection
Opt for low-noise operational amplifiers (e.g., LTC1050) to avoid signal degradation; avoid generic LM358 variants. The photodiode’s spectral response must cover 600–1000 nm–verify datasheets. Use Schottky diodes (1N5817) to clamp LED driver voltages below 1.5 V, preventing reverse breakdown. Decouple all ICs with 0.1 µF ceramic capacitors placed within 2 mm of power pins to suppress high-frequency noise. For microcontroller timing, employ an external 8 MHz crystal oscillator with 22 pF load capacitors for stability.
Minimize cable lengths between sensors and the board to 5 cm to reduce EMI. Shield the photodiode with a grounded copper foil enclosure if operating in high-RF environments. Test the assembled unit on a finger phantom (clear silicone, 1.5 mm thick) with known optical properties before human trials–verify the signal’s pulsatile waveform matches arterial pulsations. Store calibration coefficients in EEPROM to compensate for LED aging (replace every 10,000 hours of use).

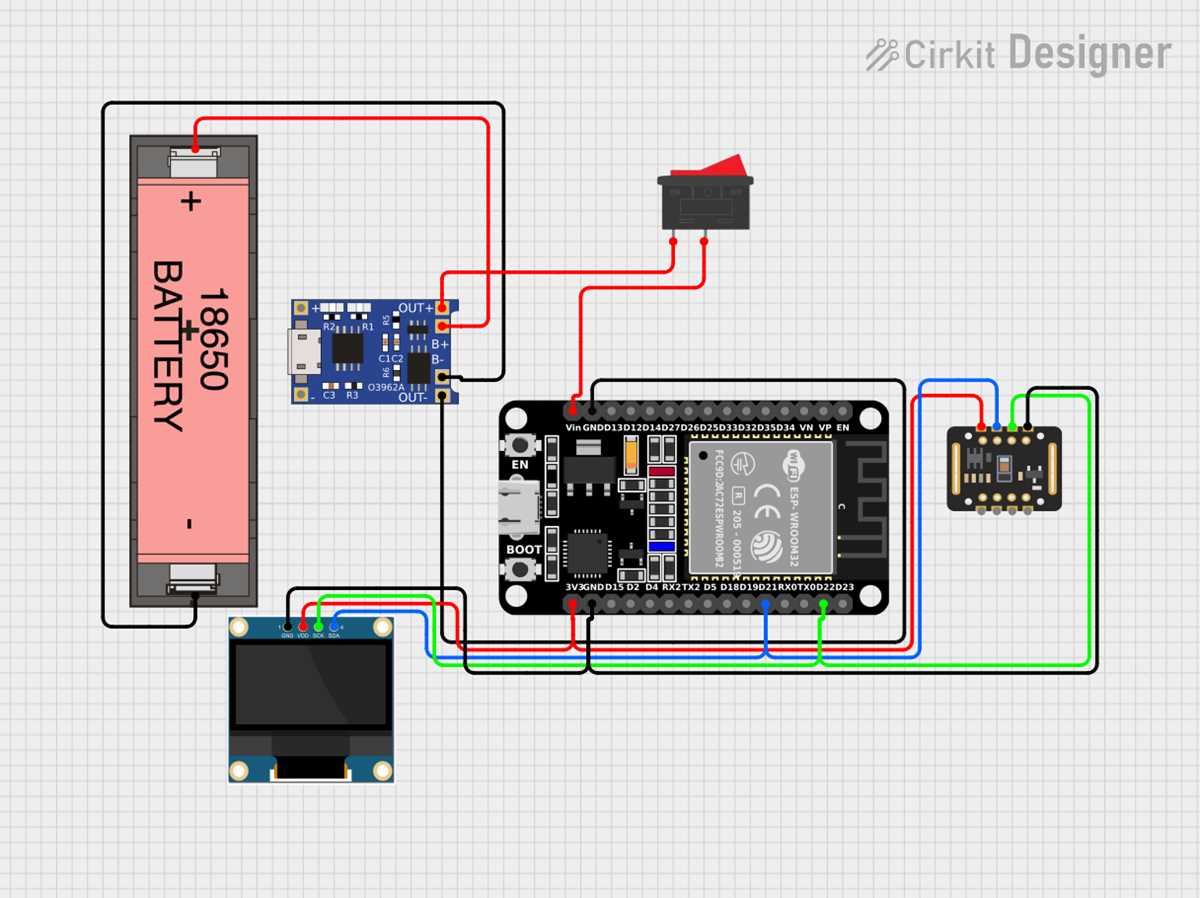

Critical Elements in a Blood Oxygen Monitoring System
Select a high-sensitivity photodiode with a spectral range of 600–1000 nm to detect red and infrared light absorption accurately. The TEMD5110FX01 from Vishay or equivalent ensures consistent performance under varying perfusion indices. Pair it with a precision operational amplifier like the OPA388 for low-noise signal conditioning; its 10 µV input offset voltage minimizes baseline drift during prolonged measurements.
Light Emitting Sources and Drive Requirements
- Use dual-wavelength LEDs: 660 nm (red) and 940 nm (infrared) for SpO₂ calculation. Nichia’s NSSHR700B or OSRAM’s SFH 4246 provide stable output with minimal thermal drift.
- Current drivers must maintain
- Pulse width modulation (PWM) should operate at 1 kHz with a 1:4 duty cycle to reduce power consumption while preserving signal integrity.
Implement a microcontroller with dedicated ADC channels (12-bit minimum) to sample LED return signals. The STM32L4 series integrates analog front-end circuitry, reducing external component count. Configure sampling at 100 Hz to capture arterial pulsations while avoiding aliasing from motion artifacts. Use the device’s hardware multiply-accumulate unit for real-time ratio-of-ratios computation–normalize red/infrared absorptions against stored calibration curves.
- Filter signals with a 0.5–4 Hz bandpass to isolate pulsatile components; the MAX7490 achieves 40 dB stopband rejection at 50/60 Hz.
- Consume
- Validate SpO₂ readings against arterial blood gas measurements (±2% accuracy required) using disposable finger sensors; conductive adhesives must ensure
- Isolate analog and digital grounds with a star topology to prevent ground loops; the LT1763 linear regulator provides 3.3 V analog supply with 30 µVrms noise.
Step-by-Step Wiring of Light Emitting Diode and Photosensor Assembly
Position the infrared LED and red LED at a 90-degree angle relative to the photodetector to minimize direct light interference. Use a 5 mm gap between components for optimal signal clarity.
- Anode (+) of red LED → Series resistor (220 Ω) → Microcontroller digital pin (e.g., Arduino D3).
- Anode (+) of IR LED → Series resistor (150 Ω) → Adjacent microcontroller pin (e.g., Arduino D5).
- Connect cathodes (-) of both LEDs to ground via a shared return path.
Route the photodetector’s output through a 10 kΩ pull-down resistor to stabilize readings before connecting it to an analog input (e.g., Arduino A0). Solder all joints with 60/40 rosin-core tin for reliability.
Shield the assembly with conductive foam tape and encase it in a polyethylene sleeve to block ambient light. Test each stage with a multimeter; forward voltage for red LED should read ~1.8 V, IR ~1.2 V.
- Pulse the red LED at 50% duty cycle for 10 ms intervals; monitor photodetector output.
- Switch to IR LED under identical timing, comparing signal amplitude variations.
- Adjust resistor values if raw analog readings exceed 800 mV or fall below 200 mV.
Integrate a 100 nF decoupling capacitor between Vcc and ground near the photodetector to filter high-frequency noise. Verify wiring polarity: reverse-mounted components will not function.
Prototype on a solderable breadboard before final assembly–trace paths with 0.1 mm enameled copper wire for compactness. Calibrate baseline readings in darkness with LEDs off; expected idle voltage: ~0.05 V.
For wearable applications, reduce power consumption by replacing fixed resistors with digital potentiometers (e.g., MCP4131) controlled via SPI. Validate all connections under controlled lighting variations before field deployment.
Microcontroller’s Critical Function in Biosensor Data Interpretation
Select an MCU with a dedicated ADC module offering at least 12-bit resolution to capture subtle variations in photoplethysmographic readings–avoid models requiring external converters as they introduce latency. Prioritize controllers featuring low-power modes to extend battery life in portable monitoring devices, where current draw should not exceed 5 mA during active processing phases. STM32F4 or PIC24 series are optimal choices, combining built-in DMA channels with efficient instruction sets to offload CPU overhead during continuous sampling at 1 kHz.
Implement noise reduction algorithms directly on-chip to prevent distortion: apply a 4th-order Butterworth filter with cutoff frequencies between 0.5 Hz and 4 Hz, followed by moving average smoothing over 5 samples. Store coefficients in flash memory to minimize RAM usage, ensuring real-time processing without frame drops. For environments with electromagnetic interference, integrate adaptive filtering using recursive least squares–this requires an MCU with hardware floating-point support to maintain precision below ±1% oxygen saturation error.
Structure the firmware to handle dual-wavelength sensor inputs concurrently: allocate separate timer-driven interrupts for red and infrared LED drivers, synchronize data collection via direct memory access, and merge datasets immediately in RAM for ratio calculation. Use lookup tables precomputed during calibration to map raw absorption ratios to SpO₂ values–this eliminates division operations that consume excessive clock cycles. For multi-parametric devices, ensure the MCU supports synchronized triggering of auxiliary sensors (e.g., temperature or accelerometer) to prevent timestamp misalignment.
Optimize power sequencing by gating LED drivers with PWM signals, cycling them at 100 Hz with a 10% duty cycle to balance signal quality and energy consumption. Validate MCU performance by stress-testing with simulated arrhythmias and low-perfusion scenarios–average execution time for complete signal conditioning should not exceed 2 ms per cycle. Include watchdog timers and CRC checks on stored calibration data to prevent firmware corruption during field use.
