Begin by identifying the critical components in your schematic: AND, OR, NOT, NAND, NOR, and XOR gates. Each performs a distinct operation, transforming inputs into outputs based on fundamental algebraic rules. For instance, an AND gate with two inputs produces a high output only when both inputs are high, aligning with the multiplication principle in binary algebra. Similarly, an OR gate delivers a high output if at least one input is active, mirroring addition in this framework.
Translate these components directly into their corresponding symbolic forms. Use dots (⋅) for AND operations, plus signs (+) for OR, and overlines (¬A or A̅) for NOT. NAND gates combine an AND followed by a NOT ((A⋅B)̅), while NOR gates pair OR with negation ((A+B)̅). XOR gates, which output high when inputs differ, are represented as A⊕B–though they’re often decomposed into combinations of AND, OR, and NOT for simplification.
Simplify the equation using De Morgan’s theorems to break down complex gates:
(A⋅B)̅ = A̅ + B̅ or (A+B)̅ = A̅⋅B̅.
Apply these to nested operations to reduce redundancy. For example, ((X⋅Y)+Z)̅ becomes (X̅+Y̅)⋅Z̅, removing unnecessary layers of negation while preserving equivalence.
Validate each step by constructing a truth table. Inputs run through all possible binary combinations (00, 01, 10, 11 for two variables), and outputs are computed per the equation. Cross-check rows where the equation’s result matches the expected behavior of the original design. Discrepancies signal errors–either in the equation or the schematic’s intended function.
Optimize further by eliminating redundant terms. If two minterms differ by a single variable (e.g., A⋅B⋅C and A⋅B⋅C̅), combine them into A⋅B. This technique, known as Karnaugh map grouping, reduces equation length without altering output. Store the minimal form as the final representation–fewer gates translate to lower power consumption and faster propagation in physical implementations.
Deriving Gate-Based Formulas from Schematic Layouts
Begin by labeling each input on the schematic with distinct variables–use single letters for primary signals (e.g., A, B) and compound labels like X1, X2 for intermediate nodes. Group series-connected AND gates first, treating their outputs as single operands for downstream OR operations. For example, if two AND symbols merge into a single OR symbol, write the combined output as (A·B) + (C·D) without simplifying prematurely; retain parentheses to preserve operation hierarchy.
When inverters appear, note their exact placement: a bubble at an output pin flips the preceding subformula (¬Z), while one at an input inverts only that wire (¬A·B). Sketch a quick truth table for ambiguities–compare expected outputs with the raw signal paths to spot inconsistencies before transcription. Avoid reusing variable names across separate branches; distinct letters prevent conflation of unrelated signals.
Layered Reduction Tactics
Scan the schematic vertically to catch cascading gates feeding multi-level structures. Start from the rightmost symbol (output) and work leftward, substituting each gate’s inputs into its corresponding operator. For stacked NOT gates (¬¬Y), collapse them into Y immediately; repetition beyond two layers usually indicates redundant hardware.
Compact three-input gates by chaining binary operators: A·B·C becomes (A·B)·C to mirror hardware propagation. Split wide OR branches exceeding four inputs into two-tiered clusters–document intermediate signals like OR_TEMP to keep the formula tractable. Document each substitution step on a separate line while transcribing; reconciling errors later becomes simpler when changes are transparent.
Post-Transcription Verification
Reconstruct each gate symbol with its derived operator on scratch paper–cross-check that every line in the schematic corresponds exactly to a term in the formula. Replace temporary labels (e.g., OR_TEMP) with their final equivalents once all gates are accounted for. Run minimal test vectors through both the schematic and the formula; discrepancies typically trace back to mislabeled inverter placements.
Trim redundancy aggressively: merge identical literals (¬A + A) into tautologies, and remove selves (A + ¬A·B → A + B). Group shared variables across subformulas–if both branches have A at their inputs, factorization reduces literal count without altering behavior. Confirm final formula outputs match the schematic across permutations of 0 and 1 for all inputs.
Archive both raw and reduced forms alongside the schematic; future revisions often require reverting to the ground-level description before reapplication of simplification rules.
Transforming a Schematic into a Mathematical Representation: A Methodical Approach

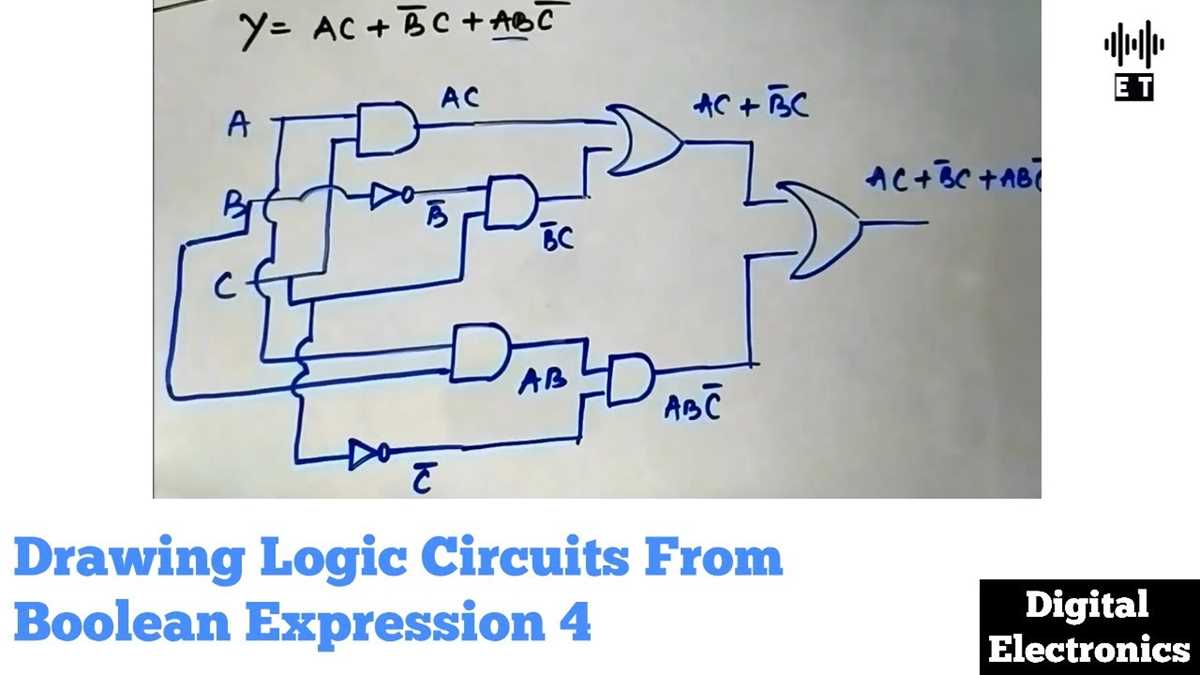

Identify each gate in the schematic and assign variables to inputs. For an AND gate with inputs A and B, write the output as A·B (or AB). OR gates follow A + B. NOT gates invert signals, so an input X becomes X̅. Begin at the farthest inputs, working left to right, and label intermediate signals at each stage.
Trace signal paths and combine terms progressively. If an AND output feeds another AND, multiply the terms: (A·B)·C becomes A·B·C. When an AND output connects to an OR, group terms within parentheses: (A·B) + C. Mismatched groupings–like A·(B + C) vs. (A·B) + C–lead to different outcomes; bracket nested operations first.
Handling Nested Gates
Break down multi-level schematics using a hierarchical table. List each gate type, inputs, and outputs in rows:
| Stage | Gate Type | Inputs | Output |
|---|---|---|---|
| 1 | AND | A, B | D = A·B |
| 2 | OR | D, C | E = D + C |
| 3 | NOT | E | F = E̅ |
Substitute earlier outputs into subsequent rows. Final row shows the full mathematical representation–here, F = (A·B + C)̅. Verify by testing input combinations: if A=1, B=0, C=1, F should equal 0.
Simplifying Complex Configurations

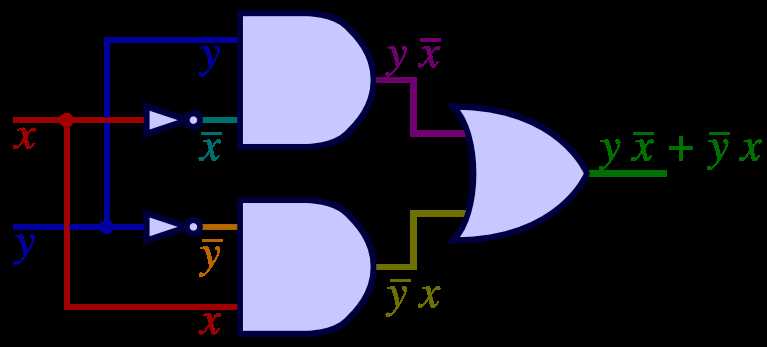

Convert XOR/XNOR gates into basic gate equivalents. An XOR with inputs P and Q expands to P·Q̅ + P̅·Q. NAND/NOR gates first require AND/OR steps followed by inversion: (G·H)̅ or (G + H)̅. Redraw nested gates into serial sequences if clarity improves–for example, split a three-input NAND into an AND followed by a NOT.
Check for redundant terms. If an AND feeds a NOT and the output connects to an OR, apply De Morgan’s laws: (A·B)̅ + C becomes A̅ + B̅ + C. Use algebraic identities–A + A·B simplifies to A–to minimize the final representation. Validate each reduction step by substituting binary values (0/1) into the equation and the schematic simultaneously.
Key Rules for Simplifying Signal Equations Using Algebraic Principles
Apply the commutative property first when rearranging terms in sums or products. For any variables A and B, both A + B = B + A and A · B = B · A hold true. This rule is often overlooked but critical when grouping like terms in complex equations.
Use the associative property to regroup nested operations without altering outcomes. For sums: (A + B) + C = A + (B + C). For products: (A · B) · C = A · (B · C). This principle is most effective when combined with the distributive property to flatten hierarchical structures.
Master the distributive rule: A · (B + C) = A·B + A·C and its dual A + (B · C) = (A + B) · (A + C). The second form is counterintuitive but invaluable for breaking down OR gates embedded within AND operations. Practice identifying scenarios where this dual form simplifies nested conditions.
Eliminate redundancy with the absorption rules: A + (A · B) = A and A · (A + B) = A. These are powerful for collapsing terms where one factor fully contains another. For example, X + (X · Y · Z) reduces directly to X regardless of Y or Z.
Replace variables with their complements using De Morgan’s theorems: ¬(A + B) = ¬A · ¬B and ¬(A · B) = ¬A + ¬B. These transformations are essential when converting between sums and products of negated signals. Apply them twice to nested negations to restore original polarity.
Systematic Reduction Workflow
- Scan the equation for constants; replace
1 · AwithAand0 + AwithA. - Apply absorption to eliminate any term that appears both negated and non-negated within a sum or product.
- Expand distributed terms only when necessary, prioritizing absorption first to avoid unnecessary multiplication.
- Substitute complementary pairs:
A + ¬Asimplifies to1,A · ¬Asimplifies to0. - Repeat the process until no further simplifications are possible.
Common Pitfalls
- Avoid premature expansion of parentheses; absorption often yields cleaner reductions.
- Watch for hidden complementary pairs, especially in equations with multiple layers of negation.
- Double-check De Morgan applications–misplacing a negation can invert the entire expression.
- Resist the urge to rearrange terms solely for readability; prioritize structural simplification first.
For equations exceeding four variables, break them into sub-equations centered around the highest-order term. Simplify each sub-equation independently, then recombine using the same algebraic rules. This modular approach prevents errors from cognitive overload during manual reduction.
From Gates to Equations: Real-World Signal Processing Cases

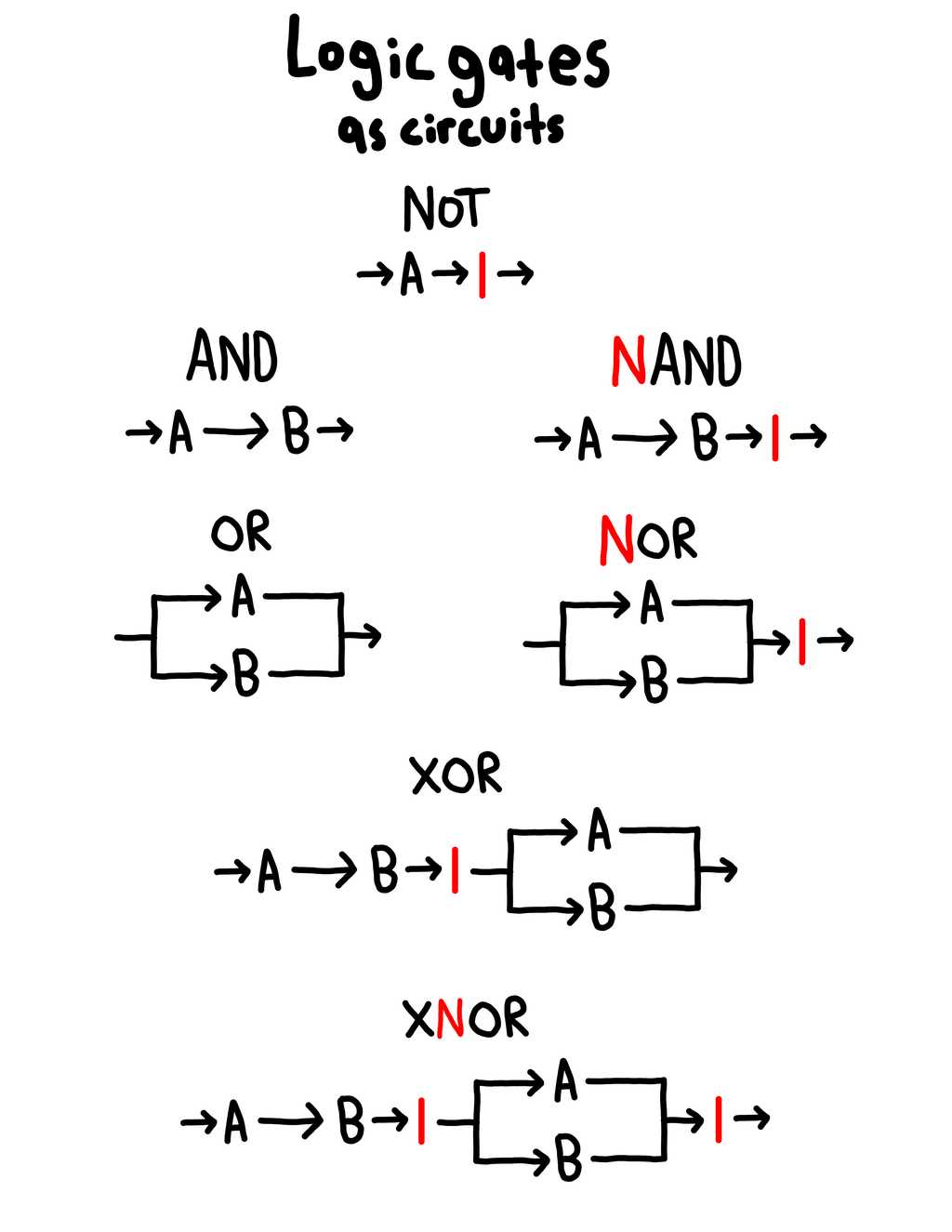

Start with the AND gate when dealing with conditions requiring simultaneous true inputs. For two switches A and B controlling a single output, the rule is straightforward: the result activates only if both switches close. In algebraic form, this translates to Y = A · B. A practical use is a safety interlock where a machine runs only if two independent sensors confirm an all-clear state. Verify this by feeding voltage through two series transistors–voltmeter readings will match the algebraic prediction every time.
A OR gate solves problems needing at least one valid signal. Imagine a lighting system where flipping either wall switch A or B turns on a bulb regardless of the other’s position. The equation Y = A + B captures this behavior. Check it with a breadboard experiment: connect two push buttons in parallel; pressing either closes the loop, proving the formula’s accuracy. Extend this to multiple inputs Y = A + B + C–add a third button; the behavior scales predictably.
The NOT operation reverses an input’s polarity. A simple push button A feeding an inverter yields Y = ¬A. Use this to design opposite-phase outputs, like an alarm that triggers only when a door sensor remains open. Implement it with a single transistor configured as a common-emitter amplifier: voltage across the output drops when the base receives forward bias, mirroring the negation truth table line-for-line.
Combine gates to tackle compound scenarios. An exclusive OR–XOR–detects inequality between inputs. The equation Y = A ⊕ B = (A + B) · ¬(A · B) ensures the output fires only when A and B differ. Build this with two AND gates, one OR and one NAND; the final OR collects merged signals. A classic use is comparing two binary digits in processors–any mismatch flags an error instantly.
Nested operations simplify complex designs. A NAND gate–universal building block–operates as Y = ¬(A · B). Cascade multiple NANDs to recreate any other function without additional chip types. For instance, wiring two NANDs in series emulates a NOR gate: first combines inputs inverted, second applies another negation, yielding Y = ¬(A + B). Breadboard this–measure voltages; outputs match theoretical predictions precisely.
Derive equations from timing-sensitive environments. A D-type latch uses a pair of cross-coupled NOR gates. Define inputs D and enable E; the stored output follows Q_next = D · E + Q_prev · ¬E. Feed this into simulation software–watch how Q holds its state when E resets, a cornerstone behavior in register-based memory. Test it: toggle D and E with push buttons; observe Q flipping only when E pulses high.
Apply these principles to decode encoders. A 3-to-8 line decoder requires eight AND gates, each activated by a unique three-bit input combination. Each gate’s equation is a conjunction of either unaltered or negated input lines–for instance, Y₀ = ¬A · ¬B · ¬C, Y₁ = ¬A · ¬B · C, progressing through Y₇ = A · B · C. Map inputs A,B,C to dip switches–measure outputs with LEDs; pattern illuminations confirm every formula’s validity.
