Locate the four-pin connector attached to the base of the crankshaft position sensor assembly–this is the critical interface between the engine control module and the ignition coil pack. Pin 1 (black/yellow wire) supplies switched 12V ignition power directly from the main relay. Verify continuity between this pin and the fuse box terminal labeled “IG1” using a multimeter set to 20V DC; readings below 11.5V indicate a corroded relay socket or frayed harness upstream.
Pin 2 (white/blue) carries the tachometer signal generated by the internal Hall effect sensor. Probe this wire with an oscilloscope while cranking the engine–the waveform should show sharp 5V square pulses at 200–300 Hz at idle. Distorted or intermittent pulses confirm a failing sensor, requiring replacement of the entire distributor housing. Avoid splicing; mechanical alignment tolerances are
Pin 3 (green/orange) is the ground reference for both sensor and coil circuits. Test resistance between Pin 3 and chassis ground–values above 0.5 ohms necessitate cleaning corrosion from the engine block mounting stud. Ensure the ground strap between transmission and firewall is intact; shared ground loops cause misfires under load.
Pin 4 (black) feeds the ignition coil primary windings. Back-probe this terminal with a noid light while starting–the LED should flash consistently. Static voltage should measure between 0.5–1.2V when the engine is off; persistent battery voltage indicates a shorted coil requiring full assembly replacement. Note: aftermarket coil packs often have mismatched impedance values–stick to OEM part number 30500-PNT-003 for reliability.
For rapid diagnostics, use a pinout diagram printed at 1:1 scale and overlay it on the connector–the white/blue wire must align precisely with the sensor output terminal, or the engine will not start. Solder any repaired connections with 60/40 rosin-core solder and heat-shrink tubing; avoid crimp connectors exposed to moisture.
1998–2000 Compact SUV Ignition Coil Connections
Locate the black/yellow (B/Y) wire on the engine’s firing control unit–this delivers 12V power from the ignition switch. Splice it with a minimum 18-gauge wire if extending beyond the original length to prevent voltage drop. The white/blue (W/B) lead connects to the coil’s negative terminal; verify resistance between 0.7–1.2 ohms before reassembly. If readings exceed this range, replace the coil before proceeding.
Trace the white/red (W/R) wire to the camshaft position sensor–this signal triggers spark timing. Disconnect the battery’s negative terminal for 10+ minutes before handling to reset the ECU’s adaptive fuel maps. Reconnect wires in this sequence: B/Y, W/B, W/R, then ground (black). Use dielectric grease on connectors to block moisture ingress. Test for spark by grounding a spark plug to the engine block while cranking; blue-white sparks confirm correct timing. If sparks appear orange, inspect the rotor gap (0.02–0.03 inches) and cap for carbon tracking.
Locating the Right Electrical Plugs for Your Compact SUV’s Ignition System
Begin by isolating the main electrical connector at the base of the ignition assembly–its unique two-row, 6-pin layout distinguishes it from the thinner, single-row plugs found elsewhere. The top row contains pins A through C (left to right), while the bottom row holds D through F, verified by gently probing with a multimeter set to continuity mode; each wire should register between 0.8 and 1.2 ohms when the engine is off.
Check the secondary connector: a square, 4-pin plug with a distinct retaining clip on the left side. Pins are labeled clockwise from the upper-left notch–1 (black/white), 2 (black/yellow), 3 (blue), and 4 (white/blue). Misalignment here disrupts cylinder timing, prompting erratic idle or backfire. Never force mismatched plugs; the plastic housings crack at 12 in-lbs of torque.
Verify the third plug–a single brown wire terminating in a male spade connector–attached to the ignition housing via a 10mm bolt. Disconnect the battery’s negative terminal first; the spade’s crimped joint often corrodes after extended heat cycles, requiring a dielectric grease coating post-reassembly.
| Connector Type | Pin Count | Key Wire Colors | Voltage (KOEO) |
|---|---|---|---|
| Main ignition plug | 6 | Black, Yellow, Blue | 0-0.5V |
| Timing control | 4 | Black/White, White/Blue | 4.8-5.2V |
| Ground spade | 1 | Brown | 0V |
Replace any connectors exhibiting frayed insulation or oxidation; the 6-pin plug’s yellow wire (pin B) carries ignition signal voltage and must be secured with a strain-relief clip–omitting this risks intermittent spark loss during high-RPM acceleration. The blue wire (pin F) provides sensor ground; resistance exceeding 0.3 ohms indicates a faulty ground path necessitating a direct chassis connection.
Label each plug before disassembly using masking tape; factory markings fade after two decades of thermal cycling. Test the 4-pin plug’s white/blue wire (pin 4) with an oscilloscope–it should display a clean 5V square wave at 1,200 RPM. Deviations exceeding ±0.4V suggest a corroded pin or compromised ECU output.
Inspect the harness routing channels; rodents often nest near the firewall, chewing the protective loom. Use heatshrink tubing rated for 125°C on repaired sections–standard electrical tape degrades within 18 months under hood heat. Secure all repairs with nylon zip ties spaced every 3 inches; vibration-induced chafing generates false cylinder misfire codes.
Critical Troubleshooting Steps Without Schematics
If the ignition assembly fails to power on, probe the main plug’s pin A with a noid light while cranking–absence of flashing confirms an open circuit in the black/red wire leading to the ignition relay. Swap the relay with the identical unit used for the fuel pump (located in the under-dash fuse box) as a quick diagnostic; no change signals a deeper ECU fault requiring OBD-II scan tool validation.
Step-by-Step Guide to Locating the Ignition Coil Leads in the Engine’s Rotary Switch Assembly
Begin by disconnecting the negative terminal of the battery to prevent accidental shorts–this is non-negotiable. Remove the protective cover over the rotary switch housing by releasing the two retaining clips or screws, depending on your model variant. A 10mm socket will typically suffice for bolt removal. Set the cover aside, ensuring no dirt or debris falls into the exposed components.

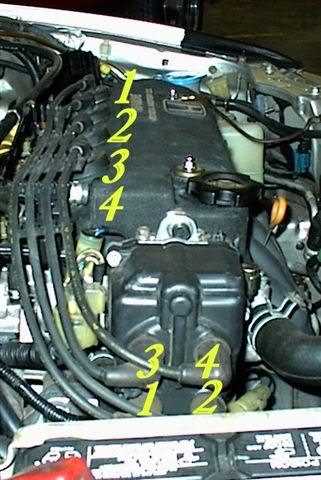

Identify the central tower at the heart of the assembly–this is where the primary lead from the ignition coil connects. Trace the thickest cable exiting the tower downward; it should terminate at the coil pack or external ignition module. For inline four-cylinder engines, this lead is often color-coded in yellow with a black stripe, though variations exist–verify against a physical reference if documentation is unavailable.
- Rotate the engine manually using a 19mm socket on the crankshaft pulley bolt until the rotor aligns with the number-one cylinder’s position on the cap.
- Observe the terminal posts around the circumference of the cap–these correspond to cylinders 1, 3, 4, and 2 in clockwise order starting from the marked position (usually a notch or raised indicator).
- Note the thin secondary wires leading from each terminal post to their respective spark plugs. These are typically bundled with plastic loom ties–do not disturb them unless replacement is necessary.
Locate the thin trigger wire (often solid blue or purple) exiting the base of the switch housing. This wire connects to the engine control module or tachometer input, signaling cylinder timing. Use a multimeter set to continuity mode to confirm connectivity between this wire and its destination pin on the ECU connector if uncertain–resistance should read below 1 ohm.
Verification and Troubleshooting Tips
If the engine misfires or fails to start after reassembly:
- Recheck the integrity of the primary coil lead–corrosion at the connection point is a common failure point. Scrape clean with a wire brush if oxidation is present.
- Inspect the rotor and cap for carbon tracks, which indicate internal arcing. Replace components if tracks exceed 2mm in width.
- Ensure the rotor spins freely without binding–excessive resistance suggests bearing wear, necessitating full assembly replacement.
Reinstall the protective cover by reversing the removal steps, ensuring the sealing gasket is intact to prevent moisture ingress. Tighten retaining fasteners to 8-12 Nm using a torque wrench to avoid cracking the plastic housing. Reconnect the battery and test for consistent spark delivery by cranking the engine while observing each coil lead with a spark tester–gaps should show bright, steady arcs.
For models with variable ignition timing, reconnect diagnostic tools post-procedure and clear any stored error codes. Monitor live data streams for camshaft and crankshaft sensor alignment–discrepancies here may indicate incorrect reassembly or underlying sensor failure.

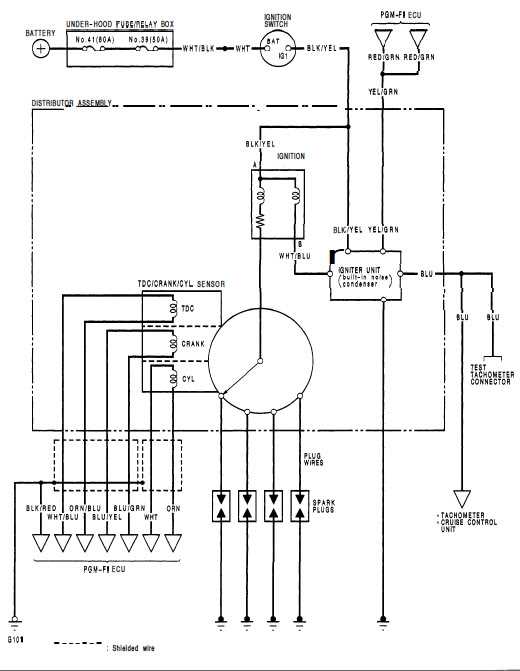

Color-Coded Connection Guide for the 1998-2001 Compact SUV Ignition Harness
Begin by identifying the black/yellow (B/Y) strand–this carries primary ignition power from the main relay. Verify continuity with a multimeter before proceeding, as corrosion or fraying near the connector often disrupts signal flow. Pair this with the white/blue (W/B) lead, which delivers the ECM-triggered pulse to the coil pack; misrouting here causes misfires under load.
The blue/black (Blk/B) wire handles the camshaft position sensor output. Ensure it remains untwisted from the white/green (W/G) circuit, which grounds the Hall-effect sensor–crossing these creates false timing signals. Test both for proper resistance (800-1200Ω at 20°C) to rule out internal breaks.
Critical Pairings for Engine Synchronization
Match the green/white (G/W) strand to the tachometer signal output. This feeds RPM data to the instrument cluster and must run separately from the yellow/black (Y/B) circuit, which relays crank angle input–interference between these causes erratic idle or stalling. Shield these paths with split-loom tubing if routing near alternator leads.
For vehicles with automatic transmissions, the brown/white (Br/W) connection interfaces with the torque converter lockup solenoid. This should not overlap with the black/red (B/R) ground reference for the ignition coil; improper grounding here increases electrical noise, leading to inconsistent spark delivery. Secure all grounds with star washers to a clean chassis point near the strut tower.
When reinstalling the connector, align the gray/orange (Gr/O) wire–this carries the diagnostic interface signal–to avoid pinching it against the housing. Double-check all terminals for bent pins, especially the red/black (R/B) terminal, which supplies fused power to the ignition system. A loose connection here may mimic fuel delivery issues.
