Start with a resistor-value calculation to prevent component failure. A forward voltage of 2V and 20mA current demand pair a 150Ω resistor with a 5V power source. Lower voltage sources–3.3V, for instance–require recalculating resistance to 68Ω. Verify tolerances: a 5% margin on the resistor suffices; tighter tolerances waste resources.
Wire connections follow a fixed sequence: positive terminal → resistor → anode → cathode → ground. Misalignment risks reverse polarity damage, visible as immediate darkening or flickering. Breadboards simplify prototyping–place the emitter straddling the central trench, ensuring legs span separate rails. Avoid jumper wire crossings; excess length introduces parasitic resistance, skewing brightness uniformity.
Supply stability dictates lifespan. Linear regulators like the LM7805 deliver clean output but waste energy as heat; switch-mode modules (e.g., MP1584) improve efficiency above 90% under low loads. Bypass capacitors–0.1µF ceramic nearest the source, 10µF electrolytic farther–suppress transients that spike beyond 100mV, a threshold causing premature degradation.
Ambient temperature monitoring prevents thermal runaway. A TO-92 package tolerates 70°C continuously; surface-mount variants endure 120°C. Exceeding these triggers lumen drop exceeding 1% per degree Celsius. Active cooling–adding a 40mm fan–extends usable range by 30% but increases complexity; passive sinks (copper pours on PCBs) suffice for ambient under 40°C.
Calibrate brightness with pulse-width modulation (PWM) rather than variable resistors. Frequencies above 1kHz eliminate visible flicker; below 100Hz, they risk triggering photosensitive reactions in humans. Arduino-derived PWM at 490Hz strikes balance–minimal hardware demands, flicker-free output. Dedicated drivers (e.g., TLC5940) offer granular control at 12-bit resolution but require extra firmware overhead.

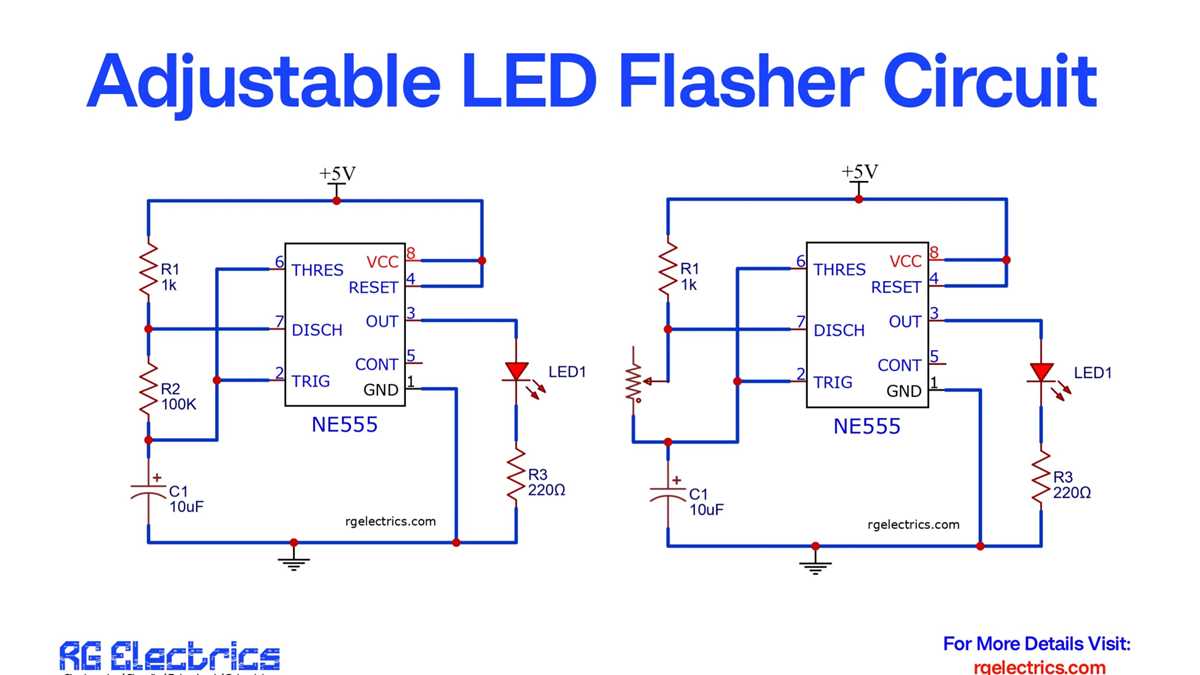

Building a Basic Semiconductor Illumination Setup

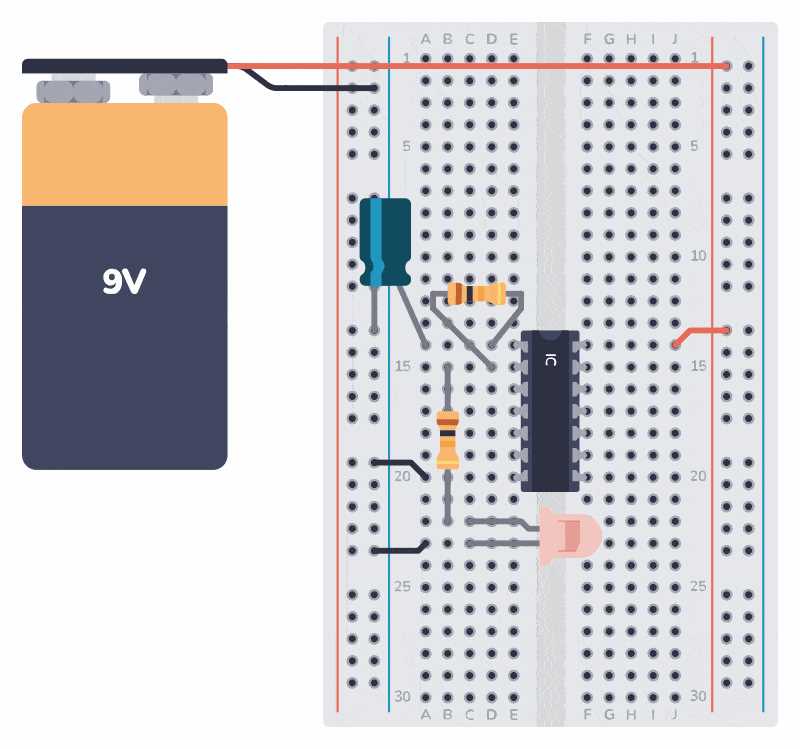

Start with a 5mm low-power emitter rated at 20mA and approximately 2V forward voltage. Connect its anode (longer leg) to the positive terminal of a DC supply via a current-limiting resistor. For a 9V battery, calculate the resistor value using Ohm’s Law: (9V - 2V) / 0.02A = 350Ω. Use a 330Ω or 390Ω resistor as the nearest standard value to ensure stable operation without exceeding the emitter’s limits.
- Avoid direct connections between the power source and emitter–permanent damage occurs within milliseconds.
- Polarity matters: reverse voltage (negative to anode) will prevent illumination and may degrade the component.
- Test in a breadboard before soldering; verify brightness and heat dissipation after 30 seconds of operation.
- For multi-emitter arrays, wire in series with a single resistor if total forward voltage stays under supply voltage; otherwise, use parallel branches with individual resistors.
Common mistakes to eliminate:
- Omitting the resistor, resulting in immediate burnout.
- Ignoring power ratings–choose resistors with at least 0.25W dissipation for this configuration.
- Assuming all emitters share the same forward voltage; check datasheets for variations (±0.1V).
- Using unstable voltage sources–linear regulators (e.g., LM7805) improve reliability for sensitive setups.
Core Elements Required for a Light-Emitting Assembly
Select a current-limiting resistor with a resistance between 220Ω and 1kΩ, depending on the forward voltage (Vf) of your semiconductor source–typically 1.8V–3.3V for standard indicators–and the supply voltage. For a 5V input, a 330Ω resistor prevents thermal runaway while maintaining luminous intensity. Verify resistor wattage: ¼W suffices for most low-power applications, but high-brightness variants may demand ½W to avoid overheating.
Power Supply and Connector Specifications
Use a regulated DC source with a tolerance of ±5% to ensure consistent illumination. Batteries (e.g., AA alkaline or Li-ion) must align with the assembly’s voltage requirements–avoid exceeding the reverse breakdown voltage of the semiconductor (usually 5V). For breadboard prototypes, Dupont connectors or soldered joints with 22 AWG wire minimize resistance losses, while modular snap connectors simplify testing.
Include a single-pole switch or jumper for control, positioned upstream of the resistive element to prevent floating voltage. Polarized components demand precise orientation: the cathode (shorter leg or flat edge) connects to ground, while the anode mates with the positive rail. For multi-color setups, common-cathode configurations reduce complexity, though series wiring may require recalculating current paths to maintain uniform brightness.
Step-by-Step Assembly of a Single Illumination Device with Current Limiter
Select a 20 mA forward-current source with a voltage rating between 3–12 volts to match the semiconductor’s specifications. Connect the anode (longer leg) to the positive terminal using 22–28 AWG stranded copper wire, ensuring no insulation remains within 2 mm of the joint. The cathode (flat side or shorter leg) must attach to a resistor calculated via Ohm’s Law: R = (Vs - Vf) / If, where Vs is the supply voltage, Vf the forward voltage (typically 1.8–3.3 V for common components), and If the target current. Refer to the table below for precise values:
| Supply Voltage (Vs) | Forward Voltage (Vf) | Target Current (If) | Resistor Value (R) |
|---|---|---|---|
| 5 V | 2.0 V | 15 mA | 200 Ω |
| 9 V | 2.2 V | 20 mA | 340 Ω |
| 12 V | 3.0 V | 18 mA | 500 Ω |
Twist the resistor’s leads with the semiconductor’s cathode and solder at 300–320°C for 1–2 seconds, using rosin flux to prevent cold joints. Insulate the connection with heat-shrink tubing or electrical tape, ensuring full coverage to avoid short circuits. Test polarity before finalizing: reverse bias will prevent activation. For stable operation, mount the assembly on a perforated board or breadboard, avoiding mechanical stress on the legs. If flickering occurs, verify solder integrity and resistor tolerance (±5% is standard).
Calculating the Right Current-Limiting Resistor for Semiconductor Emitters
Begin with the emitter’s forward voltage (Vf) and the supply voltage (Vs); subtract Vf from Vs to find the voltage drop across the resistor. For a standard 5 mm red indicator, Vf is 1.8 V; a high-brightness white emitter typically requires 3.3 V. For example, with a 9 V supply and a 3.3 V white emitter, the drop is 5.7 V.
Apply Ohm’s law: divide the voltage drop by the desired current (I) in amperes. Most small emitters operate safely at 20 mA (0.02 A). Using the 5.7 V drop, the calculation is 5.7 ÷ 0.02 = 285 Ω. Select the nearest standard resistor value–commonly 270 Ω or 330 Ω–for adequate current control without excessive brightness reduction. For high-power emitters (1 W or more), limit current to 350 mA; a 12 V supply with a 3.5 V emitter yields 8.5 V drop, requiring 8.5 ÷ 0.35 ≈ 24 Ω (use 22 Ω or 27 Ω).
Verify power dissipation in the resistor: P = I² × R. At 20 mA and 270 Ω, dissipation is (0.02)² × 270 = 0.108 W, well within a ¼ W resistor’s capacity. For 350 mA and 22 Ω, dissipation rises to (0.35)² × 22 ≈ 2.695 W; opt for a 3 W or 5 W component to prevent overheating. Exceeding a resistor’s power rating causes drift, failure, or fire risk.
Adjust for parallel emitters: if two identical emitters share a resistor, halve the resistor value. Two 3.3 V emitters on a 9 V supply drop 2.4 V; target 10 mA per emitter (20 mA total) and compute 2.4 ÷ 0.02 = 120 Ω. For series-connected emitters, sum Vf values before subtraction. Four 1.8 V red emitters in series on 12 V drop 4.8 V; 4.8 ÷ 0.02 = 240 Ω. Ensure the supply voltage exceeds the total Vf to avoid dim or non-functional emitters.
Environmental factors alter performance: high ambient temperatures reduce maximum safe current. A 20 mA emitter in 25°C air may tolerate 15 mA at 60°C. Pulsed operation allows higher transient currents if duty cycle and frequency permit recovery. Always measure actual current with a multimeter; minor resistance variations or wire losses can shift values by 5–10%. For precise applications, use a constant-current driver IC instead of a resistor for stable brightness and longevity.
Common Mistakes When Connecting Light Emitting Components in Designs
Incorrect current-limiting resistors cause immediate failure–calculate values precisely using Ohm’s law. A 5mm emitter rated for 20mA at 2V forward voltage connected directly to a 5V source will burn out within seconds. Verify supply voltage matches component specs; a 3V emitter wired to a 9V battery draws excessive current, degrading lifespan by 90%. Always double-check polarity: reversed connections lead to silent failure or irreversible damage.
Ignoring Thermal Management and Series Parallel Misconfigurations
High-power emitters require heatsinks; exceeding junction temperatures by 15°C halves operational life. Parallel arrangements without individual resistors create current hogging–one emitter draws 80% of total current, overheating while others dim. Mixing different color emitters in series alters forward voltages, producing uneven brightness or premature burnout. Test arrangements on a breadboard first–voltage drops across breadboard connections can reduce expected current by 10-15%.
