Start with a dual-comparator configuration for each line: LM393 ICs provide precise under/over-threshold detection while minimizing false triggers. Connect the sensing inputs to a star-transformed sampling network–use 10kΩ resistors between phases and a central neutral node to derive balanced reference voltages. This setup ensures 4–20V detection range per line without load distortion.
Integrate an optically isolated triac driver, such as MOC3041, to separate low-power logic from high-current contactors. Each comparator output should drive a separate LED indicator (red for fault, green for normal) before triggering the triac gate via a 330Ω resistor. Avoid RC snubbers–they introduce delay; opt for zero-crossing triacs to eliminate transients during switching.
For power integrity, regulate the entire assembly with a 78L05, bypassed with a 10μF tantalum cap at both input and output. Feed the neutral reference node through a precision Zener diode (BZX85C4V7) to clamp stray noise below 2V. Essential: ground the ICs’ negative rails to the same star point as the sampling resistors–any floating reference corrupts threshold accuracy.
Test the thresholds using a variable autotransformer; adjust potentiometers on each comparator to trip at +/-10% of nominal. Add a manual reset push-button (momentary, normally open) wired in parallel with the triac output to allow deliberate re-arming after faults. Never omit thermal protection–mount the LM393s on a 1°C/W heatsink if ambient exceeds 50°C.
Protecting Tri-Line Systems with Over/Under Detection Schemes
Install a triple-source supervision device using the LM339 comparator array for precise threshold tracking across each live conductor. Set hysteresis at ±5% of nominal RMS values (e.g., 400V ±20V for industrial grids) to prevent nuisance tripping during transient sags or surges lasting ≤10ms. Connect phase decoupling capacitors (0.1µF X2-rated) directly at the sensing inputs to suppress high-frequency noise from variable-speed drives before it reaches comparator inputs, ensuring clean detection even in electrically noisy environments.
Component Selection Guide
| Function | Component | Specification | Quantity |
|---|---|---|---|
| Reference Divider | Precision Resistor | 1% Tolerance, 0.25W | 6 |
| Voltage Divider Output | Film Capacitor | 47nF, 500V DC | 3 |
| Gate Drive | MOSFET | IRF840, 500V/8A | 1 |
| Fault Indicator | LED | Bi-color (Red/Green) | 3 |
| Load Protection | Fast-Acting Fuse | 250V, 1A | 1 |
Route high-impedance sensing traces on a 4-layer PCB with dedicated ground plane beneath them, maintaining ≥0.5mm clearance from power traces to prevent unintended coupling. Test the assembled board with a 300Ω isolation transformer at 1.2× nominal amplitude to verify trip times remain under 50ms for both overlimit and underlimit conditions, including phase loss scenarios.
Critical Parts for Tri-Line Undervoltage Detection Assembly
Select a tri-line sensing module with adjustable thresholds, such as the Omron K8AB-AS or Schneider RM17TG20. These units support per-line deviation detection down to ±5% of nominal line values, ensuring precise tripping under asymmetrical faults. Avoid fixed-threshold models–they miss phase imbalances below 10%.
Power the control logic from a separate 24 VDC supply rather than tapping line feeds. Linear regulators like LM7824 introduce less noise than switching counterparts, critical when measuring microsecond-level transients. Fuse the DC input at 0.5 A to prevent back-feed damage during sensor faults.
Sensor Placement & Wiring Specifications
Route CT secondaries in twisted pairs, maintaining 15 cm spacing from high-current conductors to minimise capacitive pickup. Terminate each pair at a dedicated screw terminal–barrier strips like Phoenix UK 5 track resistance below 1 mΩ. Use AWG 14 for sensing leads, AWG 12 for power feeds; thinner wires drop excessively under 10 A load.
Install suppression diodes at every relay coil–1N4007 clamps inductive spikes when switching 230 VAC contactors. For resistive loads under 1 kW, bypass capacitors (0.1 μF X2) across coil terminals cut radiated interference by 30 dB. Larger inductive kicks demand MOVs or GSOs with 300 V clamping voltage.
Test points should include per-line sampling headers–header blocks with 2.54 mm pitch allow oscilloscope probing without disturbing primary wiring. Install LEDs on each output channel; bi-colour indicators simplify diagnosis: green for healthy feed, red for sag/swell conditions, amber for under-speed detection.

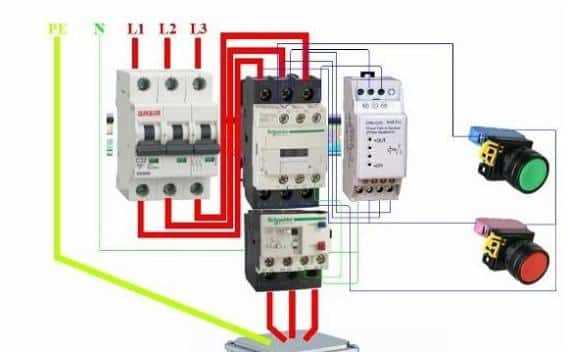

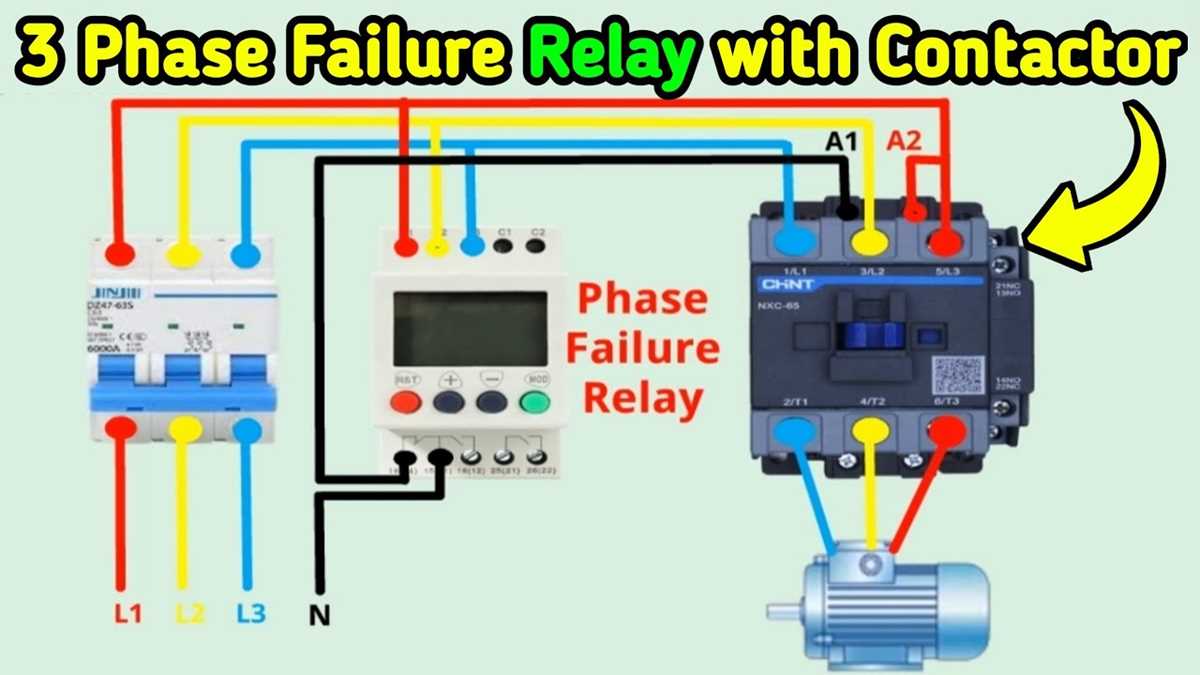

Step-by-Step Wiring Connections Between Sensors and Control Unit
Identify the neutral line first–it serves as the common reference point. Connect each phase sensor’s neutral terminal to this line using 1.5 mm² copper wire, ensuring no twists or loose strands remain. Label each connection with shrink tubing to prevent accidental shorting during maintenance.
Phase A requires direct coupling to the sensor’s first input. Strip 12 mm of insulation from the wire, twist strands tightly, and insert into the terminal block. Torque to 1.2 Nm–under-tightening risks arcing; over-tightening fractures the conductor.
Repeat for Phase B and Phase C, maintaining identical wire gauge and torque specs. Use a phase tester to verify signal integrity before proceeding: stray voltages above 1.5 V indicate improper grounding. Correct immediately by re-securing the neutral tie.
Link sensor outputs to the control module via screened cable. The shield must connect to earth at a single point–typically the panel’s chassis–using a 4 mm ring terminal. Avoid daisy-chaining shields; induced noise degrades readings by ±0.3 V.
Interlocks and Status Indicators
Attach LEDs between each sensor’s status pin and a 24 VDC source through a 1 kΩ resistor. Polarity matters: anode to the sensor, cathode to supply return. Incorrect orientation burns the LED in under 2 seconds.
Route the control module’s trip contacts to auxiliary devices using 0.75 mm² wire. Connect normally open contacts to external alarms, normally closed to safety shutdowns. Verify contact ratings–exceeding 5 A at 230 VAC melts solder within minutes.
Test each connection with a multimeter in continuity mode. Audible beeps confirm closed loops; silence demands immediate rework. Record measurements: phase imbalance beyond ±5 % triggers false trips, so recalibrate sensors if deviation exceeds 2 %.
Finalize by securing all wires with nylon clamps spaced every 150 mm. Use zip ties only on bundled sections–over-tightening compresses insulation, risking dielectric failure under transient surges. Apply conformal coating to terminal blocks exposed to humidity or dust.
Optimizing Trip Limits for High and Low Line Potential Safeguards
Set overlimit triggers 10–15% above nominal supply values for robust industrial loads. For 400 VAC systems, this means configuring the upper boundary at 440–460 VAC. Verify the equipment nameplate ratings first–some sensitive drives tolerate only +10%, while heavy-duty motors often accept +15%. Adjust via calibrated potentiometers on the protection module, using a precision multimeter to confirm accuracy.
Lower thresholds should sit 15–20% below nominal to accommodate short-duration dips without nuisance tripping. A 400 VAC system therefore needs a floor of 320–340 VAC. Field data from renewable grid interfaces frequently shows temporary sags to 350 VAC during cloud transients, so err on the conservative side unless loads are inherently tolerant.
Hysteresis gaps prevent rapid toggling during marginal conditions. Program a 2–3% gap between trip and reset points; e.g., trip at 450 VAC, reset at 442 VAC. On-board firmware usually includes this setting–access via the module’s dip switches or serial interface. Factory defaults often miss this nuance, so manual override is critical.
Time-delay settings must align with fault clearance capabilities. Instantaneous trips above 480 VAC protect semiconductors but risk spurious operation during startup transients. A 100–200 ms delay smoothens these events without compromising protection. Underversions benefit from longer delays–300–500 ms–to avoid tripping during motor starts or capacitor bank switching.
Environmental temperature swings alter electronic component thresholds by ±0.1% per °C. For modules installed in non-climate-controlled cabinets, apply a compensation factor: widen the 440–460 VAC window by +2% if ambient exceeds 40 °C. Embedded thermal sensors automatically adjust some models, but calibration remains necessary for discreet analog variants.
Load-specific tuning trumps generic settings. Variable frequency drives often need narrower windows (±12%) than resistive heaters (±25%). Review the manufacturer’s surge tolerance curves–they dictate safe excursion durations at specific magnitudes. A microcontroller-based safeguard allows dynamic threshold shifts based on load profiles, while fixed-relay units require manual retuning during major load changes.
Validation requires simulated fault testing. Inject test potentials using a programmable AC source: ramp from 300 to 480 VAC in 10 VAC increments, logging trip times at each step. Ideal curves should resemble an inverse-time characteristic–faster trips at higher deviations. Deviations indicate miscalibrated thresholds or faulty sensing elements.
Document all adjustments in a master log linked to the system’s one-line schematic. Note nominal supply levels, trip/reset values, hysteresis margins, delay times, and ambient conditions. Periodic reviews–every 6 months for stable grids, quarterly for fluctuating sources–ensure thresholds remain valid as line impedance or load profiles drift.
