Start with a 4 AWG power cable for the main feed from the battery to the distribution block–this prevents voltage drop under load. Use a 100-amp fuse within 18 inches of the battery to protect the circuit. Ground the system with an 8-gauge cable connected to a bare metal chassis point, ensuring the surface is sanded clean for optimal conductivity.

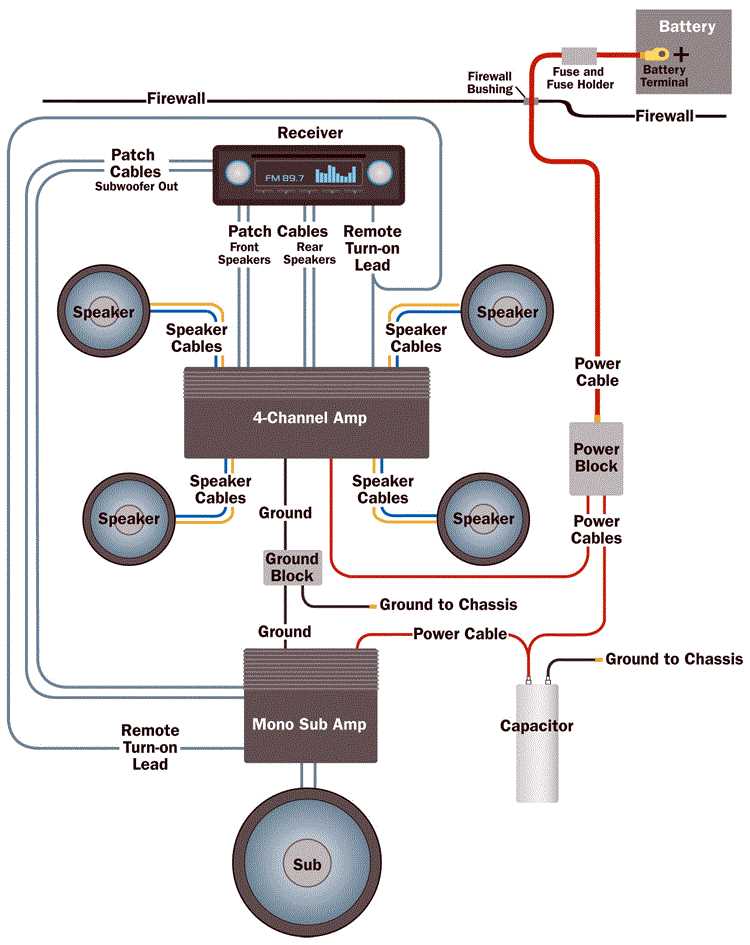

Route signal cables separately from power wires to avoid interference. Use shielded RCA cables for input connections, twisting pairs to minimize noise. If installing a capacitor, place it between the amplifier and power distribution block, following the manufacturer’s polarity markings strictly. Incorrect placement risks damaging components.
For multi-channel outputs, match speaker impedance to the amplifier’s ratings. A 2-ohm load on bridged channels draws more current–verify wire gauge against the amplifier’s technical specs. Use crimp connectors with heat shrink tubing for reliable, corrosion-resistant joints. Avoid solder-only connections in high-vibration environments.
Test the setup with a multimeter before full installation. Check for 12-14 volts at the amplifier’s power terminal and 0.1 volts or less at the ground terminal. If hum or distortion occurs, recheck ground connections and signal isolation. Adjust gain settings starting at the lowest level to prevent clipping.
Step-by-Step Connection Layout for High-Power Audio Systems
Begin by identifying the power input terminals on your device–these are typically marked with color-coded cables: red for positive (+) and black for negative (-). Use 4-gauge oxygen-free copper wire to connect the battery; anything thinner risks voltage drop under load. Strip 12mm of insulation from each end, crimp with a closed-barrel connector, and secure with heat shrink tubing to prevent short circuits. For grounding, attach the negative terminal directly to the chassis using a bolt no longer than 10mm to minimize resistance. Avoid daisy-chaining grounds; each component should have its own dedicated return path.
Signal inputs require RCA cables with shielded grounding to block interference. Route them away from power wires by at least 30cm to avoid noise induction. If your system includes a preamp, connect its output to the main unit’s high-level inputs using 90° gold-plated connectors for reliable contact. For subwoofer control, use an inline fuse holder near the battery with a 150-amp fuse; adjust the rating based on the manufacturer’s specifications (typically 125% of peak current draw).
Common Pitfalls and Solutions
- Humming/buzzing: Verify ground connections are clean (sand paint off chassis contact points) and power cables aren’t looped near audio wires. Twist power wires together to reduce magnetic field emissions.
- Overheating: Ensure airflow around the unit; mount it at least 5cm from enclosed spaces. Check for loose terminals–oxidized contacts increase resistance.
- Distortion: Confirm input voltage isn’t exceeding 14.4V (use a multimeter). Test RCA cables separately; faulty shielding can cause signal degradation.
Remote turn-on wiring demands a dedicated 18-gauge wire from the head unit’s blue/white terminal, fused at 1 amp. Use a relay if the head unit’s current capacity is insufficient (some modern decks handle only 100mA). For integrations with multiple channels, parallel outputs with Y-splitters; avoid exceeding 80% of the device’s RMS rating per channel. Label all connections with shrink wrap markers to simplify future troubleshooting. Store unused wires coiled and secured with zip ties to prevent rattling or abrasion against sharp edges.
Core Elements of a High-Power Amplifier Electrical Configuration
Begin by verifying the power supply unit’s compatibility with the system’s voltage demands. A 12VDC automotive battery requires a stable current flow, typically between 60-100 amperes for peak performance. Use a multimeter to confirm voltage levels at the battery terminals–fluctuations beyond 11.5-14.5V indicate potential issues in the alternator or grounding. Directly connect the main power cable to the battery’s positive terminal, employing an 8-gauge or thicker wire to prevent voltage drop under load.
Grounding demands precision–attach the negative lead to the vehicle’s chassis, ensuring a clean, rust-free surface. Avoid factory grounding points; instead, drill a dedicated hole near the amplifier’s mounting location. A poor ground is the primary cause of noise, signal distortion, and overheating. Test resistance between the ground terminal and the chassis–readings above 0.5 ohms necessitate re-cleaning or relocation of the connection point.
Fuse placement is non-negotiable. Install a high-quality ANL or mini-ANL fuse within 18 inches of the battery on the positive line. Fuse ratings should align with the main power cable’s capacity:
| Wire Gauge | Recommended Fuse Rating (Amps) |
|---|---|
| 4 AWG | 150 |
| 8 AWG | 80 |
| 10 AWG | 60 |
Signal cables (RCA) must follow a separate path from power wires to minimize interference. Route them along the opposite side of the vehicle’s interior, maintaining a minimum 12-inch distance from power conductors. Use shielded RCA cables with a durable outer jacket to resist abrasion and electromagnetic interference. Avoid running them parallel to factory harnesses or near the alternator.
Remote turn-on wire activation relies on the head unit’s remote output–typically a blue wire with a white stripe. Confirm the voltage here reads 12V when the stereo is powered on. If the head unit lacks this feature, integrate a relay triggered by the ignition’s accessory circuit. Connect a 1000μF capacitor in parallel to the remote line to prevent popping noises during power cycles.
Speaker wires demand attention to impedance matching. Verify the amplifier’s stable load range–most handle 2-8 ohms. Use oxygen-free copper wires with a minimum 12-gauge thickness for subwoofers and 16-gauge for mid-range drivers. Secure connections with solder or high-quality crimp terminals, then insulate with heat-shrink tubing to prevent short circuits. Replace any corroded or damaged connectors immediately.
Thermal management is often overlooked. Ensure the amplifier’s mounting surface allows for airflow; avoid enclosed spaces like trunks unless auxiliary cooling is added. Mesh installation kits reduce heat buildup. Monitor the device’s temperature during operation–excessive warmth (above 160°F) signals insufficient ventilation or an internal fault. For marine applications, use anti-corrosion sprays on all terminals and connections to counteract moisture exposure.

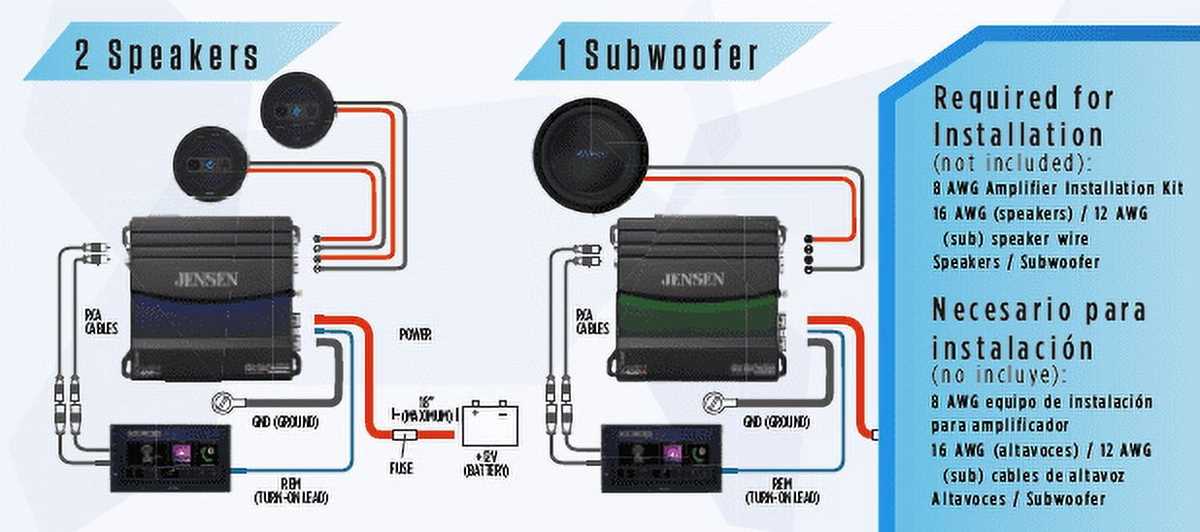

Single Subwoofer Hookup Guide
Begin by securing a 4 AWG power cable from the battery’s positive terminal, ensuring a fuse is placed within 18 inches of the connection to prevent short circuits. Route the cable away from moving parts and sharp edges, then terminate it at the amplifier’s positive input. Ground the unit by attaching an 8 AWG cable to a bare metal chassis point near the device–scrub the surface with sandpaper for a clean contact. Verify the grounding point is not painted or coated.
Signal and Speaker Linkup

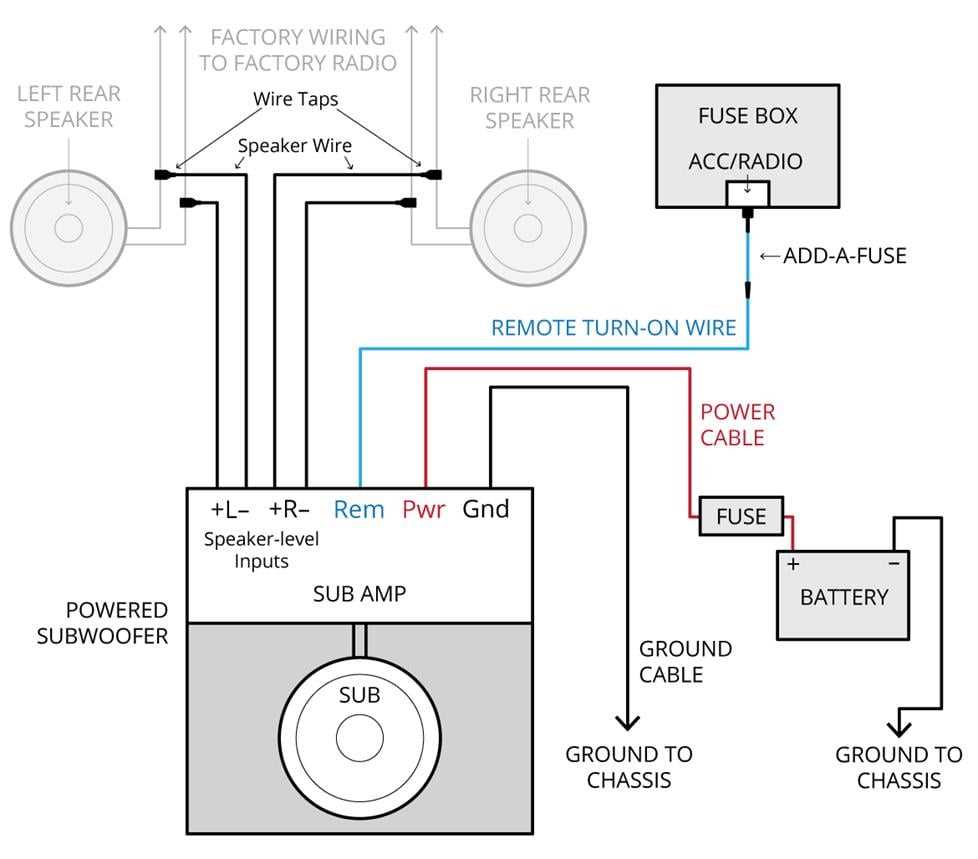

Connect the RCA signal line from the head unit’s subwoofer pre-out to the amplifier’s input, using shielded cables to minimize interference. If the head unit lacks a dedicated output, splice into the rear speaker wires with a line-out converter, adjusting gain settings cautiously to avoid distortion. For the subwoofer, use two 12 AWG speaker wires: attach one pair to the amplifier’s positive and negative outputs, then route them to the subwoofer’s corresponding terminals, ensuring polarity matches.
Set the amplifier’s low-pass filter to 80 Hz for optimal bass response, and adjust the gain starting at 50%–fine-tune gradually while playing a test tone. Use a multimeter to confirm voltage levels at the subwoofer terminals; aim for 20–30 volts AC under load. Check for rattles or distortion at high volumes, as these indicate incorrect tuning or faulty connections. Secure all cables with zip ties to prevent interference from vehicle vibrations.
Test the system with a 50 Hz sine wave track, listening for even bass extension without clipping. If distortion occurs, reduce the head unit’s bass boost and recheck amplifier settings. Verify all connections once more before finalizing installation, paying attention to heat buildup at contact points–use dielectric grease on terminals if corrosion is detected. Document impedance readings if troubleshooting is needed later.
Dual Voice Coil Speaker Connections for Peak Efficiency
Connect both coils in parallel for subwoofers under 4 ohms nominal impedance to maintain amplifier stability while maximizing power delivery. This setup halves the load resistance–critical for systems with 2-ohm capable outputs–allowing sustained bass output without thermal shutdown risks. Verify the amplifier’s minimum impedance rating before attempting; most high-current models handle 2 ohms continuously, but some budget units may struggle. Use 12-gauge oxygen-free copper cables for runs under 12 feet to prevent voltage drops exceeding 0.2V.
Series wiring suits 8-ohm coils when pairing with tube amplifiers or older solid-state units with weaker current capability. The combined 16-ohm load reduces strain on the output stage, extending component lifespan while preserving midrange clarity. This configuration sacrifices some low-end impact compared to parallel but ensures cleaner transients at high volumes–ideal for critical listening rather than sheer output.
For mixed-frequency setups, bridge one coil per channel using a single stereo amplifier. Assign each coil to separate channels (left/right) to distribute heat evenly across the amplifier’s output stage. This approach maintains channel separation while avoiding the complexity of series-parallel hybrids, which can introduce phase cancellation in full-range applications. Ensure crossover slopes match the amplifier’s output capability–12dB/octave for most, 24dB for high-end setups–to prevent driver damage from out-of-band signals.
Test final resistance with a digital multimeter before powering up. A variance exceeding 0.1 ohms between calculated and measured values indicates poor connections–recheck crimp joints or solder integrity. Secure connections with adhesive-lined heat shrink tubing to prevent oxidation, especially in marine or high-humidity environments where corrosion accelerates within weeks.
