Begin by sourcing the official GM service manual for the 6.0L Vortec engine model year–this document contains the precise pinout configuration for the 7-way connector. The auxiliary power circuit (pin 3) requires a minimum 12-gauge wire with a 30-amp fuse to prevent voltage drop during heavy loads. Verify the ground connection (pin 1) is secured to unpainted metal near the frame, as corrosion here causes intermittent failures.
Use a multimeter to test the brake controller output (pin 5) before connecting the trailer. Factory-installed controllers like the Tekonsha Prodigy demand a clean 12V signal; fluctuations indicate a faulty relay or damaged harness. The left and right turn/brake circuits (pins 4 and 6) must handle 20 amps–replace any wires smaller than 14-gauge to avoid overheating.
Critical: The reverse light circuit (pin 7) is often overlooked but essential for trailer backup cameras. Confirm the factory wiring is intact; splices here degrade over time. For aftermarket components, match the connector’s voltage rating–standard 7-way plugs support 12V DC, but some European trailers may require adapters for 24V systems.
Isolate the harness near the rear axle during installation to prevent chafing against the exhaust. Apply dielectric grease to all connections to block moisture ingress. For vehicles with factory tow packages, the integrated brake module should be reset via OBD-II after wiring modifications to ensure proper calibration.
Practical Steps for Heavy-Duty Pickup Electrical Hookup
Locate the factory harness behind the rear bumper on the driver’s side. It’s a 7-pin round connector shielded by a black plastic cover–remove the cover to expose the terminals. Pin assignments follow the SAE J2863 standard: brown (tail/running), yellow (left turn/brake), green (right turn/brake), white (ground), blue (auxiliary/electric brake), red (12V power), and black (reverse light–if equipped). Use a multimeter set to DC voltage and probe each pin while toggling corresponding vehicle functions to confirm live circuits before connecting a towed load adapter.
Terminal-Specific Checks
Ground integrity is critical–scrape paint or rust from the pickup frame where the white wire bolts to ensure a clean, conductive surface. For the red power circuit, verify alternator output by measuring at the 12V pin with the engine running; readings should exceed 13.8V. If voltage drops below 13V at idle, inspect the fuse (30A underhood box, position #16) and alternator belt tension. Auxiliary circuits (blue for brake controllers) require a separate 20A fuse in the under-dash panel; install it only after confirming the controller’s brake output voltage matches the trailer’s actuator requirements (typically 5–12V PWM).
Adapters will have color-coded leads–match them strictly to the pinout: never assume identical colors mean identical functions across brands. For OEM replacements, GM part #15915040 fits the factory connector housing; aftermarket units must have a sealing gasket to prevent corrosion from road spray. Test all circuits under load before towing: activate each turn signal, brake pedal engagement (with engine off then on), and auxiliary functions (e.g., trailer-mounted compressor) while monitoring voltage at the connector with a 10A load applied to each circuit separately.
Routing replacement wiring? Run cables inside the frame rail, using existing clips for factory harnesses–avoid sharp edges and suspension components. Secure every 18 inches with UV-resistant nylon ties (MIL-SPEC #MS21295). Split-loom tubing protects against abrasion; cut it to length and seal both ends with heat-shrink tubing containing adhesive liner to block moisture ingress. For LED-compatible towed loads, swap the factory flasher relay (turn signal) to an electronic replacement (GM #19301339) to prevent hyper-flashing caused by LED low current draw.
Finding the OEM Towing Cable Link on a Heavy-Duty 2001 GM Pickup
Check behind the rear bumper, driver’s side. The connector sits inside a square cutout in the frame rail, roughly 6 inches forward of the tailpipe and 3 inches above the lower edge. Look for a black plastic plug with seven pins arranged in a semicircle–gray or tan in color. If obstructed, remove two 10mm bolts securing the spare tire carrier; the harness often routes above the carrier.
Trace wires back toward the rear crossmember–one ground stud (bare copper) is bolted directly to the frame near the passenger-side taillight, wrapped in black tape. Two fuse links (10ga, red and white) run along the left frame rail and terminate at the underhood fuse box (position 34 and 36, labeled “TRAIL”) beneath the relay panel. Probe pins 1 (ground) and 4 (brake signal) with a test light before connecting any add-on harness; voltage should toggle between 0 and 12.4 volts when brakes are applied.
Step-by-Step Color Code Breakdown for 7-Pin Heavy-Duty Connector Installation
Begin by securing the vehicle-side harness and the tow package connector side by side. Match the following circuit assignments to their respective wires:
- White – Ground return, attaches to bare metal chassis point nearest the plug.
- Brown – Tail and running lamps, routes to the rear marker bulbs.
- Yellow – Left-hand turn/stop lamp, feeds the corresponding bulb filament.
- Green – Right-hand turn/stop lamp, isolated from yellow to prevent cross-feeding.
- Blue – Electric brake controller output, trigger wire from the dash module.
- Black – 12 VDC auxiliary power, fused at 30 A upstream of the connector.
- Red – Reverse lamps (optional), spliced directly into the backup light circuit.
Strip 5 mm of insulation from each conductor, flux the exposed copper, then apply a 20 W soldering iron and 60/40 rosin-core solder. Insulate each joint individually with adhesive-lined shrink tubing; heat evenly until the sealant melts and bonds to the wire jacket. Avoid wrapping joints in electrical tape–moisture ingress will corrode terminals within three seasons.
Route the harness along the frame rail using split-loom tubing. Secure every 20 cm with stainless-steel zip ties, ensuring no portion hangs below chassis components. Test each circuit with a multimeter set to continuity mode: probe the vehicle-side pin while activating the corresponding function (hazard switch, brake controller, etc.). Voltage at the plug pin should equal battery voltage minus 0.3 V–any drop greater than 0.5 V indicates a faulty ground or undersized wire.

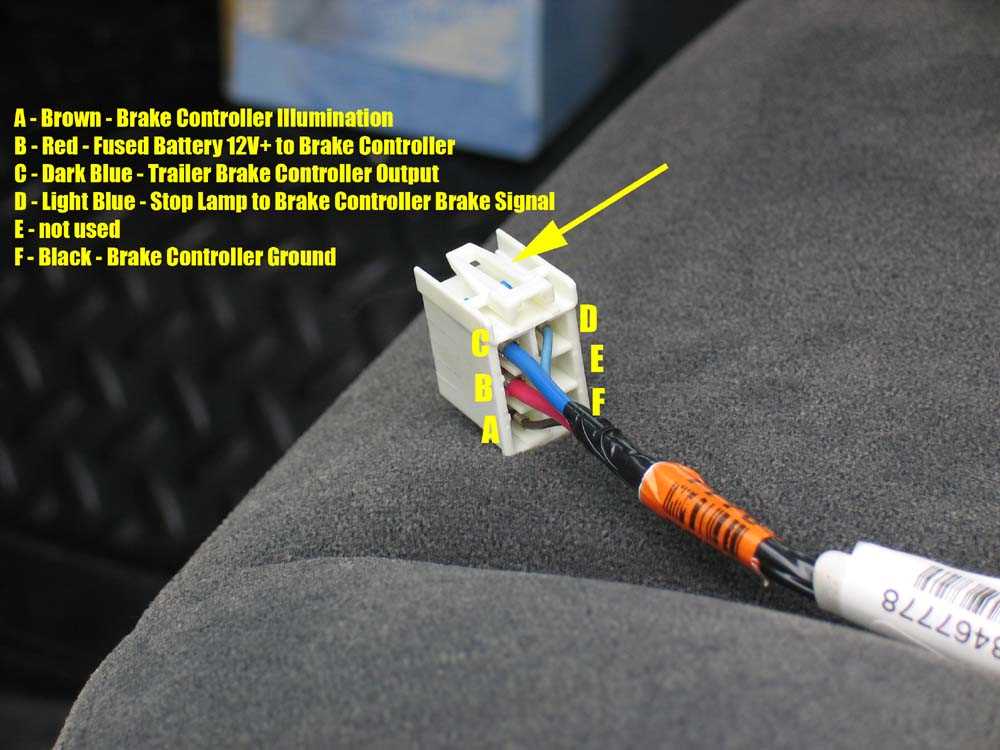

Connect the umbilical plug housing last. Align the locking tab with the notch in the socket, push until the spring-loaded retainer clicks, then rotate clockwise until the keyway engages. Wipe the contacts with dielectric grease to prevent oxidation. For aftermarket brake controllers, tap the blue wire into the OEM harness at the driver-side kick panel; cut the factory splice connector off and solder the new joint directly to avoid intermittent failures.
Verify that the brake controller’s output ramps smoothly from 0–12 V when the manual lever is actuated. If the electric trailer actuator chatters, reduce gain in 10 % increments until modulation is smooth. Check all lamp filaments with a scan tool or test light; a single burned bulb can back-feed into adjacent circuits and trigger false fault codes on the instrument cluster.
Seal the connector housing with two wraps of high-temperature silicone tape designed for 300 V service. Add a secondary ground strap between the tow vehicle frame and the camper’s coupler; factory grounds are often inadequate for combined lamp and brake loads exceeding 30 A under mountain-grade conditions.
Gear and Supplies for Modifying or Restoring Towing Electrical Connections
Start with a multimeter capable of measuring voltage, resistance, and continuity–preferably with a minimum 10-megaohm input impedance to avoid false readings on sensitive circuits. A Fluke 87V or Klein Tools MM700 will handle both 12V DC checks and low-voltage signal tests without damaging the system. Skip cheaper models with auto-ranging delays; manual range selection speeds up troubleshooting.
For stripping wires, use a Klein Tools 11063 or IDEAL T-Stripper, which cleanly removes insulation without nicking conductors. Avoid razor blades or utility knives–even a microscopic cut weakens copper strands under vibration. When splicing, 3M Scotchcast 221 crimp connectors (butt, ring, or spade types) rated for 22-10 AWG ensure corrosion-resistant joints. Match connector sizes to wire gauges: 14 AWG for brake/turn signals, 12 AWG for ground and power leads, and 10 AWG for charging circuits if tapping into the vehicle’s battery.
Heat-Shrink Tubing and Adhesive Liners
Raychem DR-25 dual-wall heat-shrink tubing with adhesive lining seals splices against moisture and road salt. Cut pieces 2.5x the splice length–short sections shrink unevenly, long sections waste material. A Milwaukee M12 Heat Gun (2570-20) at 500°F ensures even shrinkage without melting insulation. For tight spaces, Tyco Electronics SCL low-profile shrink tubing fits behind dash panels or inside junction boxes. Always test fit tubing before crimping; once adhesives activate, repositioning risks compromising the seal.
Soldering adds mechanical strength but isn’t mandatory if using high-quality crimps. If soldering, a Weller WLC100 with a 0.8mm conical tip and 60/40 rosin-core solder (Kester #24-6337-0007) prevents cold joints. Apply flux (MG Chemicals 835) to bare wire before soldering to improve wetting. Use a Third Hand Tool with magnifying glass to hold splices steady–heat-shrink tubing melts at 200°F, so work quickly and avoid overheating insulation.
Grounding and Protective Measures
Bypass chassis ground issues by running a dedicated 8 AWG tinned copper ground wire directly to the battery’s negative terminal. Secure connections with TE Connectivity PIDG terminals, crimped with a Astro Pneumatic 78800 hydraulic crimper. Do not rely on sheet metal alone–corrosion and paint act as insulators over time. For trailer-side connectors, a Hopkins 47965 7-way RV blade socket with silicone seals resists water ingress better than vinyl-coated plugs.
Dielectric grease (Permatex 22058) applied to connector pins prevents oxidation, while CRC Lectra-Motive contact cleaner removes existing corrosion. For in-line fuses, use ATC/ATM blade fuses: 10A for tail/turn circuits, 20A for brake controllers, and 30A for auxiliary power. Label all wires with HellermannTyton 121-01014 adhesive sleeves–marking source, function, and target location prevents future confusion. Store loose wires in Techflex Flexo Wrap or Split Loom Tubing (1/4″ for sensor wires, 1/2″ for power leads) to prevent chafing against sharp edges.
