Use 4-gauge oxygen-free copper (OFC) cables for all high-current connections, including battery, ground, and power distribution. Route cables away from signal paths and sensitive electronics, maintaining at least a 3-inch separation at crossover points. Terminate ground wires within 18 inches of the vehicle chassis at a clean, unpainted metal surface.
Connect fuse holders no farther than 18 inches from the battery positive terminal. Use a 150-amp ANL fuse for 800-1200W systems operating at 12V. Avoid mounting the fuse near heat sources or moving components. Split power distribution to monoblock units with individual 8-gauge cables, each fused at 60 amps.
Integrate a 1-ohm rated capacitor on the power feed path if voltage drops below 11.8V under full load. Mount the capacitor within 12 inches of the amplifier’s power input. Secure all connections with soldered crimp terminals, then insulate with adhesive-lined heat shrink tubing.
Label all connections with heat-resistant wire markers. Test each path with a multimeter before full power application, verifying less than 0.2-ohm resistance across ground and power lines. For bridged configurations, confirm impedance matches amplifier specifications–never drop below 2 ohms per channel.
Route RCA cables perpendicular to power wires to minimize interference. Maintain at least 6 inches of separation between RCA and power wires. Use twisted-pair shielded cables for signal paths longer than 8 feet. Ground the RCA shield at the source head unit only–never at both ends.
Connecting Your High-Power Audio System: A Detailed Guide

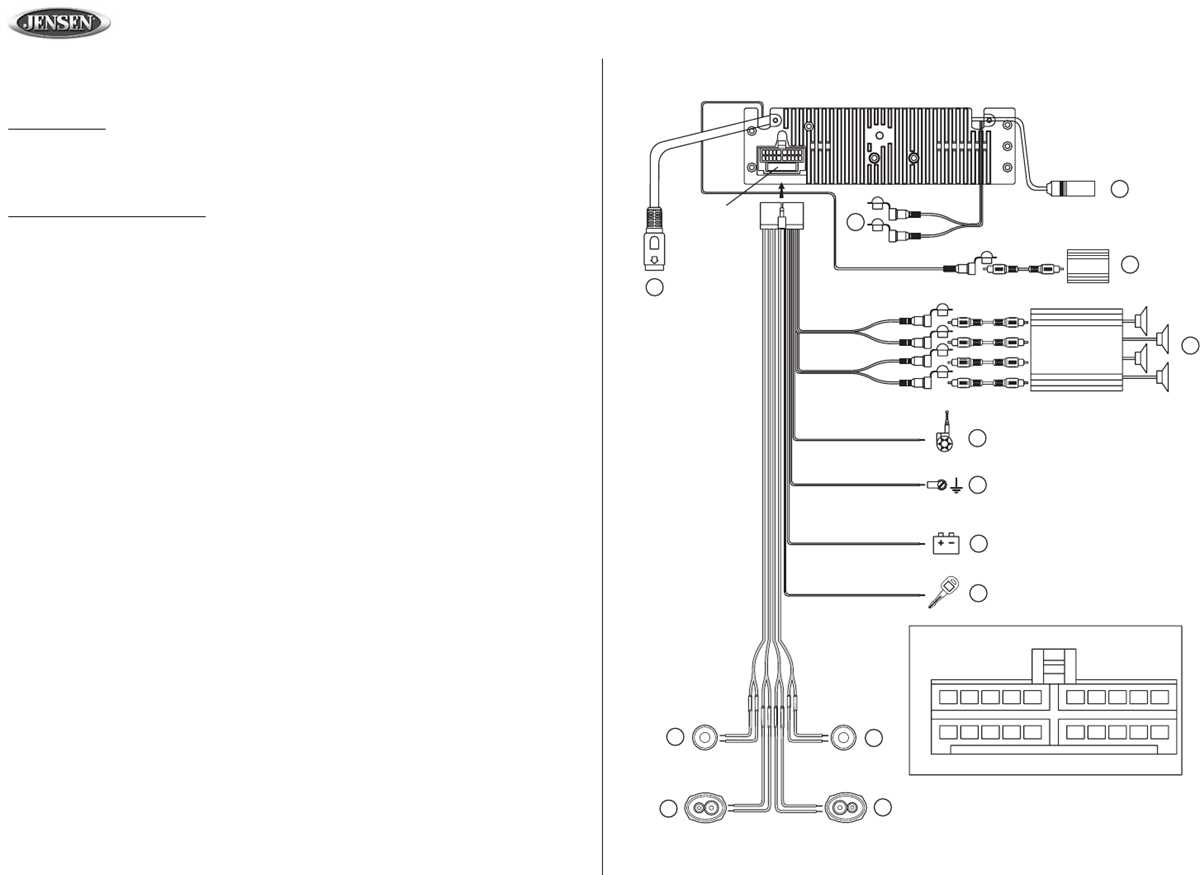

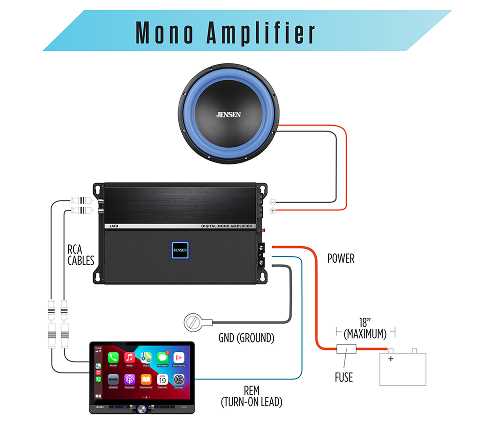

Begin by sourcing a 4-gauge oxygen-free copper cable for primary power lines–this reduces signal loss over longer runs. Ground the setup directly to the vehicle’s chassis near the battery, avoiding daisy-chaining connections to prevent resistance buildup. Use a 150-amp ANL fuse within 7 inches of the battery terminal to protect against short circuits. For preamp signal transfer, shielded RCA cables (minimum 5 meters) are mandatory to mitigate electromagnetic interference from alternators or ignition systems.
Subwoofers with dual 4-ohm voice coils require careful impedance matching. Wire both coils in parallel for a 2-ohm load to maximize output, but verify the amplifier’s minimum stable impedance rating first–most high-output models tolerate down to 1 ohm, but efficiency drops sharply below 2 ohms. If bridging is needed, ensure the combined load doesn’t fall below the unit’s specified limits; consult the serial-number-specific manual for exact figures, as tolerances vary by production batch.
- Remote turn-on wire: Connect to a 12V switched source (e.g., head unit or ignition circuit) using a relay to prevent voltage sag from high-current draw.
- Capacitor placement: Install a 1-farad capacitor within 18 inches of the amplifier to stabilize voltage under transient peaks.
- Speaker terminals: Use gold-plated connectors and torque them to 10-12 inch-pounds to prevent oxidation-related signal degradation.
After wiring, test for parasitic drain by disconnecting the negative battery terminal and measuring current flow with a multimeter–readings above 50 milliamps indicate a hidden short. Adjust gain settings using a 50Hz test tone at 75% volume on the head unit; match the amplifier’s input sensitivity to avoid clipping, which manifests as distorted mids and burnt voice coils. Recheck all connections after 50 hours of operation, as thermal cycling can loosen terminals.

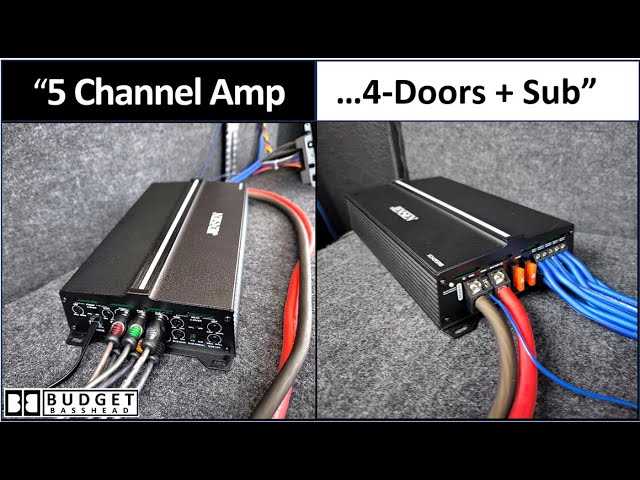

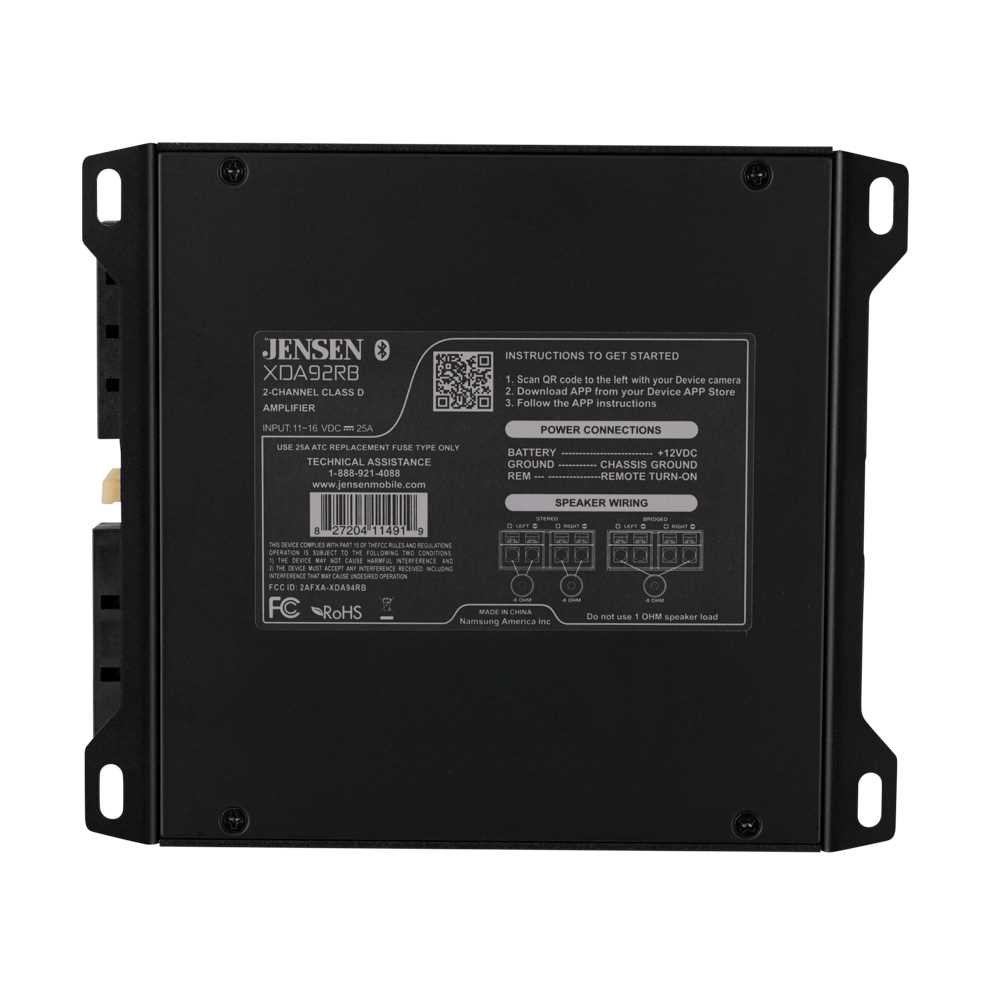

Identifying Terminals on the High-Power Audio Device
Locate the input terminals on the rear panel–usually marked “IN”, “RCA”, or “Signal”–to connect your preamp or head unit. These are typically color-coded: red for right channel and white (or black) for left channel. Ensure polarities match to prevent phase cancellation.
Power terminals are labeled +12V, GND, and “REM” (remote turn-on). The +12V connects to the battery’s positive terminal using 4 AWG or thicker wire, while GND attaches to the vehicle’s chassis. The “REM” wire links to your stereo’s remote output to enable automatic power-on. Failure to secure ground properly risks voltage drop or shutdowns.
Examine the speaker outputs, often labeled “+” (positive) and “–” (negative) or “SP+” and “SP–”. Impedance (ohm load) must align with the unit’s specifications–2Ω or 4Ω for most models. Crossing wires here causes overheating or distortion. Use a multimeter to verify continuity if labels are worn.
Some units feature high-level inputs (speaker-level inputs) marked “HI-IN”. These accept signals directly from factory stereos without RCA outputs. Connect them to the existing speaker wires, ensuring correct polarity (e.g., front left positive to front left input).
| Terminal Type | Common Labels | Wire Gauge Recommendation | Key Notes |
|---|---|---|---|
| Power (+12V) | +12V, B+, BAT | 4 AWG | Avoid loose connections; use fuse within 18″ of battery. |
| Ground | GND, GRND, – | 4 AWG | Scrape paint to bare metal for secure chassis connection. |
| Remote Turn-On | REM, RMT, ANT | 18–16 AWG | Verify stereo’s remote output sends +12V on power-up. |
| Speaker Outputs | +, –, SP+, SP– | 12–8 AWG | Match impedance; never bridge mismatched loads. |
Fuse holders are usually integrated near the +12V terminal. If absent, install an inline fuse (60–100A) no farther than 18 inches from the battery. Skipping this risks fire hazards from short circuits.
For subwoofer-only models, check for a “LOW” or “SUB” terminal. These often have higher current capacity–use 8 AWG wire minimum. If bridging is required, consult the manual: bridging pairs (e.g., Channel 1+ to Channel 2–) must not exceed the unit’s bridged impedance limit.
Troubleshooting Mislabeled Terminals
If labels are unclear, trace the PCB traces: +12V often connects to a large inductor or heatsink-mounted MOSFETs, while GND links to the chassis via screws. Speaker outputs route to large capacitors or output transistors. Use a continuity tester to confirm paths before energizing.
Step-by-Step Guide to Connecting Power and Ground Cables
Cut the main power cable to the exact length needed–measure from the battery terminal to the device’s input, adding 3–4 inches for slack. Strip ½ inch of insulation from both ends using a calibrated wire stripper to avoid damaging the copper strands. Crimp a high-quality terminal connector rated for at least 150% of the expected current (e.g., 100A minimum for heavy-duty setups) and solder it for a corrosion-resistant bond. Tape the exposed metal with adhesive-lined heat shrink tubing to prevent short circuits.
Selecting the Optimal Ground Point
Identify a bare metal chassis surface within 18 inches of the installation, free of paint, rust, or powder coating. Sand the area down to shiny metal with 80-grit sandpaper, then clean it with isopropyl alcohol. Avoid factory ground bolts shared with sensitive electronics like ECUs–use a dedicated M8 or M10 bolt instead. Secure the ground cable with a star washer and lock nut to maintain pressure under vibration; torque to 15–18 ft-lbs to prevent loosening.
Route both cables away from moving parts, sharp edges, and heat sources. Use split loom tubing or spiral wrap for protection, securing the harness every 6–8 inches with zip ties. Avoid running power and signal cables parallel–keep a minimum 12-inch separation to prevent interference. Test continuity with a multimeter before final connection: resistance should read below 0.1 ohms for both paths. If exceeding, recheck terminals and ground contact.
Fuse the power side within 18 inches of the battery using a slow-blow fuse matching the cable’s ampacity (e.g., 8 AWG = 60–80A fuse). Connect the battery last, positive first, then ground–this prevents accidental shorts during installation. Once powered, monitor the device’s draw for 30 minutes; unexpected fluctuations indicate poor connections or undersized cables, requiring immediate troubleshooting.
Connecting Speaker Outputs in Mono vs. Stereo Setups
Use parallel connections for mono bridging to combine both channels into a single high-power output. Ensure the total impedance stays within the device’s stable range–typically 4 ohms for most professional-grade units. For example, two 8-ohm speakers wired in parallel result in 4 ohms, matching the minimum safe load. Avoid exceeding the manufacturer’s impedance limits, as this risks overheating or damage.
Stereo configurations require separate left and right channels, each driving its own speaker. Wire each channel independently to preserve audio separation and imaging. If connecting multiple speakers per side, use series connections for increased impedance or parallel for lower impedance, adjusting based on the source’s output specs. A pair of 4-ohm speakers in series yields 8 ohms, while parallel drops it to 2 ohms–select based on the amplifier’s tolerance.
For subwoofers in a mono setup, employ a single channel with a low-pass filter to prevent distortion from high frequencies. A bridged connection maximizes output, but verify the amplifier’s bridging capability beforehand. Most modern units support this, but some older models may require manual adjustments or external circuitry. Always check the manual for bridging procedures specific to your model.
High-frequency drivers (tweeters) demand careful attention to crossover points and impedance matching. Series-wiring tweeters maintains phase coherence but may reduce volume–parallel increases output but risks uneven frequency response. Use a passive crossover network if the amplifier lacks built-in filtering, ensuring the tweeter’s power rating matches the amplifier’s output to avoid clipping or failure.
Test speaker loads with a multimeter before powering up. A 2-channel stereo setup with mismatched impedance (e.g., 8 ohms left, 4 ohms right) causes uneven volume distribution and potential overheating. Recheck connections after any adjustments–loose terminals or incorrect polarity introduce hum, distortion, or equipment failure.
Document your configuration with labels or a simple schematic. Include impedance calculations, wire gauge used (12–16 AWG for runs under 50 feet), and amplifier settings. This prevents errors during future modifications and ensures consistent performance across installations.
