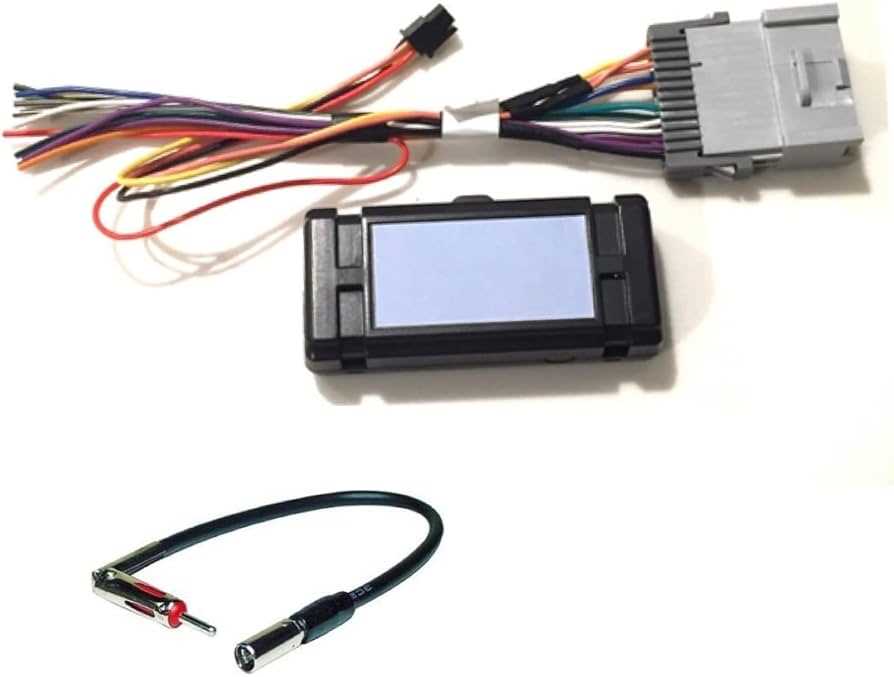

Start with wiring harness adapter Metra 70-2003 or Axxess ASWC-1 for plug-and-play installation. Cutting factory wires risks electrical faults and voids OEM warranties if still active. Verify the adapter matches the radio connector type–most GMT800 platforms (including Silverado, Tahoe, and Suburban) use a 16-pin Delphi harness. Check the rear of the factory unit before removal; color codes for constant power (yellow), ignition (red), ground (black), and amplifier triggers (pink or orange) must align with the adapter.
Identify the fuse box location under the dashboard or hood–look for a 25-amp fuse labeled “Stereo” or “Accessory.” Use a multimeter to confirm 12V at the yellow wire with the key in the ACC position. If voltage reads 0V, trace the circuit to a potential blown fuse or faulty ignition relay. For vehicles with OnStar or Bose premium audio, additional wires (gray for data, dark blue for amp control) must be preserved or bypassed carefully to avoid serial data errors.
Connect the new receiver’s illumination wire (usually orange) to the vehicle’s dimmer circuit–failure causes static or flickering lights when headlights are on. For steering wheel controls, splice the adapter’s steering wheel interface (Metra ASWC-1) into the factory harness’s light blue/white wire. Test each button before finalizing the dash install to ensure volume, track skipping, and voice commands function correctly.
Ground the unit directly to the chassis using a 10-gauge wire and a star washer–avoid attaching to painted surfaces or thin brackets. Crimp connectors degrade over time; solder and heat-shrink all splices for longevity. If the display or amplifier cuts out, check for voltage drop on the constant power line or a loose ground. Use a test light to verify current flow at each connection point before reassembling the trim panels.
Aftermarket Audio System Integration for GM Model Year OE Head Unit
Locate the factory harness behind the dash fascia near the climate controls–it’s a 12-pin AWM-style connector with locking tabs. Pin 1 (pink wire) delivers constant 12V from the battery; confirm voltage with a multimeter before splicing. Pins 3 and 4 (light blue and yellow) supply switched ignition power–trace both wires back to the fuse box to identify blown fuses (typically 10A). Ground connections cluster at pins 5 (black) and 14 (brown)–sand the chassis contact point until bare metal shows for corrosion-free conductivity.
- Front left speaker feeds: pin 6 (grey) positive, pin 7 (grey/black) negative.
- Front right outputs: pin 8 (lt. green) positive, pin 9 (lt. green/black) negative.
- Rear channels follow the same polarity: pin 10 (dk. green) and 11 (dk. green/black) for left; pin 12 (purple) and 13 (purple/black) for right.
Match impedance (4-ohm typical) before connecting aftermarket amplifiers–amplifier turn-on lead taps into pin 2 (orange) if equipped.
Harness Adapters & Common Pitfalls
Metra 70-2003 or Scosche GM03B interfaces eliminate cutting but verify color codes–some aftermarket decks reverse left/right rear outputs. If retaining OnStar or Bose systems, preserve pins 15 (purple/white) and 16 (tan), even if not immediately visible. For steering-wheel audio controls, add a PAC RP4-GM31 interface module; program using vehicle-specific resistor values (2.2kΩ for volume up, 470Ω for seek).
- Remove dash trim with a plastic pry tool–release Top A/C vent clips first to avoid cracking tabs.
- Disconnect battery negative terminal before handling any harness to prevent airbag deployment circuitry damage.
- Route new speaker wires away from HVAC ducts or shift linkages to prevent rattles or pinching.
- Secure inline fuse holders (15A) within 7 inches of battery positive connections.
Locating the Electrical Schematic for Your Silverado Audio System
Start with the vehicle’s official service manual. General Motors provides these documents through authorized dealers or subscription services like AllDataDIY and Mitchell1. The manual includes precise pinouts, color codes, and connector layouts for the factory-installed entertainment unit. Look for section 8B – Audio System, where the harness configurations are detailed for both base and premium setups.
Aftermarket Resources and Forums
Specialized platforms such as GM-Trucks.com, The12Volt.com, and LS1Tech host user-uploaded schematics verified by enthusiasts. Search for threads tagged with factory harness retrofit or aftermarket integration. Members often share annotated scans of OEM wiring layouts, including adaptations for third-party receivers like Pioneer or Kenwood. Verify post dates–schematics from 2010-2015 remain relevant for this model year.
Manufacturers of replacement units often bundle connection guides with their products. Crutchfield’s MasterSheet includes vehicle-specific instructions, while Metra’s 70-2003 harness kit provides a plug-and-play solution with labeled wires. These documents clarify power sources, speaker outputs, and accessory triggers, eliminating guesswork when splicing or bypassing factory components.
Physical Inspection and Labeling
Pop the dash trim using a plastic pry tool to access the rear of the head unit. The harness typically features a 24-pin white connector (Delphi) or a 16-pin black connector (Bosch), each with distinct color-coding. Yellow denotes constant 12V, red is ignition-switched, orange is dimmer control, and purple/black stripes handle memory retention. Snap photos of the existing setup before disconnecting–this reference simplifies reinstallation.
Local auto electricians and car audio shops maintain libraries of schematics for common models. Request a printout of the Delco double-DIN or single-DIN harness layout; some shops charge a nominal fee (under $20) for a laminated copy. Avoid generic “universal” diagrams–focus on those specifying GMT800 platform details to prevent mismatched connections that can damage onboard modules.
How to Trace Audio System Cable Shades and Link Points
Locate the factory harness behind the vehicle’s entertainment console–typically tucked near the dash’s lower left side. Match each lead’s hue to the standard OE coding: yellow carries constant 12V power, red handles accessory feed, black grounds the unit, and orange manages illumination dimming. For speaker outputs, front left pairs gray (positive) with gray-black (negative), while rear right combines purple and purple-black.
Verifying Connector Pinouts
Use a multimeter set to DC voltage–probe the harness pins while the ignition cycles between off, accessory, and run. A consistent 12V on yellow confirms battery source integrity; red should peak only during accessory/run states. If readings deviate, inspect fusible links and fuses under the instrument panel (positions 16 and 17). Speaker wires require impedance checks–4 to 8 ohms across positive-negative pairs validates intact circuits.
Splice connectors only after confirming polarity with a 9V battery test–brisk pops indicate correct phase alignment for LF, RF, LR, and RR channels. For aftermarket units, map OE colors to adapter harnesses: Metra’s 70-2102 blends GM’s gray-to-gray, purple-to-purple seamlessly. Avoid twisting wires; use crimp seals or solder junctions for corrosion resistance.
Final step: reconnect the negative battery terminal and cycle the stereo on/off to confirm backlight control via the orange lead. Audible power-down delays or erratic backlight behavior signal reversed illumination inputs–swap orange with adjacent brown if issues persist.
How to Test and Verify Electrical Connector Integrity Prior to Assembly
Begin by obtaining a multimeter with continuity testing capability. Set the device to the lowest resistance range (typically 200 ohms or continuity mode). Probe each terminal pair within the connector while ensuring no external circuit interference–ground leads should be disconnected, and power sources isolated. A reading of near-zero ohms confirms a solid connection, while infinite resistance indicates an open circuit. Check both directions for diodes or LEDs, which conduct in only one path. Document each reading for cross-reference during troubleshooting.
Probing Terminals for Voltage and Signal Integrity
Switch the multimeter to DC voltage mode (20V range) and attach the black probe to a known chassis ground. With the vehicle’s ignition in the “ACC” or “ON” position, touch the red probe to each power input pin–expect 12V at designated power terminals and 5V at signal outputs where applicable. For speaker outputs, set the meter to AC voltage (2V range) and probe each channel while playing a 1kHz test tone. Voltages should mirror across left/right speakers, with deviations suggesting faulty connections or load imbalances. Repeat this process for switched inputs, verifying activation only when sources are engaged.
Inspect connector housings for damaged pins, bent contacts, or corrosion. Use a magnifying glass to identify micro-fractures or oxidized surfaces, particularly in terminals exposed to moisture. Clean terminals with a brass wire brush or electrical contact cleaner, then apply dielectric grease to prevent future oxidation. For crimped connections, tug each wire firmly–properly secured terminals should not pull free under moderate force. If retesting reveals inconsistent readings, re-crimp or solder the joint, ensuring insulation displacement connectors pierce the wire’s insulation without severing strands.
Simulate real-world operating conditions by gently wiggling the harness while monitoring meter readings. Intermittent connections often reveal themselves during this stress test. Pay attention to areas where the harness bends near mounting points or sharp edges, as these are prone to chafing. If available, use an oscilloscope to verify signal waveforms–clean square waves for digital signals and smooth sine waves for analog outputs indicate integrity. For CAN bus or data lines, confirm proper termination resistance (typically 120 ohms between CAN-H and CAN-L) with the ignition off.
Cross-Referencing with Manufacturer Pinout Data
Compare test results against official pin assignment documentation, verifying color codes, pin numbers, and expected functions. Mismatches may indicate miswired adapters, incorrect harness routing, or aftermarket modifications. For illumination controls, test with dash lights activated–expected voltage drop should match specifications (usually ~1V reduction from battery voltage). If testing reveals absent or incorrect voltages at accessory outputs, trace the harness upstream to the fuse box or ignition switch, checking for blown fuses or relay failures.
Final verification requires a bench test with the device fully connected but not yet mounted. Power on the system and confirm all functions: display backlighting, button responsiveness, media playback, and amplifier outputs. Listen for distortion, popping, or static–each suggesting poor grounding or impedance mismatches. If all readings align and functionality is confirmed, proceed with installation, secure the harness with zip ties, and double-check retention clips before reassembly.
