Begin by isolating the main power distribution module–usually mounted on the cabin firewall or under the hood–before examining any wiring blueprints. This component acts as the hub for critical circuits, including the ignition relay, alternator charge line, and primary fuse block. Locate the terminal block labeled B+ or 30; this is where the battery’s direct feed connects. Verify the gauge of the cable (typically 4-6 AWG for diesel applications) against the manufacturer’s specifications–undersized wire can lead to voltage drop under load.
Trace the starter circuit path next. On most heavy-duty chassis, the starter solenoid receives power through a dedicated 50-terminal relay controlled by the ignition switch. Check the relay’s coil voltage (12V or 24V) and confirm the presence of a flyback diode if the relay drives inductive loads. Missing this diode often results in transient spikes that damage the ECM or transmission control units.
Review the ground distribution network as a priority. Engine blocks and frame rails serve as return paths–ensure all grounds use minimum 2 AWG conductors and terminate at clean, bare-metal surfaces free of paint, corrosion, or sealant. Poor grounding accounts for over 60% of intermittent electrical faults in commercial vehicle fleets. Use a milliohm meter to measure resistance between the negative battery terminal and chassis points; readings above 0.5 ohms indicate compromised connections requiring immediate repair.
Identify sensor circuits by referencing pinout tables in the service documentation. Common sensors–boost pressure, coolant temperature, oil pressure–operate on 5V reference voltage supplied by the ECU. Probe the signal wires with a digital multimeter while cycling the engine; voltage swings outside 0.5V–4.5V suggest a faulty sensor or open circuit in the wiring. Pay special attention to shielded cables–ground the shielding only at one end to prevent ground loops.
Examine the CAN bus topology if the vehicle supports multiplexed communication. Two twisted-pair wires (CAN high and CAN low) link all nodes; reflections from improper terminations can distort signals. Verify the presence of 120-ohm resistors at both ends of the bus–omitting these causes data corruption during high-speed data transfer. Use an oscilloscope to check signal integrity; expected waveforms should show a differential voltage between 1.5V and 3.5V.
Document every modification or splice made during troubleshooting. Color-coded wiring diagrams often deviate after field repairs–annotate discrepancies with a permanent marker and update fleet maintenance logs accordingly. Replace crimp connectors with soldered joints followed by heat-shrink tubing for long-term reliability. Adhesive-lined heat shrink prevents moisture ingress, which is the leading cause of intermittent shorts in under-chassis harnesses.
Isuzu Medium-Duty Truck Wiring Layout: A Field-Ready Manual
Begin troubleshooting by locating connector C-101 near the engine compartment firewall–this is the primary junction for power distribution to auxiliary systems. Verify pin assignments using a multimeter set to 20V DC: pins 1–4 should read 12V with ignition on, while pins 5–8 carry ground signals. If voltage drops below 11.5V, inspect the alternator output at terminals B+ and D+; expected values are 13.8–14.4V under load.
For fuel system diagnostics, trace the wiring from the injection pump to ECU pins 23 (signal) and 24 (return). Resistance between these pins should measure 0.5–1.2 ohms at 20°C–deviations indicate wiring damage or pump failure. Cross-reference readings with the resistance chart below before replacing components:
| Component | Pin Pair | Expected Ω (±10%) | Critical Action |
|---|---|---|---|
| Injector No. 1 | ECU-51 to ECU-52 | 0.7 | Check for short to ground |
| Throttle Sensor | ECU-11 to ECU-12 | 1.8 | Recalibrate sensor if >2.2Ω |
| EGR Solenoid | ECU-47 to chassis ground | 22–28 | Replace if 32Ω |
When addressing ABS faults, isolate wheel speed sensors by disconnecting the 8-pin connector at the control module. Probe pins 3 (front right) and 7 (front left) with an oscilloscope–healthy sensors produce a sine wave peaking at 1.0–3.3V AC at 60 RPM. Absence of signal suggests broken wires or sensor gap exceeding 1.5mm; adjust gap incrementally while monitoring output.
Air conditioning circuits use a dual-relay setup (condenser fan and compressor clutch). Test relay coil resistance at terminals 85–86: 70–110 ohms confirms functionality. If clutch fails to engage, bypass the pressure switch (pins 1–2 on the low-pressure port connector) with a jumper–clutch activation indicates a faulty switch.Cabin fuse box layout differs between model years–pre-2015 units use blade-style fuses while 2016+ incorporate mini-ATC fuses. Critical fusible links (main power feed) are integrated into the under-hood box, labeled F1 (100A) and F2 (60A). If both blow, inspect the starter motor solenoid for melted contacts; resistance across contacts should not exceed 0.1Ω.
For CAN bus communication errors, connect a scan tool to the OBD-II port and monitor PIDs U1000 (network malfunction) and P1605 (ECU timeout). If present, disable non-essential modules (e.g., trailer brake controller) by removing their fuses one at a time. Persistent faults necessitate checking bus termination resistors–locate the 120Ω resistor between CAN-H (pin 6) and CAN-L (pin 14) at the instrument cluster connector.
Exhaust brake wiring terminates at solenoid pins A (power) and B (ground), controlled by a pulse-width modulated signal from the ECU. Measure duty cycle at B with ignition on–expected range is 30–70% during normal operation. If fixed at 0% or 100%, inspect ECU pin 29 for corrosion or replace the solenoid if resistance exceeds 20Ω.
Alternator field control uses a dedicated voltage regulator. Test excitation current at pin F with engine off–expected value is 0.2–0.5A at 12V. If current is absent, verify the ignition feed at pin IG with a test lamp; illumination confirms power, while darkness suggests a blown 10A fuse in the under-dash panel.
Critical Elements in the Isuzu Medium-Duty Truck Wiring Layout
Begin diagnostics by locating the fuse block–typically mounted beneath the dashboard on the driver’s side. Label F-1 through F-12 correlate directly to high-current circuits: F-3 (15A) protects the ignition coil, while F-5 (10A) safeguards the ECU. Resistance checks across these fuses should read <0.5 ohms; deviations indicate corrosion or a faulty terminal connection. Replace blown fuses with identical amp ratings–under-spec replacements risk fire.
- Crankshaft position sensor (CPS): 3-pin connector, purple (signal), black (ground), brown (reference). Probe the signal wire at ignition; voltage should spike to 4.8–5.2V when cranking. Static readings below 0.3V suggest wire chafing near the gearbox housing.
- Glow plug control module: 4-pin harness, white/red stripe (power), black (ground), two yellow wires routing to individual plugs. Multimeter set to DC voltage–expect 11V at the module input after key-on for 2–4 seconds in ambient temperatures <10°C.
- Alternator exciter line: thin red/blue stripe wire spliced near the battery positive terminal. Voltage should reach 13.8–14.4V within 300 milliseconds of engine start; sluggish ramp-up points to a failing alternator relay.

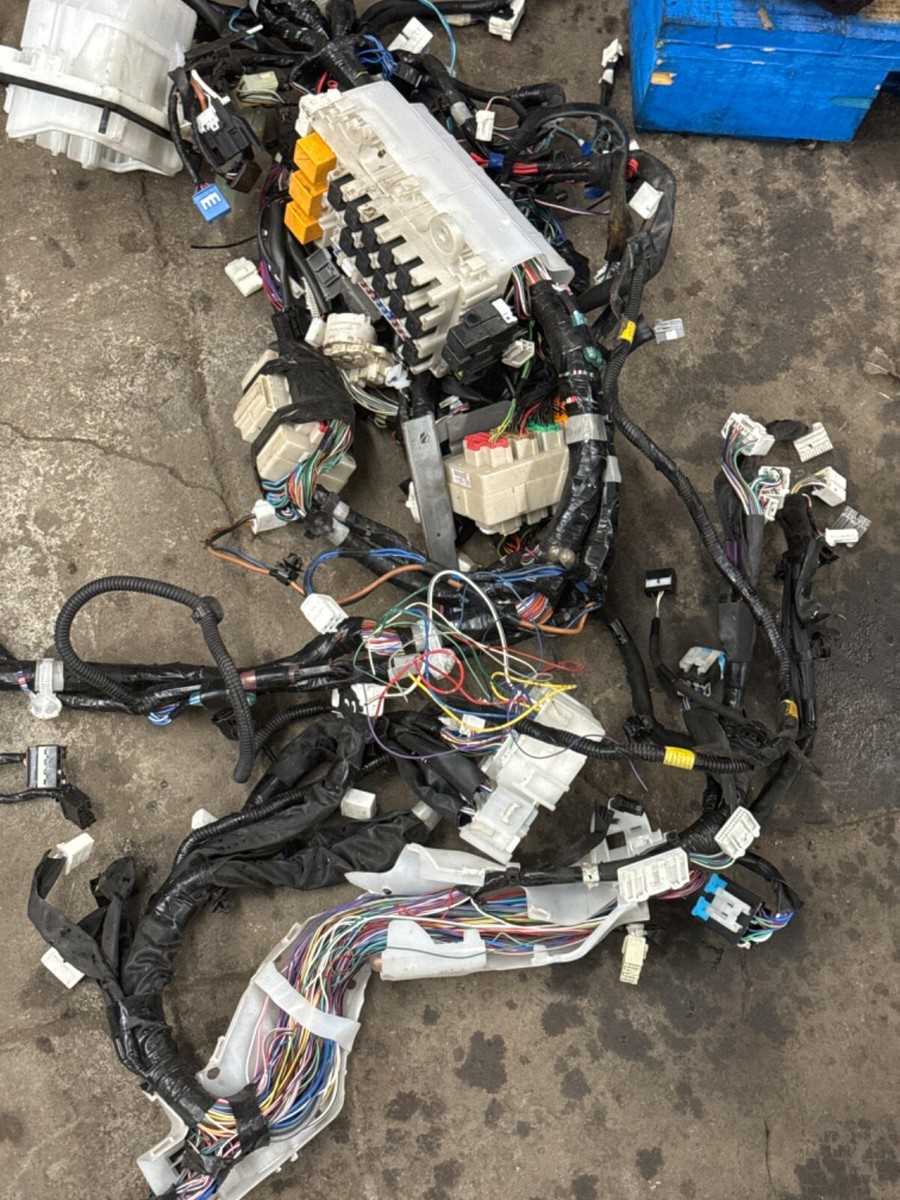

Trace the main harness along the frame rail–pay special attention to the J2 connector cluster near the firewall. This 24-pin plug consolidates critical ECM inputs: throttle position (pin 8, gray/white), coolant temp (pin 15, blue/red), and fuel pump control (pin 21, green). Disconnecting this cluster erases fault codes; always note connector orientation before removal. Use dielectric grease on reconnection to prevent moisture ingress.
- Inspect ground points: G1 (chassis ground near left headlamp), G2 (cylinder head stud), and G3 (frame rail behind fuel filter). Corrosion here mimics intermittent voltage drops–clean to bare metal, apply zinc-rich primer, then torque to 12 Nm.
- Fuel injection harness: orange (injector 1), gray (injector 2), white (sensor common). Scope injector signals–healthy waveforms show 12V peak, 3.5 ms duration at idle. Open circuits appear as flat lines.
- Headlight circuit: inner bulbs (blue/white wires) and outers (yellow/black) split at the multi-function stalk. Swap bulbs to confirm failures; lingering dimming suggests a faulty headlight switch rather than bulb.
Document every splice and terminal identifier with heat-shrink labels. Wire gauge dictates load capacity: starter circuit (4 AWG), lighting (16 AWG), sensors (20 AWG). Verify crimp integrity with a pull test–minimum 5 kg force. Replace any crimps exhibiting green patina; solder joints must show a concave meniscus without excess flux residue to prevent future oxidation.
Step-by-Step Tracing of Power Flow in Medium-Duty Truck Electrical Blueprints
Locate the primary battery terminal (B+) on the wiring layout–typically marked with a thick red line–and follow its path to the starter solenoid. Verify the 12V feed splits at the fusible link; if melted or discolored, replace it before proceeding. Trace the ignition-controlled circuit (IG1) to the main relay, ensuring continuity at pin 85 (coil) and pin 87 (output). Use a multimeter set to 20V DC to confirm voltage drops below 0.5V across connections; readings above indicate corrosion or loose terminals.
From the main relay, track the power line to the fuse box–check each fuse rating (e.g., 10A for instrumentation, 30A for lighting) against the legend. For headlight circuits, follow the orange/black wire to the dimmer switch, then to the left and right headlamp bulbs. At each junction, disconnect components and test for ghost voltage (induced current) with the ignition off; stray readings suggest a faulty relay or shorted wire. For auxiliary systems like the A/C compressor, trace the yellow wire from the climate control module to the condenser fan–inspect the 30A fuse inline before the motor.
Ground paths demand equal scrutiny. Identify chassis-ground points (G101, G301) on the schematic, usually clustered near the firewall. Clean each ground terminal with a wire brush and apply dielectric grease to prevent oxidation. Test ground integrity by measuring resistance between the negative battery post and chassis points–readings above 0.1Ω necessitate reinstatement or relocation of the ground. For ECU power, confirm the ECM relay (pin 86) receives a 12V signal from the ignition switch; a missing signal often traces back to a blown 15A fuse in the instrument panel cluster.
