Locate the main harness routing under the dashboard near the driver’s side kick panel. The fusible link connects to the battery’s positive terminal through a 10 AWG red wire, branching into three primary circuits: ignition (labeled IGN1), headlights (HI/LO beams), and auxiliary systems. Trace the ignition circuit to pin 1A of the BCM (Body Control Module), where it splits into five sub-circuits–fuel pump relay, starter solenoid, ECM power, ignition coil packs, and A/C clutch. On models with manual transmissions, the starter signal bypasses the park/neutral safety switch; verify continuity on the black/white striped wire (PN) between the switch and starter.
For headlight diagnostics, follow the 12-gauge light green wire (HI beam) from the multifunction switch to the front combination lamp. High beam relies on a separate 20A fuse (position #13 in the under-hood box); low beam shares ground with the parking lights via a brown/black striped wire. If only one headlight fails, inspect the bulb socket for corrosion or the white/red striped ground wire at the chassis connection. For intermittent flickering, measure voltage drop across the headlight relay (coil resistance: 60–100 Ω) while toggling the switch.

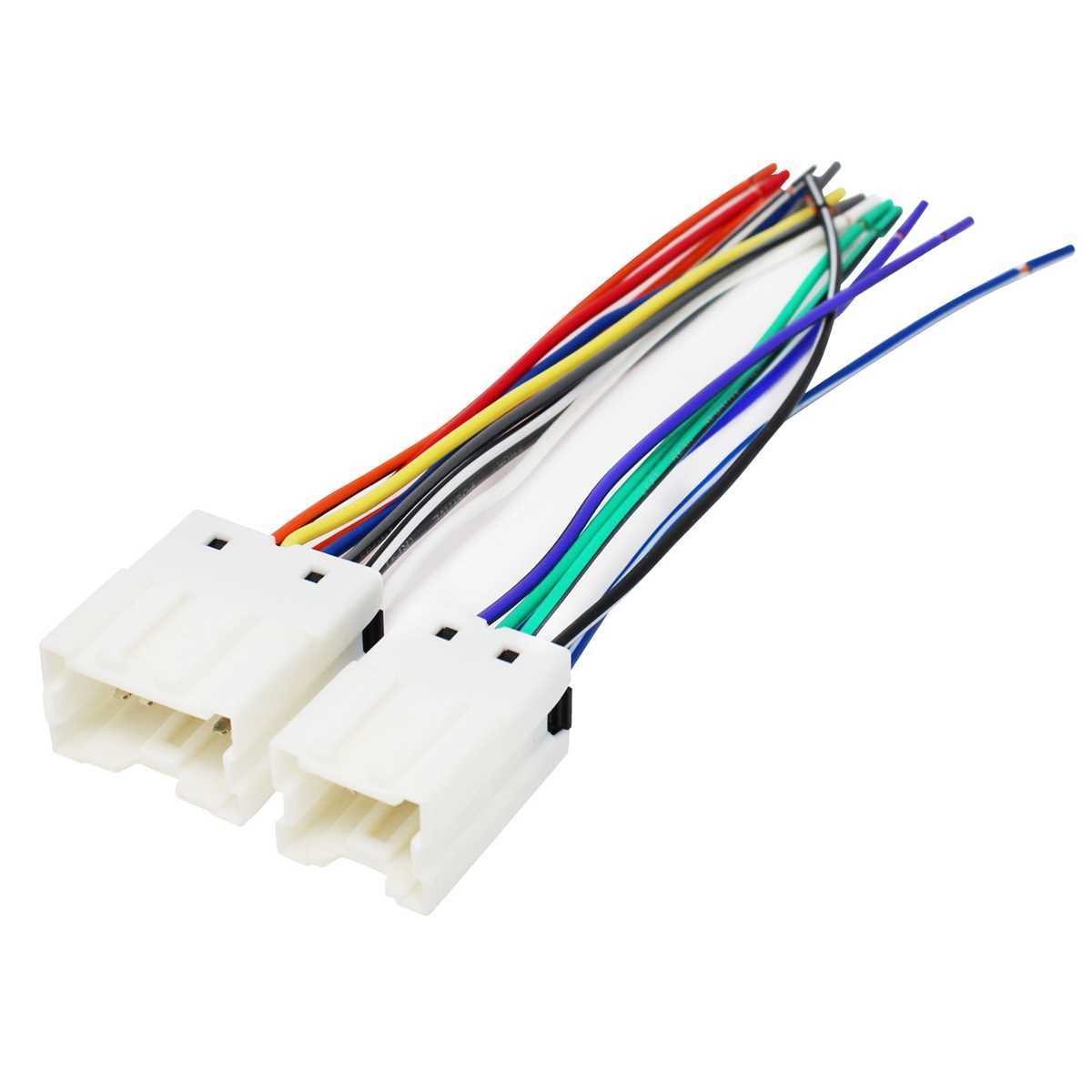

Bluetooth retrofit or aftermarket stereo installations require tapping into the blue/white radio power wire (constant 12V) and blue/red accessory wire (switched 12V) at the harness behind the OEM radio. Route RCA cables through the existing grommet behind the glove box, avoiding the brake master cylinder area to prevent chafing against the ABS module. For steering wheel controls, splice into the clockspring’s 2-pin connector (pinouts: green = button resistance matrix, yellow = ground reference). Test resistance values: volume-up = 470 Ω, mode = 1.5 kΩ, seek-down = 3.3 kΩ–ensure the aftermarket interface matches these values to prevent erratic behavior.
Troubleshooting the MIL (Malfunction Indicator Lamp) involves probing pin 16 of the ECM connector (gray 64-pin harness). A steady 5V confirms ECM-controlled ground; fluctuating voltage indicates an internal short or faulty P0420 catalyst code. For misfire diagnoses (P0300–P0304), monitor the crankshaft position sensor (CKPS) waveform on an oscilloscope–expect a 4V peak-to-peak signal at 1,500 RPM. If the pattern resembles a noisy sine wave, replace the sensor’s O-ring and verify clearance to the reluctor wheel (optimal gap: 0.5–1.0 mm).
Power window failures commonly stem from the window regulator’s gear teeth stripping or a broken white/black motor feed wire inside the door hinge grommet. Disassemble the door panel to access the regulator; check the window motor’s stall current (should not exceed 12A). For automatic door locks, the actuator’s brown/yellow wire delivers 12V for 0.5 seconds during lock/unlock cycles–if the lock pulses continuously, inspect the BCM’s lock/unlock relay output for short circuits.
Electrical System Blueprint for a 2.0L Sedan: Hands-On Advice
Locate fuse box behind the driver’s side dashboard panel–remove the single 10 mm bolt to expose fuses marked “IGN” (gray, 10 A) and “ECU-B” (green, 7.5 A). Verify continuity across terminals 1 and 17 on the 48-pin ECM connector; resistance should read 0.2–0.5 ohms. Replace any fuse showing discoloration or a blown filament before proceeding.
Trace the MAF sensor harness from the air intake tube to connector C102 (white, 4-pin). Pin assignments: 1–12 V ignition feed (yellow/red stripe), 2–signal ground (black), 3–MAF signal (blue), 4–intake air temp (white). Use a scan tool on OBD-II port pin 7 to monitor MAF output; readings below 0.5 V at idle suggest faulty sensor or corroded terminal. Clean contacts with electrical cleaner and verify signal voltage rises smoothly to 3.2 V at 3,000 RPM.
Common Circuit Resistance Values
| Circuit | Expected (Ohms) | Fault Threshold (Ohms) |
|---|---|---|
| Throttle position sensor ground | 0.0–0.1 | >0.3 |
| Injector coil (each) | 12–16 | <10 or >20 |
| O2 sensor heater | 4–8 | <2 or >12 |
| Ignition coil primary | 0.8–1.2 | >1.5 |
Inspect the chassis ground G101 beneath the master cylinder bracket. Scrape paint to bare metal and retighten the 12 mm bolt to 18–22 ft-lbs. Measure voltage drop between G101 and battery negative post; anything above 0.1 V indicates corroded cable requiring replacement of the 4-gauge braided strap (OEM part 21302-41B00).
For HVAC blower motor speed control, probe the resistor block connector (black, 6-pin) while cycling the fan switch. Expected tensions: low–5 V, medium-low–7.5 V, medium–9 V, high–12 V. If voltages deviate ±0.3 V, replace the resistor pack; locate it behind the passenger-side footwell cover, secured by two Torx T25 screws.

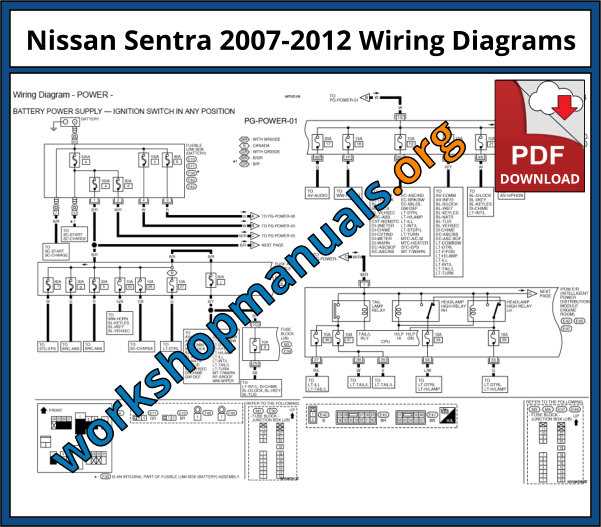

Locating the Authentic Electrical Schematic for Your Early 2000s Compact Sedan
The most reliable source for the factory-issued schematic is the manufacturer’s official repair manual. Nissan’s Service Manual B-series for the model year in question includes the complete electrical layout, fuse box details, and connector pinouts. These manuals were originally distributed through authorized dealerships and can now be accessed via subscription services like Nissan OEM Repair Manuals (nissan-techinfo.com) or ALLDATA (alldatadiy.com), which provide digital copies with full diagram resolution. Buyers should verify the publication covers the exact trim–GXE, SE-R, or base–since variations exist.
Specialized automotive forums host scanned copies of these schematics, often shared by enthusiasts who service their own vehicles. NissanForums.com and SentraSportClub.com maintain dedicated threads with direct downloads or links to cloud storage. Look for posts labeled “FSM” (Factory Service Manual) or “EWD” (Electrical Wiring Diagram) section. Avoid generic image-hosting sites; diagrams there frequently lack critical details like wire gauge, color coding, or ground points.
Alternative Print Sources for Offline Reference
Aftermarket repair guides from publishers like Chilton and Haynes often condense the schematic into a simplified form, useful for basic troubleshooting. However, these lack the depth of the OEM version–pin assignments may be omitted or generalized. Physical copies can still be found on eBay, Amazon, or at brick-and-mortar auto parts stores, typically costing between $25–$40. Ensure the edition specifically lists the correct vehicle generation to avoid mismatches.
Local libraries sometimes carry older automotive repair manuals in their reference sections, including Chilton and Mitchell guides. Contact the librarian for the mechanics or transportation section; some institutions offer digital lending through Hoopla or OverDrive. If available, check the copyright date–schematics for vehicles from this era were last printed in the early 2010s, so newer editions won’t apply.
Warning About Unofficial Schematic Sources
Avoid schematic generators or “universal” diagrams found on YouTube tutorials or generic auto blogs. These often mix components from different model years or omit critical circuits, like the BCM, immobilizer, or OBD-II pinouts. If working on relay-controlled systems (e.g., A/C, fuel pump), confirm the diagram includes relay coil trigger voltages and timer sequences–details frequently missing in third-party summaries. For advanced diagnostics, prioritize the OEM schematic’s multi-page breakdown of each subsystem.
Decoding Color Codes and Symbols in Automotive Electrical Schematics
Locate the legend box in the upper or lower corner of the schematic–this holds the key for interpreting lines, dots, and abbreviations. A solid black line typically represents a power cable, while a dotted or dashed line often indicates a ground path or an alternative circuit route. For example, “B” (black) wires in most Japanese-manufacturer vehicles carry constant power, whereas “W” (white) lines usually denote ignition-switched feeds.
Color stripes matter: a “Y/G” label means a primary yellow wire with a green tracer stripe. Tracers help distinguish parallel circuits–check for tiny dashes or crosses along main conductors. In a multi-page document, dashed borders or arrows at wire ends signal continuation on another sheet; cross-reference these connectors using alphanumeric labels like “C101” printed alongside splice points.
- BR: Brown wires commonly serve as illumination circuits.
- L: Blue stripes identify headlight switch outputs.
- R: Red denotes battery hot leads in chassis wiring.
- G/Y: Green-yellow often links to turn signal inputs.
Symbols inside circles designate connectors: male pins appear as filled dots, female terminals as open circles, and hybrids as half-filled. Arrows pointing inward mark common ground junctions–trace each ground to chassis annotations for hidden bolt locations. Look for padrão symbols near components like fuses, diodes, or relays: a “Z” shape inside a rectangle signifies a resistor inline, while a squiggly line indicates a coil or solenoid.
Group power distribution through vertical alignment on the printout: busbars run as thick horizontal rails, branching downward to individual modules. Follow thin diagonal lines connecting relays; a diagonal slash across a line shows an open circuit under normal conditions. Identify pin assignments on ECU or sensor plugs–numbers next to pin outlines correspond directly to component pins; verify continuity using a multimeter between noted terminals and ground references.
- Match wire diameter to gauge charts–thicker lines (above 14 AWG) handle higher loads.
- Cross-reference splice points against inline resistor values to avoid voltage drop errors.
- Note fuse ratings beside spade symbols–replace blown fuses with exact amp replacements.
- Interpret switch logic diagrams: normally open contacts show as parallel lines, closed contacts as intersecting lines, toggles as breaker symbols.
Scan for asterisks or footnotes usually explaining sensor pinouts or sensor resistance specifications–these detail unique calibration figures for precise troubleshooting. Keep a color swatch chart handy to avoid relying on faded prints or monitor discoloration; verify all matches under consistent lighting before disconnecting any harness sections.
