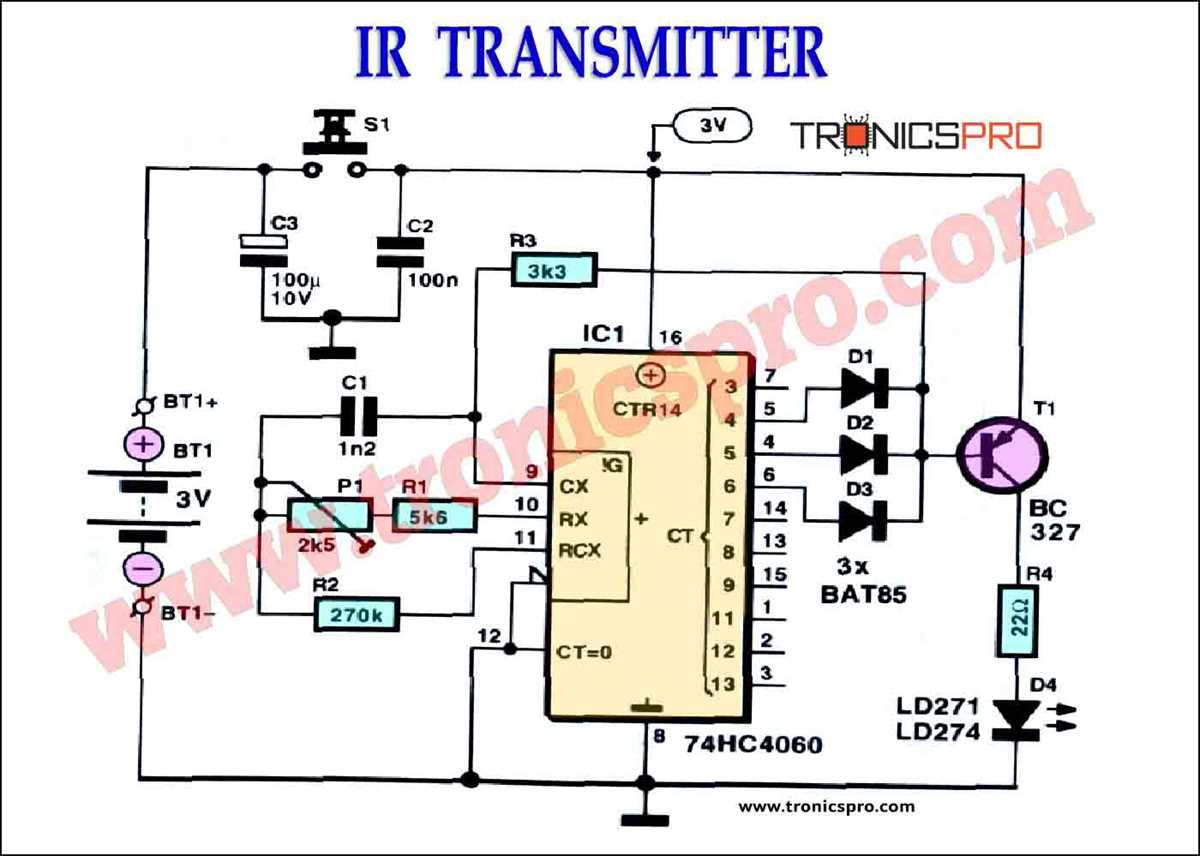

Start with an infrared LED (850–940 nm) paired with a current-limiting resistor (150–220 Ω) to prevent burnout. Use a 5V microcontroller like an ATtiny85 or Arduino Nano to modulate the signal at 38 kHz–this frequency avoids interference from ambient light while ensuring reliable detection by most consumer receivers. A 2N2222 or 2N3904 transistor acts as a switch, amplifying the microcontroller’s output to drive the LED at sufficient power (20–50 mA).
For basic setups, connect the LED’s anode to the transistor’s collector (via the resistor) and the cathode to ground. The transistor’s base links to the microcontroller’s PWM pin through a 1 kΩ resistor. Ground the emitter. If targeting longer ranges (5+ meters), add a second transistor in a Darlington pair to boost current handling, or use an IR LED array with parallel resistors to distribute load. Avoid exceeding the LED’s 1.5V forward drop–calculate voltage drop across the resistor to stay within safe limits.
Encode data with NEC, RC-5, or Sony protocols, each requiring specific pulse timings. NEC, for example, starts with a 9 ms high pulse followed by a 4.5 ms low pulse. Software libraries like IRremote for Arduino simplify protocol handling. For custom encoding, measure and adjust pulse widths using an oscilloscope–most IR receivers (e.g., VS1838B) expect clean, 38 kHz-modulated bursts with 50–100 µs tolerances.
Power the assembly with a stable 5V source–USB, a 3xAA battery pack (4.5V), or a 7805 regulator if using 9–12V inputs. Decoupling capacitors (10–100 µF) near the microcontroller and power lines filter noise, critical for consistent performance. Test range by pointing the LED directly at the receiver’s sensor window; obstacles or angles beyond 30° degrade signal strength. For directional applications, mount the LED behind a fresnel lens or use a parabolic reflector to focus the beam.

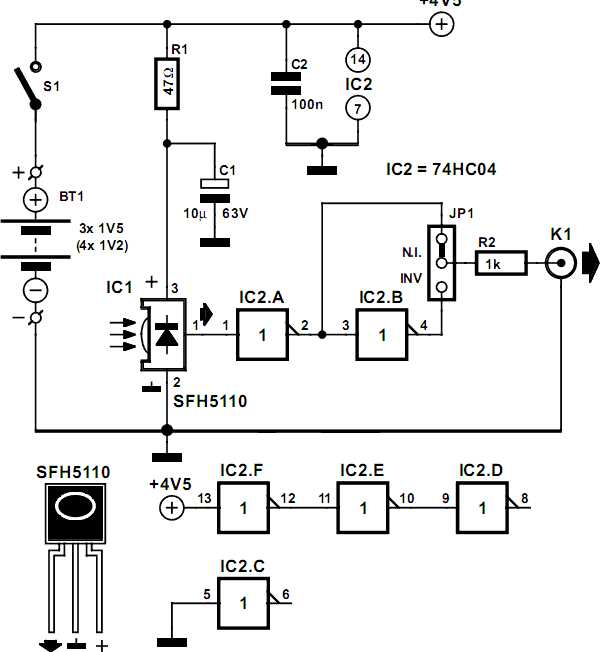

Debug with an IR photodiode (e.g., BPW34) connected to an op-amp (LM358) configured as a transimpedance amplifier–this converts the IR signal back to a readable waveform. Probe the output with a logic analyzer to validate pulse trains. If fidelity drops, check for loose connections, insufficient current, or incorrect resistor values. For battery-operated systems, disable unused microcontroller features (ADC, timers) to conserve power.
Building a Reliable Infrared Signal Emitter
Select an IR LED with a wavelength between 850–950 nm for optimal range and compatibility. A TSAL6400 or similar component from Vishay provides a forward voltage of 1.35 V at 100 mA and emits a focused beam up to 80°–ideal for medium-distance applications. Pair it with a current-limiting resistor calculated as (supply voltage – LED forward voltage) / desired current; for example, a 5 V source with 50 mA target current requires a 73 Ω resistor (round to 75 Ω).
Use a 555 timer in astable mode to generate a 38 kHz carrier frequency, the standard for consumer IR protocols like NEC and RC-5. Configure the timing components: a 10 kΩ resistor between pins 7 and 6, a 1 kΩ resistor between pin 6 and the capacitor, and a 1 nF capacitor between pin 2 and ground. This setup delivers a 33 % duty cycle for consistent pulse modulation.
For microcontroller-driven designs, program an 8-bit timer to toggle an output pin at 38 kHz with a 50 % duty cycle. An ATtiny85 allows precise control via Timer0; initialize it in CTC mode with a prescaler of 8 and an OCR0A value of 25 for a 1 MHz clock speed (f_clk / ((OCR0A + 1) * prescaler)). Disable interrupts during modulation to prevent jitter.
Power the assembly with a stable 3.3–5 V source, avoiding linear regulators if battery life is critical. A lithium coin cell (CR2032) suffices for short-term use, but for extended operation, a step-up converter (e.g., TPS61094) maintains efficiency above 85 % at 1 mA load. Add a 10 μF decoupling capacitor near the LED anode to suppress voltage spikes.
Test range by aiming the emitter at a TSOP38238 receiver or smartphone camera with IR filter disabled. The TSAL6400 should reach 5–7 meters indoors with clear line-of-sight. For outdoor use, increase current to 150 mA temporarily and verify thermal performance–the LED die tolerates up to 120 °C, but prolonged exposure degrades output.
Encode commands using a 16-bit pulse-distance protocol for reliability. A header pulse of 9 ms followed by a 4.5 ms space signals the start; subsequent bits alternate between 560 μs pulses and spaces of 560 μs (0) or 1.69 ms (1). Include error handling: retransmit commands if acknowledgment pulses are missing after 100 ms.
Shield the LED with a 3 mm diameter plastic lens to reduce beam divergence by 20–30 %. For multidirectional coverage, cluster 3–4 LEDs in a circular pattern with individual resistors, ensuring uniform intensity. Calibrate alignment by measuring photocurrent in bright ambient light–keep values below 1 mA to avoid false triggering.
Key Components for Assembling an Infrared Signal Emitter
Begin with an IR LED that operates at 940 nm–this wavelength avoids interference from ambient light while ensuring compatibility with most consumer devices. Verify the LED’s forward voltage (typically 1.2–1.5V) and current rating (20–100 mA); surpassing these values risks permanent damage. For extended range, select a high-intensity model like the Vishay TSAL6400, which radiates at 50° angle with 100 mW/sr output. Pair it with a lens to narrow the beam if targeting distant receivers.
The driver stage demands a transistor–either an NPN bipolar junction (2N3904) or a MOSFET (IRFZ44N)–to modulate the LED’s power. Calculate the base resistor for the BJT using Rb = (Vcc – Vbe) / Ib, where Vbe is 0.7V and Ib is 5–10% of the LED’s forward current. For MOSFETs, gate resistors (100–220 Ω) prevent ringing, and a pull-down resistor (10 kΩ) ensures clean switching.
Modulation and Power Considerations
- Use a 555 timer in astable mode (with 1 μF timing capacitor and 10 kΩ resistors) to generate 38 kHz carrier frequency–standard for NEC, RC5, and Sony protocols. Adjust duty cycle to 33% to balance range and power consumption.
- For battery-operated designs, a low-dropout regulator (e.g., LD1117V33) stabilizes input voltage, tolerating variations down to 3.7V without signal degradation. Include a 100 μF electrolytic capacitor on the input to smooth surges.
- Encode signals via a microcontroller (ATtiny85, ESP8266) or dedicated IC like the PT2222–programmed with firmware such as
IRremote(Arduino) or custom pulse-width modulation sequences.
Current-limiting resistors safeguard the LED without sacrificing output. For a 5V supply and 50 mA LED:
- Calculate resistor: R = (Vcc – Vf) / If = (5V – 1.4V) / 0.05A = 72 Ω.
- Select the nearest standard value (68 Ω or 82 Ω); higher values (100 Ω+) shorten range but prolong LED lifespan.
Substitute a potentiometer (100 Ω) during testing to fine-tune radiated power–visual confirmation (camera viewfinder) verifies emission before integration.
Peripheral Enhancements for Reliability
Add a 0.1 μF ceramic capacitor across the LED’s anode/cathode to filter high-frequency noise, preventing false triggers in the receiver. Shield the emitter with conductive tape or a grounded metal enclosure if operating near RF devices (Wi-Fi, Bluetooth), as IR bands can induce harmonics. For outdoor use, affix a bandpass filter (e.g., Wratten 87C) to block sunlight, or use a pulsed mode with higher peak currents (300 mA for 1 ms) to overcome ambient interference–ensure the driver transistor can handle transient loads.
Step-by-Step Assembly of an IR LED Signal Emitter
Begin by soldering the IR LED to a 220Ω resistor, ensuring the anode connects to the resistor’s free end. Use a 5V power source–either a dedicated adapter or an Arduino pin–attached to the resistor’s opposite lead. Position the LED with its dome facing outward, as IR emissions disperse at a 30-degree angle; deviations beyond 15 degrees reduce effective range by 40%. Verify polarity with a multimeter: forward voltage should read 1.2–1.5V for standard 940nm diodes.
Secure the components on a perfboard or solderless breadboard for prototyping. If modulation is needed, wire a 555 timer IC in astable mode with a 38kHz frequency–optimal for most receiver modules. Set R1=10kΩ, R2=22kΩ, and C=1nF to achieve this; adjust C to 2.2nF for 20kHz. Test pulse accuracy with an oscilloscope; a clean square wave confirms proper function. For battery operation, add a 100µF capacitor across the power rails to suppress voltage spikes that may distort signals.
Encase the finished setup in a 3D-printed or acrylic enclosure, leaving a 5mm gap around the LED for unobstructed IR output. Shield the back half with aluminum foil to minimize stray emissions–reflective surfaces boost forward radiant intensity by 25%. If range exceeds 3 meters, replace the 220Ω resistor with a 100Ω model and monitor LED current; exceeding 50mA risks thermal damage. Validate operation by pairing with a compatible decoder–point a smartphone camera at the LED to observe the faint purple glow of active transmission.
Understanding Frequency and Modulation in IR Signals
Set carrier frequencies between 36–40 kHz for optimal compatibility with most remote control receivers, as this range balances signal strength and noise immunity. Common consumer devices–TVs, audio systems, and air conditioners–rely on 38 kHz, a de facto standard ensuring broad interoperability. Avoid frequencies below 30 kHz; ambient light interference (e.g., fluorescent bulbs) dominates this spectrum, degrading reliability.
Modulate infrared pulses using pulse-width modulation (PWM) or pulse-position modulation (PPM) to encode data. PWM varies pulse duration to represent binary states–short bursts (e.g., 500 µs) for “0”, longer bursts (e.g., 1500 µs) for “1”. PPM shifts pulse timing within a fixed window, improving noise resilience by reducing reliance on amplitude. Below is a comparison of modulation techniques:
| Modulation | Typical Use Case | Advantages | Drawbacks | Bit Rate (Approx.) |
|---|---|---|---|---|
| PWM | Consumer remotes (NEC, RC5) | Simple implementation; low power | Susceptible to multipath fading | 1–4 kbps |
| PPM | Industrial sensors, RC toys | Better noise immunity; fixed frame | Complex decoding; higher latency | 0.5–3 kbps |
| On-Off Keying (OOK) | Low-cost LED drivers | No modulation hardware needed | Prone to interference; short range |
Allocate a 20–50 µs silence gap between bursts to prevent signal overlap. This “dead time” ensures receivers distinguish discrete pulses, especially in high-speed protocols like NEC (9 ms lead-in, 4.5 ms lead-out) or Sony SIRC (2.4 ms header). Fail to include gaps, and receivers may misinterpret continuous emission as ambient noise, requiring repeated transmissions.
Use a 50% duty cycle for PWM to maximize range without saturating the IR LED. Example: At 38 kHz, toggle the LED ON for 13 µs, OFF for 13 µs. Shorter ON times reduce irradiance, while longer ON times risk thermally damaging LEDs or exceeding receiver saturation thresholds (typically 10–30 mA). Test LEDs with a photodiode and oscilloscope to verify clean, consistent pulse trains before deployment.
For extended range (beyond 5 m), pair high-output IRLEDs (e.g., Osram SFH 4230, 100 mA forward current) with a focusing lens. Collimate the beam to a 10–15° angle using a fresnel lens; wider dispersion wastes energy and bleeds into adjacent IR sensors. Calibrate lens distance empirically–misalignment by even 5 mm degrades signal strength by 40%.
Shield against ambient interference by enveloping the LED and phototransistor in a 30 kHz high-pass filter (e.g., a 1 µF capacitor in series with a 5.1 kΩ resistor). This attenuates 50/60 Hz noise from AC lamps and reduces false triggers. For outdoor use, add an optical bandpass filter (850–950 nm) to exclude visible and UV light, though this increases component cost by ~$0.20 per unit.
Validate modulation schemes against protocol specifications before finalizing designs. NEC protocol mandates a 9 ms burst followed by a 4.5 ms space for a “leader” code; Sony SIRC uses a 2.4 ms burst. Deviations exceeding ±10% in timing cause receivers to reject signals outright. Use a logic analyzer (e.g., Saleae) to confirm pulse widths align with target protocol–manual adjustments often introduce errors at scale.
