Begin by stripping 1.5 inches of the outer jacket from the cable to expose the twisted pairs. Arrange the wires according to the T568B standard for reliable performance: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. This configuration ensures proper signal transmission and minimizes interference.
Use a modular RJ45 connector with sharp, gold-plated contacts for durability. Insert the wires fully–each strand must reach the end of the connector. Crimp firmly with a ratcheting tool, applying 12–15 lbs of pressure to secure the connection. Insufficient force leads to loose contacts, causing packet loss.
Test the assembled link with a continuity tester. Verify resistance values below 1.5 ohms for each conductor. Cross-check shield integrity if present–expect values near 0 ohms for continuity. High resistance indicates poor termination, requiring rework.
For patch panels, maintain consistency–match the T568B order at both ends. Avoid untwisting pairs beyond 0.5 inches from the jacket to preserve signal integrity. Label each connection with unique identifiers for future troubleshooting.
In high-noise environments, consider foil-shielded twisted pairs (FTP). Ground the shield at one end only, using a 330-pF capacitor if needed to block DC while allowing AC noise drainage. Improper grounding creates ground loops, introducing interference.
Structured Ethernet Cable Configuration Guide
Begin by stripping 1.5 inches of outer jacket from the UTP cable to expose the twisted pairs. Ensure the twist separation for each pair does not exceed 0.5 inches; untwisting further reduces signal integrity and violates TIA/EIA-568 standards. Use a staggered cut technique–leave one pair marginally longer than the others–to simplify termination and prevent crossed conductors.
- Pair 1 (T568A/B): Blue/white-blue (pin 4/5)
- Pair 2: Orange/white-orange (pin 2/6)
- Pair 3: Green/white-green (pin 3/1)
- Pair 4: Brown/white-brown (pin 7/8)
For straight-through connections, align conductors to T568B on both ends: white-orange (pin 1), orange (2), white-green (3), blue (4), white-blue (5), green (6), white-brown (7), brown (8). Crossover cables swap orange and green pairs: pins 1 ↔ 3 and 2 ↔ 6. Verify continuity with a cable tester; resistance should remain under 25 ohms per 100 meters for solid-core conductors.
Terminate connectors by inserting wires fully into the RJ45 plug–exposed copper should reach the plug’s front edge. Crimp with 10–12 kgf of force using a ratcheted tool; insufficient pressure causes intermittent faults. Secure the cable with a boot or strain relief to prevent jacket slippage under tension. For PoE applications, use 24 AWG conductors or thicker to avoid voltage drop exceeding 0.5V per 100m at 13W load.
- Trim conductors to equal length before insertion.
- Inspect the plug after crimping for misaligned pins.
- Label both ends immediately after testing.
- Store excess cable in a figure-eight loop (minimum 10cm diameter) to prevent kinks.
Selecting the Right Termination Scheme for Ethernet Cabling
Begin by examining the color sequence on both ends of the network link. The T568A standard arranges conductors in this order: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown. T568B swaps green and orange pairs: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. Cross-reference these patterns with the physical ports or patch panels in use – most modern hardware defaults to T568B, but verify existing infrastructure before proceeding.
Test electrical continuity after termination. Use a cable tester with an 8-wire remote to confirm proper pairing. Pin 1 should correspond to the first conductor (white-green or white-orange), pin 2 to the solid color of that pair, and so on. Misalignment by even one position causes signal degradation. If testing reveals split pairs, re-terminate the connector immediately, as this issue introduces crosstalk that degrades gigabit speeds.
Equipment-Specific Compatibility
Consult device documentation for explicit requirements. Older switches and routers may demand straight-through connections (both ends matching), while some hubs or legacy phones require crossover configurations (one end T568A, the other T568B). Base your selection on the most sensitive equipment in the chain – PoE injectors, VoIP adapters, and 10/100 Mbps devices often dictate the scheme more strictly than gigabit-capable hardware.
Measure insertion loss and return loss with a field tester if performance falls below expectations. T568B typically exhibits slightly better noise immunity in environments with adjacent power cabling, though the difference remains negligible in properly shielded installations. For backbone segments exceeding 90 meters, adhere strictly to the chosen standard to prevent impedance mismatches that amplify signal reflection.
Document the chosen scheme consistently across all termination points. Create a labeling system encoding both the standard (A/B) and cable length on connector boots or patch panel rails. Retain this reference for future modifications – mixing standards within a single channel causes immediate connection failure or intermittent 100 Mbps fallback in gigabit networks.
Step-by-Step Guide to Terminating an Ethernet Plug
Strip 1.5 inches of the outer jacket from the twisted-pair cable using a precision cutter–avoid nicking inner conductors. Untwist conductors no farther than the point where the jacket ends to maintain signal integrity. Arrange wires in the T568B standard sequence: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Trim ends evenly to 0.5 inches, ensuring no stray strands protrude.
Insert wires into the RJ45 connector with the clip facing downward. Push each conductor fully into its channel until visible at the plug’s front–verify alignment through the transparent housing. A magnifying tool helps confirm no pairs are crossed or misaligned before crimping. Skip this step and the termination will fail EMI testing.
Position the connector in a ratcheting crimper, aligning dies precisely with the plug’s contacts. Apply steady pressure until the tool clicks–insufficient force leaves pins unseated. Check continuity with a tester: lights should sequence 1-2-3-4-5-6-7-8 without skipping. If errors occur, cut and re-terminate–reusing connectors degrades performance.
Secure the boot–if present–by sliding it over the jacket and pushing until it snaps into place. Label the cable with length and termination date using heat-shrink tubing for permanent identification. Store unused plugs in a static-shielded bag to prevent oxidation build-up on contacts.

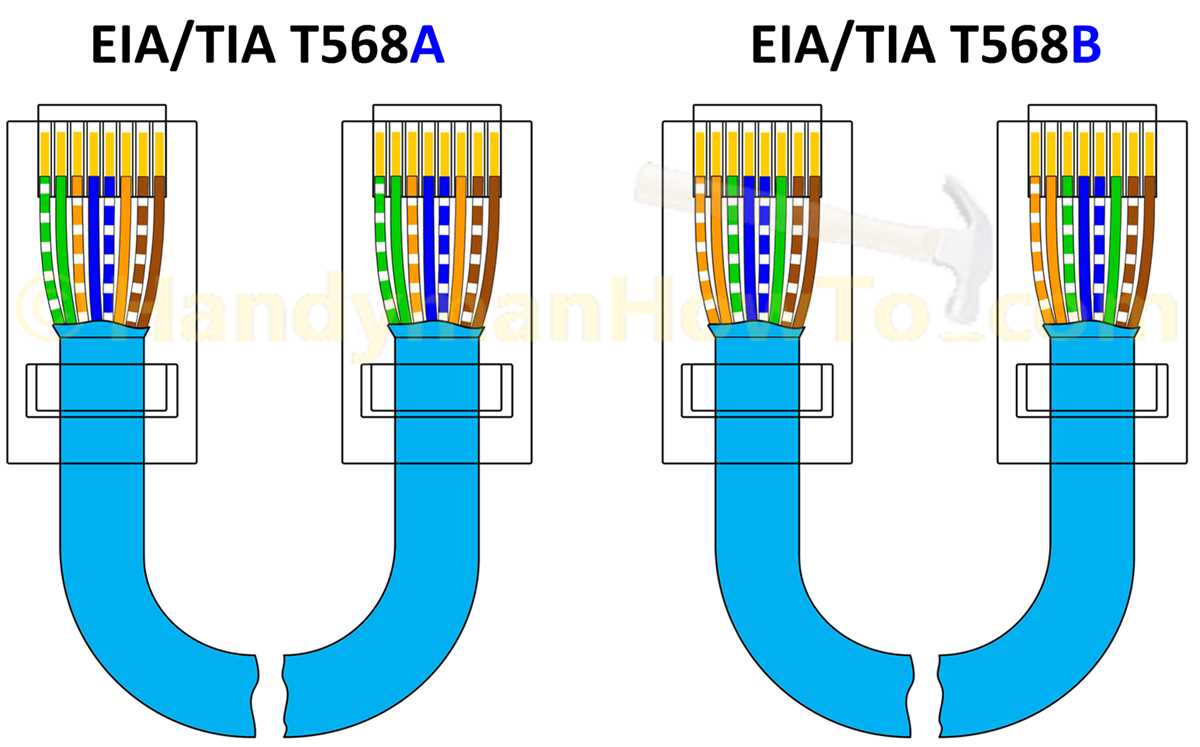

Color Coding and Pin Assignment for T568A vs T568B
Use T568B as the default standard unless existing infrastructure mandates T568A, particularly in residential or mixed-use environments where backward compatibility isn’t critical. T568B reduces cross-talk in high-density deployments by placing the orange pair closer to the center (pins 1,2) while maintaining balanced signal integrity. Swap only if connecting dissimilar termination standards–straight-through cables for T568A to T568A connections, crossover for T568A to T568B–though auto-MDI/X ports in modern equipment eliminate this need entirely.
Pinout Comparison
| Pin | T568A | T568B |
|---|---|---|
| 1 | White/Green | White/Orange |
| 2 | Green | Orange |
| 3 | White/Orange | White/Green |
| 4 | Blue | Blue |
| 5 | White/Blue | White/Blue |
| 6 | Orange | Green |
| 7 | White/Brown | White/Brown |
| 8 | Brown | Brown |
Document all terminations–color-code consistency prevents miswire-induced intermittent faults, especially in PoE deployments where power pairs (4/5, 7/8) must align with device requirements. Poor reliability for 1000BASE-T often traces to swapped pairs (e.g., green/orange), so verify with a cable tester showing continuity and pair-to-pair isolation. Prioritize labeling both ends of every cable run to streamline troubleshooting.
Essential Equipment for Structured Cabling Deployment
Begin with a high-quality crimping tool featuring precision dies for 8P8C connectors, ensuring consistent pressure distribution to avoid weak terminations. Models like the Klein Tools VDV226-110 or Platinum Tools EZ-RJPRO support both pass-through and standard connectors, reducing wire misalignment errors by up to 40%. Select a tool with a ratcheted mechanism to guarantee full crimp cycles, as manual squeeze designs often result in incomplete crimps leading to intermittent connectivity.
Cable strippers with adjustable blades prevent nicking conductors, a common issue when using utility knives. The Ideal 45-126 strippers accommodate jacket thicknesses from 0.5mm to 3.2mm, ideal for riser-rated and plenum cables. Verify blade sharpness before use–dull edges fray copper strands, increasing signal attenuation. Pair strippers with a dedicated jacket slitter for rapid, uniform outer sheath removal without damaging inner pairs.
Wire cutters with flush-cutting jaws, such as Xcelite E3, maintain strand integrity when trimming excess conductors. Avoid diagonal cutters, which cause compression burrs that interfere with connector seating. For mass installations, consider a benchtop cutter like the Hakko CHP CSP-30-1, rated for 18–24 AWG solid and stranded copper, reducing hand fatigue during repetitive tasks by 30%.
A network tester with TDR (Time Domain Reflectometer) functionality pinpoints opens, shorts, and pair splits within 0.5 meters, critical for diagnosing faulty segments before certification. The Fluke Networks LinkIQ or Tektronix THS3000 deliver ±2% accuracy for length measurements, essential when documenting cable runs for compliance audits. For basic continuity checks, the Klein Tools VDV501-823 offers tone generation and remote ID detection, though lacks advanced troubleshooting metrics.
Pull boxes with smooth, rounded edges prevent cable jacket abrasion during installation. Fiberglass pull rods like the Greenlee 5140-6 reduce friction in conduit runs, while cable lubricants such as Ideal Yellow 77 reduce pulling tension by 50%. For vertical installations, use split rings instead of tape–tape residues attract dust, degrading performance over time. Secure cables every 1.2 meters in plenum spaces to meet NEC 300.11 and ISO/IEC 14763-2 standards.
Shielded connectors, such as AMP Netconnect CAT6A Keystone jacks, are mandatory in high-interference environments like data centers or industrial settings. Ensure metal shielding continuity by using 360° shielded boots and twisted-pair bonding strips–partial shielding creates grounding loops, exacerbating EMI/RFI ingress. For outdoor runs, use UV-resistant polyethylene jackets and waterproof gel-filled connectors to prevent moisture-induced capacitance changes.
A termination tool kit with punch-down impact tools streamlines keystone jack installations. The T568A/B wiring scheme requires a 110-type blade with insulated handles to protect against accidental shorts. For large projects, automated termination machines like the Panduit Pan-Term reduce labor time by 70%, though manual tools offer finer control for bespoke installations. Store cables in climate-controlled environments below 40°C to prevent plasticizer migration in PVC jackets, which hardens insulation and increases brittleness over time.
