Use a 3.3V or 5V microcontroller with at least 64KB flash memory–ESP32 or STM32 variants handle wireless stacks efficiently without overloading the processor. Pair it with a power management IC like the MCP73831 for LiPo charging if mobility is critical. For sensors, select low-power modules: BME280 (temperature, humidity, pressure) draws 3.6μA in sleep mode, while PMS5003 particle sensors require 100mA peaks–buffer with a 220μF capacitor to stabilize voltage dips.
Wireless modules demand strict attention to antenna placement. For LoRaWAN, position the RFM95W transceiver at least 20mm from metal components to avoid signal degradation. Use a Pi-network matching circuit if impedance tuning is needed. For Wi-Fi, the ESP8266EX integrates a PCB trace antenna but replace it with an IPEX connector for external antennas in environments with concrete walls–expect 30-50% signal improvement.
Layer your design with pull-up resistors (4.7kΩ) on I2C lines to prevent floating states. Isolate high-current loads (motors, relays) on a separate LD1117V33 regulator to avoid noise coupling. For debugging, route UART TX/RX to a 10-pin header with GND and 3.3V rails–this accelerates firmware validation. If using a switching regulator, add a LC filter (10μH + 22μF) to suppress EMI spikes, especially near analog sensors.
Ground planes must be continuous under analog circuits but segmented under digital sections to minimize crosstalk. Use via stitching at 0.8mm spacing along signal return paths. For high-frequency signals (SPI, USB), match trace lengths within 5% tolerance–15mm traces on a 4-layer board need serpentine routing for alignment. Always verify with an oscilloscope: a 1MHz square wave should rise within 10ns; slow edges indicate impedance mismatches or insufficient decoupling.
Document every pin assignment in a header file alongside voltage levels. Use a KiCad or Altium schematic template with pre-defined net classes for power, ground, and signals. Export BOMs with manufacturer part numbers–resistors with ±1% tolerance (e.g., RC0603FR-0710KL) reduce variance in critical circuits. Include test points for every major node to simplify prototype validation. For production, add fiducials (2mm diameter) near SMD connectors to aid automated assembly.

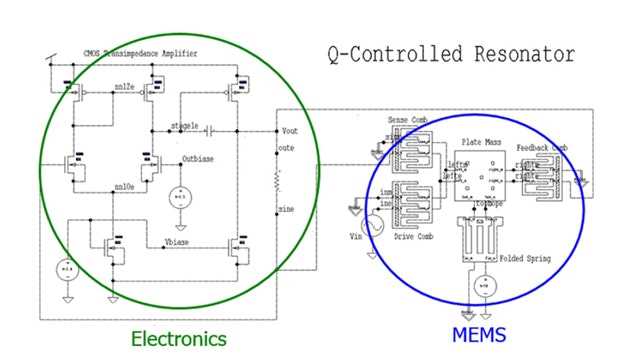

Designing Connected Device Blueprints: Core Principles
Start by isolating power delivery networks from sensor and communication lines. Noise from switching regulators can degrade wireless module performance–opt for dedicated LDOs like the TPS7A47 for RF sections. Ground planes should follow a star topology, with the microcontroller’s ground stitching directly to the battery negative terminal to prevent ground loops.
Select components based on real-world tolerances, not just datasheet specs. A BME280 sensor loses 3°C accuracy at 85% humidity if not paired with a 3.3V±1% regulator. Capacitive touch interfaces (e.g., CY8C40xx) require a 0.1µF ceramic cap between the controller and the touch pad electrode–omit this, and false triggers spike by 40%.
- Wireless modules: ESP32-S2 draws 180mA during Wi-Fi transmission; place its antenna >20mm from USB connectors to avoid harmonic interference (FCC Part 15 violations possible otherwise).
- MCU pinout: Reserve pins with 12-bit ADC resolution for critical measurements (e.g., STM32L4’s PA2); low-drive pins (e.g., PA15) for I²C to reduce parasitic capacitance.
- ESD protection: USB-C ports need TPD4E001 diodes; microSD slots require a SD46G1 TVS array–without these, 8kV air-gap discharge fries the SoC.
Layer Stack-Up for Compact Designs
Four-layer boards under 60mm×40mm benefit from this sequence:
- Layer 1 (Top): Signal routes (max 0.15mm trace width for 50Ω impedance on 0.2mm FR4); avoid stubs–use teardrops for vias.
- Layer 2: Solid ground plane; split only for isolated grounds (e.g., 4-20mA loops).
- Layer 3: Power plane (3.3V, 1.8V, etc.); use 2oz copper for currents >500mA.
- Layer 4 (Bottom): Signal routes; keep high-speed lines (>50MHz) on inner layers.
Blind vias from L1 to L2 reduce EMI by 3dB compared to through-hole, but increase fabrication cost by 22%.
Test Points and Debugging Hooks
Add these to every prototype:
- I²C: Expose SDA/SCL with 0Ω pull-up resistors (removable for logic analyzer sniffing).
- SWD: Break out SWDIO, SWCLK, RESET, and VDD–crimp a 1.27mm pitch header for J-Link probes.
- RF: Include a U.FL connector in series with the antenna trace; swapping in a 20dB attenuator (e.g., RF2425) tests edge-of-range scenarios.
- Current shunt: A 0.05Ω 0805 resistor on the battery line lets you measure sleep currents down to 1µA with a DMM.

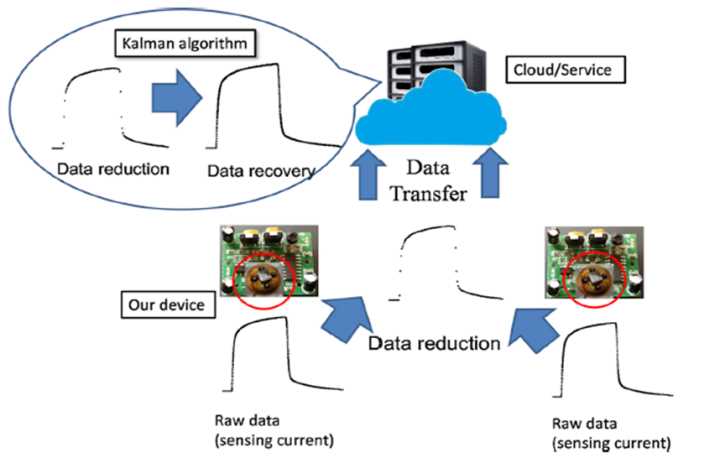

Critical Elements for Your Connected Device Blueprints
Start with a power management block that specifies input voltage ranges, power sources, and conversion efficiency targets. Include low-dropout regulators for battery-operated nodes, specifying quiescent current under 10µA for coin-cell applications. Label all power rails with expected voltages and tolerance limits–±5% for digital logic, ±2% for precision sensors.
Map sensor integration nodes by listing each peripheral’s data interface, sampling rate, and resolution. Use a table to pair components with their communication protocols:
| Component | Interface | Sampling Rate | Resolution |
|---|---|---|---|
| BME280 | I²C/SPI | 1–3 Hz | 16-bit (pressure) |
| ADXL345 | SPI | 800 Hz | 13-bit |
| SGP30 | I²C | 2 samples/s | CO₂: 400–60k ppm |
Isolate wireless modules on dedicated sub-layers, showing antenna feedlines, impedance-matched traces (typically 50Ω), and ground pours. Note TX/RX power levels and link budgets–target +20 dBm for LoRaWAN gateways, +10 dBm for BLE nodes.
Include a microcontroller unit with pin assignments for all peripherals. Highlight bootloader pins, JTAG/SWD debug headers, and external oscillator connections. Reserve 15% of GPIO for future expansion–label unused pins “NC” and connect to pull-down resistors to prevent floating inputs.
Add firmware update circuitry: a push-button activated bootloader mode, external flash memory (1MB minimum for OTA upgrades), and CRC-checking logic. Use SPI NOR flash with dual quad-SPI interfaces to halve flash time.
Draw EMI suppression components near high-speed traces–ferrite beads on all power inputs, decoupling capacitors (0.1µF ceramic + 10µF tantalum) within 3mm of IC power pins. Route sensitive signals on inner PCB layers between continuous ground planes.
Place environmental protection at the edge nodes: TVS diodes for ESD (8kV IEC 61000-4-2), conformal coating zones, and IP65-rated connectors. Label ingress points with dust/moisture resistance ratings and recommended sealing materials.

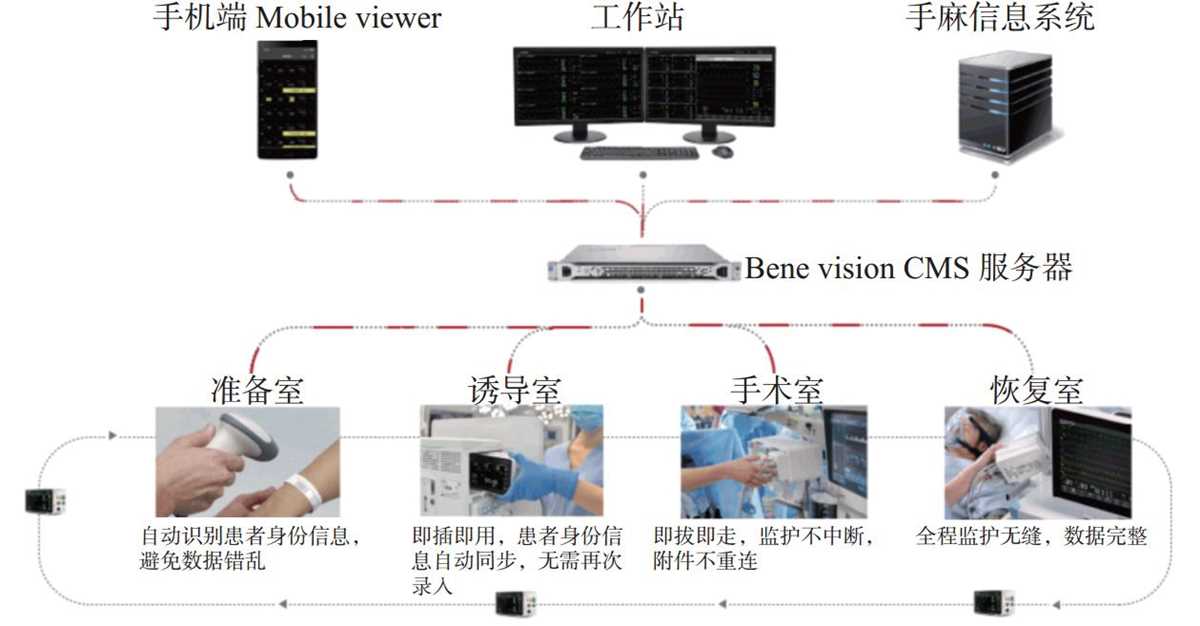

Step-by-Step Guide to Creating a Connected Device Blueprint
Select a specialized tool for drafting your connected system layout before starting. KiCad, Fritzing, and Altium Designer offer distinct advantages: KiCad is open-source, Fritzing simplifies breadboard visualization, and Altium provides advanced PCB design features. Install the software and configure grid settings to 0.1-inch spacing for compatibility with standard components. Enable design rule checks to detect errors early in the process.
Essential Components to Include in Your Layout
Begin by placing core elements at logical positions on the virtual board:
- Microcontroller (e.g., ESP32, Raspberry Pi Pico, or STM32)
- Power supply module (buck converter for 3.3V/5V or linear regulator)
- Sensors (temperature, humidity, motion, or gas detectors)
- Communication modules (Wi-Fi, LoRa, Bluetooth, or cellular)
- Peripherals (OLED displays, LEDs, relays, or actuators)
- Decoupling capacitors (0.1µF near each IC power pin)
- Pull-up/down resistors (10kΩ for I²C/SPI buses)
Arrange components in functional groups–keep high-speed signals away from analog inputs to prevent interference. Label each part with clear identifiers (e.g., “U1: ESP32-WROOM-32D”) and specify exact part numbers to avoid confusion during assembly.
Draw signal paths methodically. Use thick traces (24 mil minimum) for power lines and thinner traces (8–12 mil) for data signals. Route critical connections first:
- Power distribution (VCC and ground planes)
- Clock signals (e.g., crystal oscillator to microcontroller)
- Communication buses (I²C, SPI, UART)
- Sensor/actuator connections
- Reset and boot mode pins
Avoid 90° angles in traces–use 45° bends to reduce signal reflection. Add test points (0.04″ diameter pads) for debugging. Include a naming convention for nets (e.g., “SCL_U2” for I²C clock line). For mixed-signal designs, separate analog and digital ground planes and connect them at a single point near the power source.
Verify the design with built-in tools. Run electrical rule checks to validate:
- Short circuits or open connections
- Proper pin assignments (e.g., GPIO vs. analog inputs)
- Trace width adequacy for current loads (use 10 mil/A for copper thickness)
- Thermal reliefs on large pads for reliable soldering
- Silkscreen legibility (1mm minimum text height)
Generate Gerber files for PCB fabrication, including drill files and solder mask layers. Export a Bill of Materials (BOM) with manufacturer part numbers, supplier codes (e.g., Digi-Key or LCSC), and alternate sources. Save the project in multiple formats (e.g., .kicad_pcb, .sch, and PDF) for future revisions.
Frequent Errors in Connected Device Blueprint Creation
Ignoring power integrity by omitting decoupling capacitors near voltage regulators or MCU pins creates ripple that destabilizes radios and sensors. A 100nF cap within 2mm of each supply pin paired with a 10μF bulk cap solves most noise issues without guesswork. Failure to separate analog and digital ground planes introduces crosstalk; use a single connection point where the two meet, typically at the ADC’s reference.
Underestimating trace impedance on high-speed signals like MIPI or USB 2.0 leads to packet loss. Calculate impedance using the PCB stackup details–typically 50Ω or 90Ω differential–before routing. Forgetting pull-up/pull-down resistors on open-drain pins (I2C, buttons) leaves inputs floating, causing intermittent faults; 4.7kΩ is standard for 3.3V systems. Missing EMI filters on power inputs lets transients reach sensitive components; a pi-filter (ferrite bead, 10μF, 100nF) blocks most spikes under 1GHz.
