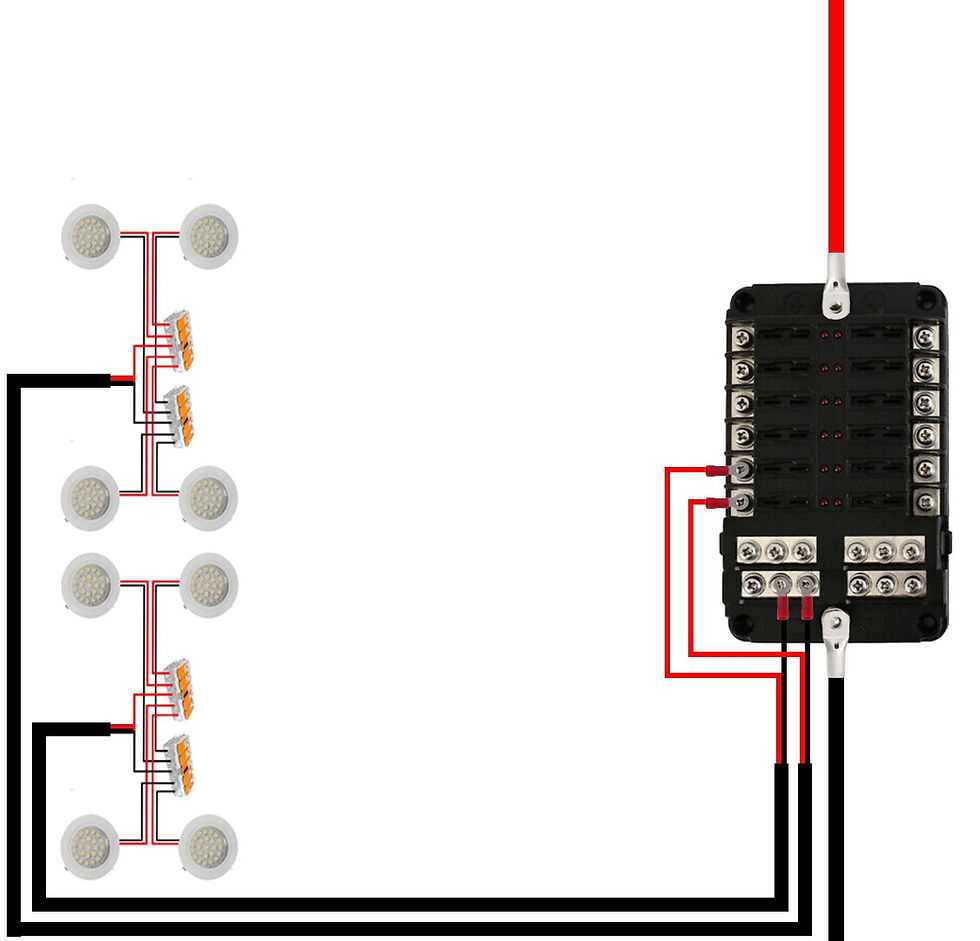

Locate the main power feed terminal first. Trace the positive lead from the battery–typically a red 6-8 AWG cable–directly to the input side of the panel’s primary breaker or distribution block. Ensure the connection supports continuous current draw of your system’s peak load without voltage drop exceeding 0.2V. For a 20A circuit, use at least 14 AWG wire; scale wire gauge up for higher amperage to prevent overheating.
Avoid bundling feed wires with signal cables; keep them separate by at least 2 inches or route through shielded conduit. Mark each conductor with heat-shrink tubing labels matching the schematic–include circuit name, amperage, and wire gauge. Test continuity before energizing; a multimeter reading of 0.1Ω or less confirms solid contact.
Install protective devices rated no more than 125% of the circuit’s maximum current. For inductive loads like compressors or pumps, select slow-blow elements with a 1.5x nominal rating to accommodate startup surges. Mount the panel in a dry, well-ventilated area, secured to a metal surface that dissipates heat–spacers between the panel and surface improve airflow.
Use terminal blocks for branching circuits; daisy-chaining increases failure points. Connect ground returns–green or bare conductors–to a common bus bar bolted to the chassis, ensuring each circuit has an independent path. Verify ground resistance with a clamp meter; readings above 0.5Ω indicate corrosion or loose connections requiring immediate servicing.
Label every terminal and breaker with a permanent marker or engraved tags. Store a laminated copy of the schematic inside the panel door for troubleshooting. Before final closure, power the system in stages: first the main breaker, then secondary lines, monitoring for abnormal heat, sparking, or unusual odors.

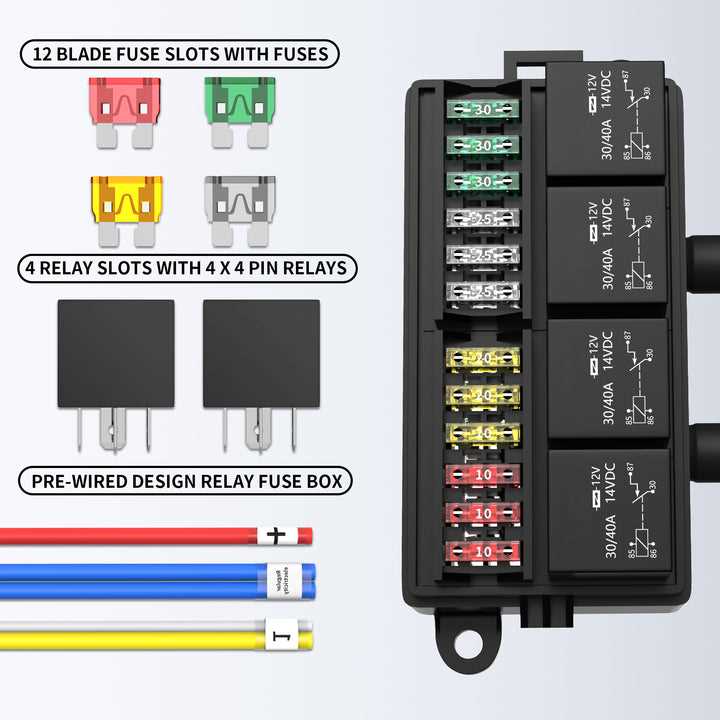

Automotive Electrical Distribution Panel: Hands-On Installation Guide

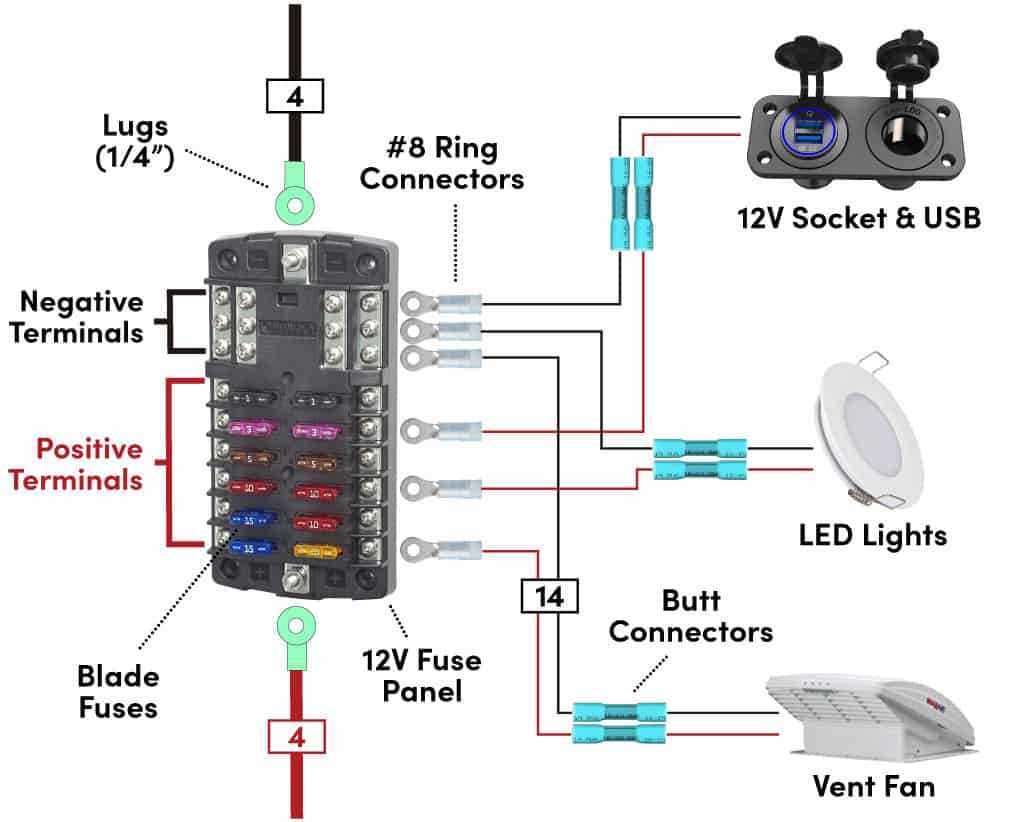

Begin by mapping every circuit load before connecting wires. Use a multimeter to measure expected current draw–critical values dictate protection device ratings. For auxiliary circuits under 10A, mini blade protectors suffice; heavy-duty circuits (10A–30A) require standard ATO/ATC blades. Overcurrent devices must match the conductor’s gauge: 18AWG mandates 5A–15A, 16AWG handles 10A–20A, while 14AWG accepts up to 30A. Always allocate a separate branch for high-draw accessories–cooling fans or amplifiers–preventing cascade failures.
Label each branch circuit conspicuously. Apply heat-shrink tubing or self-adhesive sleeves bearing circuit function: “LEDrunning,” “AUXpower,” “AUXheated.” Annotate polarity on the sleeve’s underside–positive (red) and negative (black brown) markings save diagnostic time. Avoid combining dissimilar grounds on a single busbar; isolate high-frequency interference sources like inverters and audio equipment onto dedicated return paths.
Route conductors away from heat sources such as exhaust manifolds or turbo housings. Maintain 15mm minimum clearance from moving components and sharp edges. Secure lengths with zip ties every 150mm, staggering tie locations to prevent chafing. Bundle low-power signal wires separately–O2 sensors, CAN networks–shielding them from power cables with foil tape or split-loom tubing rated for vehicle temperatures (-40°C to 125°C).
Common Installation Errors & Corrections
| Error | Risk | Fix |
|---|---|---|
| Oversized protection device | Conductor overheating before melt | Downgrade rating to next lower standard size |
| Shared return path | Voltage drop, erratic sensor readings | Dedicated chassis ground per circuit group |
| Untinned splice connections | Corrosion under vibration | Crimp with tinned copper butt connectors |
Verify all connections after assembly by applying a 13.8V power supply. Check each branch with an infrared thermometer; sustained temperatures above 60°C signal loose terminals or undersized wire. If a protector trips under normal load, immediately disconnect downstream circuits–possible short-to-ground or overload hidden by a single occupant.
Document the finished setup. Create a schematic in vector format listing every branch, protector rating, wire gauge, and color code. Attach a printed copy inside the panel’s cover, alongside spare blade protectors matching common ratings, spare terminals, and dielectric grease for field repairs.
How to Determine the Proper Conductor Thickness for Each Protective Device Slot
Measure the maximum continuous current draw for the circuit using a clamp meter or consult the load’s documentation. Select a cable cross-section that handles at least 125% of this value; for example, a 10 A load requires a 2.5 mm² core (rated ~20 A), not thinner.
Match the conductor size to the overcurrent protection rating listed on the panel legend. A 15 A slot needs a minimum 1.5 mm² core–never pair a 1.0 mm² cable with a 15 A device, as sustained currents will cause insulation failure.
- 0.5 mm² core – 5 A device
- 0.75 mm² core – 7.5 A device
- 1.0 mm² core – 10 A device
- 1.5 mm² core – 15 A device
- 2.5 mm² core – 20 A device
- 4.0 mm² core – 30 A device
Reduce thickness by one standard size if the run exceeds six meters due to voltage drop. An eight-meter run supplying 20 A demands 4.0 mm² instead of 2.5 mm² to keep drop below 0.3 volts.
Verify the ambient temperature: standard ratings assume 30 °C. For a 50 °C environment, multiply the required cross-section by 1.2–thus a 1.5 mm² core rated 14 A in cool air becomes 2.0 mm² to handle 18 A safely.
Strip each end to ensure full conductor contact within the terminal block. A loose strand can create a hot spot, degrading the margin established by the proper thickness.
Label every conductor at both ends with heat-shrink sleeves showing the slot number and load description to prevent future misconnections when servicing.
Step-by-Step Process for Labeling Automotive Electrical Panel Circuits
Begin by acquiring a multimeter with a continuity test mode and a roll of adhesive-backed labels. Strip a small section of insulation from each wire terminal in the central hub, exposing enough copper to create a clean contact point for probing. Prioritize circuits tied to critical systems–ignition, headlamps, and fuel pump–to minimize downtime if troubleshooting becomes necessary later.
Set the multimeter to continuity mode and touch one probe to the exposed wire while grounding the second probe to the vehicle’s chassis. Document every reading immediately on a temporary notepad, noting the corresponding slot number, wire color, and system function. For example, a red wire with a yellow stripe in position 8 might correlate to the rear wiper motor; confirm by activating the wiper switch and verifying current flow.
Use high-contrast, waterproof labels cut to fit the available space on the cover panel. Print or write clearly with a fine-tip permanent marker, including slot number, system name, and wire gauge if known (e.g., “12 – Brake Lights – 18 AWG”). Avoid generic labels like “miscellaneous” or “interior lights”–specify functions such as “glove box lamp” or “HVAC blower motor relay” to eliminate ambiguity.
Attach labels directly adjacent to each slot, ensuring they align horizontally for quick visual reference. For slots with multiple wires, use a separate label per circuit or color-code with a legend on the cover. Verify each label’s accuracy by cross-referencing with the vehicle’s manual or a verified schematic, correcting discrepancies before finalizing the layout.
Create a secondary reference key on the back of the cover panel with abbreviations, wire colors, and system functions. For instance: “BRN/ORG – 6 – Power Mirror Heater – 20 AWG.” Include fusing values if the panel supports removable links, marking maximum amperage next to each slot (e.g., “Max 15A”). Store a digital copy of the key in the vehicle’s onboard diagnostics port cover for remote access.
Reassemble the cover and conduct a final walkthrough with the ignition on, toggling each system while observing the panel’s indicators. If a circuit fails to respond, retest continuity and update labels accordingly. Replace any damaged labels immediately, using a protective laminate if available, to preserve legibility under heat, moisture, or UV exposure.
Common Mistakes When Connecting Ground Wires in Low-Voltage Electrical Setups
Always secure ground connections directly to the chassis or battery negative terminal–never route them through intermediary components like switches or relays. Corrosion-resistant terminals (tinned copper or gold-plated) prevent resistance buildup over time, ensuring stable current flow. Loose or oxidized grounds cause voltage drops, leading to erratic device behavior or premature failure. Use a multimeter to verify zero resistance between the ground point and the battery’s negative post before finalizing connections.
Stacking multiple ground wires onto a single bolt increases resistance and creates potential noise interference. Instead, split grounds into dedicated paths for high-current devices (e.g., inverters) and sensitive electronics (e.g., radios). For vehicles or mobile setups, isolate grounds by function–powertrain, lighting, and accessories–using separate attachment points within 30 cm of each other to minimize ground loops. Avoid relying on painted or coated surfaces; always scrape to bare metal for reliable contact.
Signs of Poor Grounding
- Dim or flickering lights under load.
- Intermittent device resets (e.g., GPS, amplifiers).
- Whining noises in audio systems during throttle changes.
- Slow cranking or weak starter motor performance.
- Overheating wires without visible damage.
Twisting ground wires together or using undersized conductors (e.g., 18 AWG for a 20A circuit) invites voltage drop and overheating. Match wire gauge to the device’s current draw–10 AWG for 30A circuits, 12 AWG for 20A–with a 20% safety margin. Never daisy-chain grounds; each device should have an independent path to the main ground bus or chassis. For marine applications, use marine-grade tinned wire and double crimp terminals with adhesive-lined heat shrink to prevent corrosion from humidity.
Critical Checks Before Finalizing
- Measure continuity between ground points and the battery negative: <0.1Ω is ideal.
- Inspect terminals for oxidation; clean with a wire brush if needed.
- Apply dielectric grease to connections in high-moisture environments.
- Test under load–activate all devices simultaneously to verify no voltage drop.
- Recheck torque on ground bolts: 8–12 Nm for M6 fasteners.
Ground loops occur when multiple devices share a common path, inducing noise into audio or sensor circuits. To eliminate this, use star grounding: connect all grounds to a single central point (e.g., a copper busbar) rather than linking them serially. For sensitive systems, add a 10 nF ceramic capacitor between the device’s ground and chassis at the connection point to filter high-frequency noise. Isolate the battery’s negative terminal from the chassis in floating-ground systems, and bond them only at a single designated point to prevent circulating currents.
