For accurate troubleshooting or restoration, connect the amp gauge to terminal I (black wire) on the back of the voltage regulator–this wire runs directly to the ignition switch’s ACC position. The fuel sender requires a dedicated circuit: use the pink-striped wire (pin F) with an inline 10-ohm resistor to prevent erratic readings. Oil pressure and temperature sensors share ground via the firewall bulkhead connector, marked G–verify continuity with a multimeter before routing new wires.
Speedometer calibration relies on a single green wire (pin H) terminating at the transmission’s VSS port. If needles flutter or drop to zero, inspect the voltage stabilizer–a common failure point–instead of defaulting to gauge replacement. The high-beam indicator draws power from the headlight switch’s #30 circuit, routed through a light-blue wire (pin A) to the dashboard bulb socket. Avoid splicing into this wire; use crimp connectors rated for 20-gauge copper.
For turn signals, the flasher unit plugs into socket B (left) and C (right). If only one side flashes, trace the brown wire from the steering column to the fuse block–corrosion at the 3-way bullet connector near the kick panel often disrupts current. Battery voltage enters the system via the red wire (pin E) from the starter solenoid; ensure the battery ground strap connects to the frame with a minimum 4 AWG cable for stable readings.
Replace factory wires with TXL automotive-grade copper wiring if length exceeds 18 inches–standard PVC insulation melts under hood temperatures in these models. Label each wire with heat-shrink tags coded to the original GM harness diagram (e.g., PK/W = pink/white stripe); store a spare copy in the glovebox. For late-’80s retrofits, the TBI computer overrides the original wiring–isolate it during testing by disconnecting the 4-pin ECM connector.
Electrical Layout for 1973-1987 GM Dashboard Gauges
Disconnect the battery before servicing the gauge assembly to avoid short circuits. Label each connector with masking tape–white for illumination, yellow for sender signals, red for power leads, and black for grounds–to simplify reassembly. Verify bulb wattage matches factory specs: front-turn indicators use 1157 (#1157A for amber lenses), while backlight circuits require 194 bulb types. Deviations can cause premature filament failure or voltage drops across the printed circuit board.
Key Pin Assignments for Speedometer Head
| Connector Color | Pin Number | Function | Voltage (Key On) |
|---|---|---|---|
| Pink/Violet Stripe | 12 | Oil pressure sender input | 5V reference |
| Dark Blue | 8 | Fuel level sender input | 5V reference |
| Light Green/Black Stripe | 6 | Temperature sender input | 5V reference |
| White/Red Stripe | 4 | Voltmeter input | 12–14V |
| Black | 2, 3, 5 | Chassis ground | 0V |
When tracing signal wires, use a multimeter in continuity mode rather than probing with test lamps; the low-current circuit paths (1–3 mA) can be damaged by excessive current draw. Replace original printed-circuit foils if corrosion exceeds 10% of width; solder bridges must be minimum 0.5 mm wide and staggered to prevent cross-talk between adjacent traces.
Aftermarket gauge pods often route illumination leads through separate plugs–ensure the dimmer rheostat receives a clean 12V feed (pin 10 on the main harness) to avoid flickering. If upgrading bulbs to LED arrays, insert a 680 Ω dropping resistor inline with each backlight segment to prevent hyper-flashing; OEM flasher relays assume resistive loads (≤21W) and may fail prematurely with abrupt current drops.
Locating Critical Plugs in 1973-1987 GM Dash Assemblies

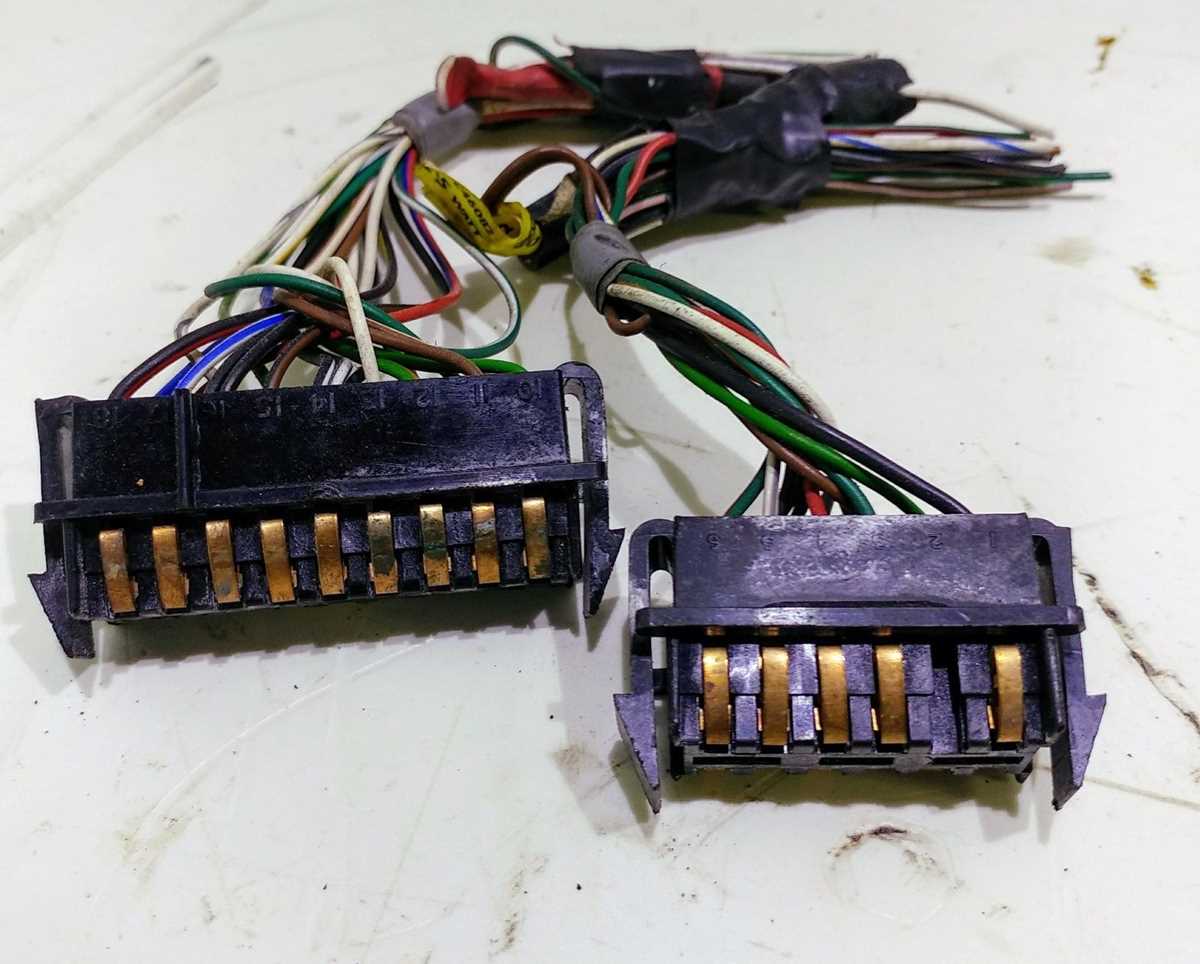

Start by tracing the 12-pin rectangular connector labeled A on the rear of the gauge assembly. This plug handles the bulk of signal feeds from the vehicle’s main harness–voltage inputs for the speedometer, fuel sender, and temperature gauge. Pin assignments vary slightly between model years, but pins 1-4 (red/black, red/white, brown/white, purple) consistently carry illumination, ignition power, and ground. Use a multimeter to verify continuity between the plug and the corresponding wires in the main loom before reattaching.
The smaller 9-pin circular plug (B) manages auxiliary inputs like the turn signal indicator, high-beam active light, and brake warning lamp. Pins here are prone to corrosion due to moisture ingress–check for greenish oxidation on the copper contacts. If present, clean with electrical contact cleaner and a fine wire brush. Note that pin 8 (gray/yellow) supplies voltage for the brake warning circuit; a broken connection here will silence the chime even when fluid is low.
For vehicles equipped with an analog tachometer, the third connector (C)–a 4-pin molex plug–delivers the ignition coil pulse signal. The wire colors (typically tan/black, dark blue) vary, but the signal should register ~1-3V AC when the engine is cranked. If the tach reads erratically, probe this connection first; a faulty sender or broken wire is a common culprit. Avoid splicing into these wires for aftermarket gauges–reroute from the coil instead to prevent signal degradation.
Grounds are often overlooked. The dash assembly relies on two primary grounding points: a dedicated stud near the lower left mounting bolt (accessible after removing the lower fascia) and a secondary point adjacent to the fuse block. Poor grounding causes dim lights, flickering gauges, or phantom warnings. Scrape paint off metal surfaces at these points and secure with star washers to ensure a solid connection.
Connector Pinout Verification
Pro Tip: Use a factory service manual diagram or a known-good donor vehicle for reference–aftermarket wiring schematics often contain errors in color coding. For the A plug, factory GM wire colors are standardized as follows:
- Red (solid or w/ stripe): Constant 12V (fused)
- Brown/white: Ground (chassis return)
- Purple: Fuel sender signal
- Gray/yellow: Brake warning (ABS if equipped)
Cross-reference these with your multimeter readings before proceeding with repairs.
Step-by-Step Gauge Harness Color Codes for 73-87 Dashboard Layouts
Begin by identifying the solid orange wire on the back of the speedometer–this powers the high-beam indicator. Secure it to the dimmer circuit (gray, striped) without splicing to maintain factory dimming functionality. If the dash lights flicker at idle, verify the brown wire’s ground connection at the firewall stud; corrosion here disrupts all warning lamps.
Connect the oil pressure sender (light blue) directly to the gauge’s lower prong, bypassing any inline resistors. The temperature sender (yellow) follows the same path but branches off to the voltage stabilizer (white/black stripe) if equipped–omit this on models with mechanical senders to avoid false readings. Test continuity between the sender’s housing and the engine block before finalizing.
For turn signals, the light green (left) and dark green (right) wires must terminate at the flasher relay’s two spade connectors. Swap the stock relay for a heavy-duty unit if the blink rate exceeds 120 cycles per minute; the stock unit struggles with LED upgrades. The brake warning lamp (pink) requires a 1N4001 diode at the switch to prevent back-feeding.
Dashboard illumination relies on the brown wire’s 12V feed from the headlight switch. Split this wire with a 18-gauge tap to supply the voltmeter’s lower terminal (purple), ensuring all gauges operate in sync. If the fuel gauge defaults to “empty,” check the pink/stripe wire at the tank sender–an open circuit here mimics a failed pump.
Critical warning lamps share a common ground via the black wire, daisy-chained between units. The check engine light (amber) on later models ties into the ECU’s pin 12; earlier carbureted versions use a simple pressure-vacuum switch (dark blue/white stripe). Mock up the circuit on a bench with a 9V battery to confirm lamp functionality before reinstalling the bezel.
Retain all factory bullet connectors on the tachometer’s purple (ignition pulse) and gray (RPM signal) wires. Soldering these risks signal degradation–use dielectric grease and heat shrink instead. For aftermarket units, match the green/black wire (starter interrupt) to the accessory relay’s coil side to prevent drain during cranking.
Key Voltage and Ground Reference Points for Gauge Assemblies
Locate the fused ignition (+12V) feed at the pink wire (circuit #3) on the main harness connector. This source powers most dash indicators–verify continuity from the fuse block (typically fuse #10, 10A) to the connector pin before proceeding. Avoid tapping into this circuit upstream of the fuse; instead, use the harness-side terminal for all gauge-related connections to prevent inadvertent overload.
Ground points G100 and G200 serve as critical anchors for meter and lighting circuits. G100 (black wire, 12-14 AWG) is mounted near the driver-side kick panel, secured with a 6mm bolt to bare chassis metal. Scrape away paint or corrosion before attaching any ground lug here–resistance exceeding 0.2 ohms will cause erratic gauge behavior or bulb flickering. G200, often overlooked, is a chassis ground adjacent to the steering column support; reserve it for high-current loads like turn signal flashers or A/C controls only.
For analog speedometers, the VSS (Vehicle Speed Sensor) output requires a clean gray wire (circuit #839) delivering 4-8V pulsed DC. Tap this signal at the rear of the transmission connector–never splice directly into the sensor wiring. Use a shielded twisted pair (18 AWG, 100Ω impedance) routed away from ignition coils and alternator leads to prevent noise-induced readings. Confirm signal integrity with an oscilloscope; irregular waveforms mandate sensor replacement.
The fuel level sender uses a purple wire (circuit #350) providing 0-90 ohms variable resistance. Its companion gray/black stripe (circuit #351) supplies a fixed +5V reference from the onboard computer. Measure resistance across the sender terminals with a multimeter: empty tank should read ~90Ω, full tank ~0Ω. Ground the sender’s housing directly to the chassis (16 AWG, star washer) to eliminate static interference in readings.
Voltage regulators for temperature and oil pressure gauges rely on a dedicated brown wire (circuit #35). This feed originates at the fuse block (fuse #12, 15A) and must remain isolated from the ignition-switched +12V circuit. Test for proper regulation by probing the gauge terminal: an operating oil pressure sender should yield ~5.5V@0 psi, ~8.0V@60 psi. Deviations indicate regulator failure, requiring module replacement rather than component-level repair.
Lighting circuits (bulbs, LED indicators) share a dark green/white stripe (circuit #2) ground return, but individual bulb grounds should tie back to the nearest chassis point–never daisy-chain more than three bulbs to one ground. For high-intensity LEDs, add a 100μF capacitor across the bulb terminals to suppress voltage spikes from relay-switching loads. Use 18-20 AWG wire for all illumination circuits, ensuring soldered connections protected with heat-shrink tubing.
Diagnostic trouble codes often trace to inadequate grounds. Use a high-impedance multimeter to measure voltage drop across ground points: anything above 0.1V warrants disassembly, cleaning, and reassembly with dielectric grease. For PCBs with surface-mounted resistors, apply no-clean flux to reflow suspect solder joints–avoid excessive heat, which can lift traces. Replace any corroded terminals with gold-plated connectors rated for 20A to future-proof connections.
