The compact SUV’s electrical system relies on a precise network of connections mapped in factory schematics. Start with the fuse box layout–located under the instrument panel on the driver’s side–to identify circuits before diving into wiring repairs. Label each fuse (e.g., F44 for the cooling fan relay) using the manufacturer’s numbering system, as third-party diagrams often misalign labels. The power distribution center in the engine bay holds higher-amperage relays; verify continuity with a multimeter set to 200Ω before swapping components.
Ground points are frequent failure sources. For this model, primary grounds cluster near the left shock tower (G101) and the rear hatch hinge (G303). Corrosion here mimics open-circuit faults; scrape connectors to bare metal, apply dielectric grease, and torque fasteners to 15–18 in-lbs to prevent future resistance changes. Ignition switch-related stalls or erratic dashboard readings often trace to terminal 30 on the under-dash harness–inspect for brittle insulation, especially where the bundle bends near the brake pedal.
Subsystem schematics deserve isolated focus. The TCM wiring (transmission control) uses a twisted-pair shielded cable; if shifting hesitation occurs, probe the pink/black wire at the TCM connector (pin 12) for 4.8–5.2V during cranking. Body control module issues–like failed interior lights–usually link to the light blue/white wire at the BCM (pin C3), which should register 12V with the ignition in the RUN position. Always disconnect the battery’s negative terminal before splicing into any circuit, and use crimp connectors rated for 16–20 AWG to avoid voltage drops.
Aftermarket audio or remote-start installations commonly disrupt the CAN bus network. The CAN-H (orange/white) and CAN-L (orange) wires terminate at the OBD-II port (pins 6 and 14) and the cluster (pins 16 and 1). If codes U1900 or U0121 appear, back-probe these wires with an oscilloscope to check for 2.5V differential during key-on; stray voltage spikes indicate chafed insulation near the steering column.

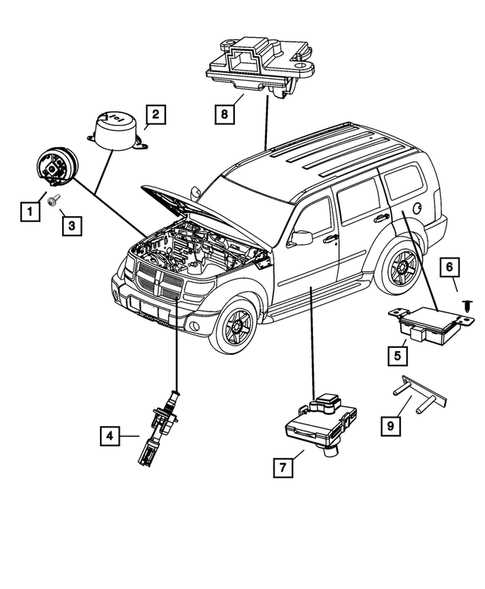

Electrical Schematics for the 2011 KK Model: Hands-On Reference
Locate the central fuse block beneath the dashboard by removing the left-side kick panel–five screws secure it. Label each connector before disconnecting: the C1 harness (22-pin gray) controls the powertrain module, while the C2 (16-pin tan) interfaces with the instrument cluster. Use a multimeter set to 20V DC to verify pinouts: ground circuits should read 0.0-0.2V, active circuits 11.8-14.2V. A voltage drop exceeding 0.5V indicates corrosion or loose terminal crimps, often found in the T50 splice near the battery tray.
Critical Connector Pinouts
| Connector | Pin | Function | Expected Voltage | Failure Symptoms |
|---|---|---|---|---|
| C1 (22-pin gray) | 8 | CAN High | 2.5V (idle) | Stalling, transmission limp mode |
| C3 (14-pin black) | 4 | MIL Lamp | Pulsed 5V | False CEL codes, no-start |
| T4 (6-pin blue) | 3 | Ignition Coil #2 | 100-400V AC | Misfire on cylinder 2, P0302 code |
For tracing circuits, strip ½ inch of wire insulation at both ends of suspect runs–resistance should not exceed 1.0 ohm. The anti-theft module’s K9 harness (4-pin white) hides behind the glove box; its pin 1 supplies 12V fused at 10A, critical for ECM communication. If the vehicle cranks but won’t start, probe pin 3 (yellow/black) for a 0.8-1.2V signal while turning the key–no voltage means a faulty ignition switch or broken splices in the S125 junction.
Finding the Fuse Panel and Electrical Power Routes in Your SUV
Begin by sliding the driver’s seat fully backward to access the lower dashboard area. Directly beneath the steering column, behind a small trim panel secured by plastic clips, lies the primary fuse box. Remove the panel by gently prying along the edges–no tools are required unless clips resist. Inside, each fuse slot is labeled with its corresponding circuit; refer to the sticker on the underside of the box lid for exact amperage ratings and relay positions.

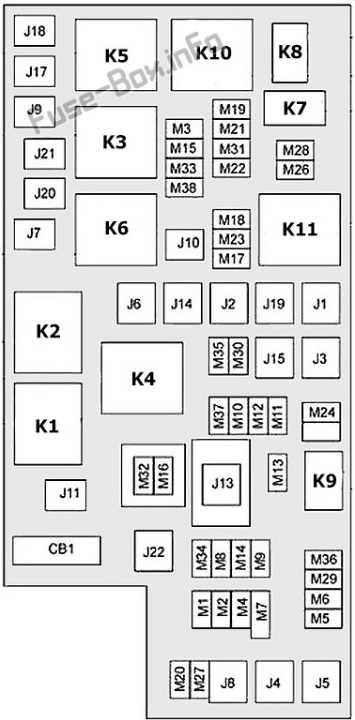

For the auxiliary power distribution center, open the hood and locate the rectangular black box adjacent to the battery. This housing contains high-current relays and fuses controlling the vehicle’s main electrical load: alternator output, cooling fans, and starter motor. Unlatch the lid by squeezing the release tabs on either side. Check the molded diagram inside the cover for fuse identification–colors and numbers indicate amperage, while etched symbols denote protected components.
Trace the thick red cable from the positive battery terminal to the distribution center. This cable splits into two key routes: one feeds the starter solenoid via a 10mm bolt connection, while the second branches into a fusible link–typically a 150-200 amp fuse–before entering the box. Follow the thinner brown or yellow wires exiting the opposite side of the box; they lead to the ignition switch and instrument cluster, respectively.
- Driver-side fuse panel coordinates: X-axis 48 cm from pedal base, Y-axis 23 cm from floor.
- Power distribution center dimensions: 24 cm L × 18 cm W × 8 cm H.
- Common fuse amperages: 10A (radio), 15A (wipers), 20A (HVAC), 30A (blower motor).
To identify blown fuses, use a multimeter set to continuity mode or visually inspect the metal strip inside the fuse–discoloration or breakage confirms failure. Replace only with identical amperage: a 20A fuse in a 10A slot risks overheating circuits. For relays, swap with a known-functioning unit of the same part number (e.g., Bosch 0 332 209 150 for cooling fan relay) to diagnose intermittent issues.
Access the body control module (BCM) by removing the glove box. The module is clipped to the firewall side panel, five centimeters above the passenger footwell. This unit manages lighting, locks, and alarms; its wiring harness uses T-tap connectors for door switches and courtesy lights. Probe pins with a voltmeter: pin 4 (black/white) carries ground; pin 12 (dark green/white) carries 12V from ignition.
Behind the rear cargo trim panel, locate the trailer tow wiring junction. Two 12-gauge wires–brown (left turn/brake) and yellow (right turn/brake)–terminate in a 7-pin connector. If retrofitting accessories, splice here using Posi-Taps or military-grade butt connectors crimped with a ratcheting tool. Avoid soldering alone; vibrations degrade joints over time.
- Disconnect battery negative cable before handling relays to prevent arcing.
- Use dielectric grease on connector pins to prevent corrosion in high-humidity environments.
- Label all removed panels with tape noting screw locations–reassembly errors can cause rattles.
Testing for Parasitic Draw
With ignition off, disconnect the negative battery cable. Connect a multimeter (set to 10A DC scale) between the post and cable. Draw above 50mA indicates a short; isolate circuits by pulling fuses one at a time until draw drops below threshold. Common culprits: trunk light, radio memory, or faulty alternator diode trio. For advanced diagnosis, probe the data link connector (OBD-II port) pins: 16 (constant 12V), 4 (chassis ground), 5 (signal ground).
Step-by-Step Electrical Linkups for the Powertrain ECU
Begin by locating the 80-pin connector on the engine control unit–pin assignments vary slightly between 3.7L and 4.0L variants, but the primary power input (pin 1) remains consistent across both. Use a multimeter to verify ignition-switched voltage (12V) at pin 1 before proceeding; absence here indicates a faulty relay or blown fuse 24 (10A) in the under-dash panel. Connect a fused jumper wire from pin 1 to the positive terminal of a 9V battery temporarily if troubleshooting, but never exceed 12V during testing. For ground references, pin 4 (sensor ground) and pin 6 (power ground) must show less than 0.2V drop to chassis–clean corrosion at G101 on the firewall if readings exceed this threshold.
Sensor interface connections require meticulous polarity checks. The throttle position sensor (TPS) feeds into pin 46 (signal), pin 45 (5V reference), and pin 44 (ground)–reverse these, and the ECU defaults to limp mode with P0122/P0123 codes. For the manifold absolute pressure (MAP) sensor, pin 54 carries the signal; back-probing this wire should yield 0.5–4.5V scaling linearly with vacuum. If voltage sits at 0V or 5V continuously, inspect the pin 53 (5Vref) and pin 51 (ground) wires for shorts or opens–ohmmeter readings between pins 53–51 should be 50–120Ω. Oxygen sensors pre-cat (Bank 1, Sensor 1) tie to pin 32 (heated) and pin 30 (signal); bypass the heater circuit during bench tests to avoid false heating element failures.
Fuel injector circuits demand precision. Bank 1 injectors 1–3 share pin 70 (driver control), while Bank 2 injectors 4–6 use pin 71–each wire’s resistance should measure 12–18Ω when detached from the ECU. Pulse-width tests require a noid light or oscilloscope; a healthy signal shows 3–5ms duration at idle. For the crankshaft position sensor (CKP), pin 62 delivers the signal–verify a clean 3–8V square wave at 1Hz/1000 RPM; no signal triggers ignition cutout. Finally, recheck all connectors for bent pins–especially pins 78–80 handling CAN bus communications (high/low pairs)–as misalignment here causes intermittent U-codes.
Tracing the Electrical Circuits for Interior Lights and Dashboard Gauges
Locate the fuse box beneath the driver-side dashboard panel to begin diagnosing illumination issues. The interior lighting system typically routes through fuses labeled “INT LAMP” or “CABIN LTS,” with ratings between 10-15 amps for most modules. Verify continuity using a multimeter across both fuse terminals before proceeding–corrosion or a blown fuse often mimics more complex failures.
Examine the body control module (BCM) connections for pins linked to dimmer controls and delayed-off functions. The BCM on this model manages:
- Courtesy lamps (door switches, rear cargo area)
- Instrument cluster backlighting
- Interior dome light timers
Pinouts for the 32-position gray connector usually include:
- Circuit 32 (orange/light blue) – Illumination feed
- Circuit 7 (dark blue/orange) – Dimmer signal
- Circuit 18 (black/tan) – Ground reference
Disconnect the harness and probe while activating the dimmer switch to isolate voltage drops exceeding 0.3V.
For gauge cluster diagnostics, trace power sources to the combination meter via the ignition-switched bus. The tachometer, fuel level, and temperature gauges share a common VREF signal (approximately 5V) originating from the instrument cluster harness. Inspect the 22-pin black connector for:
Intermittent readings often stem from solder joint fractures at the meter’s PCB–resolder connections if needle fluctuations persist despite stable input voltages.
Door ajar switches utilize simple NC/NO contacts wired in series to the BCM’s input circuits. Check resistance across switch terminals–values should toggle between 0Ω (closed) and open circuit when actuated. Faulty switches misreport door status, forcing interior lights to remain on or disabling theft deterrent features. Replace switches exhibiting resistance above 2Ω in the closed position.
Test the headlight switch’s rheostat function by measuring voltage across the dashboard dimmer lead while rotating the control knob. Expect a linear sweep from 0V (full bright) to approximately 12V (fully dimmed). If readings plateau or surge erratically, the potentiometer’s carbon track is worn–clean contacts with contact cleaner or replace the switch assembly to restore smooth dimming behavior.
When illumination faults coincide with gauge inaccuracies, prioritize inspecting the alternator’s voltage regulator output. Excessive ripple (>0.5VAC) corrupts sensor signals and causes backlight flickering. Trigger the alternator’s test mode by grounding the “L” terminal briefly while monitoring B+–a healthy system maintains 13.8-14.5VDC during this procedure.
