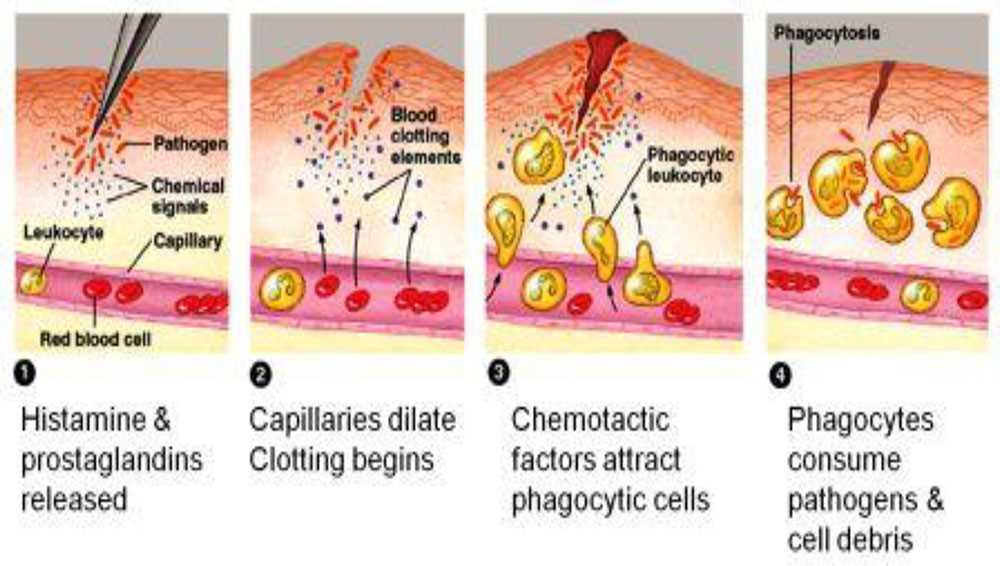

Start by mapping the acute phase sequence within 24–72 hours of tissue damage. Prioritize three core elements: vascular changes, cellular recruitment, and molecular mediators. Highlight vasodilation first–use a branching arrow to depict how arterioles widen, increasing blood flow to the affected site. Label the timeline: 2–6 hours for peak nitric oxide and prostaglandin release. Connect this to increased capillary permeability, showing fibrinogen leakage with dotted lines leading to edema formation.

Next, illustrate leukocyte migration with a step-by-step flow. Draw a rolling adhesion phase (weak selectin binding) at 0–2 hours, followed by firm adhesion via integrins (ICAM-1/VCAM-1) at 2–6 hours. Use color-coding: red for TNF-α, blue for IL-1β, and green for chemokines like CXCL8. Indicate neutrophil arrival at 6–12 hours and monocyte influx at 24–48 hours, noting their distinct receptor profiles (CXCR1 vs. CCR2).

Include a resolution pathway to avoid oversimplification. Show pro-resolving mediators (e.g., resolvins, lipoxins) at 72+ hours as curved arrows reabsorbing fluid and clearing debris. Link these to tissue repair markers like TGF-β and VEGF–use a dashed line for indirect signaling. For chronic contexts, add a branch depicting failed resolution with persistent macrophage activation and fibrosis (collagen deposition via α-SMA+ myofibroblasts).

Validate accuracy by cross-referencing pathways with benchmark studies: TNF-α kinetics from Nature Immunology (2018), IL-6 cascades per Journal of Experimental Medicine (2020), and PMN apoptosis rates from Blood (2019). Annotate each node with phenylbutazone’s impact (reduces COX-2 by 70%) or dexamethasone’s effect (suppresses NF-κB translocation). Limit pathways to 5–7 key nodes per panel–excess detail obscures mechanisms.

Visualizing the Body’s Defense Response: A Step-by-Step Framework

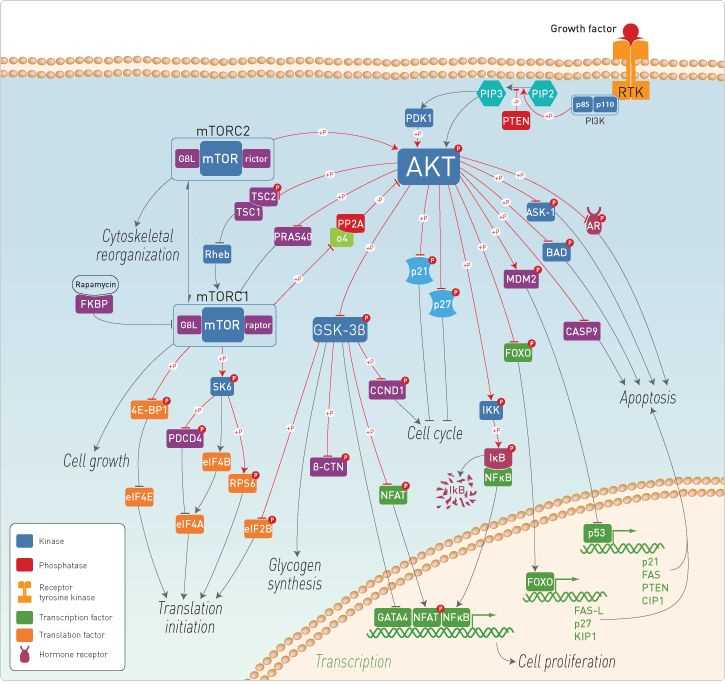

inflammation schematic diagram

Start by mapping the initial trigger–pathogens, tissue damage, or irritants–using distinct geometric shapes like red circles for harmful agents and blue polygons for vascular changes. Label endothelial cell activation within 30 minutes of contact, noting P-selectin and E-selectin upregulation on vessel walls to capture rolling leukocytes. Include numeric values: blood flow velocity drops from 1-2 mm/sec to 0.5 mm/sec at inflammation sites, ensuring accuracy in your layout.

Place neutrophils centrally, depicting their migration via chemotaxis toward CXCL8 gradients. Use arrows with varying thickness to show IL-1β and TNF-α release from macrophages–thicker for high concentrations (10-100 ng/mL) near damaged tissue. Add a color gradient: red for pro-inflammatory cytokines, yellow for anti-inflammatory mediators like IL-10, to contrast zones of activation and resolution.

Key Molecular Pathways to Highlight

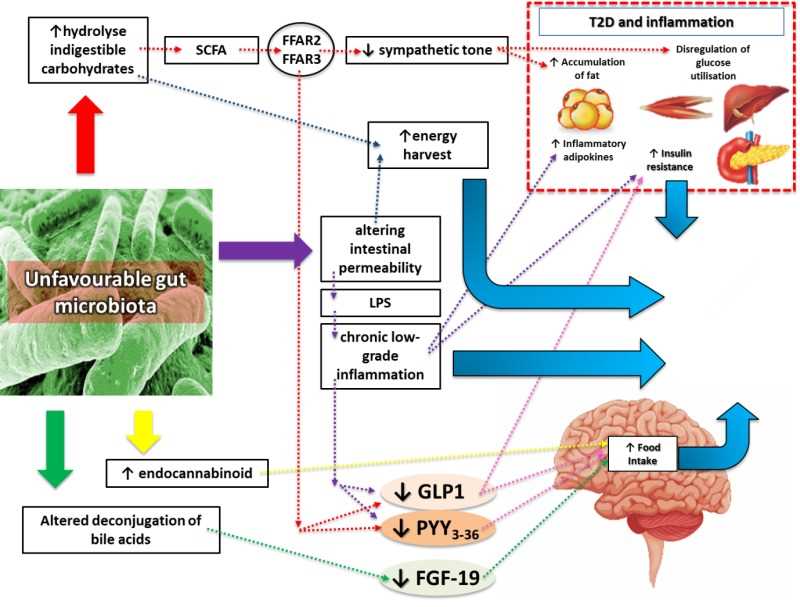

inflammation schematic diagram

Detail the NF-κB pathway with a flowchart: IKK complex activation → IκBα phosphorylation → p65/p50 nuclear translocation. Indicate time delays: peak NF-κB activity occurs 1-2 hours post-trigger, while COX-2 expression rises within 4 hours. For lipid mediators, separate branches for prostaglandins (PGE₂) and leukotrienes (LTB₄) with annotated half-lives: 30 seconds for LTB₄, 6 minutes for PGE₂.

Avoid oversimplification by including feedback loops. Show how resolvins (e.g., RvD1) at 1-10 nM concentrations inhibit neutrophil recruitment while promoting efferocytosis. Use dashed lines for transient interactions, like histamine’s 60-minute vasodilation window, and solid lines for sustained processes, such as fibrosis from TGF-β signaling.

Integrate a spatial axis to depict tissue layers: epidermis, dermis, and subcutaneous fat. Mark mast cell degranulation in the dermis (distance: 0.1-0.5 mm from vascular bed) and include extracellular traps (NETs) formed by neutrophils 3-4 hours into the response. Add a scale bar: 50 μm for cellular interactions, 200 μm for vascular dynamics, ensuring proportional accuracy.

Critical Elements for an Accurate Biological Response Visualization

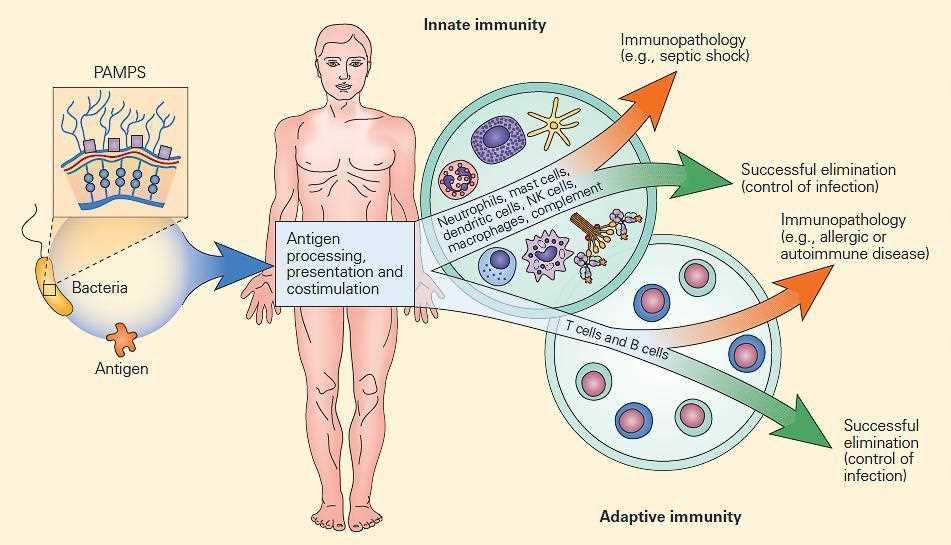

inflammation schematic diagram

Label initiators at the outset–explicitly mark pathogen-associated molecular patterns (PAMPs) and damage-associated molecular patterns (DAMPs) with distinct shapes, using red triangles for bacterial lipopolysaccharides, blue squares for viral RNA, and green hexagons for cellular debris. Assign specific icons to Toll-like receptors (TLR4, TLR3) and NOD-like receptors (NLRP3) by embedding miniature receptor representations directly adjacent to their corresponding activators. Avoid generic symbols; precision prevents misinterpretation.

Outline downstream signaling cascades with directional arrows, differentiating thickness to indicate signal strength–bold arrows for primary pathways like NF-κB and thinner arrows for secondary modulators such as PI3K-Akt. Color-code each pathway: red for pro-inflammatory outputs (IL-1β, TNF-α), orange for dual-function mediators (IL-6), and blue for regulatory suppressors (IL-10, TGF-β). Include small text annotations for phosphorylation sites (e.g., IκB Ser32/Ser36) and ubiquitination tags to clarify post-translational modifications.

Cellular Actors and Structural Integration

Depict resident cells with consistent proportionality–macrophages as rounded irregular polygons with dotted membranes, neutrophils as segmented nuclei shapes, and endothelial cells as elongated rectangles with tight junction indicators. Overlay activation markers (CD14, CD80) as internal tags. For structural accuracy, align cellular positioning to reflect tissue context: macrophages nested near interstitial spaces, neutrophils poised adjacent to vessel walls, and fibroblasts forming a basal layer.

Incorporate organelle-specific events–highlight mitochondria as ovals with inner membrane cristae to denote ROS generation, and endoplasmic reticulum as stacked tubules for unfolded protein response visualization. Use faint dashed lines to trace vesicular trafficking (endosomes, autophagosomes) between compartments. Specify key enzymes (COX-2, iNOS) as circular icons anchored to their respective locations, accompanied by substrate-product labels (arachidonic acid → prostaglandins).

Map soluble mediators as diffusing gradients–concentric circles for chemokines (CXCL8, CCL2), dotted halos for cytokines, and overlapping bands for complement fragments (C3a, C5a). Define time-dependent diffusion patterns by varying circle radii, with smaller radii indicating early-phase release and expanding radii for sustained secretion. Cross-reference gradients with receptor saturation thresholds (CCR2, CXCR2) via numeric callouts.

Temporal Dynamics and Feedback Loops

Place sequential trigger points along the horizontal axis–0h for initial detection, 2h for peak transcriptional activity (NF-κB nuclear translocation), 6h for mediator release, and 24h for resolution phase onset. Use vertical columns to separate acute (0–48h), subacute (3–7d), and chronic (>7d) stages, with bidirectional arrows to denote feedback loops (e.g., IL-1β → prostaglandin E₂ → IL-1β suppression). Add a resolution phase column for specialized pro-resolving mediators (resolvins, maresins) as downward gradients.

Clarify positive and negative regulators with interlocking symbols–chevrons for positive feedback (TNF-α → NF-κB amplification) and bars for negative feedback (IκB resynthesis). Specify epigenetic modifiers (histone acetyltransferases, DNA methyltransferases) as colored brackets adjacent to gene clusters. Conclude with a resolution checklist: phagocytosis markers (CD206, CD64), efferocytosis rates (>85%), and tissue remodeling enzymes (MMP-9, TIMP-1) as normalized ratios (3:1 MMP/TIMP balance).

Step-by-Step Guide for Illustrating an Acute Immune Response Cascade

Start with a central trigger at the top of your layout–depict a damaged cell or pathogen entry point using jagged lines or explosion-like shapes to signify tissue disruption. Label this initiating event with precise annotations: histamine release (H1 receptors), bradykinin activation, or complement C5a cleavage. Use color-coded arrows–red for pro-inflammatory mediators (TNF-α, IL-1β, IL-6), blue for vasodilatory signals (NO, prostaglandins)–to map their diffusion trajectories downward.

Divide the next layer into three parallel pathways:

  1. Vascular changes: Sketch dilated capillaries with thickened endothelial gaps; annotate increased permeability with dashed lines showing plasma leakage (fibrinogen, immunoglobulins). Add icam-1/vcam-1 labels to sticky endothelial surfaces.
  2. Leukocyte recruitment: Draw rolling neutrophils (L-selectin), firm adhesion (integrins), and diapedesis via chemokine gradients (CXCL8/IP-10). Use graduated shading to illustrate concentration gradients.
  3. Systemic effects: Indicate fever (PGE2 in hypothalamus), acute-phase proteins (CRP, SAA), and leukocytosis with horizontal arrows leading to body-wide symbols (bone marrow, liver).

Ensure each pathway intersects with secondary arrows showing feedback loops–for example, activated macrophages releasing IL-1 to amplify vascular permeability.

Conclude with resolution phase at the base: depict lipid mediator class-switching (resolvins, lipoxins) using green arrows, showing apoptosis of neutrophils and efferocytosis by monocytes. Label tissue repair markers–TGF-β for fibroblast activation, VEGF for angiogenesis–with smaller branching arrows. Cross-reference all steps with time-stamps (0–4h: transient vasoconstriction; 4–24h: leukocyte infiltration; 24–72h: resolution) along the vertical axis.
