Start with a microcontroller like the ATmega328P–its low power consumption and 16 MHz clock speed make it ideal for field deployments. Pair it with a DS1307 RTC module to track time without drift; accuracy within ±2 minutes per month is typical. For moisture sensing, use capacitive probes (e.g., FC-28) instead of resistive–corrosion won’t skew readings after 6–8 months of continuous use.
Power distribution determines longevity. A 5V buck converter (e.g., MP2307DN) ensures 92% efficiency at 1A loads, while a 2200µF electrolytic capacitor smooths voltage spikes during valve actuation. For solenoid valves (12V DC, 300mA inrush), add a flyback diode (1N4007) to prevent inductive voltage spikes exceeding 50V that can damage the MOSFET gate.
Schematic layout priorities: route high-current traces (>500mA) at least 2mm wide to prevent copper etching. Ground the microcontroller to a star point–avoid daisy-chaining–to reduce noise in analog readings. Place decoupling capacitors (0.1µF ceramic) within 10mm of the MCU’s VCC pin; self-resonant frequency around 10 MHz minimizes transient errors.
For wireless expansion, integrate an ESP-01 module (802.11n, 2.4 GHz) with deep sleep current Tasmota firmware for MQTT compatibility–environment monitoring data (soil temp/humidity) updates every 15 minutes to avoid Wi-Fi beacon congestion. Include a hardware watchdog (MAX6369) to reset the MCU if it stalls–timeout set at 3.2 seconds balances responsiveness and false triggers.
Test valve activation sequences in sandboxed simulations before field deployment. Use a 1Ω current-sense resistor to monitor solenoid health–normal operating range: 280–320mA; deviations ±20mA indicate coil degradation. For frost protection, add a bimetallic switch (e.g., KSD301) rated at 0°C–switches in

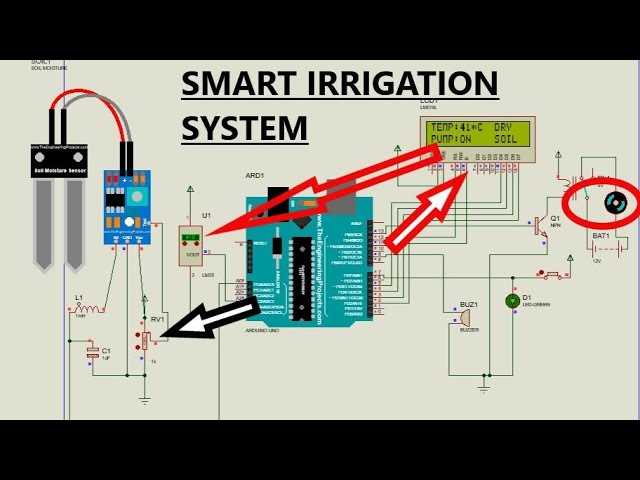

Smart Watering Controller Blueprint for Garden Setups
Begin with a microcontroller board–Arduino Nano or ESP8266–positioned centrally to minimize wiring complexity. These boards handle sensor inputs and valve control without requiring extensive computing power, drastically reducing component costs while maintaining reliability in outdoor conditions.
Connect soil moisture detectors (capacitive sensors like FC-28 or YL-69) directly to analog input pins, ensuring a calibration offset of 0.2V to compensate for environmental noise. Use 10kΩ pull-down resistors to prevent false readings from residual moisture. Position sensors 5–7 cm deep, spaced every 30 cm along irrigation zones for uniform sampling.
For valve actuation, opt for 12V solenoid valves rated for continuous duty–models like Rain Bird DV or Orbit 57881 offer fast response times (under 100ms) and low power consumption (0.5W). Drive valves via N-channel MOSFETs (IRF540N) or Darlington arrays (ULN2003), adding flyback diodes (1N4007) to suppress voltage spikes that degrade components over time.
Power distribution matters: a 12V 2A switching adapter feeds solenoids and sensors, while a 5V buck converter (LM2596) stabilizes voltage for the microcontroller. Separate ground paths for analog and digital signals to avoid cross-talk, especially critical when moisture levels fluctuate rapidly.
Program hysteresis for sensor thresholds–dry soil at 30% moisture (triggering valves) and wet soil at 70% (shutting off). Adjust these values based on soil type: 40%/80% for sandy loam, 25%/65% for clay. Use EEPROM to store last known moisture states if power fails, preventing overwatering during outages.
Wireless synchronization (ESP-NOW or MQTT) allows multi-zone coordination without physical RS-485 or CAN bus cabling. Transmit sensor data every 15 minutes; reduce frequency to once hourly after sunset to conserve battery life in solar-powered setups. Embed API endpoints to integrate with weather services (OpenWeatherMap), overriding scheduled watering if rain (>3mm/h) is forecast.
Enclose the assembly in a waterproof junction box (IP67-rated) with silicone-sealed cable glands. Use UV-resistant PVC conduits for outdoor wiring, bury conduits 15 cm deep to prevent damage from gardening tools. Test runoff channels weekly–clogged drains cause localized flooding, saturating soil beyond sensor range and triggering false positives.
Deploy redundancy with a manual override switch (SPDT) and a failsafe timer (NE555 configured as monostable). If the microcontroller crashes, the timer shuts valves after 10 minutes. Log all events–valve activations, sensor faults–to an SD card for diagnostics. Replace capacitors (electrolytic types) every 2 years; corrosion-prone environments may require annual inspections.
Essential Parts for a Smart Watering Setup
Begin with a microcontroller like the Arduino Uno or ESP32–opt for the latter if wireless connectivity is needed, as it includes built-in Wi-Fi and Bluetooth at a comparable cost to bare Arduino boards.
Power delivery demands attention: a 12V DC adapter suffices for small garden plots, but larger areas require a 24V transformer to reduce current draw and voltage drop across extended cable runs.
Soil moisture probes should be corrosion-resistant, preferably stainless steel or platinum-coated, to withstand constant soil exposure. Avoid cheap resistive sensors; capacitive variants provide longer lifespan and higher accuracy (error margin: ±3% vs. ±10% for resistive types).
Flow Control and Pump Selection
Solenoid valves rated for outdoor use (IP67) prevent water ingress. Brass or nylon bodies last longer than plastic varieties in high-pressure setups. Pair valves with a relay module–use solid-state relays for AC pumps but opt for mechanical relays if handling DC motor loads exceeding 5A.
Pump selection depends on vertical lift and distance: a 1/2 HP centrifugal pump covers 500 sq. ft. with 1/2″ tubing, but drip zones benefit from diaphragm pumps that maintain consistent pressure at lower flow rates (5-15 PSI). Always include a check valve to prevent backflow during system shutdown.
Water storage must account for evaporation and plant uptake: a 55-gallon barrel suffices for weekly scheduling in temperate climates, but arid regions may require larger reservoirs or real-time rainwater harvesting integration with float switches and diversion channels.
Peripheral Sensors and Safety Measures
Add a rain gauge with a tipping bucket mechanism (0.2mm resolution) to override scheduled cycles during precipitation. Place it away from downspouts to avoid false readings from splash. For temperature extremes, incorporate a 1-wire DS18B20 probe to suspend operations below 4°C (risk of pipe freeze) or above 35°C (evaporative loss spikes).
Fuse protection is non-negotiable: a 5A slow-blow fuse on the main supply line prevents catastrophic failure during short circuits in buried cables. Use waterproof junction boxes for all outdoor connections, sealing each entry point with silicone gel to block moisture infiltration over time.

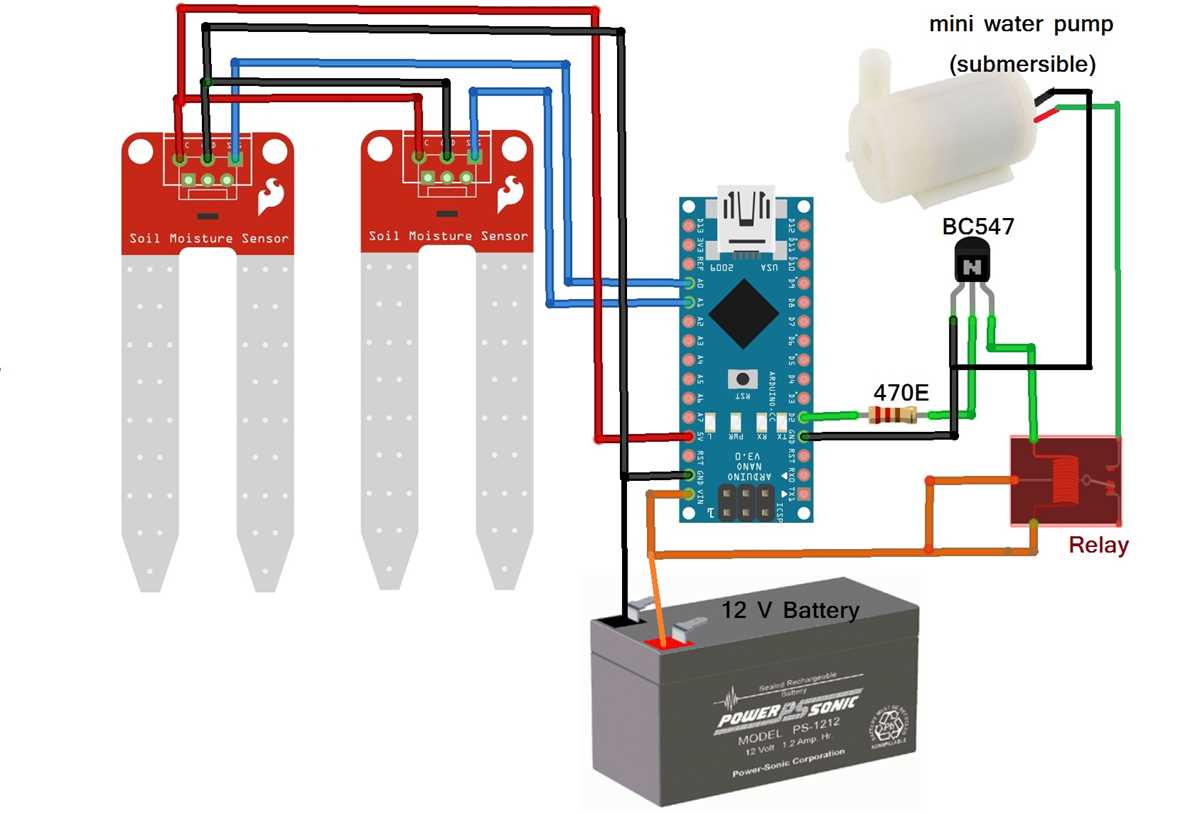

Step-by-Step Wiring of Soil Moisture Sensor to Microcontroller
Connect the soil moisture sensor’s VCC pin to the microcontroller’s 3.3V or 5V output–check the sensor datasheet for voltage tolerance. Most resistive sensors operate safely between 3.3V and 5V, while capacitive models typically require 3.3V to avoid damage. Use a breadboard for prototyping if the sensor lacks headers.
Ground the sensor’s GND pin to the microcontroller’s ground rail. Ensure this connection is stable; a loose GND can cause erratic readings or sensor failure. For noise-sensitive applications, route GND alongside the signal wire to minimize interference.
Attach the sensor’s analog output (AO) to any available ADC pin on the microcontroller. Arduino Uno/Nano users should prioritize pins A0–A5; ESP32/ESP8266 offer more ADC channels. For digital output (DO), connect to a GPIO pin and configure it as input. Verify the sensor’s logic level–some models output 3.3V even when powered by 5V.
| Sensor Type | Output Range | Typical Voltage | Recommended Microcontroller |
|---|---|---|---|
| Resistive | 0–1023 (ADC) | 0–3.3V / 0–5V | Arduino Uno, ESP32 |
| Capacitive | 0–1023 (ADC) | 0–3.0V (3.3V max) | ESP32, STM32 |
| Digital (DO) | 0/1 (TTL) | 3.3V / 5V | All MCUs |
Calibrate the sensor by measuring dry and saturated soil values. Dry soil typically outputs near 0V (or 0 ADC), while fully wet soil can reach 2.5V–3.3V (or 700–1023 ADC). Use these extremes to set thresholds in code. Avoid leaving resistive sensors submerged long-term–corrosion will degrade accuracy within weeks.
Capacitive sensors require a stable power supply. Add a 0.1µF decoupling capacitor between VCC and GND close to the sensor to filter noise. For battery-powered setups, use a low-dropout regulator (e.g., AMS1117) if voltage fluctuates.
Test the wiring by reading serial output. Example Arduino code snippet for analog readings:
const int sensorPin = A0;
void setup() {
Serial.begin(9600);
}
void loop() {
int moistureValue = analogRead(sensorPin);
Serial.print("Moisture Level: ");
Serial.println(moistureValue);
delay(1000);
}
For digital output sensors, define a threshold in code. Most sensors include a potentiometer to adjust this manually–turn it until the DO pin toggles at the desired moisture level. Avoid relying solely on DO; analog readings provide finer control for variable conditions.
Seal connections with heat shrink or electrical tape to prevent short circuits from condensation or water ingress. Exposed leads near soil risk corrosion or electrolysis. For permanent installation, solder joints and apply conformal coating. Replace resistors every 6–12 months if corrosion appears.
