Start with a precise 12V DC power source–no deviations. A 10A automotive relay module regulates current, while a BME280 sensor monitors temperature, humidity, and barometric pressure at ±1% accuracy. Wire the sensor’s I²C interface directly to an Arduino Nano or ESP32 for real-time data streaming. Avoid breadboards for permanent setups; solder connections onto a perforated board instead to eliminate resistance fluctuations.
For heating, use a 25W ceramic resistor or silicone heating pad rated for 12V, placed 3cm below the target zone. Pair it with a PWM-controlled MOSFET (IRFZ44N) to avoid thermal runaway–calibrate duty cycles between 30-70% for consistent 37.5°C output. Add a 10kΩ NTC thermistor as a fail-safe, positioned 1mm from the heating element and wired to the microcontroller’s analog pin.
Humidity control demands a piezoelectric ultrasonic transducer (1.7MHz). Drive it with a 555 timer IC in astable mode (C=0.1µF, R=1kΩ) for 2-second pulses, each followed by a 1-second pause. Store water in a 100ml polypropylene reservoir–no steel–to prevent corrosion. Connect a capacitive soil moisture sensor to the reservoir to disable the transducer at 90% relative humidity, preventing condensation buildup.
Air circulation requires a 25mm 12V DC brushless fan (40CFM) with dual bearings. Mount it 5cm above the target zone at a 45° angle to avoid direct airflow. Wire the fan’s positive lead to a Schottky diode (1N5822) to clamp voltage spikes during PWM switching. Ground the negative lead through a current-limiting resistor (1Ω, 1W) to detect stalls via voltage drop.
Power distribution should separate high-current paths from signal traces. Use 18AWG silicone wire for heater and fan circuits, and 22AWG stranded wire for sensors. Route all traces to avoid parallel runs longer than 5cm to minimize EMI. For noise filtering, place a 100nF ceramic capacitor across each sensor’s power pins and a 470µF electrolytic capacitor at the power inlet.
Blueprint Design for Controlled Environment Chambers

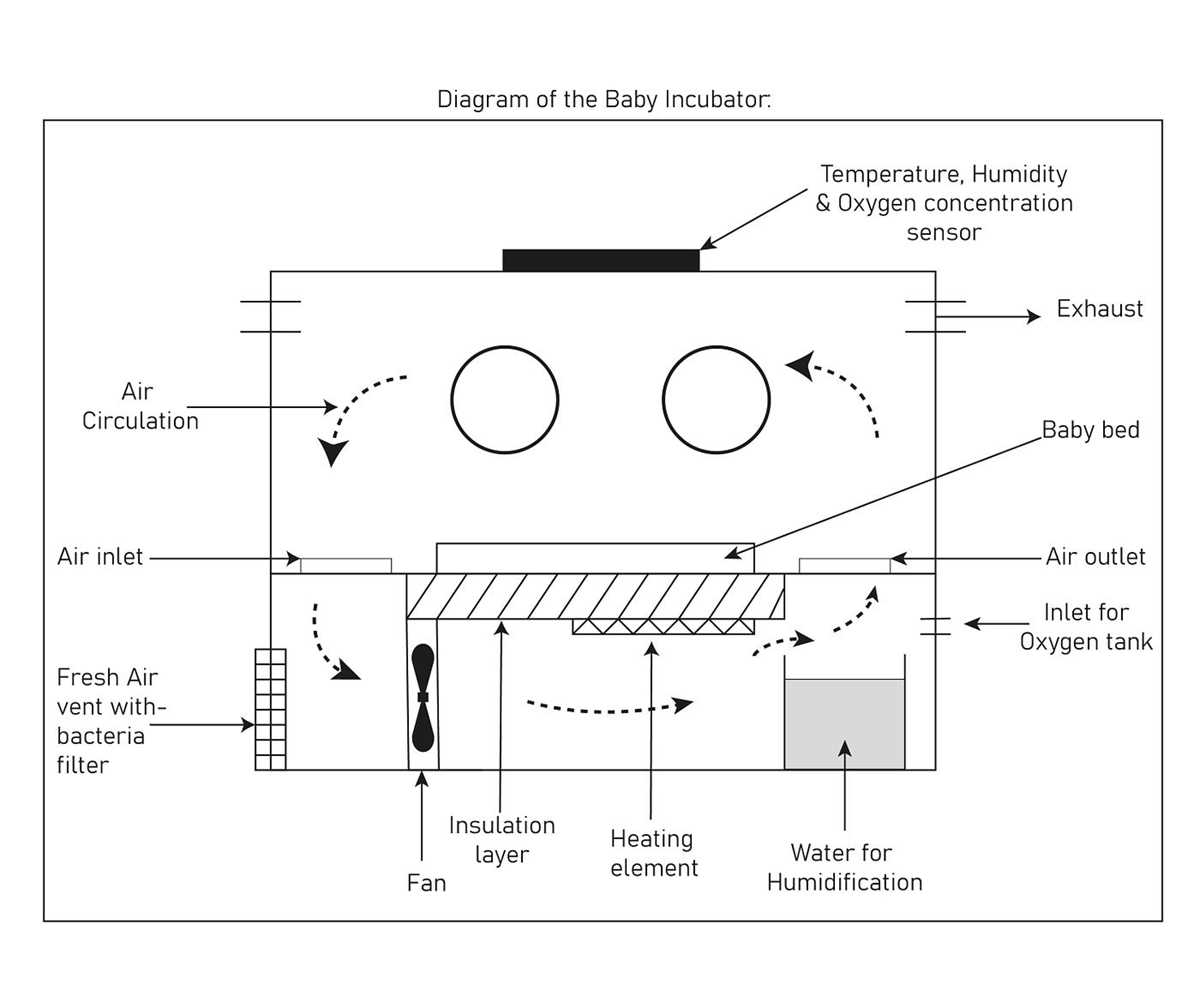

Start with a modular layout dividing the unit into three core zones: heating, ventilation, and monitoring. Allocate 40% of the internal space to the heating element, positioning it at the base for uniform heat distribution. Use a single 100W ceramic heater rated for continuous operation at temperatures between 25°C and 40°C, controlled via a PID regulator with ±0.5°C accuracy to prevent fluctuations.
- Integrate a 12V DC fan (0.3A current draw) for airflow, mounted 2cm above the heater to avoid direct heat exposure. Ensure the fan blades are angled at 30° for optimal air circulation without creating turbulent hotspots.
- Include two LM35 temperature sensors: one near the heating element and another 15cm above it. Wire them to separate Arduino Nano inputs for redundancy, averaging readings every 2 seconds to filter sensor noise.
- Add a DHT22 humidity sensor on the sidewall, placed midway between the top and bottom vents. Calibrate it against a sling psychrometer before final assembly to ensure ±2% relative humidity precision.
Power the system using a 12V/5A switched-mode power supply with overcurrent protection. Route the main feed through a 20A fuse, then split it into three branches: one for the heater (via a solid-state relay), one for the fan (direct), and one for the microcontroller (through a 5V buck converter). Ground all components to a single copper plate embedded in the chamber’s base to minimize electrical interference.
Critical Component Spacing and Wiring
Keep high-current traces (heater and fan) separate from signal wires (sensors and microcontroller) to avoid EMI. Use 18 AWG silicone-insulated wire for heater circuits and 24 AWG stranded copper for sensors, color-coded as follows:
- Red: Positive power (12V/5V)
- Black: Ground
- White: Heater control (SSR gate)
- Blue: Sensor data lines
- Yellow: Fan PWM control
Mount the microcontroller on a perforated board suspended 5cm below the chamber’s ceiling, with all connections crimped and soldered. Leave 10cm loops in wire lengths to allow disassembly without straining joints. Test continuity with a multimeter before sealing the enclosure.
Fail-Safe and Calibration Steps
Program the microcontroller to trigger a hardware watchdog timer (HWT) every 30 seconds. If the timer isn’t reset–indicating a frozen state–cut power to the heater via the SSR and activate an external alarm (5V piezoelectric buzzer). Code a manual override via a push-button switch to bypass HWT during maintenance.
- For initial calibration, run the chamber empty for 24 hours at 37.5°C and 60% humidity. Compare internal readings with a certified datalogger at 10-minute intervals. Adjust PID coefficients until variation stays within ±0.3°C and ±1.5% humidity.
- Insulate the interior with 20mm expanded polystyrene (EPS) panels, gaps sealed with high-temperature silicone. The EPS should have a thermal conductivity ≤ 0.035 W/m·K to maintain efficiency.
- Install a 2.4” IPS display on the front panel, showing real-time metrics and a trend graph of the last 12 hours. Use a serial interface (SPI) for communication, updating the display every 5 seconds to reduce processor load.
Critical Elements and Optimal Positioning in the Blueprint
Place the temperature controller at the upper-left quadrant of the layout, ensuring it connects directly to the heating element via a 24V trace. Use a PID module (e.g., MAX6675) for precise regulation, positioning its thermocouple input within 5cm of the target zone to minimize latency. Separate high-current paths (12A+) from low-signal lines with 1.5mm minimum clearance; route power traces on the bottom layer when possible to reduce interference.
- Humidity sensor (e.g., DHT22) must sit centrally to avoid edge-effect distortions; calibrate for 30-90% RH range with 2% accuracy.
- Airflow fans (120mm, brushless DC) require PWM drivers (e.g., DRV10970) mounted adjacent to the motor, with feedback loops running in parallel to the main I²C bus.
- Power distribution: Dedicate a 4-layer PCB for heat dissipation; allocate the middle layers for ground planes with thermal vias (0.3mm diameter) under high-load components.
Position the microcontroller (STM32F103) near the geometric center of the design, linking all sensors and actuators via separate buses: I²C for environmental sensors, SPI for SD card logging, and UART for debugging. Isolate analog signals (e.g., thermocouple readings) with ferrite beads (1kΩ @ 100MHz) and route them perpendicular to high-frequency clocks. Reserve the right edge for expansion headers–assign 6 pins for GPIO and 4 for serial interfacing.
- Heat source: Film resistors (25W, 5Ω) must be spaced 10mm apart on a ceramic substrate; connect in parallel to a MOSFET (IRFZ44N) with a 10kΩ gate resistor for transient suppression.
- Safety circuits: Fuse (250V, 2A) mandatory for mains input; add a thermal cutoff (KSD9700, 60°C) soldered to the heating plate.
- User interface: Limit switches for lid detection, RGB LED indicators (WS2812B) for status feedback–route signals through 220Ω resistors to prevent forward-voltage spikes.
Step-by-Step Wiring Guide for Temperature Control Circuit
Use a precision NTC thermistor (10kΩ at 25°C) as the primary sensor. Connect its leads to a voltage divider with a fixed resistor (10kΩ ±1%) to ensure stable readings. Power the divider from a 5V regulated supply, avoiding voltage spikes that distort measurements.
Wire the sensor output to the non-inverting input of an operational amplifier (LM358) configured as a comparator. Set the reference voltage at the inverting input using a 10-turn trimpot (20kΩ) to fine-tune the threshold. Adjust the trimpot so the comparator toggles at ±0.5°C from the target temperature.
Connect the comparator’s output to a Darlington pair (TIP120) or solid-state relay with a 10A rating to drive the heating element. For resistive loads up to 50W, use a flyback diode (1N4007) across the relay coil to suppress voltage transients. Verify the relay’s pull-in voltage matches the control signal (5V or 12V).
| Component | Specification | Purpose |
|---|---|---|
| Thermistor | 10kΩ NTC, 1% tolerance | Temperature sensing |
| Trimpot | 20kΩ, 10-turn multiturn | Threshold adjustment |
| Relay/SSD | 10A, 250VAC coil | Heater switching |
| Diode | 1N4007 | Flyback protection |
Route all high-current traces (>1A) on a printed circuit board with a minimum width of 2.5mm for copper thickness of 35μm. For prototype wiring, use 18AWG silicone-insulated wire to prevent heat damage. Ground the sensor and control circuits separately, tying them together only at the power supply to reduce noise.
Calibrate the system by immersing the thermistor in a water bath with a calibrated thermometer. Monitor the comparator’s output with a multimeter or oscilloscope, adjusting the trimpot until the toggle point aligns with the target temperature. For hysteresis, add a 10kΩ feedback resistor from the comparator output to the non-inverting input, ensuring a ±1°C deadband.
Power the circuit from a linear regulator (7805) to minimize ripple. Decouple the regulator with a 10μF electrolytic capacitor at the input and a 0.1μF ceramic at the output. Test under full load by running the heater for 30 minutes; measure supply voltage stability at the regulator terminals (
Troubleshooting Common Electrical Failures in Circuit Blueprints
Check the power supply board first if voltages at key nodes drop below 80% of rated values. Measure DC outputs at the rectifier stage: 12V and 5V rails should read ±0.2V tolerance. Replace the smoothing capacitor (C12, 1000µF/25V) if ripple exceeds 150mV peak-to-peak, as excessive ripple corrupts temperature regulation logic.
Trace the heater control relay (K2) for intermittent switching. A stuck contactor draws continuous current, overheating the nearby 10kΩ resistor (R34). Use a multimeter in continuity mode: normal operation yields a 0.3–0.7Ω coil resistance; values above 2Ω indicate internal degradation. Swap the relay if resistance surpasses threshold or if the transistor driver (Q5, PN2222A) shows abnormal Vce (>0.3V when off).
Inspect the microcontroller’s crystal oscillator (Y1, 16MHz) if sensor readings fluctuate erratically. Probe the oscillator pins: both should oscillate at ±0.5V amplitude. Replace the crystal if amplitude drops below 0.2V or frequency drifts outside 15.9–16.1MHz. Ensure decoupling capacitors (C4, 22pF; C5, 22pF) are soldered no farther than 2mm from the MCU pins to prevent noise coupling.
Ground Reference Integrity
Verify the star-ground connection at GND-001. A voltage differential >20mV between any two ground points creates a ground loop, destabilizing analog inputs. Rework cold-solder joints on ground vias and use 18AWG copper wire for low-impedance return paths. Avoid daisy-chaining grounds; each module’s return line should terminate independently at the common reference point.
Test the triac driver circuit (U3, MOC3041) for false triggering if the fan motor runs intermittently. Measure gate-to-main-terminal voltage: 10µA) through the optocoupler’s LED causes premature switching; confirm forward voltage drop (1.1–1.3V) across the LED. Replace U3 if leakage persists or if the snubber network (R2, 39Ω; C3, 0.1µF) shows signs of carbon tracking.
Repair corrosion on humidity sensor traces (HS-01) if readings lock at 0% or 100%. Clean oxide buildup with isopropyl alcohol and reflow solder joints; apply conformal coating afterward. Confirm the sensor’s excitation voltage (3.3V) at VCC pin–deviations >±0.1V suggest a failed voltage regulator (U2, AMS1117). Recalibrate the system via serial commands if sensor hysteresis exceeds 2% after cleaning.
