Start by disconnecting the negative battery terminal before handling any electrical components under the dashboard. Identify the factory audio harness behind the center stack–typically clipped into a black plastic housing near the climate controls. Pinouts follow a standardized color code: purple for constant 12V+, yellow for switched ignition power, black for ground, and light blue with a white stripe for amplifier turn-on. Speaker wires pair dark green/white (front right positive), gray/black (front right negative), dark gray/light green (rear right positive), and brown/yellow (rear right negative).
For aftermarket integration, splice directly into these wires using crimp connectors or solder for a secure connection. Avoid twisting and taping–corrosion and vibration will degrade the signal over time. Verify polarity with a multimeter before finalizing; reversed leads will distort audio. If retaining the stock amplifier, locate the two-wire data bus (usually pink/light blue and orange/white) and ensure continuity to maintain steering wheel controls and vehicle chimes.
Trace the antenna lead (coaxial) from the rear of the unit to the roof-mounted mast. Older models may require an adapter if upgrading to a newer head unit–measure impedance (typically 50 ohms) before purchasing converters. For vehicles equipped with navigation, the GPS antenna (flat ribbon) routes separately behind the glove box; preserve this pathway to avoid losing satellite reception.
Test all connections before reassembling the dash. Reconnect the battery, cycle the ignition, and confirm all features: power-on chime, station presets, equalizer settings, and auxiliary inputs. If static persists, check for loose grounds–common failure points include the firewall strap and the center console’s steel brace. Replace any brittle or exposed wiring with automotive-grade 16-gauge copper core to prevent shorts.
Wiring Guide for the 2008-2010 Chrysler Truck Audio System
Locate the OEM connector behind the factory stereo–the C1 harness uses a 16-pin Molex plug (part #04602647). Pin assignments differ between base and premium sound systems: base models omit pins 5 (orange/black illumination lead) and 13 (gray/pink audio mute). Disconnect the negative battery cable before probing; a 1kΩ resistor inline with the multimeter prevents damage to the BCM.
Connector Pinout Reference
| Pin | Wire Color | Function | Voltage (Key On) |
|---|---|---|---|
| 1 | Dark Green/Light Blue | Front Left Speaker (+) | 4.8V AC |
| 2 | Gray/Red | Rear Right Speaker (+) | 4.8V AC |
| 4 | Pink/Black | Battery (+12V) | 12V DC |
| 6 | Violet/White | Data Bus | 8-10V pulsed |
| 7 | Yellow | Ignition Switched (+12V) | 12V DC |
| 10 | Gray | Ground | 0V |
| 14 | Light Blue/Orange | Front Right Speaker (-) | 0V AC |
Aftermarket adapters labeled “Chrysler 2” often mislabel pin 6 as an antenna trigger–this wire carries CAN bus data to the amplifier. Splice a 1N4007 diode cathode-to-wire to prevent back-feeding voltage into the network during remote start events. Retain the factory theft-deterrent module during swaps; bypassing it triggers a U0190 code stored in the TIPM, disabling EVIC chimes until cleared with a diagnostic scan tool.
Finding the Audio System Plug Under the Instrument Panel
Start by removing the trim panel below the climate controls–it snaps off with minimal force. Use a plastic pry tool to avoid scratching the surface. Behind this panel, the harness coupler is secured to a metal bracket with a single 10mm bolt; remove it to expose the connector.
The plug itself is a 12-pin rectangular unit, typically gray or black, tucked between the HVAC housing and the vehicle’s firewall. Trace the bundled cables downward–they lead directly to the audio head unit’s displacement slot. If obstructed, gently shift the fuse box cover to the right for clearance.
For verification, check pin assignments: pins 1–4 (constant power, ground, accessory, and illumination) are thicker gauge wires, while pins 5–12 (speaker outputs) use finer strands. A multimeter set to 20V DC should confirm 12V at pin 1 with the ignition off.
If corrosion is present, clean terminal contacts with electrical contact cleaner. Reattach the harness by aligning the tab on the male end with the notch on the female socket–listen for a click to ensure full engagement before reinstalling the trim.
Matching Cable Hues to System Roles
Locate the constant 12V power lead by its solid yellow insulation–this line delivers steady voltage directly from the battery, enabling memory retention for presets and clock settings. Verify continuity with a multimeter set to DC voltage; expect a reading between 11.8–13.2V when the ignition is off. If voltage drops below 11V, inspect the fuse (typically 10–15A) or corroded connections near the fusebox.
Trace solid light green wires to the left front speaker positive terminal, while striped light green/black denotes its negative counterpart. For rear speakers, solid gray and striped gray/black follow the same polarity convention. Ground faults often manifest as distorted audio or uneven channel balance–test each speaker individually with a 9V battery; sparks or absent sound indicate an open circuit or incorrect pairing.
Harness Connector Pinout Breakdown
- Red (ignition-switched 12V): Powers the unit only when the key is in the “ACC” or “ON” position–cuts off during cranking to prevent voltage spikes. Tap into the ignition harness behind the dashboard, not the fuse box, to avoid rerouting.
- Black (chassis ground): Must terminate at a bare metal surface free of paint or rust; use a 10mm ring terminal and dielectric grease to prevent oxidation.
- Dark blue/white stripe (power antenna or amplifier trigger): Outputs 12V when the unit activates–connect to aftermarket amplifiers via a relay if exceeding 300mA draw.
- Orange (illumination/dimming): Reduces voltage to 0–1V when headlights engage; wire to dash lights for proportional brightness control.
For aftermarket integrations, bundle purple (reverse signal) and brown (mute) leads separately. The former triggers backup camera feeds (splice into the transmission sensor or reverse light circuit), while the latter silences audio during phone calls–test by grounding the brown wire temporarily; audio should mute without affecting volume. Avoid twisting dissimilar wires (e.g., power and speaker); route them in parallel with 3mm spacing to minimize interference.
Step-by-Step Guide to Removing the Factory Head Unit Safely
Disconnect the battery’s negative terminal first to prevent short circuits or electrical damage. Use a 10mm socket wrench to loosen the clamp, then set the cable aside in a secure location–ensure it doesn’t touch metal surfaces. This step eliminates risk of accidental power surges during disassembly.
Remove the trim panel surrounding the console by prying it gently with a plastic trim tool; start at the bottom corners and work upward to release clips without snapping them. Some models require additional screws beneath the climate controls–check for hidden fasteners before applying force. Store screws and clips in a labeled container to avoid misplacement during reinstallation.

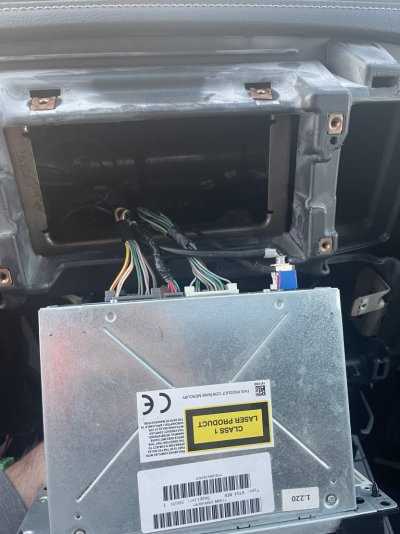

Slide the head unit out by releasing the mounting brackets–press the tabs on either side simultaneously while pulling forward. Disconnect the harness adapter and antenna cable by squeezing the release tabs; never yank wires directly. Inspect connectors for corrosion or damage before reinstallation; clean with electric contact cleaner if necessary.
Integrating Third-Party Audio Unit Cables with Factory Connector Plugs

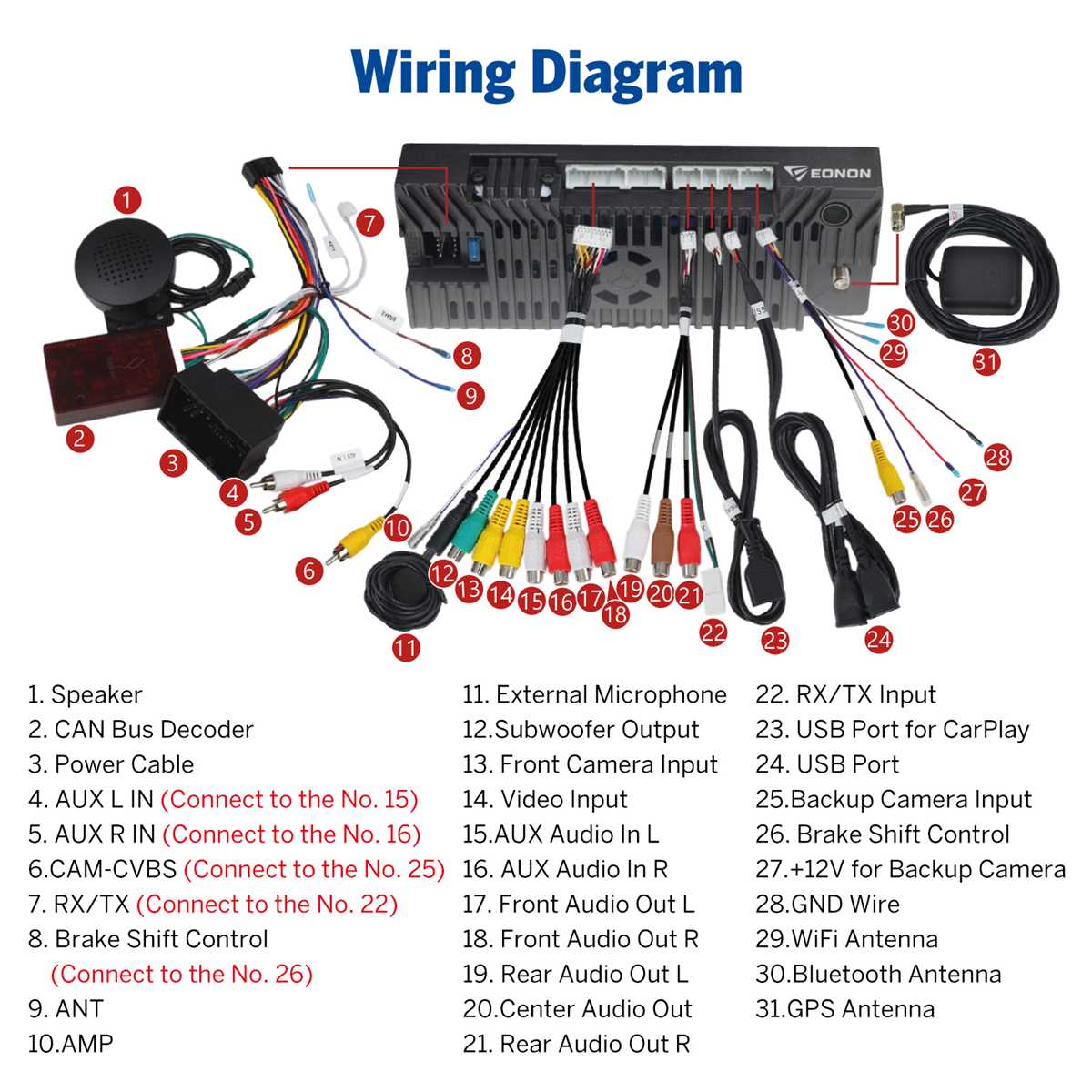

Begin by matching the aftermarket head unit’s color-coded harness to the vehicle’s original plug using a 12-pin adapter (Metra 70-1002 or equivalent). Verify the 12V constant feed (yellow), ignition-switched power (red), ground (black), and illumination dimmer (orange/white stripe) before proceeding–cross-reference these with a multimeter if factory labels are absent. Splice antenna control (blue/white stripe) directly to the original harness’s motorized lead to preserve automatic power-on functionality.
For speaker outputs, align the aftermarket harness’s fronts (gray/white, gray), rears (green/white, green), and subwoofer (purple/white, purple) with the OEM plug’s corresponding wires–confirm impedance (4Ω typical) to avoid phase cancellation. Use heat-shrink crimp connectors instead of solderless taps for long-term stability, particularly on high-current paths like amplifier triggers. If retaining steering wheel controls, integrate a PAC RP4-CH11 or ASWC-1 module into the CAN bus data line (purple/white) before securing any splices.
Test each connection individually: power cycling with a 10A fuse in-line prevents shorts from damaging the vehicle’s fuse box or aftermarket unit’s circuitry. For vehicles with Uconnect, preserve the factory microphone wiring (pink/black) by tapping into it upstream of the original head unit’s connector–this ensures hands-free functionality remains intact without requiring additional dash disassembly.
