Begin by locating the primary and secondary windings on the schematic–primary typically connects to the low-voltage input (12V or voltage regulator output), while secondary delivers the pulsed output to the spark plugs. Verify the resistance values: primary windings should measure 0.5–2.0 ohms, secondary 6,000–30,000 ohms, depending on the model. If readings deviate, check for open circuits or shorted turns with a multimeter.
Trace the power feed from the battery to the control module or ECU–most designs use a switched 12V line through a relay or fuse (common ratings: 10–20A). Confirm the ground connection secures to the engine block or chassis; poor grounding causes intermittent failures. Examine the triggering pulse wire (usually a thin gauge) from the engine computer–signal integrity is critical for proper firing sequence.
Inspect the diode or resistor suppression components if present; these protect against voltage spikes. Test the high-tension lead resistance (should be ) and ensure proper insulation–cracks or moisture infiltration lead to misfires. For distributor-based systems, verify the rotor and cap resistances (1–5kΩ per segment); excessive resistance indicates wear.
For diagnostics, use an oscilloscope to analyze waveform patterns–primary voltage spikes should reach 200–400V with sharp rise times (10kV–40kV, showing consistent amplitude across cylinders. Irregularities suggest faulty components or compromised wiring.
Schematic Layout for Spark Generation Components
Check the primary windings resistance with a multimeter set to the lowest ohm scale–typical values range between 0.4 and 2 ohms depending on the manufacturer (e.g., Bosch specifies 0.7–1.2 ohms for most models). For secondary resistance, switch the multimeter to the 20k ohm scale; readings should fall between 5,000 and 15,000 ohms if the unit is functional. Replace the assembly if values deviate by more than 10% from the factory specs listed in the service manual–even minor deviations indicate insulation breakdown or internal corrosion, which will cause misfires under load.

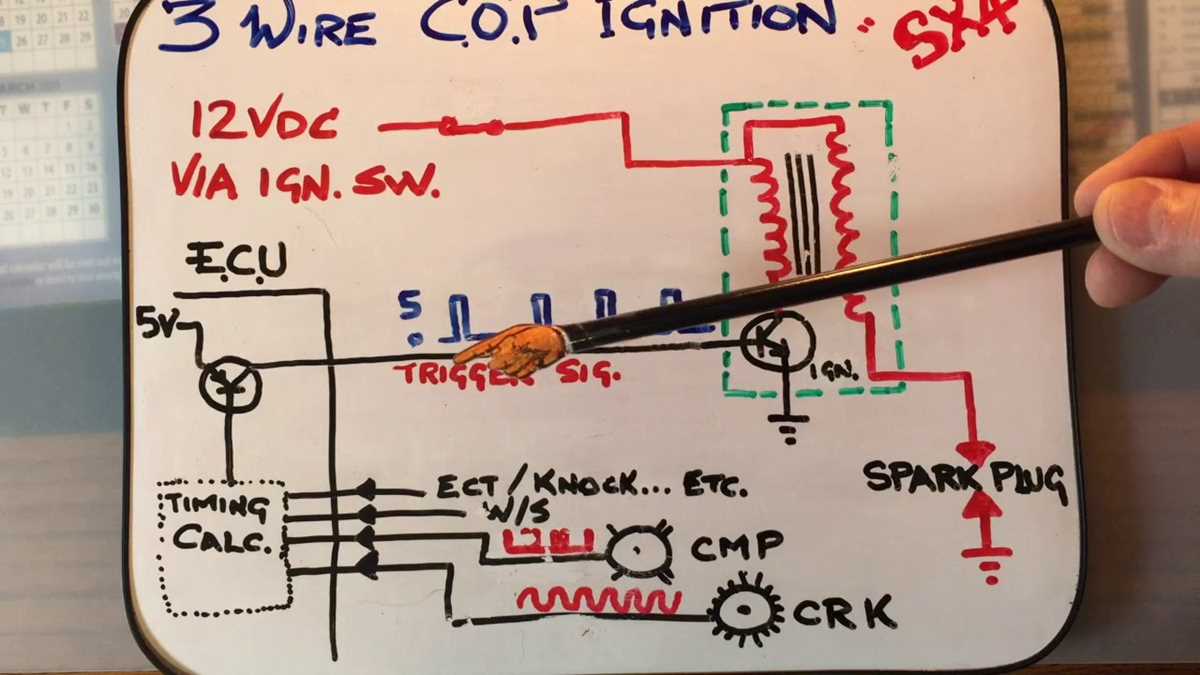

Connect the power source directly to the control module’s trigger input (typically a 5V or 12V PWM signal) using 18-gauge silicone wire if bench-testing; avoid standard automotive wire, as its higher resistance introduces voltage drop that skews results. Use a flyback diode (1N4007) across the switching transistor’s collector-emitter junction to prevent transient spikes exceeding 400V, which can fry the ECU–position the diode within 2cm of the transistor to minimize inductive kickback. Ground the metal housing to the engine block with a dedicated 10mm bolt and star washer; paint or oxide layers on the block create resistance paths causing erratic spark timing.
Key Components of a High-Voltage Transformer Wiring Layout
Begin by verifying the primary and secondary windings ratio–typically 1:100 for automotive applications. A mismatch here reduces spark intensity or causes overheating. Use a multimeter to measure resistance: 0.4–2 ohms for the low-voltage side and 6,000–30,000 ohms for the high-voltage output. Deviations outside these ranges signal insulation breakdown or wire corrosion.
Ground connections demand direct attachment to the engine block or chassis with
Control Module Integration
The pulse generator (or electronic switch) determines dwell time and timing accuracy. Configure it for 3–5 milliseconds at idle, scaling to 1–2 ms under load. Incorrect settings cause premature failure or incomplete combustion. Check the module’s voltage input: 12–14V from the battery with
| Component | Voltage Range | Resistance (Ohms) | Failure Symptom |
|---|---|---|---|
| Primary winding | 12–14V | 0.4–2 | No spark/weak spark |
| Secondary winding | 20–40kV | 6,000–30,000 | Misfires, rough idle |
| Electronic switch | 12–14V input | N/A | Random cutouts |
| Ground lead | N/A | Intermittent spark loss |
Connector and Wire Specifications
Use 10–14 AWG wire for low-voltage paths, rated for 30A continuous. High-voltage cables must be 7mm silicone-insulated with 60kV+ dielectric strength. Replace cracked or brittle boots immediately–moisture ingress reduces output by 30–50%. Crimp terminals with heat-shrink tubing; solder joints create stress points prone to fracture.
Route high-energy leads away from ECU, sensor, and battery cables to prevent electromagnetic interference. Maintain a 15cm minimum separation. Shield wires if running near alternators or electric fans. For HEI (High Energy Induction) systems, add a 1-ohm ballast resistor to stabilize current–omitting it risks damaging the control module within 50 hours of operation.
Step-by-Step Guide to Sketching a Fundamental Spark Generating System
Gather the necessary components: a 12V battery, a switching transistor (e.g., NPN like 2N3055), a high-voltage transformer core (ferrite or laminated iron), enameled copper wire (0.5mm for primary, 0.2mm for secondary), a resistor (1kΩ), and a spark plug. Ensure the primary winding has 100–200 turns and the secondary 10,000–20,000 turns for optimal voltage multiplication.
- Connect the battery’s positive terminal to one end of the primary winding. Attach the other end of the primary to the transistor’s collector.
- Link the transistor’s emitter to ground. Connect the base through the 1kΩ resistor to a low-voltage control signal (e.g., a 5V pulse generator or mechanical switch).
- Join one end of the secondary winding to the spark plug’s central electrode. Ground the other end of the secondary winding to complete the high-voltage path.
Verify connections by triggering the transistor base with a brief pulse. The primary winding should generate a collapsing magnetic field, inducing a high-voltage surge in the secondary winding. A visible spark should jump the plug’s gap if the turns ratio and insulation are correct. Adjust wire gauge or turns if the spark is weak or absent.
Troubleshoot by checking for continuity in windings, ensuring no short circuits between layers (use insulation tape or varnish). Confirm the transistor switches fully by measuring voltage at the collector–it should drop to near zero when activated. For long-term reliability, add a diode (e.g., 1N4007) across the primary to protect against back EMF and a capacitor (0.1µF) to filter noise.
Typical High-Voltage Transformer Setups Across Engine Types
For inline-four engines, the wasted spark setup reduces complexity by pairing cylinders 1-4 and 2-3. Each transformer serves two plugs firing simultaneously–one on compression, the other on exhaust–halving the number of required components while maintaining reliable spark delivery. This arrangement demands resistor-type plugs (5–10 kΩ) to prevent radio interference and premature electrode erosion, a flaw often overlooked in budget swaps.
V6 engines frequently employ a dual-transformer layout, where each unit handles three pistons in a banked configuration. The left bank transformer (cylinders 1-3-5) and right bank transformer (2-4-6) synchronize with the camshaft position sensor to deliver 12–20 kV at idle, scaling to 30–40 kV under load. Use copper-core cables for the coil-to-plug path to minimize voltage drop–silicone-insulated wires introduce detectable resistance over 100,000 miles.
Modern turbocharged inline-six engines favor individual cylinder control modules. Each piston receives a dedicated transformer mounted directly atop its plug, eliminating secondary wiring entirely. This direct-fire system demands precise dwell timing–between 2.5 and 4.0 ms–to avoid overheating the primary winding; aftermarket ECUs often default to overly aggressive settings. Diagnostic scanners must support PID 0115 (transformer dwell time) for accurate troubleshooting.
Rotary engines rely on a twin-peaked delivery system, where each rotor segment fires twice per revolution. Two transformers alternate outputs, sharing a single control module that adjusts energy delivery based on MAP sensor readings. Plug gaps must not exceed 0.8 mm–wider gaps necessitate excessive voltage, risking insulation breakdown in the rotor housing windings. Aftermarket harnesses often misroute ground returns; verify continuity to the engine block with a 10 Ω max resistance test.
Diesel variants with gasoline pilot ignition integrate dual-energy source assemblies. A low-voltage (8–12 kV) source initiates combustion, while a secondary high-energy (25–35 kV) transformer sustains flame propagation during cold starts. The primary winding uses heavier-gauge wire (18 AWG) to handle prolonged dwell periods, unlike gasoline setups that cycle briefly. Replacing these components requires resetting the glow plug relay timing parameters via OBD-II–default re-flash settings cause misfires below 0°C.
Motorcycles with V-twin engines often combine series-wound transformers in a single housing. The front cylinder fires on the upward stroke, while the rear fires on compression, sharing a common core to reduce weight. Aftermarket upgrades fail when tuners overlook ignition advance curves; stock ECUs limit advance to 32° BTDC–bypassing this limiter risks detonation at WOT. Use heat-resistant potting compound on replacement units to prevent vibration-induced cracks.
Electric hybrid systems utilize multi-tap modules switching between 48V and 300V outputs. The transformer integrates a step-up converter for the gasoline engine and a step-down converter for accessory loads, controlled by the HV battery management system. Maintenance requires isolating the high-voltage bus–disconnecting the service plug alone is insufficient; measure 0V across all terminals before disassembly. Swapping components without updating HVIL (High Voltage Interlock Loop) trips permanent fault codes in the PCM.
