Connect the line (hot) wire–typically black or red–to the brass-colored screw terminal marked Common on the device. Verify voltage with a multimeter before proceeding; 110–125V AC should register when the circuit is live. Incorrect polarity risks damaging the internal relay or causing intermittent failures.
Attach the load wire–the conductor leading to your fixture–to the silver screw terminal labeled Load or Normally Open. Secure the connection with a flat-head screwdriver, ensuring no exposed copper remains outside the terminal’s clamp. Loose strands create resistive heating, potentially melting the insulation over time.
Ground the unit by fastening the bare or green grounding conductor to the green hex-head screw at the base of the housing. While this model lacks a dedicated ground terminal, the chassis must bond to the electrical system’s ground bus to prevent shock hazards during fault conditions. Omitting this step violates NEC 250.148.
For three-way applications, pair this unit with a compatible slave switch positioned at the opposite end of the circuit. Route the traveler wires–usually red and black–to the designated terminals on both devices, matching colors to avoid miswiring. Swap traveler connections if the lights function backward when toggled.
Test functionality by cycling the switch through its positions. A properly wired installation should produce an audible click from the internal solenoid and immediate illumination of the connected load. Flickering or delayed response indicates loose connections, voltage drop across faulty splices, or incompatible bulb types (e.g., LEDs without integrated drivers).
Connecting WS896 Low-Power Lighting Controls: Precise Circuit Layout
Start by identifying the supply terminals: one for hot input (typically brass-colored) and another for neutral (silver). Confirm compatibility with 15VA transformers or LED drivers rated under 20VA to prevent overload. Use a multimeter to verify 110–125VAC presence before handling components; readings outside this range risk component failure.
Wire the primary side by stripping 6–8mm of insulation from 14AWG solid copper conductors. Secure the hot wire to the top brass screw, looping clockwise for optimal contact. Attach the neutral to the adjacent silver terminal. Ensure screws are tightened to 12–14 inch-pounds–loose connections generate heat, reducing lifespan by up to 40%.
For load connections, match the fixture’s voltage requirements. Incandescent bulbs under 15VA connect directly to the output terminals. For LEDs, insert a compatible driver between the device and load, adhering to the driver’s polarity markings. Cross-referencing wire colors: black (hot), white (neutral), red (switched output) avoids miswiring.
| Terminal | Wire Color | Gauge (AWG) | Torque (in-lbs) |
|---|---|---|---|
| Hot Input | Black | 14 | 12–14 |
| Neutral | White | 14 | 12–14 |
| Switched Output | Red/Black | 14–18 | 8–10 |
Grounding is non-negotiable. Fasten the bare or green grounding wire to the green screw at the base. In metal junction boxes, bond the box to the ground wire using a pigtail. Omitting this step violates NEC 250.130 and creates shock hazards. Test grounding continuity with a multimeter; readings should show near-zero ohms.
Polarity-sensitive fixtures like dimmable LEDs require strict adherence to the wiring sequence. Reverse wiring causes flickering or complete failure. For three-way applications, pair the WS896 with a compatible companion unit (e.g., WS996). Connect travelers between the two devices using orange or yellow wires, keeping hot and neutral circuits separate.
After securing all connections, restore power and test with a non-contact voltage tester. Hold the probe near wire nuts–no reading indicates proper insulation and termination. If the fixture doesn’t respond, recheck:
- Loose terminal screws (retighten to spec)
- Incorrect wire strand insertion (fully strip jacket)
- Reverse polarity (swap hot/neutral)
For outdoor installations, use waterproof wire nuts (e.g., Ideal Twister 30-1255) and seal entry points with silicone caulk. UV-resistant conductors (e.g., THWN-2) extend durability in direct sunlight. Avoid exceeding the 15VA limit; higher loads necessitate a heavier-duty control (e.g., 20A mechanical relay).

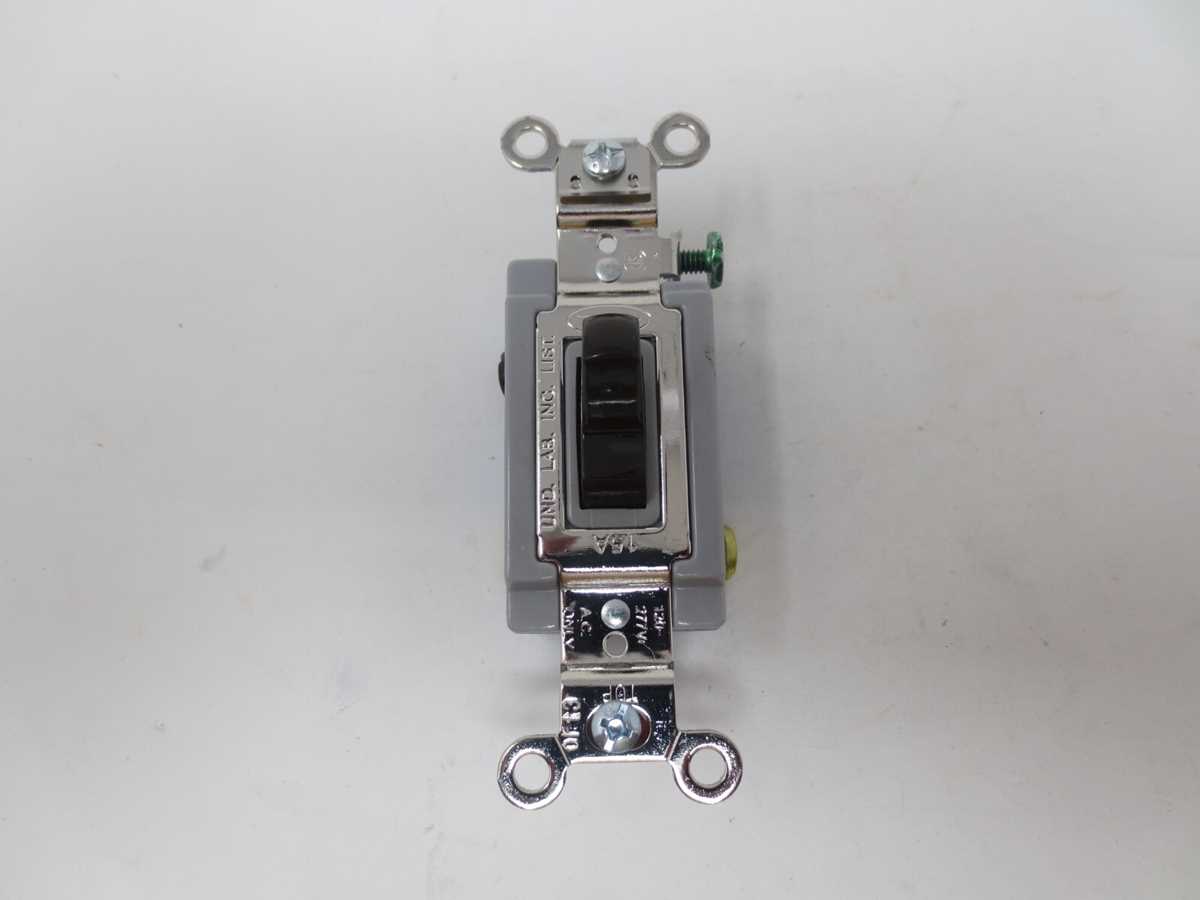

Locating and Securing Contacts on the WS896 Control Device
Begin by isolating the two primary brass screws–these serve as the input and output points for the active conductor. The upper screw typically connects to the incoming power line, while the lower one links to the load circuit. Verify this order using a multimeter set to continuity mode; contact should register only when the toggle is in the “on” position. Reverse connections risk shorting the circuit, so label wires before detachment.
Examine the back of the mechanism for a smaller, silver-colored screw–this is the grounding terminal. This point must connect to the bare copper or green-insulated wire in the cable assembly. Unlike the brass screws, this contact carries no current during normal operation but provides a fail-safe path in case of fault conditions. Ensure the wire is securely fastened; loose grounding introduces electrical shock hazards.
- Brass screws: Line (top) and Load (bottom)
- Silver screw: Ground (mandatory for safety compliance)
- Backplate screws: Mounting only, no electrical function
For three-way installations, identify the additional “traveler” terminals–these are distinguished by their darker finish and are often positioned below the main brass screws. Each traveler terminal connects to a single wire (red or black) from the companion switch. Use a voltage tester to confirm that only one traveler carries current at any given time, depending on the toggle positions of both linked devices.
After securing all connections, wrap each terminal with electrical tape to prevent accidental contact. Avoid relying solely on wire nuts inside the junction box–this component is rated for direct surface mounting, and insulation gaps compromise safety. Reattach the cover plate only after verifying zero voltage leakage with a non-contact tester.

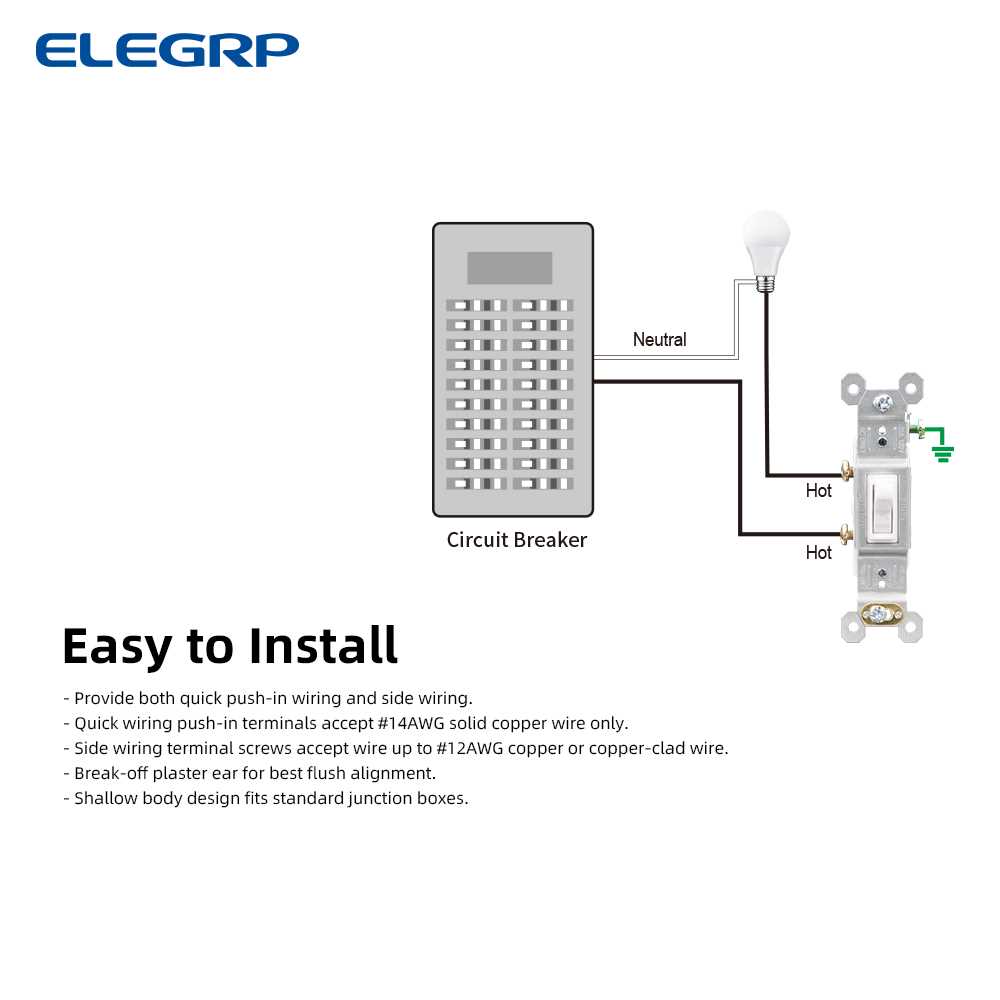

Step-by-Step Installation Process for Single-Pole Light Controls
Shut off power at the circuit breaker before handling any conductors. Use a non-contact voltage tester to confirm the absence of current in both supply wires and terminals. Failure to verify zero voltage risks severe electrical shock.
Strip 3/8 inch of insulation from each solid copper wire–neutral (typically white), hot (black or red), and ground (bare or green). Twist exposed strands tightly to prevent fraying. Insert ground first into the switch’s green terminal and secure it with a screwdriver, ensuring no bare wire extends beyond the clamp.
Connect the hot conductor to the brass-colored screw on the switch. Loop the wire clockwise around the screw shaft, tighten firmly, and tug gently to confirm mechanical grip. Attach the neutral wire to the silver terminal in the same manner if the device requires a complete circuit; some modern switches omit this step for standalone control.
Route excess wire neatly into the electrical box, avoiding sharp edges. Fold conductors smoothly rather than bending them at acute angles to prevent insulation damage. Secure the switch to the box with mounting screws, ensuring it sits flush against the wall surface without gaps.
Restore power and test functionality with the switch’s on/off toggle. Repeat testing after 10 minutes of continuous operation to detect loose connections through heat buildup; if any terminal feels warm, cut power immediately and re-tighten all screws.
Required Tools and Safety Precautions Before Starting
Disconnect power at the circuit breaker labeled for the installation area–verify absence of voltage with a non-contact tester before handling any components. A dual-range multimeter (minimum 600V AC/DC) is mandatory; low-cost models may emit false readings under load or voltage spikes, leading to hazardous errors. Confirm the tester’s calibration by probing a known live source (e.g., an outlet with a grounded plug) prior to use. Replace batteries if readings fluctuate or display inconsistent resistance values.
Use insulated screwdrivers rated for 1,000V (IEC 60900 compliance) when manipulating terminal connections. Standard metal-handled tools or those with damaged insulation risk short circuits if brushed against adjacent live wires, potentially causing arc flashes or component burnout. For stranded copper conductors, employ crimp connectors with a ratcheting crimper (AWG 14–10 range) to prevent loose connections that overheat over time. Avoid soldering–it degrades under sustained current and violates NEC 310.15(B) for termination reliability.
Wear arc-rated gloves (ASTM F1896, Class 0 minimum) and ANSI Z87.1-rated safety goggles with side shields during installation. Copper dust from stripped wires or accidental wire fraying can ignite if exposed to sparks, especially in enclosed junction boxes. Eliminate all ignition sources, including open flames, magnifying glasses under direct sunlight, or battery-powered devices with damaged casings. Maintain a 3-foot clearance from the work area to exclude combustible materials (e.g., cardboard, paper, or solvent-based cleaners).
Label each conductor at both ends with heat-shrink tubing or permanent marker (e.g., “L1,” “Load,” “Neutral”)–confusion during reattachment causes miswiring, such as reversing polarity on LED indicators or shorting the control circuit. For three-way configurations, use a tone generator or continuity tester to trace wires through walls; assume all abandoned cables are live unless confirmed dead with two independent voltage readings. Secure all connections with strain relief clamps (UL Listed) to prevent conductor pull-out under mechanical stress or vibration.
