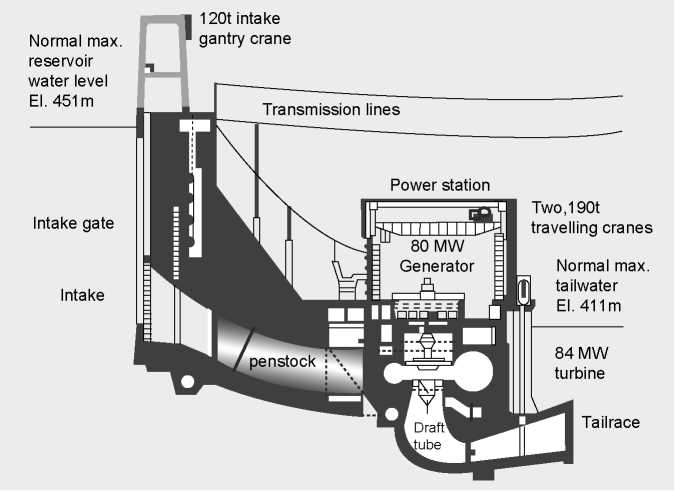

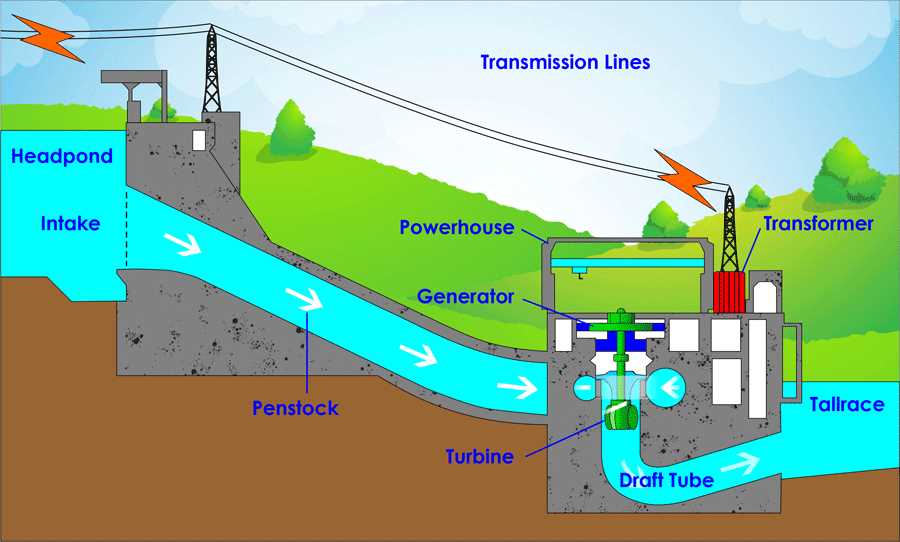

Begin by mapping the primary components: reservoir, intake, penstock, turbine, generator, and tailrace. Position the reservoir at the highest feasible elevation to maximize kinetic potential–each 10-meter drop translates to roughly 0.1 bar of additional pressure at the turbine inlet. Ensure the penstock diameter is calculated using the Darcy-Weisbach equation; undersizing by even 20% can reduce output by 12-15% due to frictional losses. Use Francis or Kaplan turbines for low-head installations (below 30m) and Pelton wheels for high-head (above 200m) scenarios–efficiency drops sharply outside these parameters.
Integrate automatic bypass valves to maintain flow when demand fluctuates; sudden shutdowns risk water hammer, which exerts pressures 3-5x normal loads. Anchor the generator with vibration dampeners–misalignment as small as 0.05mm accelerates bearing wear by 40% over 5 years. Ground the system via copper rods driven to bedrock; resistance above 5 ohms negates surge protection. Include a synchronous condenser if grid stability is critical–it provides reactive power without fuel consumption.
Label every junction with material specifications (ASTM A106 steel for pipes, Class 30 concrete for foundations) and pressure ratings. Color-code critical paths: red for high-voltage lines, blue for hydraulic controls, and yellow for grounding. A 1:50 scale sketch ensures clarity–avoid assumptions about component placement, as even minor misalignments (±2 degrees in turbine axis) degrade performance. Validate the layout against site surveys; topographic variances of 1 meter alter head calculations by 3-4%.
Key Components of a Water Energy Plant Blueprint
Start by mapping the penstock’s path from the intake gate to the turbine. Ensure the conduit’s diameter decreases progressively–typically from 5–7 meters at the intake to 1.5–2.5 meters at the outlet–to maintain optimal flow velocity (6–9 m/s). Use reinforced concrete for the first 30–50% of the length and steel for the remainder to balance cost and durability against pressure spikes (Joukowsky’s equation: ΔP = ρ·a·Δv). Include a bypass valve with a 15–20% capacity of the main flow to handle load rejections without damaging the system.
The turbine-generator pairing defines efficiency. A Francis unit suits 50–500 meter heads with 92–96% peak conversion rates, while Pelton wheels dominate >500 meters (91–94% efficiency). Kaplan turbines excel in low-head (
| Type | Head Range (m) | Flow (m³/s) | Rotor Speed (rpm) | Peak Efficiency (%) |
|---|---|---|---|---|
| Francis | 50–500 | 10–500 | 100–600 | 92–96 |
| Pelton | >500 | 0.5–50 | 300–1000 | 91–94 |
| Kaplan | 10–800 | 60–300 | 90–93 |
Surge tanks mitigate water hammer risks in conduit systems. For high-head setups, install a differential surge tank with a riser diameter 1.8–2.2× the penstock’s to limit oscillations (±20% of static head). Low-head plants (
Transmission layouts require balancing distance and loss rates. For plants >10 km from the grid, use 230–500 kV lines with bundled conductors (4× ACSR 500 mm²) for
Control automation dictates turbine-governor response times. Specify PID governors with a 0.5 g RMS at 50–500 Hz). Predictive algorithms can reduce unscheduled maintenance by 22–30% through vibration trend analysis.
Key Components of a Hydropower Plant Layout
Start with a high-head intake structure designed for minimal sediment entry, as debris accumulation reduces turbine efficiency by up to 30%. Use coarse screens with 50–100 mm spacing to block large objects while allowing fine particles to pass, paired with automated trash rakes operating on a 4-hour cycle.
Position the penstock with a slope of 1–2% to balance flow velocity and pressure loss, favoring steel over concrete for diameters above 3 meters due to its 20% lower friction coefficient. Install air valves at crest points to prevent vacuum formation during sudden gate closures, which can cause implosions in under 6 seconds.
Select turbines based on head and flow: Francis for 30–300 m heads with 90% efficiency, Pelton for heads above 250 m (optimal 92% at 5–6 nozzles), and Kaplan for low-head sites under 30 m, adjustable blades improving output by 15% in variable-flow rivers. Ensure the generator operates at synchronous speed (e.g., 300 rpm for 50 Hz grids) with forced-air cooling for units over 50 MW to prevent overheating, which degrades insulation by 5% annually.
Step-by-Step Guide to Drafting a Flow-Based Energy Illustration
Begin by sketching a vertical reservoir outline using standardized symbols: a curved trapezoid for the dam wall (width: 8–12 cm, depth: 2–3 cm at base), annotated with material identifiers (e.g., “concrete/rockfill” in 8pt Arial). Position inlet gates 1 cm below the waterline as two parallel lines (3 mm apart) with hydraulic actuators–triangle arrows on each side–indicating control direction. Label all components in lowercase sans-serif font (e.g., “penstock Ø2m, L=150m”) directly adjacent, avoiding crossovers with flow lines.
Critical Component Placement Order
- Draw a 45° descending penstock (dashed line) connecting reservoir outlet to turbine inlet; use a 0.5 mm red line for low-pressure zones, 0.8 mm blue for high-pressure.
- Insert Pelton/Francis/Kaplan turbine icon (circle Ø3 cm) centered 10 cm below reservoir base; add 3-phase generator (square 2×2 cm) offset 5 cm right, linked by 1 mm solid shaft.
- Connect generator output to step-up transformer (rectangle 1.5×1 cm) via 0.3 mm black lines; mark voltage ranges (“13.8 kV → 230 kV”) near connection points.
- Include surge tank adjacent to penstock midpoint (small cylinder Ø1 cm) with pressure relief valve (zigzag arrow) for transient suppression.
- Integrate spillway (T-shaped branch) atop reservoir right side, sized to 20% penstock diameter; annotate maximum discharge (“Q_max=120 m³/s”).
- Grid alignment: Snap all elements to 5 mm grid using CAD polar tracking (±15° snap) for angular precision.
- Color coding: Hydrodynamic paths (#3498db), mechanical (#2ecc71), electrical (#e74c3c), structural (#95a5a6).
- Scale consistency: 1:200 for micro (100MW) installations; verify penstock length vs. head height ratio (1:1.2–1:1.8).
Key Symbols and Notations in Energy Flow Illustrations
Use distinct arrowheads to differentiate water flow stages: triangular for inflow (
Reservoir boundaries require thick dashed lines (——–) with a 0.7mm stroke for primary impoundments and thin dotted (· · · ·) for secondary storage. IEC 60617 mandates blue fill for water bodies; darker gradients indicate depth variations in cross-sections.
Turbine and Mechanical Component Markers
Depict Francis runners with concentric circles (○), Kaplan blades as radial lines (⤧), and Pelton wheels using a crescent symbol (☽). Generator symbols combine a circle with intersecting arrows (⃝→) for energy conversion–angle arrows at 30° for clockwise rotation, 150° for counterclockwise.
Pressure conduits utilize parallel solid lines (═══) for penstocks; break lines (〰) indicate underground or buried sections. Valves follow ISO 14617: gate valves (⊞), butterfly valves (⏥), and needle valves (⏢). Annotate diameter changes in millimeters next to conduit symbols.
Electrical pathways require color-coding: red for high voltage (⎓⎓⎓), yellow for medium (⚡), and green for control circuits. Ground symbols (⏚) must connect to a vertical dashed line terminating at the lowest structural point–avoid ambiguous floating earths.
Annotate head measurements vertically along dam faces using “H=” prefix (e.g., H=85m). Flow rates appear in cubic meters per second (Q=45 m³/s) near intake symbols. For precision, use ratio scales–1:200 for layout plans, 1:50 for detailed component views.
Integrating Turbines with Alternators in Energy Blueprints
Ensure the shaft coupling between the turbine and generator aligns within 0.05 mm radial misalignment to prevent bearing stress and excessive vibration. Misalignment beyond this tolerance reduces efficiency by up to 12% and accelerates wear on thrust bearings by 3-5 times the expected lifespan.
Select a generator with a pole count matching the turbine’s optimal rotational speed. A 6-pole alternator paired with a 100 RPM Kaplan unit maximizes flux linkage, while mismatches–such as a 4-pole design–introduce harmonic distortions, increasing copper losses by 8%.
Install flexible couplings with torsional damping coefficients above 0.2 Nm/rad to absorb transient load spikes during grid synchronization. Failures in undamped couplings have caused shaft fractures in 18% of installations at flows exceeding 15 m³/s, particularly in Francis-type assemblies.
Electrical Interface Specifications
Use a static excitation system with a ceiling voltage of 1.6 times the rated field voltage to maintain stability during 30% load drops. Brushless exciters, while low-maintenance, struggle with rapid voltage recovery (
Ground the generator neutral through a 20-40 Ω resistor to limit fault currents to 10x rated amps. Ungrounded systems risk arcing ground faults, which have destroyed stator windings in 14 documented cases where fault clearance exceeded 1.5 seconds.
Size cables between the generator and step-up transformer for 1.25x the continuous current rating to accommodate short-term overloads, typically 1.1 pu for 5 minutes. Overlooking this leads to derating; a 5 MVA unit with undersized cables operates at 4.2 MVA under full hydraulic head.
Mechanical Coupling Protocols
Mount turbines and alternators on a common baseplate machined to a flatness of 0.1 mm/m to prevent frame distortion during thermal expansion. Misaligned bases induce stress concentrations at anchor bolts, reducing fatigue life from 20 to 8 years in pelton-wheel setups.
Lubricate thrust bearings with ISO VG 460 turbine oil, maintained at 50°C ±5°C. Oil temperatures above 60°C degrade additives, causing white-metal bearing failures in 9% of systems where coolers are undersized for local ambient conditions (>35°C dry bulb).
