To replace or upgrade the factory sound system in this model range, locate the 12-pin connector behind the head unit. Pin 1 (solid yellow) supplies constant 12V power–route it directly to the battery with a 15A fuse. Pin 3 (gray with black stripe) carries ground; secure it to the chassis within 18 inches of the connection point to prevent interference. Pins 5 (solid red) and 6 (gray with white stripe) deliver switched 12V and illumination control, respectively–tapping these ensures the aftermarket deck powers on with the ignition.
Front speaker outputs: Pin 8 (solid green) and Pin 9 (green with black stripe) feed the left channel–+12V to Pin 8, ground to Pin 9. Right channel uses Pin 10 (solid purple) for positive and Pin 11 (purple with black stripe) for negative. Resistance between each pair should measure 4 ohms ±0.2 ohms; deviations indicate damaged factory wiring requiring replacement.
Rear speaker outputs: Pin 12 (solid blue) handles the right rear positive, while Pin 4 (blue with black stripe) serves as its ground. The left rear positive is Pin 7 (solid brown), with Pin 2 (brown with black stripe) as negative. Verify continuity between the harness and door speakers–factory setups often rely on 10AWG wiring, inadequate for high-power aftermarket amplifiers without upsizing to at least 8AWG.
For vehicles equipped with steering-wheel controls, isolate the purple (Pin A) and purple/white (Pin B) wires behind the clockspring–these carry resistance values corresponding to button presses. Use a resistor ladder interface rated for 1–8 kΩ to maintain compatibility; bypassing this step will disable wheel-mounted volume/track functions.
When splicing into the harness, strip only 3mm of insulation, twist strands tightly, and solder before applying heat-shrink tubing. Avoid crimp connectors; corrosion at these junctions degrades signal integrity within 12–18 months. Store unused pigtails in dielectric grease to prevent oxidation–factory connectors include gold-plated contacts, but exposure to moisture negates this advantage.
Car Audio System Color-Coded Wire Guide for 2005-2007 Sedan Models
Locate the aftermarket harness adapter matching OEM connectors behind the dash. Identify the 12-pin A/V harness and 8-pin power harness before disconnecting factory plugs. Use a multimeter set to 12V DC to verify voltage on red and yellow wires–both should register 10-14V when the ignition is on. Ground integrity is critical; test the black wire continuity to chassis before proceeding. If voltage drops below 11V, inspect the fusible link near the battery or corroded terminals.
Factory head unit pinouts follow this configuration:
| Wire Color | Function | Connector | Voltage (Ignition ON) |
|---|---|---|---|
| Red | Switched Power | 12-pin A/V | 12V |
| Yellow | Constant Power | 12-pin A/V | 12V |
| Black | Ground | 12-pin A/V | 0V |
| Orange w/ white stripe | Dimmer Control | 12-pin A/V | Variable |
| White | Front Left Speaker (+) | 8-pin power | 4-8V AC |
| White w/ black stripe | Front Left Speaker (-) | 8-pin power | 4-8V AC |
| Gray | Front Right Speaker (+) | 8-pin power | 4-8V AC |
| Gray w/ black stripe | Front Right Speaker (-) | 8-pin power | 4-8V AC |

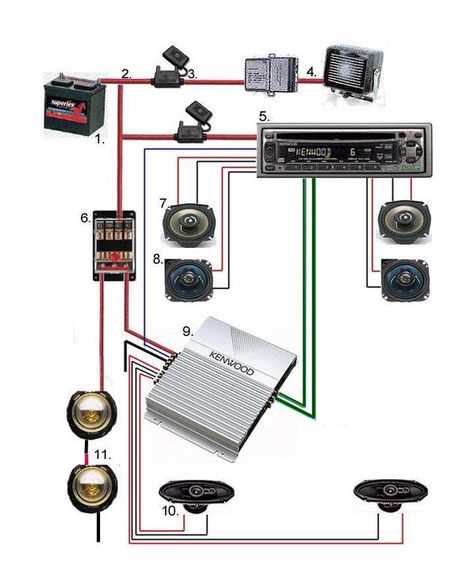

Anticipate speaker impedance issues if resistance measures outside 2-4 ohms; damaged voice coils often inflate readings to 10+ ohms. Re-solder connections if brittle splice points develop–heat shrink tubing prevents future oxidation. For amplifiers, route RCA cables away from power wires to minimize alternator whine; grounding loops manifest as a 60Hz hum at higher volumes. Use a noise filter capacitor (1000μF 25V) between accessory power and ground if interference persists.
Troubleshooting Common Integration Errors
If the new unit powers on but produces no sound, verify the orange/white dimmer wire; factory radios mute audio when this wire receives 12V–some aftermarket units interpret this as an antenna trigger signal. Disconnect the dimmer wire entirely if illumination adjustments cause dropouts. For vehicles equipped with premium audio (e.g., factory amplifier), an additional 6-pin connector beneath the glovebox handles amplified outputs–bypass this by bridging rear speaker wires directly to the head unit or installing an inline LOC.
Steering wheel control adaptors require resistor values matching the original radio’s protocol. Replace the vehicle’s clockspring if audio controls cease functioning, as broken traces intermittently interrupt button presses. For parking brake triggers (required for video playback in motion), splice the gray/black wire to the brake switch–located above the pedal assembly–or use a bypass module, though this voids safety features. Always secure dangling wires with zip ties routed away from moving pedals.

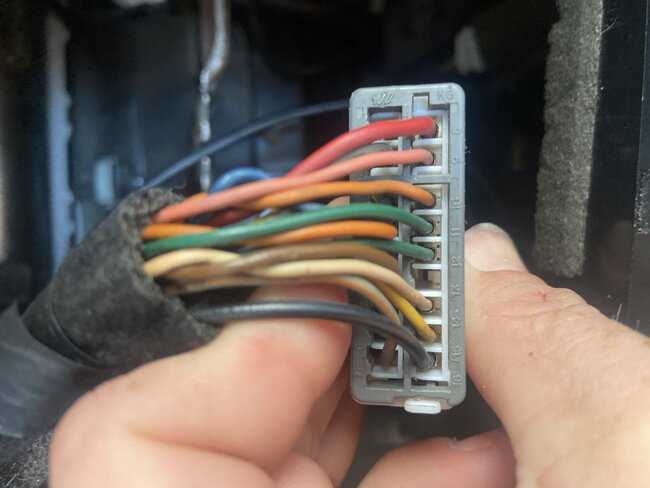

Finding the OEM Connectors Beneath the Instrument Panel
Begin by removing the lower dash trim panel on the driver’s side–it snaps off with minimal effort. A single 10mm bolt secures the metal reinforcement bar; loosen it to gain access to the bundle of colored leads tucked behind the climate control module. The main plug for the audio system sits directly above the fuse box, distinguishable by a 16-pin white connector with a purple locking tab.
Trace the thickest bundle emerging from the central console cavity–these eight wires (four pairs) carry amplified signals and power feeds. The leftmost orange-striped pair delivers constant 12V; the adjacent solid yellow leads supply switched voltage. Separate the harness from its plastic retainer by gently squeezing the release tabs on either side before pulling.
For vehicles equipped with manual climate controls, the connector hiding spot shifts two inches right. A thin black ground strap often obscures the view; carefully unclip it to reveal a smaller 12-pin gray plug responsible for speaker outputs. Label each wire branch before detaching–factory colors rarely align with aftermarket standards.
Kick panel removal isn’t mandatory but simplifies routing new cables. A stubby flat-head screwdriver pries loose the footwell cover; behind it lies unobstructed workspace. Look for a secondary grounding point beneath the steering column–use this if the primary chassis mount feels loose.

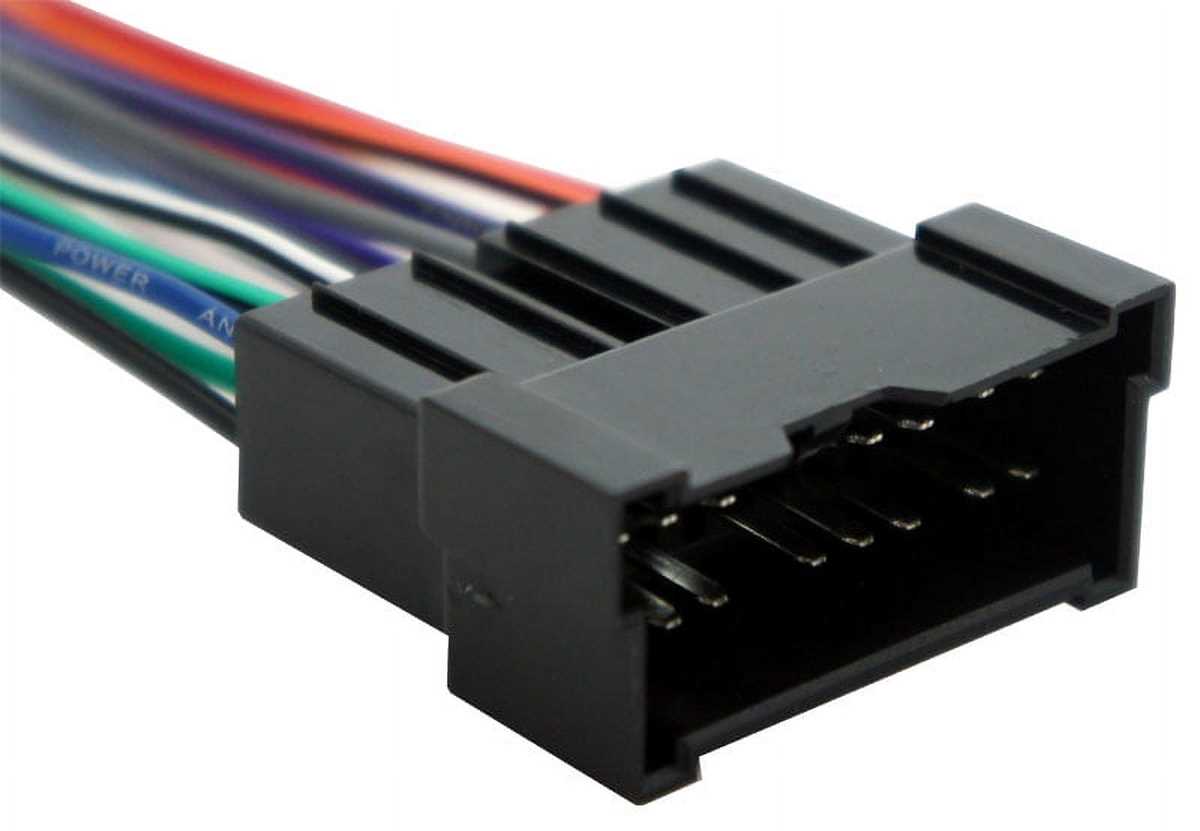

Installing an aftermarket head unit? The stock ISO plug won’t match directly. Solder or crimp dedicated adapters to bridge the gap–avoid twisting bare wires together, as vibration causes intermittent failures. Check the lower firewall for a pre-drilled hole with a rubber grommet; this serves as the cleanest entry point for extensions.
Reassembly requires no special tools but demands patience. Snap every panel back into its original slot–missed clips create rattles. Reconnect the negative battery terminal first; a brief power surge often resets the vehicle’s computer, eliminating error codes triggered during disconnection.
Decoding Audio System Cable Hues and Their Roles
Locate the constant 12V supply first–its insulation will be yellow in most factory setups. This lead powers memory functions and must remain connected even when the ignition is off. Pair it with a red ACC wire, which only activates when the key is turned to the first position; disconnecting this strand prevents battery drain during long-term storage. For ground, trace a black conductor; screw it directly to bare metal chassis points labeled with paint-free circles to ensure corrosion-free contact.
- Blue with white stripe: Triggers amplifier turn-on signals; splice with aftermarket amp remote inputs.
- Orange: Illumination dimmer feed–match gauge cluster lighting brightness by tapping this line.
- Gray: Right front positive speaker output; polarity reverses introduce phase cancellation in door tweeters.
- White: Right front negative; use same-length jumper wires to preserve stereo imaging.
- Green: Left rear positive; route behind rear seatbelt buckles to avoid pinching in cargo areas.
- Purple: Left rear negative; verify contact against the hatch striker plate in sedans.
- Brown: Right rear positive; seal connector housings with dielectric grease in hatchbacks.
- Dark blue: Right rear negative–mistaking it for antenna leads disrupts FM reception sensitivity.
Test every strand with a multimeter before marrying connectors; a single misrouted cable can fry fuses or trigger onboard computer fault codes. Always cross-reference found hues against factory service manual schematics–aftermarket harnesses occasionally swap orange and brown assignments on premium sound option packages. Label each wire at both ends with masking tape identifiers during disassembly to eliminate guesswork during reassembly.

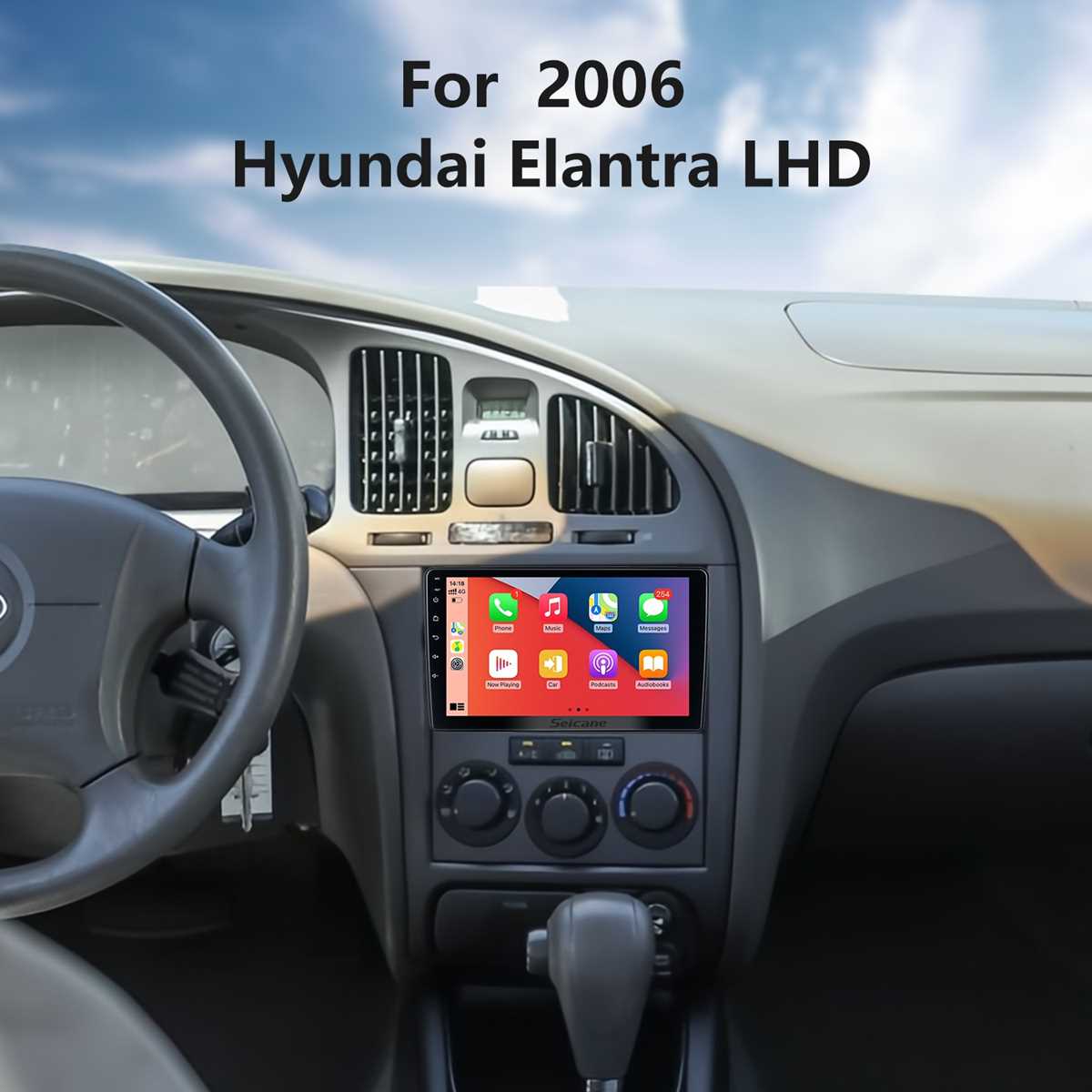

How to Safely Install a Third-Party Audio System
Disconnect the vehicle’s battery negative terminal first to prevent short circuits or airbag deployment during installation. Use a 10mm socket to loosen the terminal clamp–wait at least two minutes after power removal to discharge residual current in the system’s capacitors.
Remove the factory radio trim panel by prying along the edges with a plastic tool–metal tools risk scratching the dashboard. Most dash fascias snap into place; three clips secure the upper section, while two Torx screws (T-15) hold the lower trim near the climate controls. Keep screws organized in labeled bags to avoid confusion later.
Match aftermarket harness colors to the original connectors using a multimeter set to continuity mode. Probe each factory pin: red (constant 12V), yellow (switched 12V), black (ground), and blue/white (amplifier trigger). Cross-reference your findings with the new unit’s documentation–some brands invert red/yellow or omit illumination wires (gray/orange) entirely.
Crimp butt connectors to join wires instead of twisting and taping–heat-shrink tubing provides corrosion-resistant insulation. For speakers, splice white/green (front left) and gray/violet (rear right) pairs carefully; reversed polarity causes phase cancellation, muddying audio. Test each channel with a 1kHz sine wave before finalizing connections.
Mount the new head unit using the included cage and release keys–forceful installation cracks plastic brackets. Route wiring behind air vents to avoid pinching; secure loose cables with zip ties every 6 inches. Reconnect the battery last, then verify all functions: seek buttons, steering wheel controls (if retained), and USB charging output.
If static persists after installation, check for ground loops–relocate the black wire to a bare metal chassis point away from fuel lines. Adjust EQ settings flat and disable loudness curves for accurate sound staging. Store the original radio in a labeled storage box with manuals for future resale or debugging needs.
