Directly integrate a SPDT control module between the driver input and the power source to eliminate voltage drop across extended electrical pathways. A 30-amp-rated component ensures reliable activation while preventing premature failure of the acoustic device due to excessive resistance. Position the module within twelve inches of the battery terminal to maintain signal integrity.
Use cross-linked polyethylene (XLPE) cabling for all primary connections to withstand mechanical stress and thermal cycling. Select 12 AWG wire for the trigger line and 10 AWG for the power feed–this configuration balances flexibility with current capacity. Secure all splices with crimp connectors validated to UL 486A standards, not solder, to avoid brittle joints under vibration.
Insert a flyback diode rated for 100V reverse voltage across the coil terminals of the electrical switch. This prevents inductive kickback from damaging the vehicle’s electronic control units during disengagement. Polarize the diode anode to the ground side of the coil.
Connect the load terminal to the acoustic transducer via a fused link (20A ATO fuse) installed within six inches of the battery. This isolates fault currents before they propagate through the wiring harness. Ground the transducer chassis directly to the vehicle frame using a star washer to ensure low-impedance return path.
Test the installation with a digital multimeter: probe across the supply terminals at the transducer–expect 13.8V with engine running. Activate the driver input and verify immediate drop to less than 1V, confirming correct polarity and no parasitic resistance. If voltage sags below 12V during operation, replace the 10 AWG conductors with 8 AWG.
Integrating an Audible Signal Using a Switching Mechanism
Direct the power feed from the vehicle’s fuse box to the control module’s 85 terminal–ensure the chosen circuit handles at least 15A to prevent voltage drop under load. Position an inline fuse (10A) within 30 cm of the source tap to isolate faults before they propagate. Ground the 86 terminal to a bare chassis point, preferably near the steering column, avoiding painted or coated surfaces that introduce resistance. For corrosion-prone installations, crimp a ring terminal coated in dielectric grease and torque to 12-15 Nm.
Component Placement for Optimal Performance
Mount the electromagnetic switch within 50 cm of the sound emitter to minimize wire length and inductive losses–longer runs degrade signal strength. Route the primary conductor (30 to emitter) with 14-gauge wire if the distance exceeds 1 m; otherwise, 16-gauge suffices. Secure wires with adhesive-lined clamps every 20 cm, steering clear of sharp edges and moving parts. Heat-shrink tubing or spiral wrap protects against abrasion, especially near the battery or exhaust manifolds where temperatures exceed 80°C.
Avoid splicing into the factory alarm circuit unless verifying its peak draw remains below 7A–excess current risks melting insulation or tripping the vehicle’s thermal reset. Instead, tap a dedicated power wire from the ignition-switched circuit, confirming voltage holds steady at 13.8V under load. Test continuity across the control circuit terminals before finalizing connections; a multimeter reading above 0.5Ω indicates poor grounding or loose terminals requiring rework.
For systems demanding extended duty cycles, substitute the standard SPDT switch with a heavy-duty model rated for 30A continuous–this prevents contact welding during prolonged activation. Verify the sound emitter’s impedance matches the switching unit’s output; mismatches cause overheating or premature failure. When integrating with aftermarket keyless entry, use a dual-pole relay to isolate the circuits, ensuring false triggers from stray RF signals do not engage the alarm unintentionally.
Key Parts for a Signal Switching Setup Using an Electromagnetic Switch
Start by selecting a 12V SPDT automotive-grade electromagnetic switch (e.g., Bosch 0332209150 or Tyco V23079-A1003-X001) with a coil resistance between 60–100 ohms. Ensure its contact rating exceeds your load’s peak current by at least 30%–most air-driven devices draw 15–25A, so a 40A switch is ideal.
Procure a momentary push-button or stalk-mounted control with a 16–20 AWG lead, suitable for 5A intermittent loads. Avoid illuminated switches unless you include a dedicated resistor; excess current through the LED can trip the control circuit prematurely.
Use copper-stranded wire in these gauges: 14 AWG for the high-current path (minimum 1 meter), 18 AWG for the trigger circuit (max 3 meters). Tinned copper reduces corrosion in moisture-prone installations, but bare copper is acceptable for interior cabin routing.
Fuse selection demands attention: place a 25–30A blade fuse within 15 cm of the battery’s positive terminal. A secondary 10A fuse inline with the trigger circuit prevents coil burnout. Never omit either–battery short risks exceed fire thresholds in under 120 seconds.
Ground termination must be direct to the chassis (10 AWG minimum), NOT through bolted components like intake manifolds. Pre-clean the mounting surface with a wire brush and apply dielectric grease to oxygen-exposed connections.
A diode (1N4007) across the switch coil eliminates voltage spikes–reverse polarity destroys the transistorized switch in under 50 ms. For inductive loads exceeding 10A, add a varistor (e.g., Littelfuse V18ZA2P) parallel to the contacts.
Optional but recommended: a dual-color LED (3mm, 20mA) wired to the trigger circuit verifies power state. Use a 470-ohm resistor to limit current; omit this step if the switch itself includes illumination.
Test each connection with a multimeter in diode mode before powering the circuit. Probe across the switch coil; readings outside 0.5–0.8V indicate improper solder joints or corroded wire strands–both create resistance exceeding OEM specs by 40%.
Step-by-Step Guide to Linking an Audible Signal, Switching Module, and Energy Supply
First, identify the signal device’s positive and negative terminals. Most factory or aftermarket klaxons have a 12V nominal rating, requiring direct battery connection for optimal performance. Use a multimeter to confirm polarity–wrong pairing will cause failure. Secure the ground terminal to a bare metal chassis point near the installation site to minimize resistance.
Cut two lengths of 14-gauge wire: one for the power feed from the battery’s positive terminal, another for the trigger line from the steering column or switch. Strip 6mm of insulation from each end. Crimp ring terminals onto the battery-side wires, using adhesive-lined heat shrink to seal connections against corrosion. For the trigger wire, attach a male spade connector to ensure secure engagement with the switching module’s control terminal.

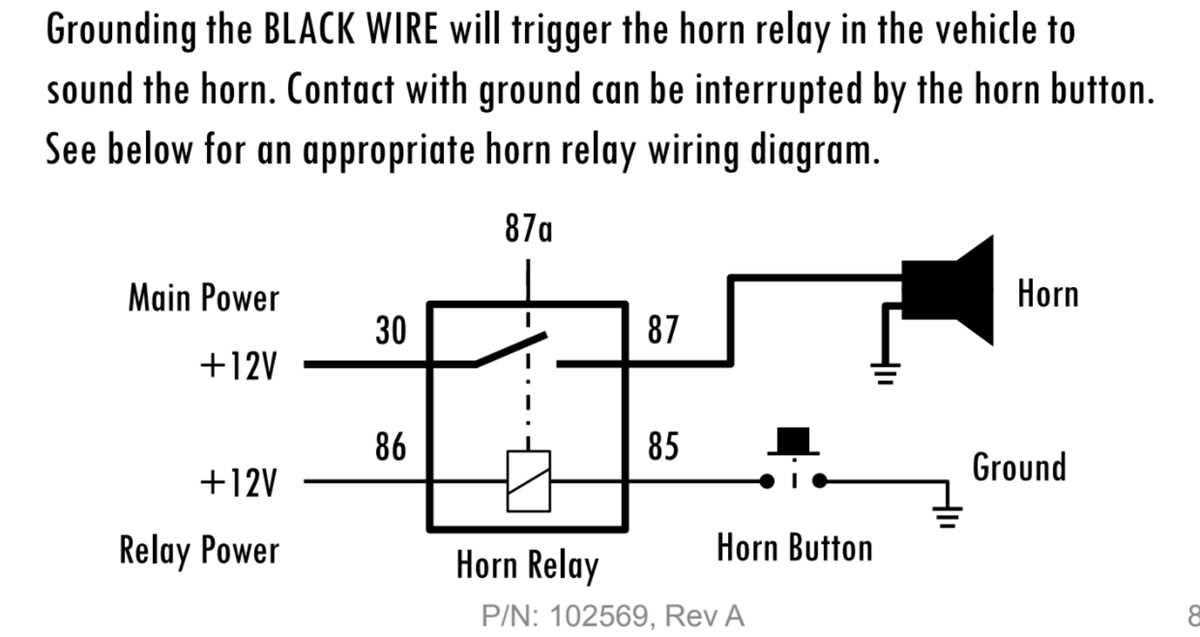

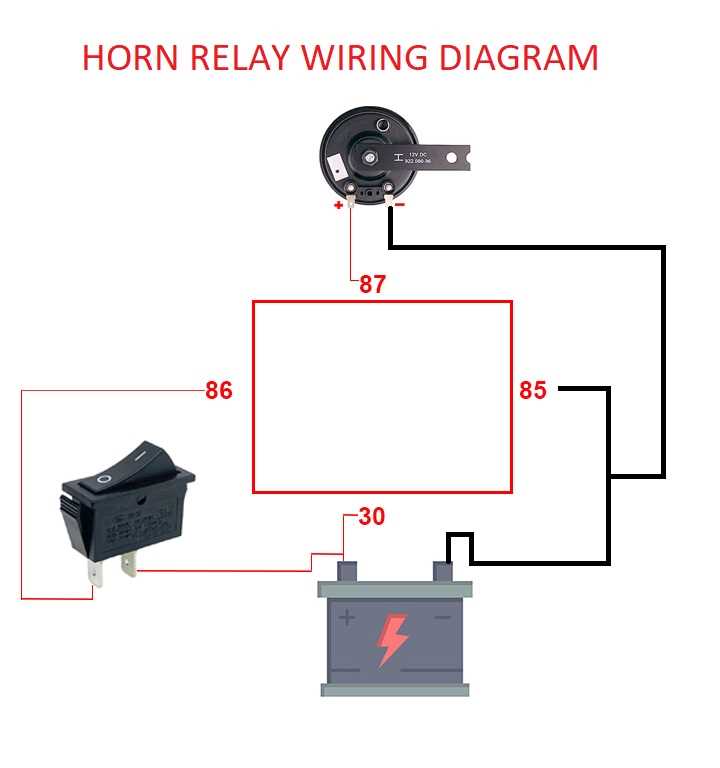

Mount the switching module within 30cm of the klaxon to reduce voltage drop. Drill a single hole, 6mm diameter, through a solid firewall or inner fender panel. Route the power wire through this hole, avoiding sharp edges or moving parts. Attach the module’s 85 terminal to chassis ground, then connect the 86 terminal to the trigger wire. Link the 30 terminal directly to the klaxon’s positive terminal, and the 87 terminal to the battery’s positive feed.
- Verify fuse placement–install a 15A blade fuse within 15cm of the battery’s positive terminal.
- Avoid routing near ECU or ABS modules to prevent electromagnetic interference.
- Test continuity before finalizing connections; a short circuit risks damaging the electrical system.
- Apply dielectric grease to all connections exposed to moisture.
Activate the control switch by pressing the steering column stalk or dashboard button. Listen for a crisp, loud output–weak sound indicates high resistance in wiring or poor ground. Recheck all connections if the klaxon fails to operate. For dual-tone setups, wire a second switching module in parallel, ensuring each module has its own dedicated power feed and fuse.
Selecting the Optimal Switching Device and Pin Layout for Audible Alerts
Opt for a 12V SPST (single-pole, single-throw) electromagnetic control unit rated for at least 30A continuous current. Automotive-grade variants like the Tyco Electronics V23084 or Omron G8VN series outperform generic alternatives due to sealed enclosures and corrosion-resistant contacts. Ensure the coil draws no more than 200mA to prevent voltage drop on the trigger circuit, particularly when paired with low-amperage stalk controls. For heavy-duty applications–such as dual-tone sirens–upgrade to a DPDT (double-pole, double-throw) unit with a 40A+ rating to handle inrush currents up to 150A during initial actuation.

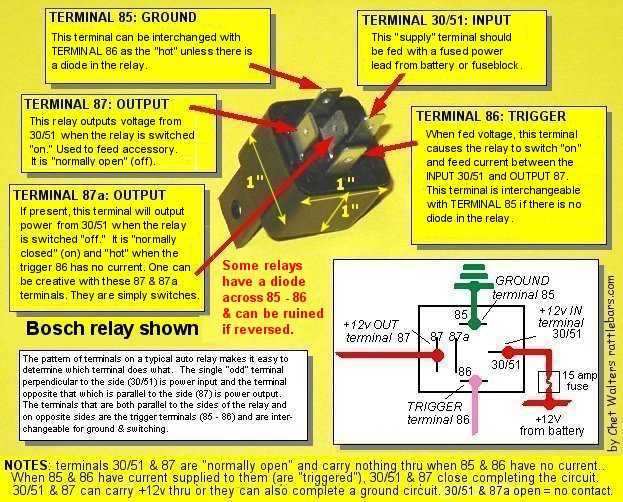

Terminal assignments demand strict adherence to ISO/DIN standards: pin 85 (coil ground), pin 86 (coil power), pin 30 (common power input), and pin 87 (load output). Swap pins 87 and 87a if incorporating a normally closed path–critical for fail-safe configurations where the alarm must remain silent during system faults. Avoid splicing directly into fuse boxes; instead, tap into dedicated power feeds protected by a 20A blade fuse located within 15cm of the battery positive terminal. Ground connections must terminate at the chassis rail using M6 stainless-steel fasteners, never at painted or plated surfaces.
Load-Specific Adjustments
For piezoelectric warning devices, select a control unit with a suppression diode (e.g., Bosch 0 332 209 150) to mitigate inductive voltage spikes exceeding 400V. Magnetic coil-based sirens necessitate a relay featuring a built-in resistor (0.1Ω) across the load terminals to dampen arcing. Test contact resistance before deployment: values above 50mΩ indicate imminent failure. In high-vibration environments, secure the device with vibration-damping mounts and use heat-shrink tubing on all soldered joints to prevent microfractures.
