Start by locating the main harness connector behind the center console–typically marked with a 16-pin black plug and labeled C100 in service manuals. Disconnect the battery negative terminal before proceeding to prevent electrical shorts or airbag deployment risks. Use a wiring schematic specific to the SYNC-equipped models if your vehicle includes Bluetooth or satellite navigation, as these variants require additional data bus connections beyond standard audio feeds.
The power feed (yellow wire, 12-gauge) connects directly to the battery via a 30A fuse–verify continuity with a multimeter before reconnecting. For the illumination circuit (orange wire with white stripe), trace the wire to the headlight switch rheostat; improper grounding here causes erratic dimming behavior in the display. Speaker outputs follow a dual-color code: fronts (gray/gray-black for right, white/white-black for left) and rears (purple/purple-black for right, green/green-black for left)–confirm polarity with a 9V battery test before finalizing connections.
Antenna remote turn-on (blue wire) requires a 12V trigger from the unit’s amplifier output; splice this to the factory wiring only after ensuring the aftermarket head unit supports Ford’s proprietary signal protocol. For vehicles with rear seat entertainment, identify the 12-pin accessory connector beneath the rear bench–miswiring here disables auxiliary inputs or USB ports. Always cross-reference the splice locations with a pinout diagram from the Ford Motor Company workshop manual (section XVII-1, pages 12–17), as chassis variations exist between SuperCab and SuperCrew configurations.
Ground points vary by trim level: base models use a single M8 bolt near the driver-side kick panel, while XLT/Lariat grades add a secondary ground (black wire) behind the glovebox. Never rely on chassis ground alone–attach a dedicated ring terminal to ensure stable power delivery and noise-free audio. If retrofitting a non-OEM unit, bypass the frequency modulation interface module (FMIC) unless adapting satellite radio, as incorrect wiring introduces hiss or cuts out at highway speeds.
Electrical Connections for Stock Audio System in Pickup Truck Models

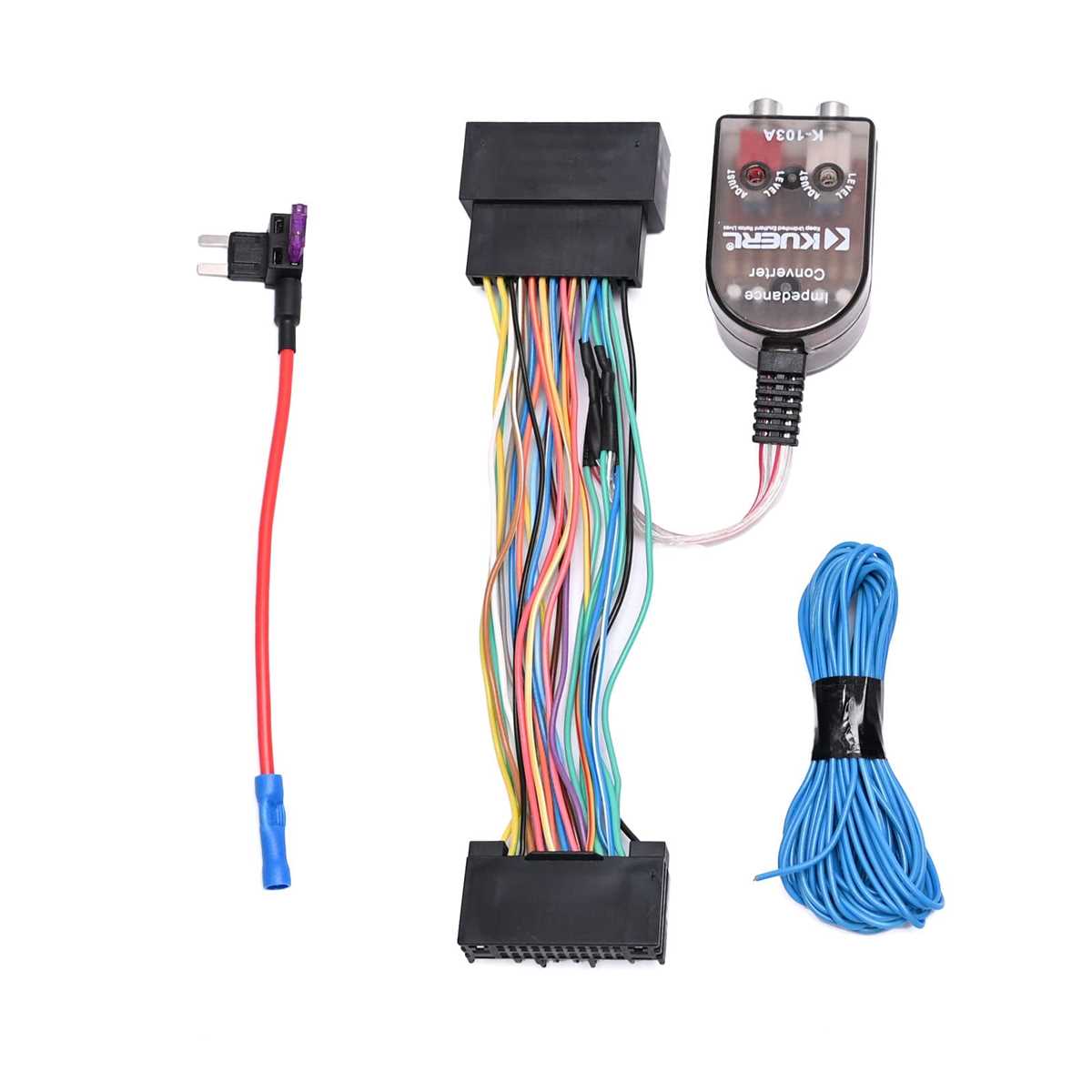

Locate the aftermarket harness adapter matching the vehicle’s harness–Metra 70-1777 or Scosche FD15SRB are direct-fit replacements supporting OEM speaker impedance. Cutting into wires risks losing steering wheel controls, SYNC functionality, and amplified bass output from the rear door woofers (8Ω, 40W RMS). Solder each connection with rosin-core wire and insulate with adhesive-lined heat shrink tubing (minimum 4mm diameter) to prevent oxidation.
| Wire Color | Function | Signal Type | Voltage (Idle) |
|---|---|---|---|
| Light Green/Red | Left Front Speaker (+) | High-level | 0.5V |
| Dark Blue | Right Rear Speaker (+) | High-level | 0.4V |
| Pink/Light Blue | Power Antenna Trigger | Switched | 12V |
| Yellow/Black | Radio Ground | Ground Reference | 0V |
Verify amplifier turn-on lead voltage with a digital multimeter–expect 11.8–12.2V DC with ignition on; lower readings indicate parasitic draw from faulty relay (R10-41) or corroded fuse F57 (15A). Disconnect the negative battery terminal before probing chassis grounds cluster near the glovebox hinge; resistance should read below 0.2Ω to ensure clean signal transmission without hum. Reinstall cabin filter to prevent debris from interfering with the A/C drain tube, which can drip onto wiring bundles causing intermittent shorts.
Locating the Audio System Harness Connector Behind the Dashboard
Begin by removing the lower trim panel beneath the climate controls–it secures with three 7mm screws and plastic clips along the top edge. A flat pry tool helps release the clips without breaking them, but apply pressure near the anchor points to avoid snapping the brittle plastic.
Once the trim is detached, the primary harness connector appears as a black or gray rectangular plug with 16–24 pins, typically positioned behind the center stack’s empty cavity. The connector may be partially or fully tucked behind the HVAC assembly; gently pull the harness forward if obscured. Look for a secondary 8-pin auxiliary connector nearby–this often supplies power to amplified systems or integration modules.
If the plug isn’t immediately visible, trace the cable loom descending from the head unit’s rear. The bundle usually splits into two main branches: one leading to the vehicle’s fuse block (thicker wires) and another to the antenna amplifier (coaxial cable). Follow the thicker branch downward–it terminates at the harness connector secured by a single bolt or latch.
Label each wire before disconnecting. Use a multimeter to confirm pin assignments: yellow (constant 12V), red (switched 12V), black (ground), orange/white (illumination), and blue/white (antenna trigger). Avoid probing live circuits without a load resistor; instead, verify with the key in ACC position to prevent false readings.
Troubleshooting Hidden Connectors
Should the connector remain elusive, check for an inline adapter between the head unit and harness–aftermarket upgrades sometimes bury the original plug behind a secondary interface. In rare cases, late-model variants shift the connector to the left of the steering column, tucked behind the knee bolster. If corrosion is present, clean pins with contact cleaner and a brass brush, but replace the entire harness if insulation cracks or wires expose copper.
Color-Coded Connections for Vehicle Audio Systems
Identify the power leads first: the yellow wire supplies constant 12V battery voltage, while the red provides switched ignition power. Connect these directly to the corresponding harness pins–yellow to the memory retention circuit, red to the accessory switch. Failure to separate them will drain the battery or prevent the unit from powering on. Verify voltage with a multimeter before securing connections; fluctuations above 14V indicate alternator interference requiring a noise filter.
Ground reliability depends on the black lead’s termination. Secure it to a bare metal chassis point with a star washer–paint or corrosion will cause intermittent sound cutting or static. Avoid sharing grounds with high-current systems like starter motors or cooling fans. For aftermarket upgrades, solder the connection and apply heat-shrink tubing to prevent oxidation, especially in humid climates where surface rust develops quickly.
Speaker Wire Configurations
- Front left (+): gray; (–): gray with black stripe
- Front right (+): white; (–): white with black stripe
- Rear left (+): green; (–): green with black stripe
- Rear right (+): purple; (–): purple with black stripe
Twist each speaker pair (positive and negative) together before routing to reduce electromagnetic interference; untwisted wires over distances longer than 18 inches introduce distortion. Match the gauge to the amplifier’s power output–typically 18 AWG for factory setups, 16 AWG for high-wattage aftermarket units. Always test continuity before finalizing connections; a reversed polarity results in phase cancellation, weakening bass response.
For amplified systems, add an inline fuse–10A for standard setups, 15A for high-power applications–to the yellow power lead within 18 inches of the battery terminal. Use copper crimp connectors, not aluminum, to avoid galvanic corrosion. Label each wire at both ends with heat-shrink tubing tags to simplify future troubleshooting. Avoid routing audio cables parallel to power cables; cross them at 90-degree angles to minimize noise induction.
Integrating a Third-Party Head Unit with OEM Harness Adapters
Locate the vehicle’s original connector plug behind the dash–it typically has 12 to 24 pins arranged in two rows. Match each pin’s color and function to the aftermarket harness provided with your new audio system. Most adapters include a labeled diagram; verify against the car’s original pinout to avoid reverse polarity or mismatched speaker outputs.
Use a multimeter set to 20V DC to test the constant power wire (usually yellow or orange) while the ignition is off–it should read 12V. Confirm the accessory wire (red) only activates with the key in the ON position. Ground connections (black or brown) must attach directly to bare metal for a solid earth; sand away paint or corrosion before securing.
Critical connections:
- Power (yellow/orange) – fused at 10A
- Accessory (red) – fused at 15A
- Ground (black/brown) –
- Speaker wires – use a 4-channel adapter if switching from dual to single pair
- Antenna lead (blue/blue-white) – requires a powered adapter for motorized antennas
If steering wheel controls are present, integrate a separate adapter module–most aftermarket brands require an ASWC-1 or similar. Connect it inline between the head unit’s harness and the vehicle’s data bus; it interprets button presses and converts them into compatible signals. Without this module, controls will either be non-functional or trigger unintended actions.
Common Pitfalls and Corrections
- Dim lighting errors: Many adapters omit the illum lead (white/purple). Use a relay to pull dimming voltage from the dash cluster if backlighting flickers.
- Bluetooth dropout: Route the microphone wire (typically pink) away from power cables–separate by at least 4 inches to prevent interference.
- Subwoofer phase issues: If the factory audio included a powered sub, verify the amp turn-on lead (blue/white) is connected–failure results in only midrange output.
- USB charging failures: Ensure the red USB wire links to constant 12V, not accessory–otherwise, devices drain the battery when parked.
Secure all connections with solder and heat-shrink tubing rather than crimp connectors; vibrations from road use can loosen non-soldered joints within months. Bundle wires using spiral wrap, keeping power and signal lines separate to minimize noise. After reassembly, test each function–tuning, volume, bass, treble, media inputs–before fully reinstalling the dash panel.
