Start by identifying the labeled terminals on your device’s backplate–typically marked R (power), C (common wire), W (heat), Y (cooling), and G (fan). If your system uses a dual-transformer setup (common with heat pumps), confirm the Rc and Rh terminals. These must be bridged only if your heating and cooling systems share a single power source; otherwise, keep them separate.
For low-voltage systems (24V AC), strip ¼ inch of insulation from each wire and secure them under the terminal screws. Avoid twisting strands, as loose connections can cause intermittent failures or damage the internal relay. If your setup includes a humidifier or dehumidifier, connect it to the HUM or DEHUM terminals, ensuring the gauge matches the manufacturer’s specs–typically 18 AWG for most residential applications.
Before powering on, verify the circuit breaker is off. Connect a multimeter in AC voltage mode between the R and C terminals to confirm 24V (±5%). If voltage is absent, check the furnace’s transformer or control board. For gas-powered systems, ensure the W terminal is linked to the appropriate relay to prevent short cycling. If using an outdoor sensor, attach it to the O/B terminal for reversing valve control.
After securing all connections, restore power and follow the device’s setup prompts. If the display remains blank, reconfirm the R and C wires–most troubleshooting stems from reversed or missing common wire errors. For hydronic systems, the W terminal may require an additional relay to handle higher amperage draws.
Smart Climate Control Connection Guide for Modern Systems
Always begin by shutting off the circuit breaker supplying power to the HVAC unit before handling any electrical components. Locate the control panel inside the furnace or air handler–typically positioned near the blower motor–and identify the low-voltage terminals grouped by labeled screws (R, C, W, Y, G, O/B). For single-stage heating and cooling systems, connect the red wire to the R terminal, the white wire to W, the yellow to Y, and the green to G. Dual-fuel setups require an additional orange wire (O/B) to toggle between heat pump and auxiliary heat modes.
Common Pitfalls in Terminal Mapping
Misidentifying the common wire (C) causes the most frequent installation failures. Confirm its presence by checking the HVAC transformer’s secondary winding–C provides the return path for the 24VAC circuit. If absent, install a dedicated C-wire or use an external power adapter rated for at least 0.5 amps. Avoid substituting the C-wire with the G terminal, as this disrupts fan-only operation. For heat pumps, verify the reversing valve configuration (O or B) with the manufacturer’s specs–incorrect polarity locks the system in heating or cooling.
Label each wire at both ends with colored tape before disconnecting the old control device. Use a multimeter to test voltage across R and C terminals (should read 24–28VAC); readings outside this range indicate transformer issues. For two-stage heating or cooling, connect the secondary stage wires (W2, Y2) to their respective terminals–failure to do so limits system efficiency. Zoning controls require separate wire pairs for each damper, labeled Z1/Z2, with a dedicated transformer for larger homes.
After securing all connections, restore power and access the device’s setup menu. The system will prompt for HVAC type (furnace, heat pump, boiler) and equipment stages–selecting the wrong profile triggers incorrect cycling. For auxiliary heat, set the temperature differential (usually 3–5°F) to prevent premature activation. If the display remains blank, recheck the C-wire connection; flickering screens suggest loose terminals. Devices with battery backup retain settings during power loss but require fresh AA cells every 6–12 months.
Advanced configurations like humidifiers or dehumidifiers wire into the H/UM or DH terminals–consult the air quality accessory’s manual for exact pinouts. Multi-speed blowers need a separate wire (often blue) connected to the B terminal; improper setup causes erratic fan speeds. Always tuck excess wire into the wall cavity and secure with strain relief–loose wires risk short circuits or rodent damage. Finalize by running the system through a full heating/cooling cycle to confirm proper sequencing.
Step-by-Step Connection Guide for Smart Climate Controls
Before handling any electrical components, shut off the power to the climate control system at the circuit breaker. Failure to do so risks damage to the unit or personal injury. Use a non-contact voltage tester to confirm the wires are dead before proceeding.
Identify the terminals on your heating and cooling regulator by matching the labeled wires from the system’s control panel to the corresponding ports on the new device. Most models include:
- R (or Rh/Rc): 24V power supply (split for heating/cooling if needed)
- W: Heat call (connects to furnace or boiler)
- Y: Cool call (links to air conditioner compressor)
- G: Fan control (activates blower motor)
- C: Common wire (required for continuous power to smart models)
- O/B: Reversing valve (for heat pumps, typically O for cooling, B for heating)

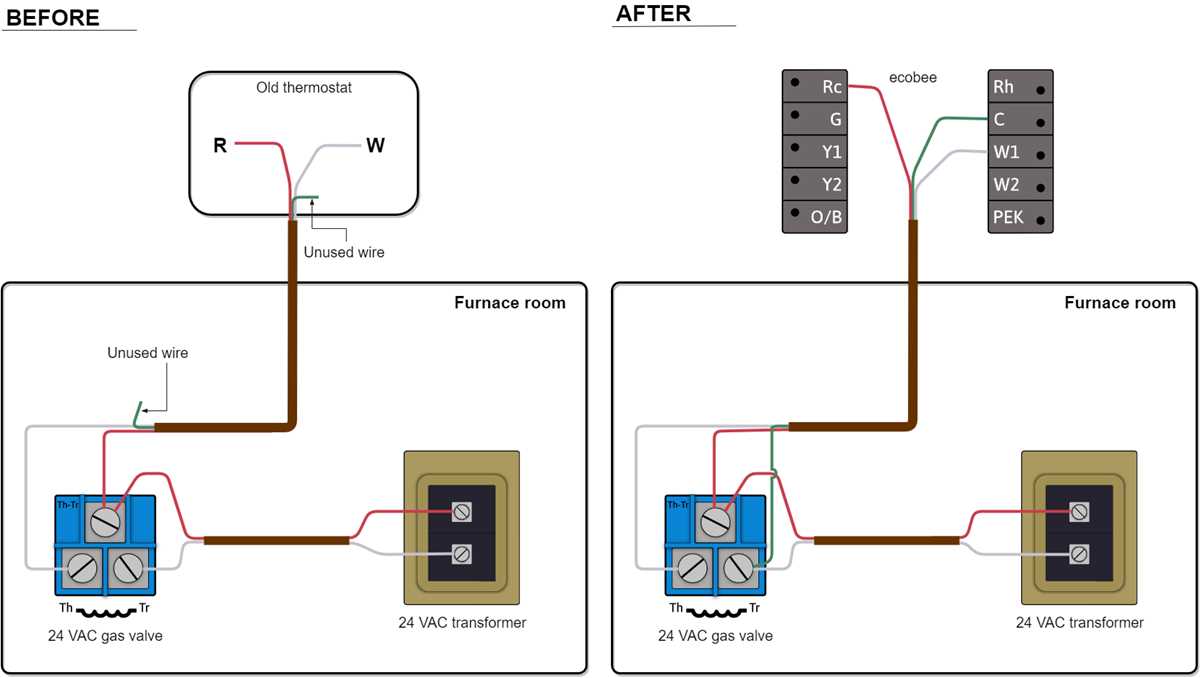

For systems without a C-wire, install an adapter or run a new wire from the equipment’s transformer. Never repurpose the G-wire as a substitute–this will cause erratic fan operation.
Strip 1/4 inch of insulation from each wire using specialized strippers, then secure them firmly into the designated slots. Ensure no stray strands touch adjacent terminals. For most smart regulators, press the wire into the port until it clicks–no screws are required. Double-check each connection against the system’s schematic, paying extra attention to heat pump setups where incorrect O/B wiring will prevent mode switching.
Restore power at the breaker and follow the device’s startup sequence. If the display fails to activate, recheck the R and C connections–most faults trace back to these power-carrying conductors. For multi-stage systems, consult the equipment’s data plate to confirm label assignments (e.g., W2 for auxiliary heat, Y2 for second-stage cooling). Keep the old control’s manual nearby as a reference for jumper configurations if errors persist.
Common Wire Color Codes and Terminals for Smart Climate Controls
Always verify the transformer’s voltage rating (typically 24V AC) before connecting any control device. Mismatched voltage risks damaging the unit or voiding warranties. Use a multimeter to confirm: red wires (transformer hot) should read ~24V when tested against a neutral or common blue/c wire. If readings fluctuate or drop below 22V, inspect for corroded contacts, loose connections, or undersized gauge wires–replace immediately with minimum 18 AWG copper.
| Terminal Label | Wire Color (Standard) | Function | Critical Notes |
|---|---|---|---|
| R/Rc/Rh | Red | Power supply from transformer | Rc for cooling-only systems; Rh for heating-only; jumper required if using both |
| C | Blue, black, or brown | Common/neutral return path | Mandatory for devices requiring continuous power; absence causes erratic operation |
| W/W1 | White | Heating call (primary stage) | Check polarity; reverse connections trigger short cycling |
| Y/Y1 | Yellow | Cooling call (primary stage) | Not for heat pumps–see O/B |
| O/B | Orange (O) / Dark Blue (B) | Reversing valve (heat pump) | O = energized in cooling; B = energized in heating–verify manufacturer specs |
| G | Green | Fan control | Independent operation overrides system calls–test with manual fan setting |
Non-Standard Configurations and Troubleshooting
Older installations may use pink (emergency heat), brown (auxiliary), or purple (dehumidifier) wires–isolate these with a circuit tester before connecting. For dual-fuel setups, the E terminal (tan/light brown) signals emergency heat; failure to connect causes reliance on electric backup. When retrofitting modern controls onto legacy systems, strip wires to 3/8″ and twist clockwise before inserting into terminals–ensure no strands splay outward, as this causes intermittent shorts. For zoned systems, label each wire at both ends with a unique identifier (e.g., “Zone 2-Y”) to prevent cross-zone conflicts.
Resolving Power Failures in Smart Climate Control Systems
Check the transformer output immediately if the display is blank. Most low-voltage HVAC systems require 24V AC between Rc and C terminals. Use a multimeter to verify; readings below 20V indicate a faulty transformer or loose connection. Replace the transformer if necessary–aftermarket units often fail within 3-5 years due to power surges.
Inspect the control board for burnt components or bulging capacitors. Capacitor failure is a common issue in older units, identifiable by a domed top or electrolyte leakage. Desolder the damaged capacitor and replace it with an exact match–voltage and capacitance ratings must align precisely. Mistmatched replacements risk circuit damage.
Examine wire gauge and termination points. Low-voltage circuits demand 18-22 AWG copper wiring; undersized conductors cause voltage drops under load. Strip insulation cleanly–exposed strands should extend 0.25″ beyond the terminal screw. Verify torque on connection points: 8-12 in-lbs for screw terminals prevents intermittent power loss.
Common power disruption signs include:
- Flickering display during heating/cooling cycles
- Random reboots or system resets
- Failure to maintain temperature settings
- Humming from the HVAC unit without operation
Each symptom correlates with specific faults–cross-reference with the diagnostic LED patterns on the internal PCB.
Test the fuse on the equipment interface module if present. Remove the fuse and check for continuity; a broken filament confirms a blown fuse. Replace only with an identical amperage rating–most residential systems require 3-5A. Higher amperage fuses risk overheating the control circuit.
Verify outdoor unit power supply if the indoor component operates but fails to engage compressors or fans. Split systems often use separate power feeds; confirm both disconnect switches are closed and circuit breakers intact. Measure voltage at the outdoor disconnect–240V for single-phase systems, 208V for three-phase. Missing legs indicate a failed contactor coil.
Clean terminal oxidation quarterly to prevent high-resistance connections. Apply dielectric grease to terminal posts after cleaning–this reduces corrosion buildup in humid environments. For aluminum wiring, use dedicated anti-oxidant compounds; copper-aluminum junctions require specialized connectors to prevent galvanic corrosion.
