Start by isolating the primary transformer connection points on your schematic–these should be clearly marked at 11,000 volts with phase-to-phase labeling. Verify the vector group notation (typically Dyn11 for delta-star configurations) to avoid phase displacement errors during parallel operations. If the system includes a standby transformer, ensure the bus coupler switchgear is rated for full load interruption capacity, preferably 25 kA or higher.
Grounding arrangements demand precise execution: neutral earthing resistors must limit fault currents to 100–400 A for safety and equipment longevity. Overhead line entries should be depicted with surge arresters sized for 95 kV (BIL), installed at least 5 meters from the terminal structure. For underground cables, specify cross-linked polyethylene (XLPE) insulation with a minimum conductor size of 185 mm² to handle short-circuit thermal stresses.
Protection relays require exact settings–differential relays for transformers should have a slope adjustment of 20–40%, while overcurrent devices need inverse-time characteristics with pickup thresholds set at 1.2× nominal current. Include a separate auxiliary supply circuit with a UPS backup capacity of 2 kVA to maintain critical monitoring functions during outages.
Metering devices should be placed upstream of protective switchgear to prevent measurement interference. Use current transformers with a 5P20 accuracy class for relay circuits and 0.2S for revenue metering. Label all interlocking mechanisms between circuit breakers and isolators to prevent accidental operation under load.
Key Elements of Medium-Voltage Electrical Hub Layouts
Begin protection coordination by specifying inverse-time overcurrent relays for feeder lines, setting pickup thresholds at 1.25 times the maximum continuous load. Isolate faults within 300ms using circuit-interrupting devices rated for at least 12.5 kA symmetrical breaking capacity, ensuring compliance with IEC 62271-100.
Position the incoming switchgear section adjacent to the transformer bay, minimizing cable runs and reducing voltage drop. Use XLPE-insulated copper conductors for busbars, sized at 250 mm² per phase to handle thermal loading under contingency conditions. Grounding grids must achieve a resistance below 1 ohm, verified via fall-of-potential testing after installation.
Vacuum or SF6 breakers should alternate with disconnecting switches every 5 meters along main buses to create visible isolation points for maintenance. Label each component with laser-etched stainless-steel tags, including voltage class, short-circuit rating, and manufacturer serial numbers. Store spare parts in climate-controlled enclosures, particularly for trip coils and current transformers.
Integrate remote terminal units with IEC 61850 protocol support for real-time monitoring, configuring GOOSE messages to trip backup breakers if primary protection fails within 80ms. Use fiber-optic cables for control wiring, avoiding electromagnetic interference from switchgear operation. Test communication latency quarterly, ensuring no single point of failure in the SCADA network topology.
Metering and Safety Protocols
Install revenue-grade metering units upstream of feeder breakers, utilizing class 0.2S accuracy current transformers. Calibrate meters annually against traceable standards, documenting results in a dedicated logbook. Apply safety interlocks to prevent breaker closing when adjacent disconnecting switches are open, using auxiliary contacts mechanically linked to operating mechanisms.
Equip secondary systems with surge arresters at both the incoming and outgoing terminals, rated for 10 kA impulse current per IEEE C62.22. Space conductors at least 20 cm apart to prevent flashovers under transient overvoltages, maintaining clearances as specified in IEEE 141-1993. Perform insulation resistance tests at 2.5 kV DC before energization, rejecting values below 100 MΩ.
Design the physical layout to allow at least 1.2 meters of clear working space around all energized components, with emergency stop buttons located no more than 3 meters from any access point. Train personnel on arc-flash hazard analysis, providing PPE with a minimum arc rating of 12 cal/cm² as mandated by NFPA 70E. Conduct infrared thermography scans semiannually to detect loose connections or overheating components.

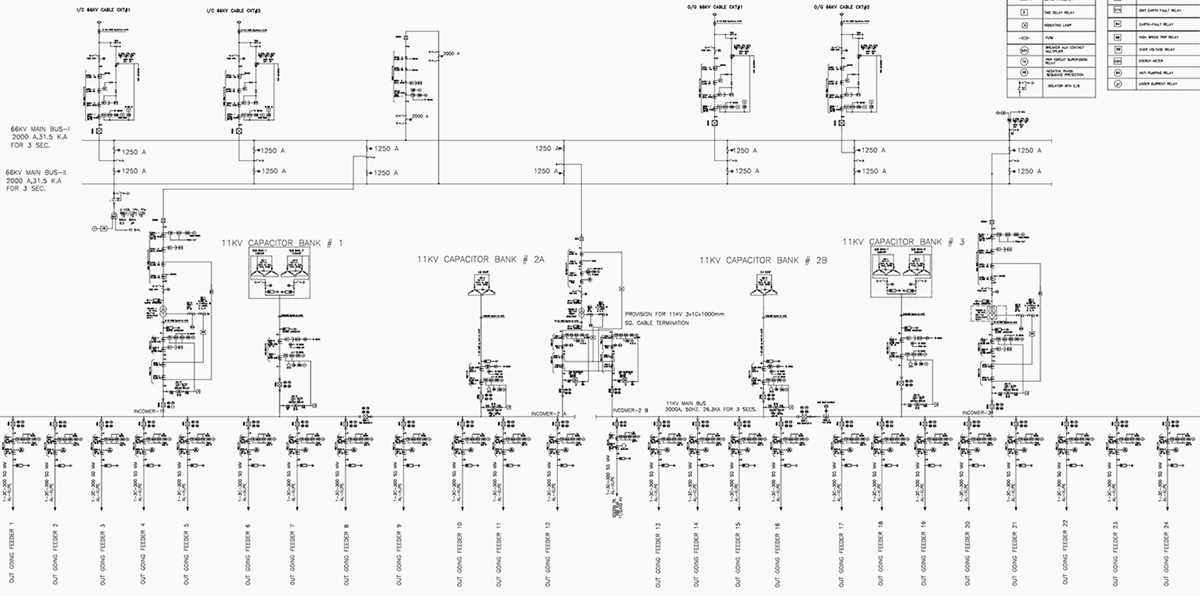

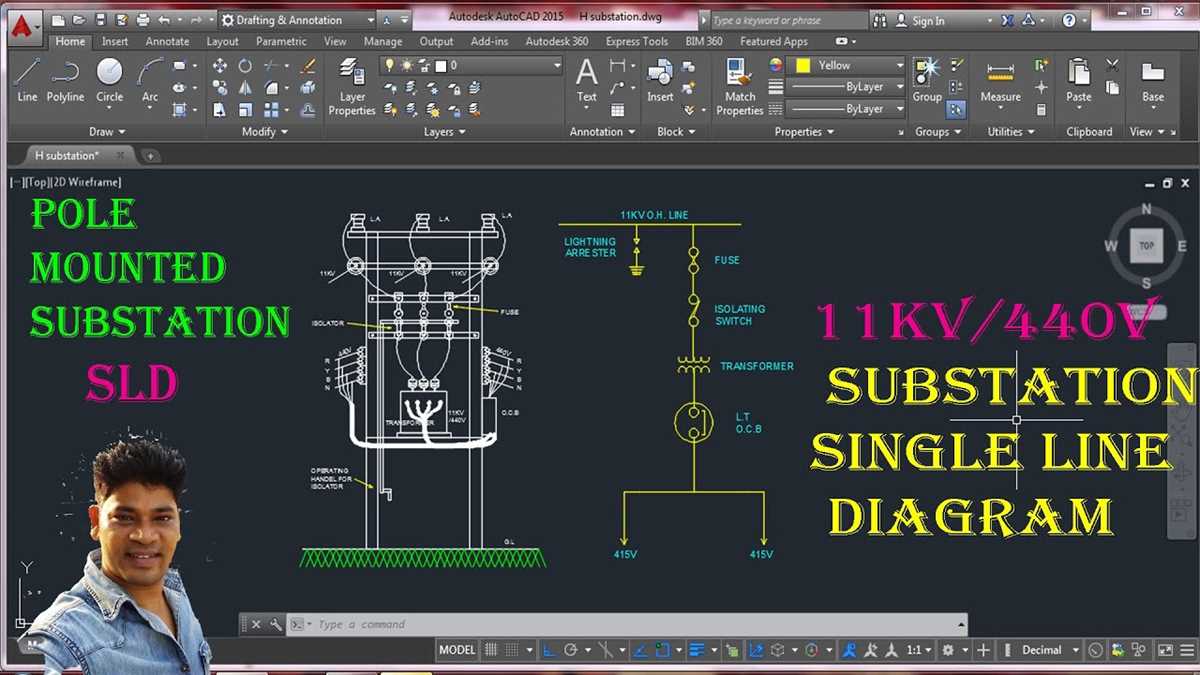

Key Components in a Medium-Voltage Electrical Network Single-Line Schematic
Isolate transformers upstream of switchgear to verify primary voltage matches the network’s 10.8–12 kV operating range–deviation beyond ±2% indicates tap-changer misconfiguration or faulty voltage regulation.
Vacuum circuit breakers rated for 25 kA interrupting capacity should replace older oil or SF6 units if short-circuit calculations exceed 18 kA; arcing contacts degrade after 50–75 operations under full fault current.
Current transformers must have secondary burdens below 30 VA to prevent saturation during fault conditions–use ANSI C57.13 accuracy class 0.3 for metering, class 10P10 for protection relays, ensuring core cross-section aligns with maximum fault levels.
Line isolators with double-break contacts are mandated for feeder sections longer than 5 km; copper-alloy contacts reduce oxidation resistance by 40% compared to aluminium, critical for outdoor installations.
Surge arresters positioned at both transformer bushings and cable terminations require MOV varistor blocks sized for 10% above nominal line-to-ground peak voltage–ZnO discs degrade after 5–8 lightning strikes, necessitating thermographic scans bi-annually.
Busbar conductor sizing follows IEEE 835–aluminium 500 mm² conductors carry 1,200 A continuously at 40°C ambient; joint resistance must stay below 10 µΩ, measured with a micro-ohmmeter under load.
Protection relays set with inverse-time overcurrent curves (IEC 60255) should coordinate at 0.4-second intervals between upstream and downstream devices; directional elements activate only when fault current exceeds 2.5× breaker rating.
Grounding grids demand copper-clad steel rods driven to 3 m depth, spaced at intervals no greater than twice the rod length–soil resistivity below 50 Ω·m ensures step potential remains under 1,000 V during 20 kA ground faults.
Step-by-Step Wiring Connections for Incoming and Outgoing Feeders
Isolate the primary switchgear before initiating any wiring to prevent accidental energization. Confirm the incoming lines are de-energized using a certified voltage detector rated for the system’s voltage class. Label each phase conductor at both ends–typically R (red), Y (yellow), and B (blue)–to avoid misalignment during termination.
Connect the incoming overhead or underground cables to the busbar via the main breaker. For overhead lines, use compression lugs torqued to manufacturer specifications (e.g., 40 Nm for 185 mm² conductors). Underground cables require heat-shrink sleeves over the lugs to seal moisture. Ensure the neutral conductor is bonded to the grounding grid at the designated earthing point.
Outgoing Feeder Terminations
Follow this sequence for outgoing feeders:
- Strip the cable insulation to expose 50 mm of conductor, using a calibrated stripping tool to avoid nicking strands.
- Crimp the lugs with a hydraulic crimper, matching the lug size to the conductor cross-section (e.g., 95 mm² for 200 A feeders).
- Secure the lugs to the feeder breaker terminals, tightening bolts in a star pattern to 35 Nm for M12 fasteners.
- Apply corrosion-resistant grease to aluminum conductors before termination to prevent oxidation.
- Verify phase alignment using a phase rotation meter–correct misalignment immediately to avoid equipment damage.
Ground the metallic cable sheaths of outgoing feeders within 30 cm of the termination point. Use flexible braided grounding straps (cross-section ≥16 mm²) connected to the local ground bus. For armored cables, strip back the outer sheath by 100 mm, exposing the armor, and clamp it to the grounding strap with a stainless-steel band.
Final Checks Before Energization
- Measure insulation resistance with a 5 kV megger; values
- Test all breaker interlocks–mechanical and electrical–to ensure proper sequencing.
- Close the main breaker only after confirming all outgoing feeders are disconnected.
- Energize feeders one at a time, monitoring for abnormal current draw or voltage flicker.
Document each connection point in a wiring schedule, including torque values, lug types, and cable sizes. Attach photographs of terminations for future reference. Update the single-line schematic to reflect any modifications made during installation.
Critical Protection Devices and Their Strategic Positioning in Medium-Voltage Networks
Install relays with inverse definite minimum time (IDMT) characteristics at the incoming feeder of every switchgear lineup. This placement ensures fault detection within 20-30 milliseconds for currents exceeding 1.5×In, preventing transformer overload damage. Select relays with adjustable pick-up settings between 50% and 200% of rated current to accommodate seasonal load variations without compromising sensitivity. Modern microprocessor-based devices should include harmonic restraint to distinguish between inrush currents and genuine faults, with a recommended 3rd harmonic threshold of 15% for optimal discrimination.
| Device Type | Mounting Location | Key Parameter | Recommended Value Range |
|---|---|---|---|
| IDMT Relay | Feeder input, transformer secondary | Time multiplier setting | 0.05–0.5 (coordination gap) |
| Differential Protection | Transformer primary/secondary bushings | Slope (%) | 20–40 (to accommodate CT mismatch) |
| Surge Arrester | Busbar entrance, 3m lead length max | MCOV (kV rms) | ≥1.2×system voltage (e.g. 13.8kV for 12kV class) |
| Earth Fault Relay | Neutral grounding resistor (NGR) secondary | Pick-up current | 10–20A (solid faults, 5–10% of NGR rating) |
For transformers rated ≥5MVA, integrate Buchholz relays between conservator and main tank, configured with two-stage alarm: 0.3m/s gas velocity for minor faults (float displacement) and 1.0m/s for severe faults (mercury switch). Install thermal sensors in winding hot-spot zones–typically 65% of winding height for core type units–programmed to trip at 140°C for 1.0p.u load, with alarm threshold 10°C lower. Verify PLN standard compliance by ensuring thermal relay reset delay
Position metal-oxide surge arresters within 1.5m of protected equipment terminals, preferably phase-to-earth across bushings, with creepage distance ≥31mm/kV for coastal installations. For capacitor banks, use series reactors with 6% impedance at 50Hz to limit inrush currents to 100×In, coupled with HRC fuses rated at 1.65×capacitor current for sustained overloads. Implement directional overcurrent elements on mesh networks, setting forward/reverse thresholds at 80% of feeder capacity with 0.2s coordination margin against downstream devices.
