For a 2.5L diesel variant produced between 2006 and 2011, trace the positive feed from the solenoid to the ignition switch via a 10-gauge red wire with a yellow stripe. This line branches off before reaching the main relay, marked as terminal 30. If voltage drops below 10.5V at this point, inspect the fuse panel under the driver-side dash–specifically slot 14 rated at 20A. Corrosion on the terminal block often mimics electrical failure, so clean connections with emery cloth before testing continuity.
Ground paths differ across trim levels. On models equipped with a manual transmission, locate the primary earth point near the left fender, secured by a 12mm bolt. Automatic versions rely on a secondary splice under the battery tray. Use a multimeter set to ohms: readings above 0.5Ω indicate oxidation or loose mounting. Replace the bolt if threads are stripped–aftermarket kits from Hella or Bosch include pre-tinned lugs to prevent future corrosion.
Relay R3, typically positioned behind the glovebox, handles signal switching. Pin 86 receives a 5V pulse from the ECM, while pin 85 connects to chassis ground. Swap this relay with the horn relay (temporarily) to rule out ECM output failure. If the engine cranks but stalls immediately, probe the purple wire (pin 3 on the T15 connector) for a 12V signal during startup–absence suggests a faulty inhibitor switch.
For vehicles with keyless entry, the immobilizer module interrupts the crank signal via a 0.8-second delay. Bypass this during testing by bridging terminals 5 and 7 on the OBD-II port with a jumper wire. If the issue persists, check the wiring harness for chafing where it passes through the firewall–often near the brake booster. Replace the damaged section with 18-gauge shielded cable to prevent interference from the alternator.
Electrical Setup for Pickup Truck Cranking System

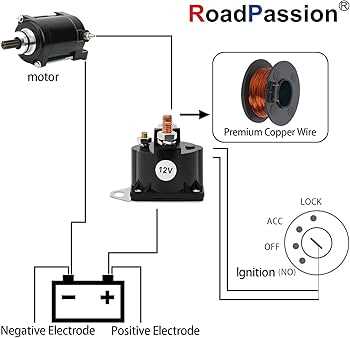

Begin by locating the solenoid terminal connected to the battery’s positive cable–this is typically a thick wire with a 10-gauge or larger cross-section. Verify its attachment point on the relay or magnetic switch; corrosion here causes voltage drop, leading to slow engagement. Use a multimeter to check for consistent 12V when the ignition key is turned to the “start” position–any reading below 10.5V indicates resistance in the circuit.
Trace the trigger wire from the ignition switch to the solenoid’s smaller terminal, often marked “S” or “50.” This 18-20 gauge wire should have continuity when the key is rotated. If absent, inspect the ignition switch contacts–replace if pitted or worn. Some models route this signal through a neutral safety switch; bypass temporarily to isolate faults, but ensure the vehicle is in park or neutral before attempting a start.
Key Circuit Components and Their Resistance Values
The motor’s field coils should read 0.1–0.3 ohms between the solenoid’s main output and the ground bolt. A higher reading suggests internal corrosion or open windings. The armature’s commutator segments should show even resistance (0.2–0.5 ohms) between adjacent bars–irregular values indicate shorted or damaged coils. Clean commutator surfaces with 600-grit sandpaper if buildup exceeds 0.5mm; rotate the shaft manually to avoid uneven wear.
Inspect the flywheel ring gear for missing or chipped teeth–each tooth engages the pinion gear during startup, and damage causes grinding noises. Replace the ring gear if more than 15% of teeth are compromised; alignment tolerances are critical–misalignment by 0.3mm prevents proper meshing. Lubricate the Bendix drive with molybdenum disulfide grease to ensure free pinion movement; avoid excess to prevent slippage.
For vehicles equipped with automatic transmissions, the starter relay receives signals from the transmission range sensor. Test by jumping the relay’s “85” and “86” terminals–if the motor engages, the issue lies upstream in the sensor or ignition circuit. Manual transmissions often use a clutch pedal switch; adjust or replace if the circuit remains open when the pedal is depressed.
Voltage Drop Testing Across Critical Paths
Measure voltage drop between the battery positive terminal and the solenoid’s main input while cranking–values above 0.5V indicate excessive resistance in cables or connections. Repeat the test between the solenoid’s output and the motor’s positive terminal; readings exceeding 0.3V suggest solenoid contact issues. Ground-side voltage drop should not exceed 0.1V between the motor housing and the negative battery post–clean all grounding points with a wire brush if corroded.
Replace any crimp connectors showing discoloration or heat damage–these fail under load, causing intermittent starts. Use soldered joints for repairs; shrink tubing must fully seal connections to prevent moisture ingress. Heat-sensitive tape or dielectric grease applied to terminals extends lifespan by 30–40%. Ensure battery cables are tightly secured–loose connections create micro-arcing, accelerating corrosion.
For persistent engagement issues, check the hold-in coil’s resistance–typically 0.8–1.2 ohms. A faulty coil prevents the solenoid from staying engaged; bench-test by applying 12V directly to the “S” terminal while measuring current draw–anything below 20A indicates a defective unit. Rebuild kits are available but require precise shimming to maintain pinion clearance (0.7–1.0mm).
Finding the Electrical Connector Assembly on Your Mid-Sized Pickup
Trace the positive cable from the battery terminal to its first major junction point beneath the engine bay. On models produced between 2011 and 2023, this connection sits directly above the lower bell housing, secured by a 10mm bolt to the transmission case. Look for a rectangular plastic housing with two large gauge wires and a smaller trigger lead entering it–this grouping marks the solenoid interface.
If visibility is obstructed, remove the air intake resonator box by releasing the three quick-disconnect clips–no tools required. Once cleared, the assembly becomes visible as a compact unit mounted at the 2 o’clock position relative to the flywheel housing. The matchmark for orientation is the labels “S” and “B” embossed near the terminals.
For earlier trims (1998-2010), the harness exits near the exhaust manifold heat shield. Follow the cable loom shielding downward until you reach a cylindrical component with a single push-on connector; this is the actuator solenoid. The main power feeds attach via ring terminals under an 8mm nut, distinct from the thinner signal wire that uses a spade connector.
Verify correct location by checking continuity between the battery positive and the thickest input cable at the solenoid while engaging the ignition switch–momentary voltage spike confirms identification.
Decoding Electrical Cable Hues and Purposes in Ignition Systems
Locate the thick red cable connected to the battery’s positive terminal–this is the primary power feed for the engagement solenoid. Verify its continuity with a multimeter; voltage should match battery readings (typically 12.6V) when ignition is off. If readings drop below 11.8V during cranking, inspect for corroded terminals or weakened ground connections.
Trace the smaller purple or violet lead from the solenoid’s S-terminal to the ignition switch. This is the trigger conductor, delivering 9-12V when the key is turned to “start.” A weak or intermittent signal here often points to a failing switch or worn ignition cylinder–test with a probe while monitoring voltage drop during rotation.
Critical Ground and Relay Conductors
The black or dark green/yellow striped cable ties the housing to chassis ground, completing the circuit. Ensure bare metal contact at both ends; paint, rust, or loose bolts disrupt flow. Clean surfaces with a wire brush and apply dielectric grease to prevent future oxidation–even minor resistance here causes sluggish activation.
On models with automatic transmissions, a thin tan or brown wire links to the neutral safety interrupter. This safety conductor must show 0 ohms when the gearshift is in Park/Neutral; resistance indicates a faulty switch or misrouted harness. Bypass temporarily for diagnostics, but never operate without this safeguard engaged.
Inspect the yellow or pink auxiliary relay conductor if equipped. This wire supplies momentary power to auxiliary components during cranking. Voltage should spike to battery levels only when the solenoid engages; persistent low readings (under 10V) suggest a bad relay or faulty accessory fuse.
Diagnosing High-Amperage Conductors
The heavy-gauge white or orange cable from the B+ terminal carries high current directly to the motor during engagement. Any fraying, heat damage, or discoloration warrants immediate replacement–these conductors handle 200+ amps and pose fire risks if compromised. Secure all connections with crimped terminals and heat-shrink tubing.
Check the green or blue sensor lead if present–this controls modern immobilizer systems. Voltage should drop briefly during cranking (to ~0.5V) then stabilize; persistent high readings indicate a stuck relay or failed security module. Override only in controlled diagnostic sessions to avoid triggering permanent fault codes.
Step-by-Step Guide to Testing Relay Contacts in Your Pickup’s Electrical System
Begin by locating the relay module under the dashboard or near the engine bay. Most models place it in a fuse box labeled with a schematic sticker–identify the specific relay by matching its pin layout to the reference chart. Use a multimeter set to continuity mode to verify the coil’s resistance between terminals 85 and 86; typical readings range between 50–120 ohms. Values outside this range indicate a faulty coil, requiring replacement.
Check the switching mechanism by applying 12V directly to terminal 85 (ground terminal 86) while monitoring terminals 30 and 87 with the multimeter. A functional relay will emit an audible *click* and show near-zero resistance between 30 and 87. If no click occurs or resistance remains infinite, the relay’s internal contacts are damaged. For precision, probe both terminals 30 (input) and 87 (output) simultaneously to confirm the circuit closes properly.
Inspect the relay socket for corrosion or loose connections. Remove the relay and examine the socket terminals for discoloration, oxidation, or bent pins. Clean contacts with electrical cleaner and a small wire brush; ensure pins 30, 85, 86, and 87 align correctly when reinserting. Misaligned pins can mimic relay failure, causing intermittent operation.
Testing Relay Under Load
To validate performance under real-world conditions, connect a test light or low-resistance load (e.g., a 30-amp bulb) between terminals 30 and 87 with the relay installed. Start the vehicle and observe the light’s brightness–dim or flickering output suggests voltage drop due to poor contacts or wiring resistance. Measure voltage at terminal 30 with the ignition on: 12.4–12.6V is ideal; values below 11.8V may point to battery or alternator issues masking relay problems.
| Terminal | Expected Voltage (Ignition ON) | Symptoms of Fault |
|---|---|---|
| 30 | 12.4–12.6V | Low voltage, dim lights, slow cranking |
| 85 | 12V (trigger signal) | No click, relay remains open |
| 87 | 0V (open), 12V (closed) | No power to accessories, intermittent operation |
If diagnostics confirm a faulty relay, replace it with an OEM-equivalent part (identical amperage rating). Aftermarket relays often lack durable contacts, leading to premature failure. Secure all connections with dielectric grease to prevent future corrosion, particularly in humid or off-road environments. Recheck the circuit after installation to confirm proper operation.
Troubleshooting Intermittent Failures
For sporadic issues, tap the relay lightly with a tool handle while monitoring the circuit. A brief response (e.g., click or temporary function) indicates internal contact pitting. Swap the suspect relay with a known-good one of identical function (e.g., horn or A/C relay) to isolate the problem. Document voltage drops during testing–consistent fluctuations under 0.5V between 30 and 87 at full load may require upgrading the relay or inspecting upstream wiring harnesses.
