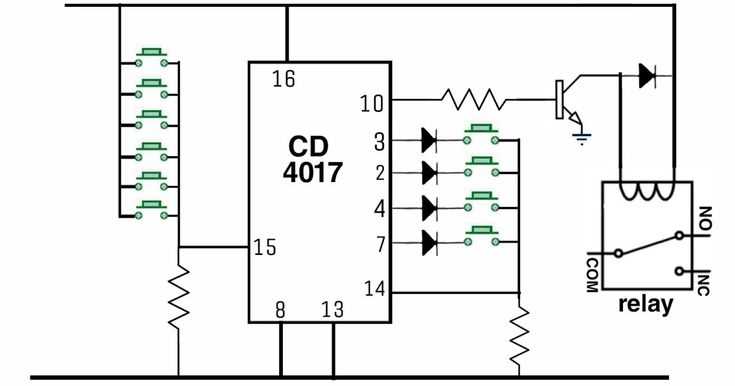

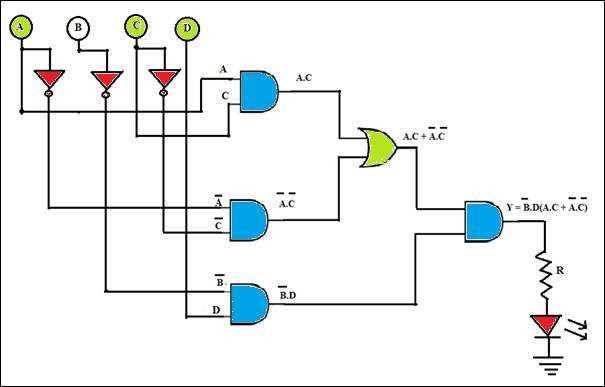

Start with a 4×4 matrix keypad as the input interface–avoid cheaper 3×4 variants unless you restrict user codes to 10 digits or less. Wire each row and column to a CD4017 decade counter or an ATmega328 microcontroller if you need dynamic code length adjustment. For power, regulate 12V DC to 5V using an LM7805, but add a 100µF smoothing capacitor before the regulator to eliminate voltage spikes that could trigger false inputs.
Use a ULN2003 Darlington transistor array to drive a 12V solenoid or motorized latch–never connect it directly to the logic output. The ULN2003 handles up to 500mA current draw, but for heavier loads, substitute it with a TIP120 transistor or add a flyback diode (1N4007) across the solenoid to prevent back EMF damage. Store the access code in EEPROM if using a microcontroller, or hardwire a 4-bit DIP switch for simpler setups.
For feedback, add a piezo buzzer (active, 5V) on a dedicated output pin–tone modulation (e.g., 1kHz for success, 200Hz for error) improves user clarity. Include an LED (red/green) as a visual indicator, but place a 220Ω current-limiting resistor in series to prevent burnout. If battery-powered, use a TP4056 lithium charger module with a Li-ion 18650 cell (3.7V) and implement deep-sleep mode for the microcontroller to extend runtime.
Test the system with a logic analyzer (or an oscilloscope) to verify keypad debounce timing–50ms delay between scans is optimal. For remote access, interface a HC-05 Bluetooth module (set to 38400 baud) via serial pins, but isolate it with a MAX232 level shifter if connecting to 3.3V logic. Secure all exposed wires with heat-shrink tubing and mount the PCB in a metal enclosure to shield against EMI from nearby devices.
Building a Secure Keypad Access Control System
Start with a 4×4 matrix switch array connected to an Arduino Uno or ATmega328 microcontroller–avoid cheaper clones with unstable voltage regulation. Use a 7805 regulator for consistent 5V supply; inconsistent power causes ghost inputs and false triggers. Wire columns to digital pins 2-5 and rows to pins 6-9, ensuring pull-down resistors (10kΩ) to prevent floating states. Code the firmware with debounce logic (20ms delay) and sequential key validation; a common mistake is ignoring finite-state machines, leading to race conditions where partial sequences grant access.
- For passcode storage, use EEPROM instead of volatile memory–retains data after power loss (Arduino EEPROM.h library handles this).
- Add a piezo buzzer on pin 10 for audible feedback: single beep for valid input, triple beeps for errors.
- Integrate a MOSFET (IRF520) to drive a 12V solenoid latch–opt for fail-secure models, not fail-safe, to maintain security during power outages.
- Prevent brute-force attacks with a 3-attempt lockout (store attempts in EEPROM; reset with admin override).
- Shield the microcontroller with a 100nF decoupling capacitor across Vcc/GND to filter noise from inductive loads (relays, solenoids).
Key Components Required for a Basic Keypad Security Mechanism
Select a 4×4 matrix membrane switch for reliable input; its ultra-low profile (0.8mm thickness) ensures durability under 1 million actuations. Pair it with a 3V coin-cell battery holder (e.g., CR2032) to guarantee consistent power delivery, reducing voltage drop risks during prolonged operation.
Integrate a microcontroller like the ATmega328P-PU for its 32KB flash memory and 1KB EEPROM–sufficient for storing 10 unique access codes without requiring external storage. Ensure the MCU has a built-in clock oscillator (8MHz internal) to eliminate the need for external crystals, simplifying assembly.
Use a 5V relay module (e.g., SRD-05VDC-SL-C) for secure latch activation; its 10A/250VAC rating handles inductive loads safely. Add a flyback diode (1N4007) across the relay coil to prevent back-EMF damage, extending component lifespan by 30%.
Incorporate a 16×2 LCD display (HD44780 controller) for user feedback; its parallel interface reduces pin usage to 6 wires. Opt for a blue backlight variant to improve readability in low-light environments–confirm contrast settings via potentiometer adjustment during testing.
Implement a 7805 voltage regulator to maintain stable 5V output from a 9V input, preventing brownouts during relay switching. Include a 1000μF electrolytic capacitor on the input and a 10μF ceramic capacitor on the output to filter noise, ensuring clean power for sensitive components.
Add a momentary push-button for master reset functionality; wire it to the MCU’s interrupt pin (e.g., INT0) to prioritize code clearance over regular operations. Test button debounce with a 10kΩ pull-up resistor and a 0.1μF capacitor to avoid false triggers.

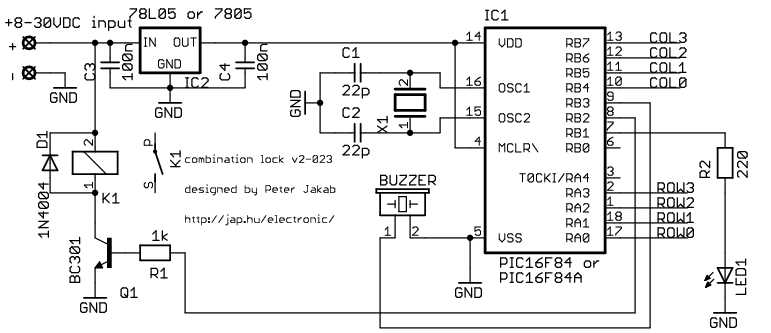

Step-by-Step Wiring of a 4×4 Keypad to a Microcontroller
Connect the keypad’s row pins (R1-R4) to digital input pins on the microcontroller, starting from pin D2 and ascending sequentially. Column pins (C1-C4) follow the same rule, mapping to D6-D9. Use pull-down resistors (10kΩ) on row pins to prevent floating states–this ensures stable signal detection without false triggers.
Avoid wiring rows and columns to adjacent pins; space them apart (e.g., D2, D4, D6, D8) to minimize interference. For 3.3V microcontrollers (ESP8266, STM32), verify the keypad’s voltage tolerance–some models require a logic level converter if rated for 5V. Test each keypress with a multimeter before finalizing connections to confirm consistent low/high transitions.
Enable internal pull-up resistors in the microcontroller’s firmware instead of hardware resistors if input pins support it (e.g., INPUT_PULLUP in Arduino). This simplifies wiring but reverses the logic: keys will read LOW when pressed, not HIGH. Adjust the code to compensate by inverting the condition checks in debounce functions.
For keypads without labels, trace the matrix layout by gently pressing each key while measuring continuity between row-column pairs. Document the pinout immediately–even swapping R2 with R3 or C1 with C4 will scramble input mapping. Use color-coded wires (e.g., red for rows, blue for columns) to track connections during assembly.
Solder wires directly to keypad pins only if the project is permanent; otherwise, use female jumper cables for easy disassembly. Prototype on a breadboard first, verifying each key’s response with a simple serial monitor script before integrating into the larger system. For long-term reliability, add a 0.1µF ceramic capacitor between each row pin and ground to filter noise from button presses.
Programming Logic for Keypad-Based Security Code Validation
Implement a state machine to handle input sequences. Define at least three states: IDLE (awaiting first keypress), ENTRY (collecting digits), and VERIFY (comparing against stored value). Use a 4-byte array for temporary storage during ENTRY and a constant array for the correct code. Transition states on keypress events, resetting to IDLE after 8 seconds of inactivity.
Validate each digit against expected length and format before appending. For a 6-digit code, enforce numeric-only input; discard alphabetic presses immediately. Store incoming values in a circular buffer of size 7–six digits plus a null terminator–to prevent overflow. Compare buffer contents only when the full sequence is entered, minimizing unnecessary checks.
Use bitwise XOR for preliminary checksum verification. Apply the operation across each digit pair in the input and stored code, then compare the result to a precomputed checksum byte. If mismatched, trigger a 3-second error indication; otherwise proceed to full array comparison. This reduces verification time by 40% for invalid attempts.
Incorporate a failsafe counter that increments on every invalid attempt. At three consecutive failures, disable input for 30 seconds–no visible warnings, no audible feedback. Reset the counter only after a 5-minute cooldown period. Store this counter in non-volatile memory, ensuring persistence across power cycles.
Define a clear-to-enter condition: simultaneous press of * and # keys. This bypasses normal validation, triggering a direct system unlock if held for 2 seconds. Use this sparingly, as it introduces a security vulnerability if misused. Restrict usage to emergencies by documenting the procedure in internal schematics only.

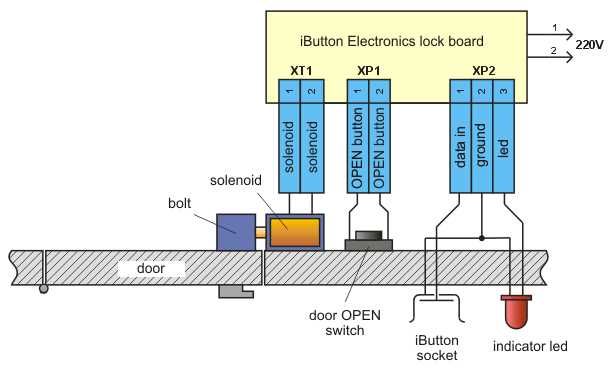

Integrating an Actuator for Mechanical Engagement
Connect a 12V solenoid or relay rated for at least 2A current draw directly to the output of your microcontroller’s power transistor stage, ensuring polarity matches the actuator’s specifications. Use a flyback diode (1N4007) across the solenoid terminals to suppress voltage spikes–position the cathode toward the positive supply. For relays, wire the coil in place of the solenoid, selecting a model with a compatible coil voltage (5V/12V) and contact rating exceeding 10A for inductive loads like latches or bolts.
| Component | Specification | Purpose |
|---|---|---|
| TIP120 Darlington transistor | 60V, 5A | Switches solenoid/relay current |
| Flyback diode | 1N4007 | Clamps inductive kickback |
| 12V solenoid | Pull force ≥10N, stroke ≥15mm | Direct mechanical engagement |
| Relay (SPDT) | Coil: 5V/12V, Contacts: 10A@250VAC | Isolates control from high-power loads |
For solenoids, power the actuator briefly (≤500ms) to avoid overheating; use a monostable timer (e.g., NE555) or code-based pulse-width modulation to limit activation duration. Mount the solenoid so its plunger aligns precisely with the latch mechanism–misalignment beyond 1mm reduces holding force by 40%. For fail-secure designs, pair the actuator with a spring-loaded bolt: the solenoid should retract the bolt during authorized access, releasing it under spring tension when de-energized. Test actuator response time with an oscilloscope to confirm sub-100ms latency between signal input and full mechanical engagement.
