Start with identifying core components as discrete modules. Break down the system into functional segments–each responsible for a specific operation. Label them clearly: “Input Conditioner,” “Signal Processor,” “Power Regulation Unit,” or “Output Controller.” Assign a unique identifier (e.g., U1, M2) to each block to avoid ambiguity in cross-referencing. If the system includes feedback loops, ensure the return paths are explicitly marked with arrows or directional notation. Avoid vague descriptions; specify whether a module performs amplification, filtration, conversion, or isolation.
Use standardized symbols for common functions to reduce misinterpretation. A rectangular block with rounded corners typically denotes a digital processor, while a square signals an analog circuit. Triangles indicate amplifiers, circles represent power supplies, and dashed lines separate subsystems sharing the same physical enclosure. Annotate each line connecting blocks with its purpose–”5V Logic,” “4-20mA Signal,” “SPI Data Line”–and include pin numbers if applicable. For complex systems, layer the representation: place the primary signal flow on the main plane and auxiliary controls (e.g., enable signals, fault detection) on a secondary layer linked by dotted lines.
Validate connections by tracing each pathway end-to-end before finalizing. Check for orphaned modules–those with inputs but no outputs or vice versa. Ensure every feedback loop has a defined exit condition, whether through a comparator, hysteretic switch, or timed interrupt. For mixed-signal designs, isolate analog and digital grounds using separate symbols and explicitly indicate where they converge at a single reference point. If components share a common bus, mark tri-state outputs and specify enable logic to prevent contention. Cross-check component values against the bill of materials to confirm consistency between the visual layout and hardware implementation.
Document assumptions directly within the layout. If a block aggregates multiple functions (e.g., an integrated microcontroller with ADC, PWM, and UART), split it into virtual sub-blocks connected by internal buses. Specify clock domains for synchronous elements–distinguish between 32 kHz real-time clocks and 100 MHz processor clocks. Where possible, indicate propagation delays or timing margins, especially for critical paths like interrupt latency or serial communication handshakes. Use color sparingly but purposefully: red for high-voltage lines, blue for differential pairs, green for enable signals. Include a legend to decode symbols and abbreviations, ensuring maintainability by others.
For hierarchical designs, create a master overview linking to detailed sheets for each module. Number the sheets sequentially (Sheet 1 of 4) and reference subordinate diagrams with clear cross-sheet identifiers (e.g., “For details, see Sheet 3, Block U5”). If space permits, embed critical specifications–such as voltage ranges, current ratings, or communication protocols–adjacent to the relevant block. Avoid crowding; prioritize legibility over completeness. If a section becomes too dense, split it into logical sub-diagrams, each focusing on a distinct functional domain (e.g., power delivery, data acquisition, user interface).
Function Block Visualizations: A Hands-On Approach
Begin by labeling every logical block with a unique identifier–use prefixes like CTRL_ for control modules, SENS_ for sensor inputs, and ACT_ for actuators. A consistent naming convention prevents misconnections and simplifies troubleshooting when scaling designs. For instance, a temperature control loop might follow this structure:
| Block ID | Type | Input/Output Description | Recommended Wire Gauge |
|---|---|---|---|
| CTRL_TEMP_01 | PID Controller | SP: 4-20mA, PV: 0-10V | 22 AWG (shielded) |
| SENS_TEMP_01 | RTD Sensor | Output: 0-10V linear | 18 AWG (twisted pair) |
| ACT_COOL_01 | Cooling Valve | Input: 4-20mA | 20 AWG |
Ground all analog signals at a single star-point to eliminate noise–separate digital and analog grounds by at least 10cm on the breadboard or PCB. For high-frequency blocks (e.g., PWM drivers), use ferrite beads on signal lines to suppress EMI. Validate each connection with a multimeter before powering the circuit; resistance between isolated blocks should exceed 10MΩ. When integrating external libraries, pre-test each block in isolation–merge only after confirming zero interference patterns in oscilloscope readings.
Debugging Common Pitfalls
If a block fails to execute as expected, first isolate the power rails: measure voltage at the block’s VCC pin under load (tolerance should match the datasheet ±5%). Next, verify clock signals for microcontroller-based blocks–ringing on a 1MHz clock above 200mVpp indicates insufficient decoupling capacitance. For communication blocks (Modbus/Profibus), confirm baud rate alignment with a protocol analyzer; mismatches often appear as framing errors rather than outright failures.

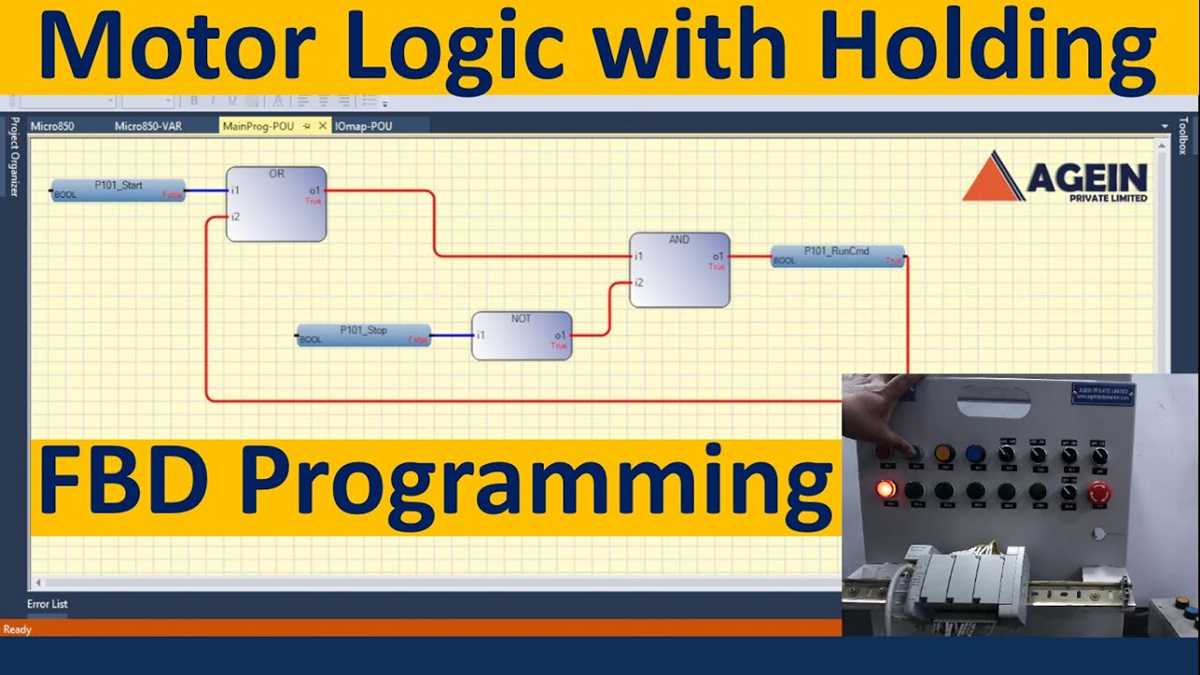

How to Read Key Components in a Functional Block Visual
Identify blocks by their rectangular shapes with labeled inputs and outputs. Each block represents a distinct operation–arithmetic functions (ADD, SUB, MUL), logic gates (AND, OR), or timers (TON, TOF). Inputs enter on the left; outputs exit on the right. Verify block labels match the intended operation; mismatches cause execution errors. For IEC 61131-3 compliance, ensure blocks align with standard naming conventions: BOOL for binary signals, INT or REAL for numerical data.
Trace connectors between blocks to follow data flow. Solid lines indicate direct connections; dashed lines represent conditional links. Jumpers (cross-reference markers) link distant elements without cluttering the canvas. Check for implicit conversions: bit-to-integer transitions require conversion blocks like ANY_TO_INT. Validate sample rates if mixing continuous (analog) and discrete (digital) signals–clock mismatches create race conditions or data loss.

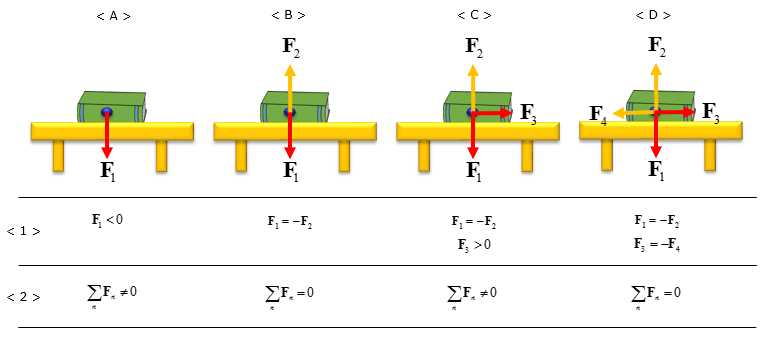

Step-by-Step Process for Creating a Free-Body Representation from Zero
Identify the primary object for analysis. Isolate it mentally from its surroundings by defining clear boundaries–this means ignoring any connected components unless they directly influence forces acting on the subject. For a beam fixed at one end, the object is the beam itself; for a block on an incline, it’s the block. Draw a simplified outline of the object in its basic geometric form, omitting unnecessary details like holes or surface textures unless they affect load distribution.
List all external forces acting on the object. Use known data: weight acts vertically downward through the center of mass (calculate it if dimensions and density are given). For contact forces, like supports or ropes, determine direction based on interaction type–normal forces act perpendicular to surfaces, friction acts parallel, and tension aligns with the pulling direction. If magnitudes are unknown, assign variables (e.g., N, T, f) with clear labels.
Select a coordinate system tailored to the scenario. Align axes with dominant force directions to minimize component calculations. For an incline, rotate axes to match the slope; for pendulums or suspended masses, keep axes vertical/horizontal. Mark the origin at a logical point–often at a support or center of mass–ensuring consistency for torque calculations if needed. Indicate axis directions with small arrows near the origin.
- Draw force vectors originating from their application points. Use arrow length loosely proportional to magnitude (unknowns can be uniform). For distributed loads, replace them with equivalent point loads at their centroid–e.g., a uniform beam load acts at the midpoint. Avoid arrows starting inside the object; traceable lines prevent confusion.
- Label each vector with its magnitude (or variable) and direction. Use subscripts for clarity (e.g., fs,max for static friction limit, NA for a normal force at point A). Add angle indicators if forces aren’t axis-aligned–use θ for inclines, φ for cable angles. Include units (Newtons, kilonewtons) in parentheses.
- Verify completeness by checking for action-reaction pairs. If the object exerts a force on another body (e.g., pushing a wall), that body’s reaction must appear on the diagram. For systems in equilibrium, ensure forces sum to zero–no net acceleration implies no unbalanced vectors.
Review the representation for potential errors. Common mistakes include omitting weight when mass is given, misaligning normal forces with curved surfaces, or forgetting atmospheric pressure in fluid-static problems. Cross-check with known cases: a stationary object on a flat surface must show weight and an equal opposing normal force. For dynamic scenarios, include acceleration as an inertial force opposite the motion direction (pseudo-force in non-inertial frames).
Special Cases Handling
- Pulleys: Treat masses as separate objects. Draw tension forces along the rope’s path, ensuring magnitude equality if the rope is massless and frictionless.
- Trusses: Represent joints as dots with forces along connected members. Use method-of-sections for partial analysis, isolating subsets to avoid clutter.
- Distributed loads: Replace with resultant force at centroid. Triangular loads use 1/3 from the base; trapezoidal loads split into rectangle and triangle components.
- Torques: Add moment vectors (curved arrows) for rotational effects. Specify pivot points for clarity, especially in beam problems where supports create moments.
Finalize the sketch with annotations for auxiliary data. Note assumed conditions (e.g., “frictionless surface,” “massless rope”) and material properties if relevant (e.g., “steel, μs = 0.3“). Use color-coding for different force types (red for applied loads, blue for reactions) if working on whiteboards or digital tools. Convert the draft to a clean digital version if needed, using precise scaling–engineering software often provides templates, but hand-drawn versions must match proportions.
