Begin by confirming your HVAC system’s compatibility with the 5th-generation model. Most forced-air setups–including gas, oil, electric, or dual-fuel furnaces–require a C-wire for stable operation. If your system lacks one, use the included Power Extender Kit (PEK) to draw power from the transformer. Central air conditioners and heat pumps demand additional attention: verify the Y1 (cooling) and O/B (reversing valve) terminals match the manufacturer’s specs–failure here risks compressor damage or improper staging.
For multi-stage systems, label each wire before disconnecting the old control unit. Stage 1 heating (W1) and Stage 2 heating (W2) must align with your furnace’s relay configuration; mixed connections will force single-stage operation, reducing efficiency by up to 30%. Heat pumps with auxiliary heat (E terminal) require a dedicated wire–omit this only if your system lacks emergency backup coils, otherwise expect erratic performance in sub-zero temperatures.
Connect the transformer’s R (24V) and C (common) wires last to avoid short circuits. If using a PEK, splice it into the Rc and C wires at the furnace, not the thermostat base–incorrect placement causes intermittent power loss. Test each connection with a multimeter before securing wires: R to C should read 24–28V AC; readings outside this range indicate a wiring fault or undersized transformer.
Humidifiers and dehumidifiers integrate via the HUM and DEHUM terminals. Wire the humidifier directly to the transformer’s C terminal for continuous operation, or to W (heating call) for synchronized activation. Dehumidifiers require a separate relay if pulling more than 0.5A–exceeding this threshold overloads the thermostat’s internal circuits. Always cross-reference the equipment’s manual for compatibility: third-party accessories may need independent power sources.
After installation, enable equipment protection delays in the settings. A 5-minute delay prevents compressor short cycling, extending unit lifespan by 40%. For zoned systems, ensure each zone’s damper motor draws –higher amperage necessitates an external power supply to avoid overheating the thermostat’s board. If the display fails to power on, recheck the C-wire and transformer voltage; resecure all wire nuts with electrical tape to prevent oxidation over time.
Smart Thermostat Installation Guide: Electrical Connections for Premium Models
Disconnect power at the circuit breaker before handling any wires–this prevents accidental shorts or equipment damage. Label each wire with masking tape and note its terminal location on the existing control panel; mismatches cause system failures.
Verify compatibility with your HVAC setup. The premium model requires a C-wire (common) for continuous power. If absent, install a 24V transformer or repurpose unused wires like G for cooling-only systems. Check voltage between R and C with a multimeter–should read 24VAC ±10%.
Connect wires in this sequence: Rc to the red transformer wire (power), Rh to emergency heat if dual-fuel, W1/W2 for heating stages, Y1/Y2 for cooling, G for fan, O/B for heat pump reversing valve, and C for common. Tighten terminal screws firmly; loose connections overheat.
For heat pumps, the O/B terminal handles valve reversal. Set the configuration to match your system: O for energized-cool or B for energized-heat in the settings menu. Incorrect polarity reverses heating/cooling modes. Test by running a heating cycle–valve should click within 30 seconds.
If using auxiliary equipment (humidifier, dehumidifier, ventilation), connect HUM to the humidifier relay and DEHUM to dehumidifier wiring. Use 18-gauge solid copper wire; stranded wires fray under terminal pressure. Verify voltage at HUM/DEHUM–should match transformer output.
After securing connections, restore power and check the display. Error codes typically indicate wiring faults. Common issues: E1 (no power to Rh) or E4 (short on Y1). Measure resistance at each terminal–normal readings range 0-1Ω. High resistance suggests corrosion; clean contacts with emery cloth.
Run system diagnostics via the onboard menu. Monitor compressor delay (default 5 minutes) and stage sequencing. For multi-stage systems, ensure W2/Y2 engage only after 3-minute delays to prevent simultaneous staging. Adjust dampers if zones behave erratically.
Step-by-Step Smart Climate Control Terminal Label Breakdown

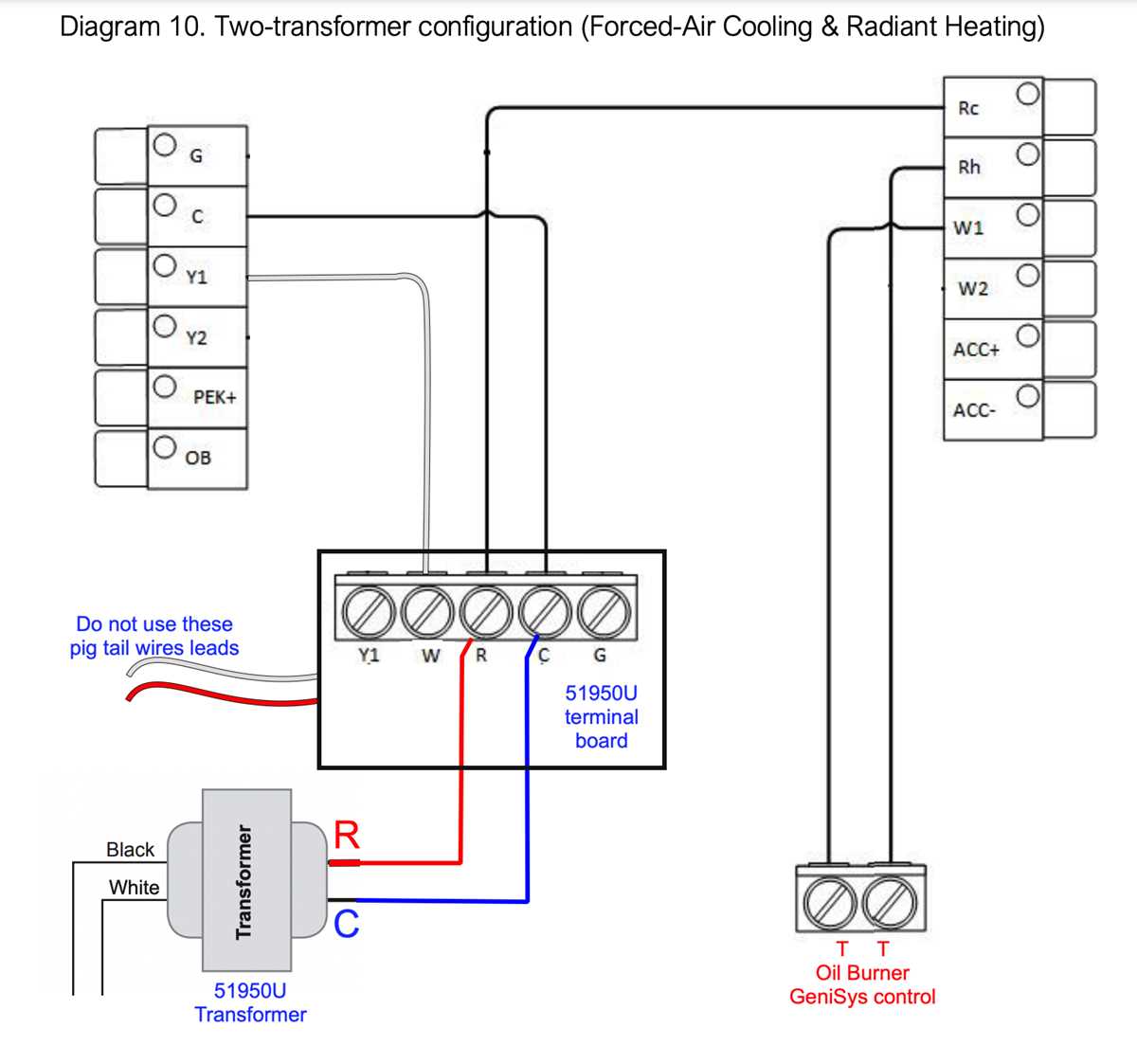

Start by verifying power feed connections before proceeding–terminal Rc handles cooling power (24VAC) from the air conditioner or heat pump’s outdoor unit, while Rh supplies heating power from the furnace or air handler. If your system lacks a dual-transformer setup, bridge Rc and Rh with the included jumper wire. Incorrect linking risk damaging low-voltage circuits or disabling climate control entirely.
Identify auxiliary demand signals next:
- W1 – Activates primary heat stage (gas furnace, electric strip, or boiler).
- W2 – Triggers secondary heat (auxiliary heat pump or emergency heat).
- Y1 – Engages first-stage cooling or heat pump compressor.
- Y2 – Runs second-stage cooling (dual-speed compressor).
- O/B – Reversing valve control (energized for cooling: O; energized for heating: B).
- G – Fan relay (energizes air handler blower independently of heating/cooling).
Humidity and Advanced Control Interfaces
For auxiliary sensors, connect humidifier to Hum (excites 24VAC relay) and dehumidifier to Dehum (supplies 24VAC on demand). ACC+ and ACC– terminals support accessories like damper actuators or ventilation systems–polarity-sensitive, so match leads precisely. Disable power at the breaker before modifying connections; a multimeter set to AC voltage (20V range) confirms correct wiring with 24V readings between Rc and any demand terminal (Y1, W1, etc.) when calling for operation.
Common Setup Configurations for Diverse HVAC Systems
For conventional furnace and air conditioner combos, connect the thermostat’s R (power), C (common), W (heat), Y (cool), and G (fan) ports directly to matching terminals on the HVAC control board. Verify voltage–24VAC is standard; deviations demand transformer upgrades. Low-voltage systems (under 18VAC) risk erratic behavior; test with a multimeter before fastening connections.
Heat pump installations require additional ports: O/B (reversing valve) and E (emergency heat). Reversing valve polarity differs by brand–O activates cooling (Trane, Rheem) while B switches to heating (Carrier, Lennox). Emergency heat should engage only below outdoor thresholds (typically 35°F/-1°C); misconfigured E terminals waste energy by overriding compressor stages.
- Single-stage furnace + AC: R, C, W, Y, G.
- Two-stage furnace + AC: R, C, W1/W2, Y1/Y2, G.
- Heat pump + auxiliary heat: R, C, Y1/Y2, O/B, E, G.
- Boiler + radiant systems: R, C, W (no Y or G).
- Dual-fuel (heat pump + furnace): R, C, Y1/Y2, W, O/B, E.
Multi-stage systems split heating/cooling calls across separate relays. W1/W2 handle first/second-stage furnace heat; Y1/Y2 manage AC stages. Incorrect staging causes short cycling–program delays between stages (5+ minutes for heating, 10+ for cooling) via thermostat settings. Boilers omit Y and G; hydronic zones use individual W circuits, often labeled Z1, Z2.
Dual-fuel setups merge heat pump and gas furnace logic. Prioritize compressor lockout at 30°F/-1°C (adjustable); below this, switch to auxiliary heat via W terminal. O/B wiring must align with heat pump’s reversing valve–consult manufacturer specs. Misaligned O/B forces compressor operation in defrost cycles, damaging coils.
Radiant floor heating pairs with boilers, requiring only R, C, and W connections. No fan or cooling circuits exist; zone valves replace relays. Separate thermostats per zone, each wired to its valve (e.g., R-Zone1, W-Zone1). Voltage compatibility is critical–most valves accept 24VAC, but European models may need 120VAC adapters.
How to Safely Disconnect and Reconnect Thermostat Leads During Setup

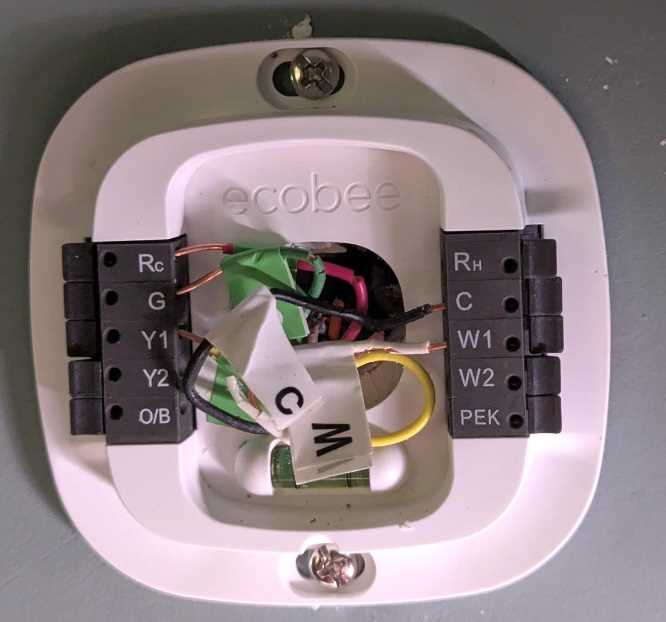

Before touching any connections, shut off power at the circuit breaker for the HVAC system. Use a non-contact voltage tester to confirm no current remains in the low-voltage lines–these typically carry 24V AC, but accidental contact with live circuits can damage components or cause injury. Label each conductor with masking tape and a marker to record its original position, noting both color coding and terminal designation (e.g., R, C, W, Y). Pull terminals straight away from the base to avoid bending pins; avoid twisting or prying with metal tools that could short adjacent connections.
Inspect terminal screws and clamps for corrosion or debris–clean surfaces with fine-grit sandpaper or a brass wire brush if oxidation is present. Strip exposed insulation precisely to the manufacturer-specified length (usually 6–8 mm); excess bare wire can create short circuits, while insufficient contact causes intermittent failures. Secure each lead by tightening terminal screws to 0.2–0.3 Nm (2–3 in-lbs) using a torque screwdriver–over-tightening strips threads, while under-tightening risks loose connections that overheat. Recheck polarity with a multimeter in continuity mode if the system uses dedicated power or common returns.
After reconnecting all leads, restore power and monitor the HVAC unit for abnormal behavior–humming, erratic cycling, or failure to engage signals reversed or misaligned conductors. Configure temperature settings 5°F above and below room ambient to test heating and cooling modes independently. If the system fails to respond, power down immediately and re-examine connections for incorrect placement or insufficient torque; repeated failures may indicate a deeper issue such as a faulty transformer or damaged control board.
