Start by identifying the power source wires: typically, a black (hot) conductor, a white (neutral) line, and a bare or green grounding cable. Confirm the circuit is de-energized using a non-contact voltage tester before handling any exposed metal. If working with an existing installation, remove the faceplate and unscrew the device to expose the terminal screws.
Attach the black wire from the power feed to the brass-colored screw on the control. The return black wire leading to the fixture connects to the remaining brass terminal. If the device includes a grounding screw (usually green), secure the bare or green wire there. For installations requiring a neutral connection–common with smart or dimming devices–loop the white wire around a silver terminal or join it with a wire nut if only passing through.
Mount the device into the junction box, ensuring no bare wires touch the box edges or other terminals. Straighten the conductors to avoid pinching when securing the unit. Tighten the screws evenly to prevent uneven pressure, which can damage contacts or cause intermittent operation. Reattach the faceplate and restore power, testing the control by toggling it multiple times to verify consistent operation.
For multi-way setups (where two controls operate the same fixture), use two red traveler wires between the devices. Connect them to the dark-colored screws on each unit. The common terminal (usually marked or black) receives the black hot wire from the power source on one side and the black return wire to the fixture on the other. Always label wires before disassembling existing circuits to avoid confusion during reassembly.
If integrating a dimmer or occupancy sensor, consult the manufacturer’s guide for specific terminal assignments. Some devices require dedicated neutral connections, while others operate without them. Check for compatibility with LED bulbs–many modern controls need UL-listed lamps to prevent flickering or premature failure.
Schematic Layouts for Illumination Controls
Begin by identifying the circuit type before connecting any conductors. Single-pole setups require two brass terminals, while three-way variants need a common terminal (typically darker) plus two travelers. Verify the voltage rating of the control–most residential variants handle 120V, but some commercial models support 277V. Always confirm with a multimeter if labels are unclear.
For standard on-off configurations, connect the hot conductor (black or red) to the brass screw and the neutral (white) to the silver terminal if the device includes a neutral connection. Grounding is non-negotiable: attach the bare or green wire to the green screw or box ground. Skip this step only in pre-1960s installations, where grounding may not exist, and consult building codes for retrofitting requirements.
Three-way circuits demand precise traveler placement. The common terminal on one device connects to the hot or load wire, while the other two terminals link to the travelers. Miswiring here creates flickering or erratic behavior. Use colored tape or markers to label travelers during installation to avoid confusion. For four-way setups, ensure the travelers pass through the device without termination–four-way variants only redirect current.
Dimmers introduce additional considerations. Leading-edge dimmers work with incandescent fixtures but may cause humming in LEDs. Trailing-edge dimmers suit LEDs better but require compatible lamps. Check the manufacturer’s compatibility list before purchasing. Install dimmers by connecting the hot wire to the single brass terminal (some have two for multi-location control) and the load to the second terminal if present. Never exceed the wattage rating–overloading causes overheating.
Smart controls (Wi-Fi, Z-Wave, or Zigbee) often need a neutral wire for constant power. If the box lacks a neutral, consider a bypass module or rewire the circuit. Follow the manufacturer’s pairing instructions precisely–some devices require a hub, while others connect directly to a smartphone. Test automations before finalizing wall plates; latency or unresponsiveness usually indicates interference from thick walls or competing wireless signals.
Common mistakes to avoid:
- Mixing up traveler and common terminals in multi-location setups.
- Overlooking grounding in metal boxes–always bond to the box first, then the device.
- Using backstabs instead of side terminals–backstabs loosen over time.
- Ignoring wire gauge–14 AWG for 15A circuits, 12 AWG for 20A.
- Assuming all dimmers support fans–fans require specific fan-rated controls.
For complex setups like combination outlets, prioritize separating circuits. Use a pigtail to connect the hot wire to both the outlet and the control if needed. Avoid daisy-chaining multiple devices–this violates code in most jurisdictions and creates voltage drop. When in doubt, split the circuit at the panel for clarity and safety.
Decoding Circuit Layouts for Illumination Controls
Identify the power source first–look for thick horizontal lines marking the live feed entering the setup. These lines often terminate at a junction box or terminal strip, where branching occurs. Trace each path: one leads to the control mechanism, another to the fixture, and the third may loop back as a neutral return. If a grounding symbol (⏚ or bare conductor notation) appears, connect it to the metal frame or designated ground point; neglecting this creates hazards.
Symbols vary but follow consistent logic. A toggle control shows as a rectangle with a diagonal slash for single-pole configurations, while three-way setups use two linked switches with traveler wires marked T1/T2. Color-coding rules apply: red for switched legs, black for constant hot, white for neutral. Deviations indicate errors–double-check splices if yellow or green appears unexpectedly. For dimmer modules, look for a wavy line inside the rectangle to denote variable resistance.
Verify each connection point against the physical layout. Terminal screws labeled COMMON, LINE, and LOAD must match their diagram counterparts. Misalignment risks overload–strip no more than 6mm of insulation on copper conductors, twist strands clockwise before securing. Test continuity with a multimeter before energizing; probe voltage across line and neutral. If readings exceed 230V in a 220V system, isolate and recheck pathways.

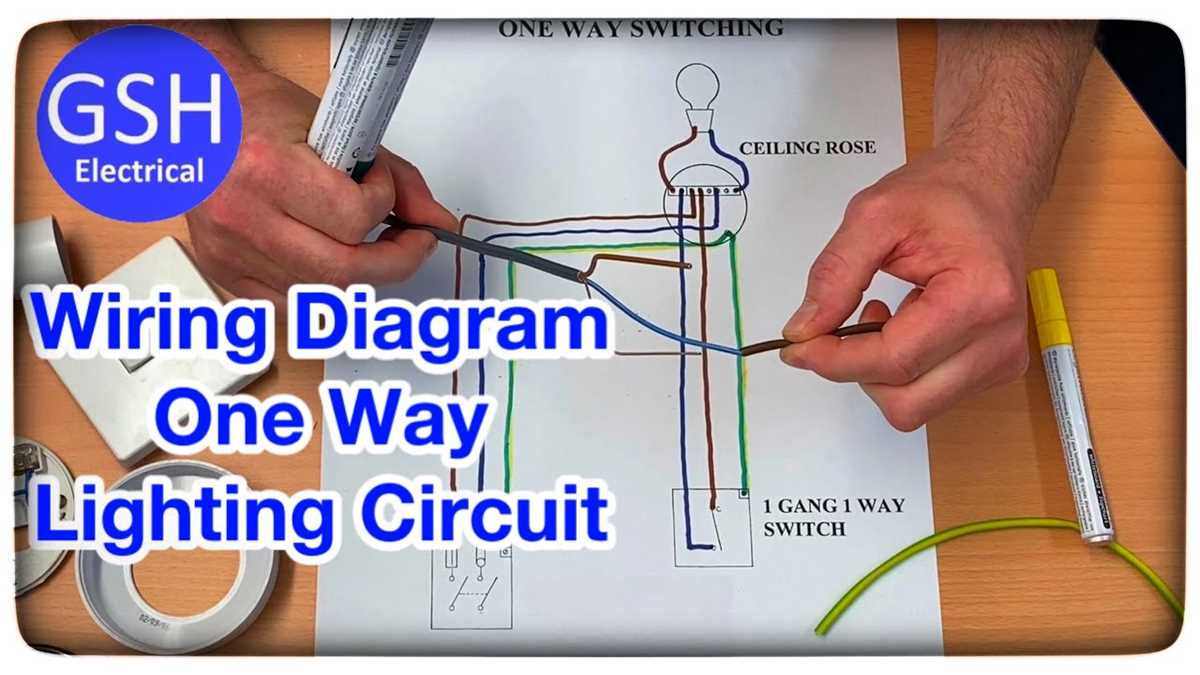

Step-by-Step Guide to Installing a Basic Wall Control
Cut power at the circuit breaker before touching any conductors. Confirm the circuit is dead using a non-contact voltage tester–hold it near terminals; no beep or light means safe to proceed. Strip 8–10 mm of insulation from each wire with wire strippers, exposing clean copper. Twist strands tightly to prevent fraying.
Connecting Conductors
| Wire Color | Terminal | Action |
|---|---|---|
| Black (hot) | Brass screw | Loop wire clockwise under screw, tighten securely |
| White (neutral) | N/A | Cap with wire nut, tuck into box |
| Green/bare (ground) | Green screw | Attach to switch frame or ground wire in box |
Align the control mechanism with the wall box, pressing until it sits flush. Secure with two mounting screws, ensuring no gaps larger than 1 mm. Snap on the cover plate–verify it’s level. Restore power at the breaker; test by toggling the switch. If the fixture doesn’t illuminate, re-check connections for loose loops or missing ground.

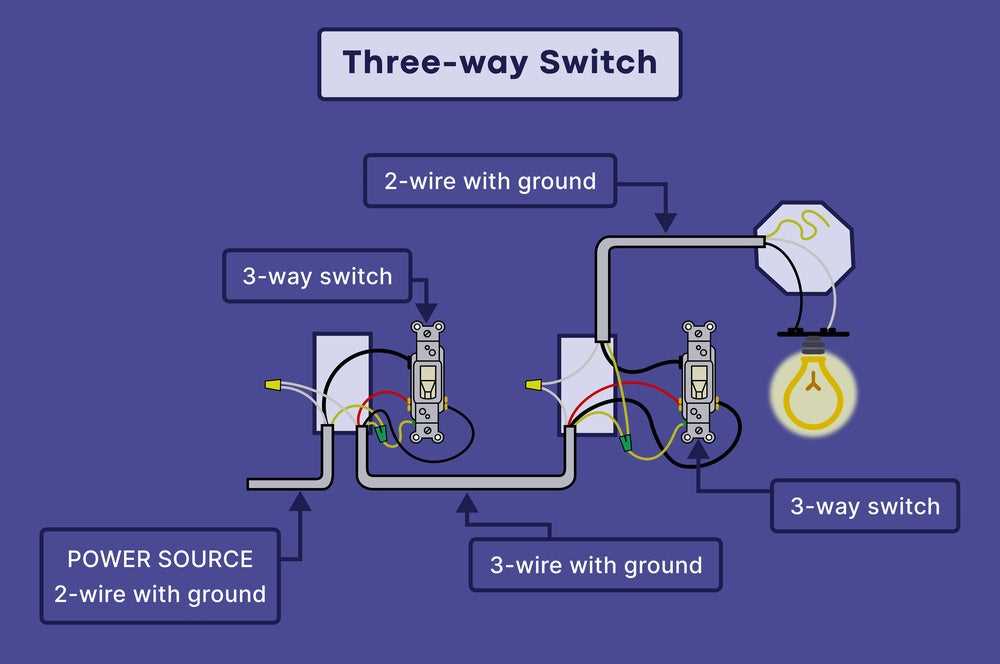

Connecting a Dual-Location Control: Schematic and Terminations
Disconnect power at the circuit breaker before handling any conductors. Verify absence of voltage with a non-contact tester on all cables entering the junction boxes.
Identify the three conductors in each cable: common (dark screw), travelers (brass screws), and ground (green or bare). Match conductor colors consistently between both controls–red to red, black to black, white (if used as a traveler) to white.
At the first control, attach the incoming hot conductor to the dark screw. Connect the load conductor (to the fixture) to the dark screw of the second control. Join both controls’ ground conductors to the box grounding terminal and fixture ground.
Link the traveler conductors between the brass screws of both controls. If the fixture cable enters the second box, use a short jumper to bridge one traveler terminal to the load side’s dark screw–this maintains continuity when the circuit is toggled.
- For installations with neutral present: twist all whites together inside both boxes (neutral pigtail not required).
- For older setups using switch loops: repurpose the white conductor as a traveler and mark both ends with black tape.
Secure all terminations with wire nuts or lever connectors, ensuring no exposed copper extends beyond the insulator. Fold conductors neatly into boxes without pinching against edges.
Restore power and validate operation: toggling either control must alternate the fixture state without flickering or intermittent cutoff. If flickering occurs, recheck traveler connections for loose strands or reversed polarity.
Reinstall cover plates and label each box with the controlled fixture for future reference.
Spotting Frequent Errors in Fixture Control Circuit Hookups
Connecting the neutral conductor to the control terminal instead of the common side creates a direct short when toggled, often tripping breakers instantly. Verify loop continuity with a multimeter before energizing: the common pole should show continuity with only one traveler at a time, never both. Factory-labeled terminals occasionally mismatch actual function; confirm with a probe rather than relying solely on markings.
Skipping the grounding lug on metal junction boxes invites unintended voltage paths during insulation failure. Use a crimp connector rated for the conductor gauge rather than twist-and-tape splices, which degrade over thermal cycles. Double-check strain relief on all cable entries–loose clamps permit conductor pullout under normal wall vibration, risking intermittent opens.
Standard three-way toggles demand polarized travelers; swapping L1/L2 positions reverses operational logic without warning. Mounting screws driven into adjacent stud cavities can sever cable sheaths–mark knockout locations on drywall with a stud finder prior to installation. Verify torque specs on terminal screws; over-tightening strips threads on aluminum conductors, while under-tightening raises junction resistance.
Automated dimmers require correct load type matching–mistakenly pairing with motorized shades or LED strips burns internal circuitry within hours. Replace backstab terminals with side clamps; spring-loaded connectors relax grip over time, causing heat buildup at loose connections. Document all alterations with dated photographs; forgotten deviations from standard schematics complicate troubleshooting years later.
