Begin by memorizing standard symbols for resistors, batteries, switches, and lamps–each has a precise shape that eliminates ambiguity. A zigzag line denotes a fixed resistor, while a straight line with a perpendicular break marks an open switch. Misidentifying these will lead to incorrect calculations of current or voltage, so verify every component before proceeding.
Use Kirchhoff’s laws as a foundation: the sum of voltages in a closed loop equals zero, and current entering a junction equals current exiting. Apply this to schematics containing series and parallel branches–mistakes here typically stem from overlooking a resistor’s position or misapplying Ohm’s Law (V=IR). Label each segment of the diagram with calculated values to track errors before they compound.
For circuits with multiple power sources, redraw the schematic with one source active at a time using the superposition theorem. Reverse the polarity of inactive sources (replacing batteries with short circuits) to isolate effects. This reveals hidden currents in complex networks, such as those with both LDRs and variable resistors, where voltage dividers behave unpredictably unless broken down step-by-step.
Practice with timed exercises–the exam limits you to 60 seconds per mark. Start with a blank sheet of paper and reconstruct schematic layouts from memory, focusing on accuracy over speed. Common pitfalls include overlooking the internal resistance of ammeters (treated as negligible) or misplacing the direction of conventional current flow. Arrows should align with the positive terminal of the source.
Verify your work using a multimeter in real-world setups. Connect probes across components to confirm voltages match your calculations–discrepancies often expose incorrect assumptions about resistance or unintended parallel paths. For high-stakes revisions, solve past exam papers where schematics include non-standard elements like diodes or capacitors, ensuring you adapt methods flexibly without relying on rote symbol recall.
Mastering Schematic Representations in Electricity Studies
Begin by memorizing standard symbols for components: a straight line represents a wire, a zigzag denotes resistance, and parallel lines with unequal lengths signify batteries. Use a ruler for precise connections–crooked paths confuse interpretation. Label every element with its value (ohms, volts, amps) to avoid ambiguity during calculations. A 10Ω resistor requires a clear “10Ω” note; omitting this risks misreading during exams.
Design flow logically: arrange power sources at the top, outputs at the bottom. Avoid crossing wires–use “bridge” dots only when unavoidable. Group related parts (e.g., series resistors) with consistent spacing; irregular gaps mislead current direction assumptions. Test your layout by tracing paths manually–skipped segments indicate errors. Common mistakes include missing switches or misplacing ammeters (series) versus voltmeters (parallel).
Key Symbols and Their Pitfalls
LDRs (light-dependent components) look identical to thermistors but serve opposite functions–label them explicitly. Capacitors store charge; polarised types (marked with “+”) must face the correct polarity. Misalignment here damages components if built physically. Fuses appear as a resistor with a line through them–confusing them with normal resistors leads to safety oversights. Draw diodes with arrows pointing opposite the current flow (anode to cathode).
Practice sketching from memory weekly. Start with simple configurations: a battery, lamp, switch. Gradually add complexity–parallel branches, variable resistances. Time yourself: proficient students complete a two-loop schematic in under 90 seconds with 100% accuracy. Verify with a multimeter if translating to physical builds–voltages should match theoretical predictions within 5% tolerance. Failed readings often stem from reversed polarities or overlooked breaks.

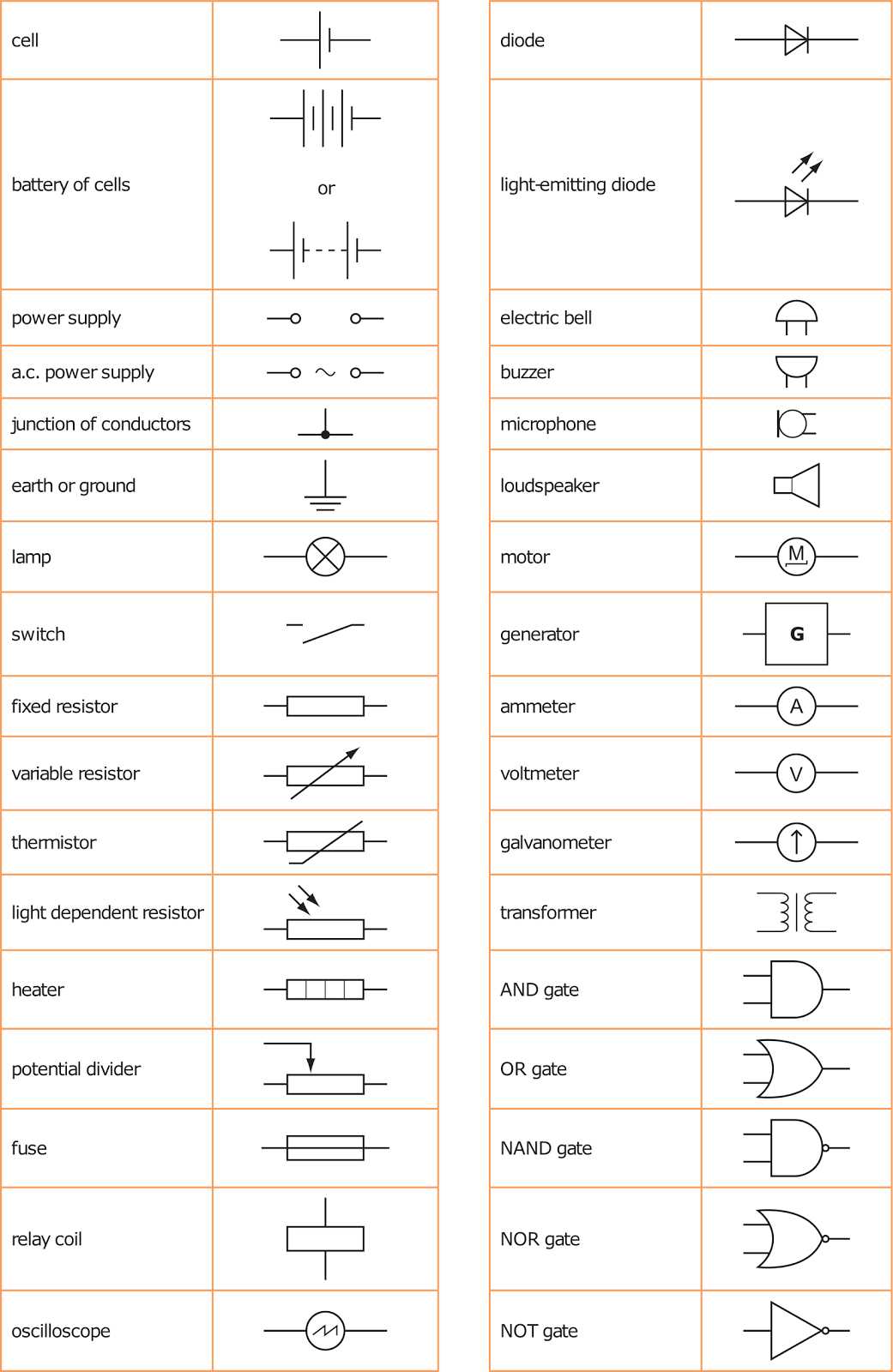

Mastering Standard Electrical Layout Symbols for Key Parts
Begin with the battery symbol: draw two parallel lines–one shorter than the other–aligned vertically. The longer line represents the positive terminal, crucial for indicating polarity. Keep spacing consistent, roughly 5mm between lines, to avoid confusion with resistors.
For resistors, sketch a zigzag line with three peaks and two valleys. Maintain sharp angles rather than curves to distinguish them from diodes. Standard length should span 20mm for clarity in complex schematics.
Tackling Switches and Indicators
Depict a switch as a diagonal break in a straight conductor, with an optional movable contact line angled at 45 degrees. Label momentary (push) switches with an arrow or circle at the pivot point to show temporary action.
LED symbols combine two elements: a triangle pointing right with a vertical line at its tip, and two parallel arrows radiating outward. The triangle base should face the cathode (shorter lead). Always mark polarity.
Capacitors require two parallel lines with one curved line for electrolytic types. Non-polarized versions use straight lines. For variable capacitors, add an arrow across the plates. Plate spacing: 3mm minimum.
Precision in Semiconductors
Transistor symbols start with a central line for the base. Bipolar junction types (NPN/PNP) add two diagonal lines at 60 degrees pointing toward or away from the base. Field-effect variants use a perpendicular line from the center with three connection points.
Diodes follow a triangle-and-line format, with the triangle pointing in the direction of conventional current flow. Zener diodes add a second perpendicular line at the triangle’s base. Ensure the triangle fits within a 10mm square for consistency.
Integrate fuses as a straight line interrupted by a narrow rectangle. Add the letter “F” or rating (e.g., “5A”) above for immediate recognition. Keep the interruption gap under 2mm to avoid misreading as an open connection.
Use straight, perpendicular lines for conductors, never angles under 30 degrees. Cross wires without connections show a bridge (half-circle jump); connected wires merge at a T-junction. Limit line thickness to 0.5mm for professional schematics.
Constructing Basic Electronic Configurations: A Practical Walkthrough
Begin by identifying the power source on your schematic–note its voltage (e.g., 9V battery) and mark its positive and negative terminals. For a sequential setup, connect the first component’s anode directly to the battery’s cathode, then link the cathode of the first part to the anode of the next; continue until the final part loops back to ground. Measure each link with a multimeter to confirm zero resistance between junctions. If resistance exceeds 0.5Ω, recheck solder joints or connector tightness. Parallel layouts require splitting the main feed wire into equal branches–each branch attaches to one component’s terminals before reuniting at the opposite pole. Use identical gauge wire for each branch to prevent uneven current distribution.
Component-Specific Adjustments
LEDs demand a current-limiting resistor (330Ω for 5V, 470Ω for 9V) in series to avoid burnout–place it immediately after the anode. For resistors arranged in parallel, calculate equivalent resistance using the formula Req = (R1 × R2) / (R1 + R2); verify with a multimeter by probing each branch. Switches should interrupt the line feeding the load, not the return path. When combining both setups, draw a ladder-like sketch first: vertical lines represent shared paths, horizontal lines connect individual elements. Label each wire’s purpose (e.g., “Input +9V”, “Ground”) to streamline troubleshooting.

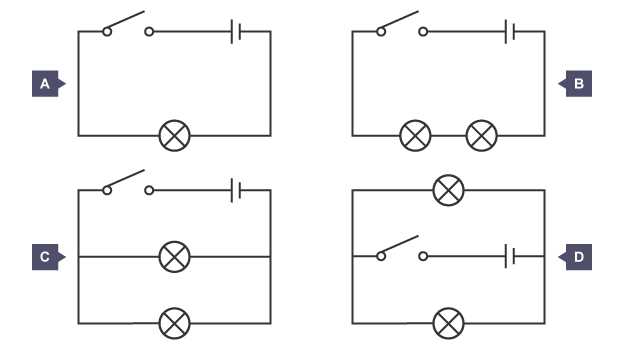

Key Differences Between Closed-Loop Setups: Series vs. Parallel with Practical Uses
Connect components end-to-end in a single path for a series configuration. Voltage divides across each element while current remains identical throughout–critical for applications requiring uniform current flow. Holiday light strings often use this layout: if one bulb fails, the entire chain goes dark due to the broken path. Manufacturers add shunts to bypass failed bulbs, maintaining operation but complicating repairs. Series setups excel where low component count and simplicity matter, like in simple alarms or voltage dividers in sensors.
Parallel arrangements split the flow into branches, letting each path operate independently. Voltage stays constant across all elements, while current divides inversely to each branch’s resistance. Modern household wiring relies on this principle–each outlet runs on the same voltage, allowing appliances to function without affecting others. A blown fuse in one branch leaves the rest untouched, unlike series setups. Automotive dashboards use parallel paths for multiple indicators, ensuring one failure doesn’t disable the entire system.
Performance Comparison
| Attribute | Series Path | Parallel Path |
|---|---|---|
| Voltage Distribution | Splits across components | Equal across branches |
| Current Flow | Constant through all elements | Divides by branch resistance |
| Failure Impact | Entire chain fails | Only affected branch fails |
| Resistance Total | Sum of individual resistances | Inverse sum of inverses (Rtotal = 1/Σ(1/R)) |
For scaling power distribution, parallel layouts outperform series. Data centers wire servers in parallel to prevent cascading outages–each server draws power independently. Series configurations, however, dominate battery packs in devices like flashlights, where simplicity and compact design outweigh redundancy needs. Battery-operated tools often stack cells in series to boost voltage while maintaining manageable currents. Mix both approaches cautiously: a miswired hybrid can create short paths or voltage imbalances, risking overheating or permanent damage.
Select series for cascading effects where sequential operation is non-negotiable, like old-school telephone switchboards. Opt for parallel when redundancy, isolation, or consistent voltage are priorities. Test each configuration’s behavior under load: measure voltage drops in series and current splits in parallel using a multimeter. Weak connections in series disproportionately reduce performance, while parallel branches with mismatched resistances can starve lower-resistance paths of current. Balance theoretical advantages with real-world constraints–power line workers, for instance, prefer parallel for safety but series for simplicity in long-distance rural lighting.
Debugging Common Issues
