Start with a simple series configuration for resistors when testing basic continuity or voltage division. Three components in line–1kΩ, 2.7kΩ, and 470Ω–will demonstrate predictable voltage drops: ~9V, ~6V, and ~2V respectively at 12V input. Use thick traces (minimum 0.5mm) for power rails to handle currents above 500mA without overheating. Avoid right angles in conductive paths; 45-degree bends reduce electromagnetic interference by up to 15% in high-frequency designs.
For parallel branches, ensure each path has a dedicated return to the power source–not a shared ground stub. A four-resistor array (100Ω, 220Ω, 560Ω, 1kΩ) connected this way will split current as 10mA, 4.5mA, 1.8mA, and 1mA with a 5V supply. Label every net with clear identifiers (e.g., VCC_IN, GND_SENSE, CLK_2MHz) and place them near the first node they connect to, not centered on the trace.
Switching regulators require specific component spacing. Keep the inductor within 10mm of the IC, and position input/output capacitors (10µF, 25V X7R) directly between the IC pins and the nearest ground plane. For a buck converter at 300kHz, a 4.7µH shielded inductor reduces radiated noise by 20dB compared to an unshielded type. Always add a 10kΩ pull-down on enable pins to prevent floating states during power-up.
Use hierarchical blocks for complex designs–group analog sensors, digital logic, and power stages separately. Top-level connections should use off-page connectors with consistent naming (e.g., ANALOG_SENSE_1). Test points must be 1mm diameter pads with 2mm clearance; place them at critical nodes (inductor terminals, feedback lines) for probe access without shorting adjacent components. For microcontroller projects, route reset lines away from high-speed clocks to avoid unintended resets.
Ground planes should cover at least 70% of the board’s back layer, but split them where analog and digital domains meet. Stitch these sections together with a single via or ferrite bead–never a direct trace–to prevent ground loops. For USB 2.0 traces, maintain 90Ω differential impedance with 0.15mm width and 0.2mm spacing; deviations above ±10% cause packet loss at 480Mbps.
Key Schematics for Practical Wiring Layouts
Start with a parallel connection layout for household lighting to ensure consistent voltage across all bulbs, regardless of quantity. A 120V AC input split into three branches–each with a 40W LED–requires 18-gauge wire for current loads under 5A. Include a double-pole switch rated for 15A to isolate both live and neutral lines safely. For short runs under 50 feet, use NM-B cable; beyond that, switch to THHN in conduit to reduce voltage drop to under 3%. Label each branch with the expected current draw to simplify troubleshooting later.
Serial arrangements work best for low-power sensor chains where minimal current draw is critical. A 5V DC path powering three 20mA PIR motion detectors in series maintains uniform sensitivity but requires precise resistor selection–use 150Ω for each sensor to limit total current to 60mA. Avoid daisy-chaining more than five devices; cumulative resistance causes signal degradation. Test impedance at each node with a multimeter set to 200Ω range–readings should deviate by no more than 5% from theoretical values.
For power distribution, a radial bus design minimizes faults by isolating each load. A 24V DC supply feeding four 3A motors should use 12-gauge wire with separate fuses–10A for motors, 2A for control circuits. Position the bus bar centrally to keep wire runs under 10 feet and reduce electromagnetic interference. Verify grounding continuity with a megohmmeter; resistance should read below 0.1Ω between the bus and the main earth terminal.
First Steps in Sketching Simple Current Paths

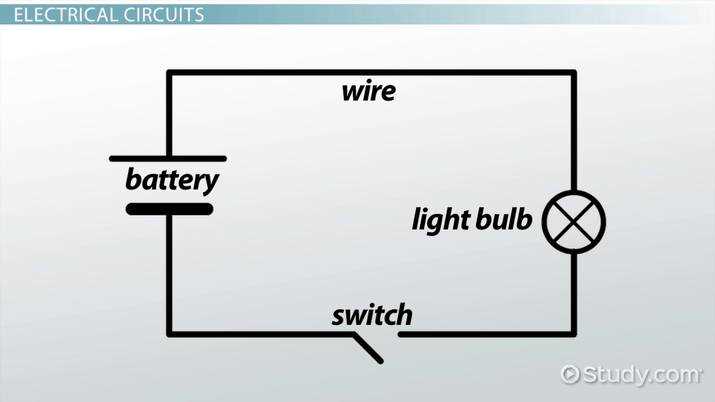

Begin with a single power source–draw a straight line from its positive terminal to the first component. Each element in a closed-loop sequence must share the same conductor; label values (e.g., 470Ω resistor, 5V LED) directly beneath the symbol. If voltage drops exceed the supply, recalculate: a 9V battery won’t illuminate three 2V LEDs in unbroken succession.
For branched layouts, connect each path directly to the battery terminals–no daisy chaining. Use junction dots where conductors split; omit them where lines cross without connecting. Measure resistance: a single 1kΩ branch draws more current than two 2kΩ branches joined in parallel. Verify total current flow with Ohm’s law: I = V/R, adding branch currents for total supply amperage.
Test every sketch with a multimeter. A 12V source feeding two identical bulbs wired end-to-end dims evenly; separated branches glow brighter. If brightness varies, inspect connections–loose contacts mimic series resistance.
Keep traces short, avoid right angles, and mark polarity on electrolytic capacitors; reverse voltage destroys them instantly. Always add a fuse sized at 125% of expected current–a 200mA fuse guards a 150mA path.
Schematics for Controlling Illumination Using Varied Supply Methods
Begin with a dual-source setup when powering lights from both mains and batteries. Use a single-pole double-throw (SPDT) relay to switch between sources without manual intervention. Connect the mains input to the relay’s common terminal, battery positive to the normally open (NO) contact, and the light’s positive lead to the normally closed (NC) contact. This ensures seamless transition if mains power fails–critical for emergency exit lighting.
For low-voltage DC systems (e.g., 12V solar arrays), incorporate a blocking diode between the battery and light to prevent reverse current during discharge. Place a 1N4007 diode in series with the positive line, cathode facing the load. Pair this with a 10µF capacitor across the light’s terminals to smooth voltage spikes from intermittent sources like wind turbines. Test under full load; ripple exceeding 0.5V indicates insufficient capacitance.
Remote switching needs opto-isolation to protect control signals. Use a PC817 optocoupler between a 5V logic output (e.g., Arduino) and a 240VAC relay. Wire the optocoupler’s LED side to the control signal with a 330Ω series resistor, and connect the transistor side to the relay coil with a flyback diode (1N4001) across the coil. This isolates low-voltage circuits from high-voltage hazards while allowing pulse-width modulation for dimming.
| Component | Voltage Rating | Current Handling | Notes |
|---|---|---|---|
| SPDT Relay (Omron G5LE) | 250VAC/30VDC | 10A | Coil voltage must match control signal (5V/12V) |
| Blocking Diode (1N4007) | 1000V | 1A | Max reverse leakage: 5µA at 800V |
| Optocoupler (PC817) | 70V (output) | 50mA | CTR: 50-600% at 5mA input |
Automotive applications (e.g., 12V lighting in RVs) require.current-limiting resistors for LED clusters. Calculate resistor value as R = (Vsource – VLED) / ILED. For a 12V source and 3x 3.2V LEDs in series at 20mA: R = (12 – 9.6) / 0.02 = 120Ω. Use a 130Ω resistor (next standard value) with 0.5W power rating to avoid overheating. Bypass long wire runs (>3m) with a 0.1µF capacitor at the LED terminals to suppress radio interference.
Inverter-fed systems (e.g., off-grid solar) benefit from voltage sensing circuits. Deploy a TL431 programmable shunt regulator as a comparator. Configure it to trigger an SCR (e.g., MCR100-6) when battery voltage drops below 11.8V, diverting power from lights to critical loads. The TL431’s reference voltage should be set using a 10kΩ potentiometer: Vref = 2.5V × (1 + R1/R2), where R2 is the potentiometer’s resistance.
Multi-room lighting with centralized control demands wiring gauges appropriate to load. Use the following table to select wire size based on run length and total wattage:
| Wattage (at 120VAC) | <10m | 10-25m | 25-50m |
|---|---|---|---|
| ≤200W | 18 AWG | 16 AWG | 14 AWG |
| 201-400W | 16 AWG | 14 AWG | 12 AWG |
| >400W | 14 AWG | 12 AWG | 10 AWG |
Safety-critical installations (e.g., hospitals) must include fail-safe mechanisms. Wire two relays in series for redundancy–both must switch off simultaneously to cut power. Use mechanically linked contacts for AC loads >10A to prevent arcing. Test monthly by simulating control signal failure; relays should default to a safe (off) state within 50ms.
For AC/DC hybrid systems (e.g., 12V DC backup to 230VAC mains), add a synchronous rectifier using IRF3205 MOSFETs. Drive the gate with a 12V PWM signal (e.g., 10kHz) to minimize switching losses. Insert a 0.01Ω current shunt in series with the load to monitor power draw via an INA219 sensor–this enables real-time power source optimization. Calibrate the shunt’s output by comparing against a true RMS multimeter; errors >2% require recalibration.
Creating a Schematic for a Basic Smart Home Setup
Start by outlining the key components on paper: a microcontroller (e.g., ESP32 or Arduino), relay modules (5V or 12V), sensors (PIR, DHT11, or LDR), and load devices (LEDs, bulbs, or small motors). Sketch connections first–avoid digital tools initially–to clarify component relationships. Label each element with its voltage rating and pin assignments.
- Power source: Use a regulated 5V USB adapter or 12V DC supply for stability.
- Microcontroller: Dedicate GPIO pins (e.g., GPIO4 for DHT11, GPIO5 for relays).
- Relays: Connect the coil to the microcontroller via a transistor (e.g., 2N2222) for current protection.
Place the microcontroller centrally in the layout. Route sensor wires radially outward to minimize interference. For high-current loads (e.g., 10W bulbs), position relays closer to the power source to reduce voltage drops. Use thicker traces (2mm+) for these paths.
Add a pull-down resistor (10kΩ) to sensor inputs to prevent floating signals. For analog sensors (LDR), include a voltage divider (e.g., 10kΩ resistor + LDR) to scale readings to 0–3.3V. Mark ground connections clearly–merge all grounds at a single point to avoid ground loops.
Test each sub-system separately before integrating:
- Verify sensor readings with a multimeter.
- Check relay switching with a logic probe.
- Measure load voltages under expected conditions.
Use color-coded wires (red for power, black for ground, yellow for signals) to simplify troubleshooting. For wireless modules (Wi-Fi/Bluetooth), add decoupling capacitors (0.1µF) near VCC pins to filter noise. Keep antenna traces short and away from other traces.
Include an emergency cutoff switch (SPST) in series with the main power line. For safety, fuse the input at 1A–2A depending on total current draw. Document component values directly on the schematic (e.g., “R1: 220Ω,” “C1: 470µF”)–avoid relying on external notes.
Finalize the layout by mirroring physical placements. Group related components (e.g., sensors on one side, relays on another) to reduce wire crossings. Export the sketch as a vector file (SVG) for scalability, or photograph it in good lighting if using paper.
