Build this pulse tracker using four edge-triggered T-type flip-flops chained in descending order–Q₃ to the clock input of Q₂, Q₂ to Q₁, and Q₁ to Q₀–with all T inputs tied high. Connect the clock signal to the first stage’s trigger pin. This arrangement divides the input frequency by 16, producing a clean sawtooth wave at Q₃ if monitored with a 10 MHz scope at 200 mV/div.
Add a NAND gate (74HC00) across Q₂ and Q₃ outputs to create a synchronous reset at count 12, repurposing the tracker as a modulo-12 divider. Wire the gate’s output to the clear pins of all stages via 1 kΩ series resistors; this ensures glitch-free clearing within 15 ns under 5 V supply.
For fault detection, insert LEDs at each stage–red for Q₀ to Q₂, green for Q₃–through 470 Ω current-limiting resistors. A stuck LED at any stage flags a defective flip-flop or broken trace; replace the suspect chip if the LED remains on after three consecutive input pulses.
Supply 4.5–5.5 V via a linear regulator (LM7805) with a 10 μF tantalum capacitor on both input and output sides. Avoid switching converters; they introduce 100 mV ripple that misfires the flip-flops in noisy environments. Test stability by ramping the supply from 4.5 V to 5.5 V at 0.1 V/s–output jitter should not exceed 1.2 ns peak-to-peak.
Route all traces on a two-layer board with 0.2 mm minimum width. Keep clock lines under 3 cm total length; exceeding this triggers false counts from reflections. Ground planes should cover 100 % of the bottom layer; stitch vias every 1.5 cm along the perimeter to reduce inductance below 0.8 nH.
Designing a 4-Flip Sequential Pulse Tracker

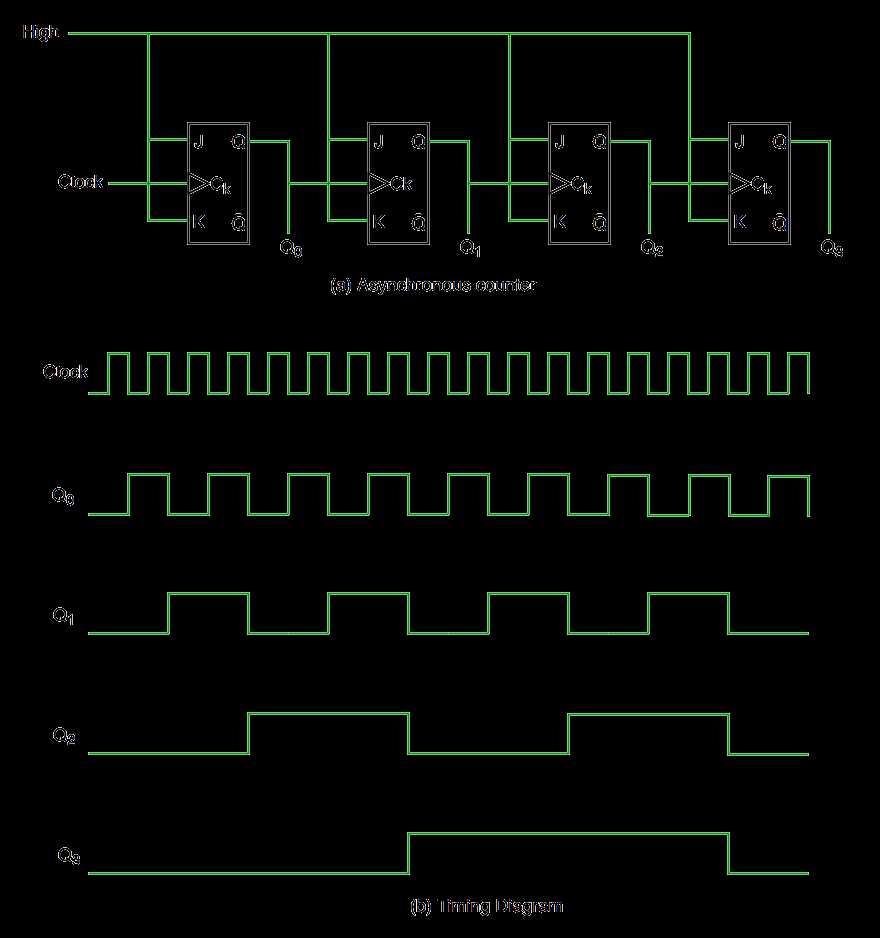

Use edge-triggered T-flip components for each stage to ensure stable state transitions. Connect the Q output of the first flip to the clock input of the second, cascading this pattern through all four elements. This rippling effect produces a binary progression from 0000 to 1111, with each pulse triggering the next stage only after the previous completes its cycle.
Power the arrangement with a 5V supply, grounding the reset pins collectively to prevent unintended clear operations. For reliable operation, add a 100nF decoupling capacitor near the power input of each flip component to filter noise that could disrupt transitions.
Key Wiring Considerations
Route signal traces between stages with minimal length to reduce propagation delays and crosstalk. Use 22-gauge solid-core wire for clock and output connections, avoiding sharp bends that could degrade signal integrity. Verify each connection with a multimeter in continuity mode before applying power.
Test functionality by applying a 1Hz square wave to the initial stage’s clock input–observe outputs with LED indicators or a logic analyzer. Expected behavior: sequential illumination of outputs matching binary counting. If irregular stepping occurs, isolate and inspect each stage for faulty components or improper connections.
Optimize performance by replacing generic flip elements with 74LS112 chips, which include built-in preset and clear functions for rapid initialization. Ensure the clock signal maintains a clean rising edge; slow rise times can cause metastability in downstream stages.
Document the final arrangement with labeled nodes for future reference. Note propagation delays (typically 20-30ns per stage) to predict total latency in timing-critical applications. For extended ranges, consider adding a fifth stage–follow the same cascading principle without modification.
Key Components Required for a 4-Step Sequential Pulse Tracker
Select T flip-flops with clear or preset inputs to handle toggle operations. Use the 74LS73 or SN74HC112 logic families for reliable edge-triggered toggling. Ensure each stage triggers only on the falling edge of the prior output to prevent race conditions. Verify propagation delays–target under 20 ns per flip-flop to maintain coherence across all four stages.
Timing Signal Distribution
Implement a passive RC network or Schmitt trigger inverter (e.g., 74HC14) at the clock input to debounce mechanical switches or noisy signals. Position a pull-down resistor (10 kΩ) at the input to avoid floating states. For crystal oscillators, pair with a 32.768 kHz tuning fork resonator and a 74HCU04 buffer for stable pulse train distribution.
Incorporate AND-OR gates (74HC58) to decode specific states–e.g., detect all outputs high via a 4-input AND gate. Include pull-up resistors (4.7 kΩ) on decoded outputs for LED indicators. For reset functionality, wire a momentary SPST switch to the master reset pins of all flip-flops, ensuring synchronous fallback to zero.
Power and Ground Isolation
Decouple each flip-flop with a 0.1 µF ceramic capacitor between VCC and GND, placed within 2 mm of the IC pins. Use a separate ground plane for clock signals to minimize crosstalk. For battery-operated setups, regulate voltage with an LM317 or AMS1117-5.0, filtering with a 100 µF electrolytic capacitor at the input and a 10 µF tantalum capacitor at the output.
Add clamp diodes (1N4148) across inductive loads if driving relays or solenoids. Calculate current draw assuming 8 mA per flip-flop output and size traces for 500 mA total; use 1 oz copper with 0.5 mm width for signal paths. Label all connections on PCB silkscreen to simplify troubleshooting.
Step-by-Step Wiring of Flip-Flops in the Sequence Logic Layout
Begin by connecting the clock input to the first toggle stage’s trigger pin. Use a pull-down resistor (10 kΩ) on the clock line to prevent floating states. Power the stages sequentially–VCC to the collector of each transistor in the chain, ensuring the emitter ties to ground through a 1 kΩ resistor. Verify the logic levels at each node with a multimeter before proceeding.
Wire the complementary outputs of each stage to the next stage’s input. For a 4-stage progression, link Q1 to the trigger of the second stage, Q2 to the third, and so on. Maintain strict polarity: inverted outputs (Q̄) connect to downstream triggers only if the design requires negative-edge triggering. Cross-reference the pinout:
| Stage | Output | Next Input | Resistor Value |
|---|---|---|---|
| 1 | Q1 | Trigger2 | 4.7 kΩ |
| 2 | Q2 | Trigger3 | 4.7 kΩ |
| 3 | Q3 | Trigger4 | 4.7 kΩ |
Avoid branching wires directly from intermediate nodes–use a buffer gate (e.g., 74LS04) if fan-out exceeds the stage’s drive capacity. Capacitors (0.1 µF) between VCC and ground at each stage suppress noise spikes. For reliable toggling, ensure the clock pulse width exceeds the propagation delay of the slowest stage (typically 20–50 ns for standard TTL).
Test each junction by applying a single pulse to the clock input. Monitor the outputs with an LED (series resistor: 330 Ω) or logic probe. If a stage fails to toggle, check for cold solder joints, reversed diodes, or incorrect resistor values. Replace any components showing thermal discoloration–excessive heat indicates a miswired path.
For reset functionality, tie all clear pins to a common line with a pushbutton to ground. A 1 µF debounce capacitor across the button prevents erratic resets. When cascading additional stages, calculate the cumulative delay–propagation times stack linearly (e.g., four stages × 30 ns = 120 ns worst-case latency).
Document the wiring sequence before powering the assembly. Label each node with tape or silkscreen to trace faults quickly. If the progression miscounts, isolate stages by removing the feedback wires one at a time. Correct any drift in output voltage–ideal levels are 4.5–5 V for high, 0–0.5 V for low.
Waveform Analysis of Output States in the Sequential Progression
To accurately interpret the signal transitions in a 4-stage ripple progression, capture the timing relationship between adjacent flip-flops using a dual-channel oscilloscope with at least 100 MHz bandwidth. Trigger the primary channel on the first stage’s clock edge while measuring each subsequent output with the secondary channel. Record propagation delays (typically 10–30 ns per stage in 74HC193-based designs) and verify that the cumulative delay does not exceed the clock period–failure to do so risks metastability in downstream logic. Use the oscilloscope’s persistence mode to overlay multiple cycles, identifying glitches that appear as transient spikes between valid states.
- Adjust the clock frequency in 1 kHz increments, observing that higher rates exacerbate phase skew between outputs, particularly in stages 3 and 4.
- For noise immunity, ensure all unused inputs are tied to VCC or ground via 10 kΩ pull-up/down resistors to prevent floating nodes.
- When probing, use 10x attenuating tips to avoid capacitive loading, which distorts waveforms in high-speed transitions.
- Cross-reference observed delays with manufacturer datasheets; deviations beyond ±5 ns warrant inspection for faulty connections or overheating components.
- In simulation tools like LTspice, model the exact flip-flop type (e.g., JK or D-type) and supply voltage (e.g., 5 V) to match real-world conditions.
Common Troubleshooting Issues in Ripple Sequence Devices
Check carry propagation delays first–if the final stage toggles slower than expected, skew exceeding 10-15 ns between adjacent stages typically indicates inadequate settling time. Measure each flip-flop’s Q output with an oscilloscope; spikes wider than 5 ns suggest missing decoupling capacitors near the IC power pins. Replace ceramic caps (0.1 µF) directly between VCC and GND of every chip to suppress transient voltage drops that corrupt transitions.
Stuck outputs at logic high or low often trace to improper reset conditions. Verify the active-low reset line pulses below 0.8 V for at least 20 ns–any shorter duration may leave the sequence in an indeterminate state. If using manual switches, add a 1 kΩ pull-down resistor and a 100 nF debounce capacitor to eliminate mechanical bounce. Unintended glitches on the clock line can also occur; replace push-button clocks with a 555 timer configured for 1 Hz output to isolate contact irregularities.
Signal Integrity and Loading Errors
Loading faults manifest as distorted waveforms or incorrect counts–confirm each output drives no more than ten standard TTL inputs (fan-out ≤ 10). Long traces (>10 cm) between stages require series termination (220 Ω resistors) to prevent reflections that mimic logic errors. If the sequence runs erratically at frequencies above 1 MHz, reduce the clock speed or swap standard 74LS flip-flops for faster 74AC variants, which tolerate shorter rise times (
