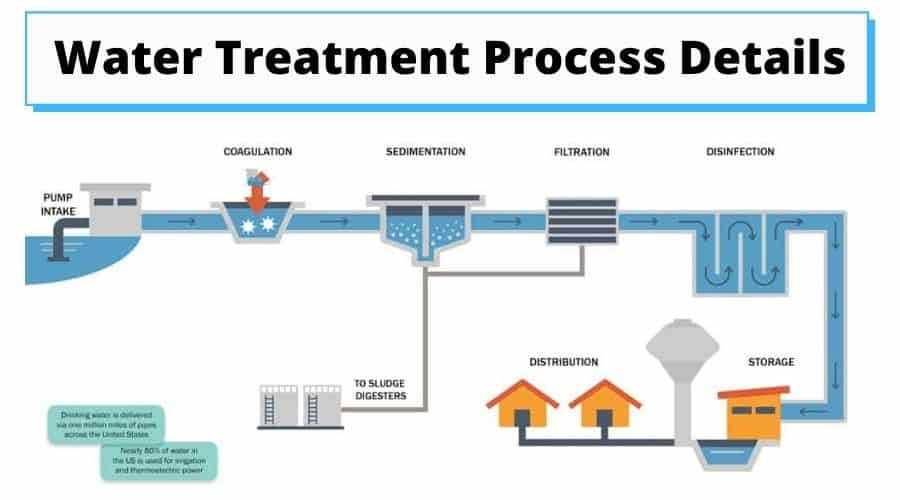

Begin by segmenting the process into four primary stages: intake, clarification, filtration, and disinfection. Allocate specific symbols for each operational unit–rectangles for storage basins, circles for chemical dosing points, and arrows to denote flow direction. Position the intake at the upper left, progressing horizontally before branching downward through sedimentation tanks, rapid sand filters, and chlorine contact chambers.
For preprocessing, mark a coarse screen at the intake point with 50 mm spacing, followed by a microstrainer of 25 µm mesh. Indicate flocculant injection (e.g., polyaluminium chloride at 10–20 mg/L) 10 meters downstream, ensuring a 30-minute retention time in the flocculation basin. Use dashed lines to separate parallel sedimentation lanes, each with a surface loading rate of 20–30 m³/m²/hr.
Detail filtration units with dual-media layers: anthracite (1.0–1.2 mm) over silica sand (0.5–0.8 mm), each 0.6 meters deep. Label backwash cycles at 15-minute intervals with a flow rate of 12–15 L/s/m². For disinfection, note a chlorine dosage of 1–2 mg/L, maintaining a 30-minute contact time in baffled channels. Include a bypass for emergency UV treatment, sized for 40 mJ/cm² intensity.
Specify pump capacities: raw inflow at 500 L/s, with backup units rated for 120% nominal load. Add instrumentation nodes–turbidity meters after each major stage (target:
Place safety features–overflow weirs with 50 mm freeboard, pressure relief valves on chemical feed lines, and redundant power feeds for critical pumps. Use color-coding: blue for treated streams, red for chemical inputs, green for control signals. Verify the layout aligns with AWWA B300-18 standards for spacing between units to allow maintenance access.
Creating a Visual Representation of a Purification Facility
Begin by segmenting the system into five core stages: preliminary screening, coagulation-flocculation, sedimentation, filtration, and disinfection. Use distinct geometric shapes to denote each phase–rectangles for processes, arrows for flow direction, and circles for key additives (e.g., chlorine, alum). Label all components with concise, legible text, avoiding abbreviations unless industry-standard (e.g., “pH” for acidity levels). Ensure the layout follows a logical left-to-right progression to mirror liquid movement through the facility.

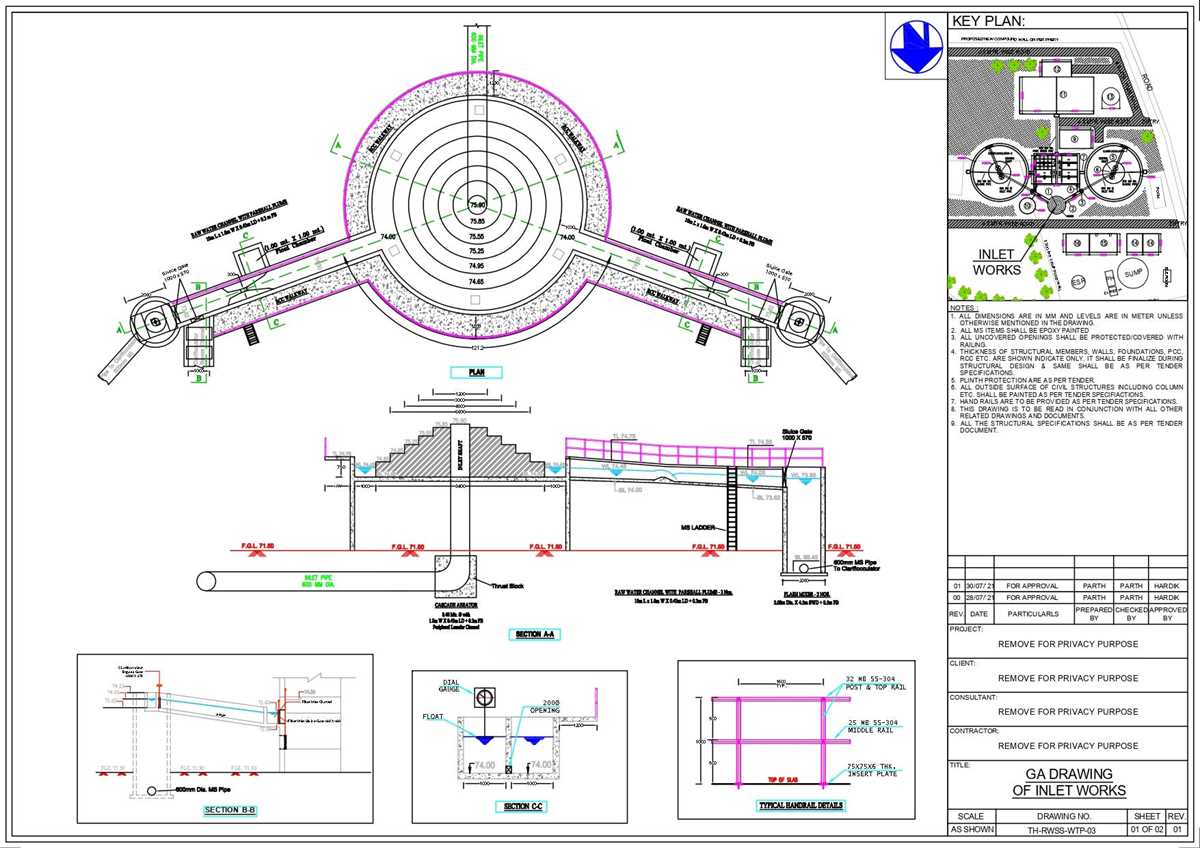

- Preliminary Stage: Position a coarse screen (bar or rotary) at the intake, followed by a finer mesh (≤5 mm gaps) to trap debris. Indicate velocity limits (0.3–0.6 m/s) to prevent solids carryover. Include a grit chamber if raw supply contains dense particulates (e.g., sand), noting a retention time of 1–2 minutes.
- Chemical Addition: Mark alum or ferric sulfate dosing points upstream of flocculation tanks, specifying dosage ranges (10–50 mg/L for alum). Add pH adjustment chemicals (lime or sulfuric acid) immediately after, targeting a 6.5–7.5 range for optimal flocculation.
- Settling Zone: Design a clarifier with sloped floors (≤2% grade) and sludge collection hoppers. Indicate surface loading rates (20–40 m³/m²·d) and retention times (2–4 hours). Label sludge withdrawal lines at the base for periodic removal.
For filtration, depict two parallel paths: rapid gravity filters (media depth 0.6–1.2 m, sand/anthracite) and optional activated carbon beds for taste/odor control. Highlight backwash cycles (every 24–48 hours) with upward flow rates (10–15 m/h) to fluidize the media. Include pressure gauges on inlet/outlet lines to monitor head loss (max 2.5 m). Disinfection units must show multiple barriers–chlorine contact tanks (CT ≥450 mg·min/L), UV reactors (254 nm wavelength), or ozone generators (0.5–1 mg/L dose)–with redundancy for protozoa removal (e.g., 4-log Giardia inactivation).
- Draw bypass lines for emergency scenarios (e.g., filter failure), connecting to a holding basin with a 6-hour capacity.
- Add flow meters at critical junctions (intake, post-coagulation, final discharge) to validate design capacities (e.g., ±5% accuracy).
- Incorporate automation symbols: SCADA-controlled valves (butterfly or diaphragm), turbidity sensors (≤0.1 NTU threshold), and residual chlorine analyzers (target 0.2–0.5 mg/L free chlorine).
- Note secondary processes–sludge dewatering (centrifuge/belt press) and biogas recovery from anaerobic digesters–for facilities processing ≥10,000 m³/day.

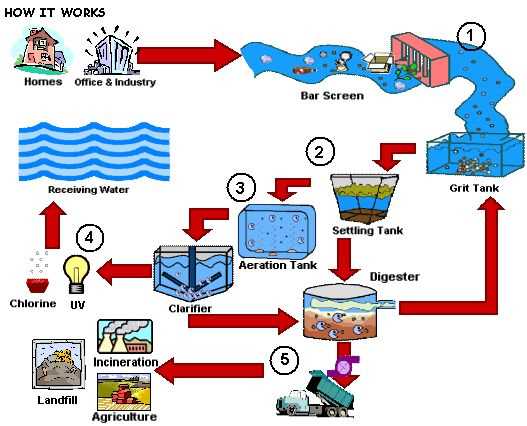

Choosing Key Purification Phases for Facility Layouts
Begin with coarse screening to remove debris larger than 5 mm–mesh sizes between 1–3 mm prevent pump fouling while allowing organic matter to pass for downstream processing. Follow with grit chambers sized to retain particles ≥0.2 mm at 0.3 m/s flow velocity; sedimentation tanks sized for 2–4 hour detention handle fine solids without chemical dosing. For dissolved contaminants, prioritize oxidation ahead of filtration if iron or manganese exceeds 0.3 mg/L–chlorine or potassium permanganate dosing at 1.5–2.5 mg/L oxidizes metals before sand or multimedia beds capture them.
Aeration towers or diffused-air systems require 5–10 mg/L dissolved oxygen to strip volatile compounds; for high TDS (>500 mg/L), reserve reverse osmosis membranes only after lime softening reduces scaling. Activated carbon columns, with 8–12 minutes empty-bed contact time, are non-negotiable where pesticides or hydrocarbons appear in source analyses. Ultraviolet disinfection demands pre-filtered influent with ≤5 NTU turbidity; pair with 40 mJ/cm² UV dose for 99.9% pathogen kill in clear flows.
Sludge management dictates facility footprint–belt presses need 15–20 m² per ton dry solids daily, while centrifuges fit tighter spaces but demand 3–5 kW/ton higher energy. For brackish intakes, nanofiltration membranes yield 70–80% recovery but mandate antiscalant dosing at 2–8 mg/L to prevent carbonate fouling on 300–400 Dalton cutoffs.
Sequence stages to match contaminant load: flocculants at 5–20 mg/L precede settling when raw algae exceeds 10⁴ cells/mL; ion exchange resins handle nitrate spikes >10 mg/L only if competing anions stay below thresholds; freeze-thaw units replace drying beds in sub-zero climates with 30% lower space but 2× energy use.

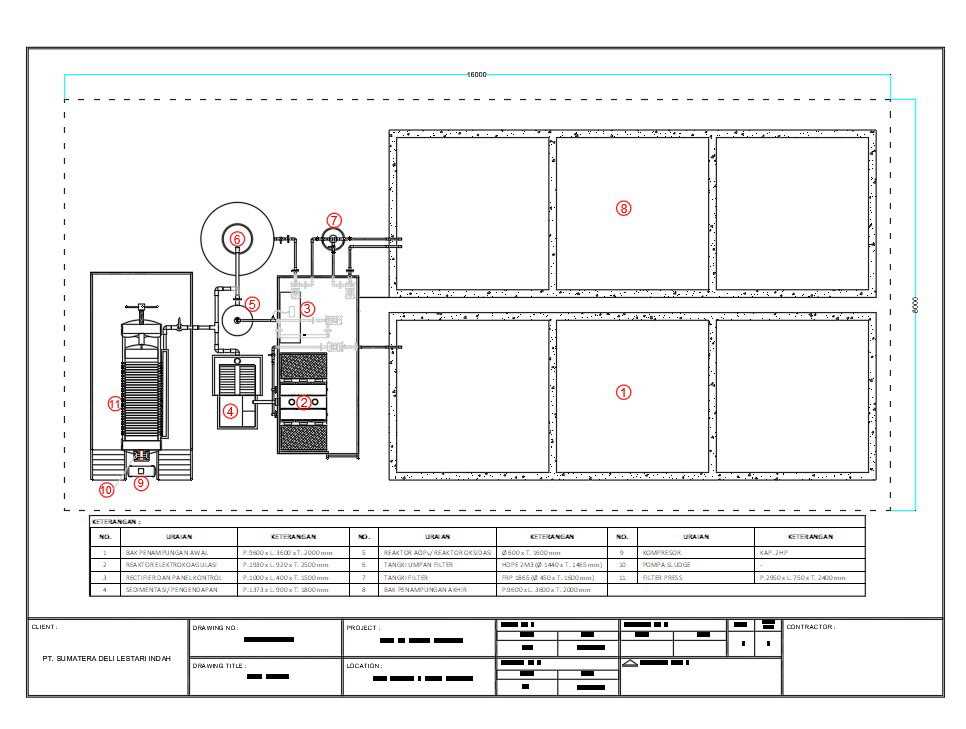

Optimizing Spatial Layout for Purification Facility Readability
Place coarse screens at a 45-degree angle to the inflow channel with a 50–75 mm bar spacing to trap debris larger than 150 mm while minimizing headloss. Position them no further than 2 meters upstream of the grit chamber to prevent sediment buildup in connecting conduits. Ensure a 1.2 m clearance on both sides for maintenance access; mechanical rakes should operate at a 0.3 m/minute speed to match peak flow rates of 3 m³/s.
Design settling tanks with parallel flow paths separated by modular baffles, each basin no wider than 3 meters to maintain laminar flow (Reynolds number < 2000). Sludge collection hoppers must slope at 50–60° and terminate 0.5 meters above floor level to facilitate vacuum extraction without pipe clogging. Install surface skimmers on adjustable rails, covering 90% of the tank width to remove floating particulates exceeding 0.2 mm in diameter.
| Equipment | Minimum Spacing (m) | Flow Path Overlap (%) | Critical Velocity (m/s) |
|---|---|---|---|
| Aeration diffusers | 0.8 | 10 | 0.15–0.25 |
| Sand filters | 1.5 | 5 | 0.06–0.12 |
| Activated carbon columns | 2.0 | 2 | 0.03–0.08 |
| UV reactors | 0.6 | 0 | 0.3–0.5 |
Arrange chemical dosing points at strategic intervals: coagulant injection occurs immediately prior to flash mixing tanks (detention time < 30 seconds), followed by flocculant addition 1.8 meters upstream of sedimentation basins. Maintain a 1:4 coagulant-to-flocculant ratio by volume; pH adjustment probes must be positioned 0.3 meters downstream of each dosing point to verify consistency within ±0.2 units. Use in-line static mixers with twist angles of 180° every 0.5 meters to achieve 98% homogeneity for suspended solids <50 μm.
Distribute membrane filtration units in clusters of 4–6 modules, each separated by 1.2 meters of walkway space to accommodate fiber optic leak detection cables. Orient spiral-wound elements vertically with feed flows entering at the top to maximize permeate recovery rates (target >90% for brackish source). Install pressure gauges on both retentate and permeate lines; differential readings exceeding 0.7 bar indicate fouling thresholds requiring backwash cycles at 20–30% above normal operating pressure.
Reserve the perimeter zones for auxiliary systems: chlorine contact chambers occupy undisturbed sections with a minimum 30-minute detention time, while clean-in-place (CIP) stations require 4-meter clearance for mobile carts carrying 10% sodium hydroxide solutions. Sludge dewatering centrifuges should operate near loading docks, positioned at least 10 meters from residential noise-sensitive areas; soundproofing enclosures reduce operational levels to <70 dB when processing 12 dry metric tons per hour. Electrical transformers serving high-demand units (e.g., ozone generators) must be elevated on 1-meter concrete pads to prevent flooding from pipe ruptures.
Implement color-coded piping for rapid identification: raw influent (green RAL 6018), coagulated streams (orange RAL 2002), filtered output (blue RAL 5012), and chemical feeds (yellow RAL 1021). Standardize valve placements at 1.5-meter height from grade for operator ergonomics; use ball valves with locking mechanisms for flows exceeding 100 L/s to prevent accidental throttling. Embed ultrasonic flow meters in straight pipe segments with a minimum 10× diameter upstream run and 5× diameter downstream to ensure ±1% accuracy in measurement readings.
