Begin by securing the factory service manual SPEC-PUB GM-NAO-ENG-15-EL-001, as it contains the single most accurate reference for circuit layouts. Locate page 7-3 for the main fuse block legend and page 8-16 for the underhood harness routing–these pages eliminate guesswork when tracing voltage drops.
Use a 240-ohm resistor rated at ½W in series with a digital multimeter set to 200mV DC scale to verify signal integrity on data bus pins A12 and A13. Readings above 85mV indicate corroding terminals or chafed Teflon insulation near the left strut tower; strip back ¼ inch of jacket and crimp a new gold-plated butt splice in its place.
For wire gauge replacement, match the original color-coded specs: red for 12V constant, orange for 12V switched, light blue for disable relay trigger, and dark green for ground returns. Avoid substituting 18AWG for the original 20AWG on powertrain grounds, as resistance will rise exponentially under cranking loads.
Label each splice with heat-shrink tubing pre-printed with circuit ID from the legend–tubing withstands 190°C and remains legible after five years of UV exposure. Skip generic automotive adhesive-lined connectors; instead, use TE Connectivity PIDG 5-5437183-1 for consistent strand penetration.
Power down the battery negative post ten minutes before handling the supplemental restraint harness. The orange/blue collision sensor wires carry residual charge; probe with an oscilloscope set to 5V/div to confirm spike decay below 1V before cutting.
Understanding Electrical Schematics for the Fifth-Gen Performance Coupe
Locate the primary power distribution box under the hood–marked as “F1” through “F7″–before attempting any circuit modifications. Fuse ratings range from 10A to 60A, with F2 (30A) controlling the ignition system and F4 (20A) managing the adaptive lighting module. Verify each fuse’s continuity using a multimeter set to 200 ohms; resistance above 0.5 ohms indicates a potential failure point.
Ground points G101 (left front fender), G201 (driver-side firewall), and G301 (passenger-side cowl) demand inspection if intermittent electrical faults occur. Clean each connection with 800-grit sandpaper, apply dielectric grease, and torque to 8-10 Nm. Corrosion on G201 often mimics ECM failures, leading to erroneous diagnostic trouble codes like P0300 or P0420.
| Connector Pin | Wire Color | Component | Voltage (Key On) |
|---|---|---|---|
| C1-12 | Orange/Black | Battery Feed | 12.6V |
| C2-3 | Light Blue | Fuel Pump Relay | 12.0V |
| C3-8 | Dark Green | O2 Sensor Heater | 0.2V |
Trace the instrument cluster harness by unclipping the dashboard lower trim; pins A1 (illumination) and A4 (fuel gauge) require probing with a 12V test light. Factory schematics label these wires with a tiny white stripe–ignore aftermarket manuals that omit this detail. Voltage drops exceeding 0.3V between the cluster and the BCM (Body Control Module) suggest degraded terminals; replace the entire pigtail if green oxidation is visible.
Aftermarket amplifiers often misroute the speaker outputs–check impedance at each door tweeter (2 ohm balance) against the factory subwoofer (4 ohm). Use a 1kHz sine wave test tone to confirm signal integrity; distortion below 1V RMS indicates a short in the C104 connector, typically on the tan/cream wire. Reroute this cable away from the parking brake assembly to prevent abrasion.
For dual-mode exhaust systems, verify the solenoid’s activation signal at the passenger-side frame rail. The pink wire should pulse 5V square waves at 5Hz during active mode; failure here points to a faulty TAC (Throttle Actuator Control) module output. Splice a dedicated 18-gauge relay for repairs, ensuring the ground ties back to G301–never the chassis directly.
Finding Critical Electrical Bundle Junctions in the Chevrolet Sports Coupe
Begin beneath the instrument panel on the driver’s side; the main fusebox doubles as the primary nexus for harness branches. Peel back the carpet trim adjacent to the pedal assembly to expose two 24-pin black connectors–one feeds the under-dash modules, the other loops back to the engine bay. Label each socket with numbered flags before disconnecting; pin 13 carries constant battery voltage, while pins 5 and 6 route switched ignition.
- Steering-column shroud hides a white six-way plug supplying turn-signal and cruise-control relays; depress retaining tabs upward to release.
- Driver-side rear quarter trim panel yields the rear body control module plug; three screws secure the panel, revealing a grey ten-way connector.
- Lift the rear hatch carpet to access the tail-light harness split; blue/orange wires terminate at the right rear lamp, red/yellow at the left.

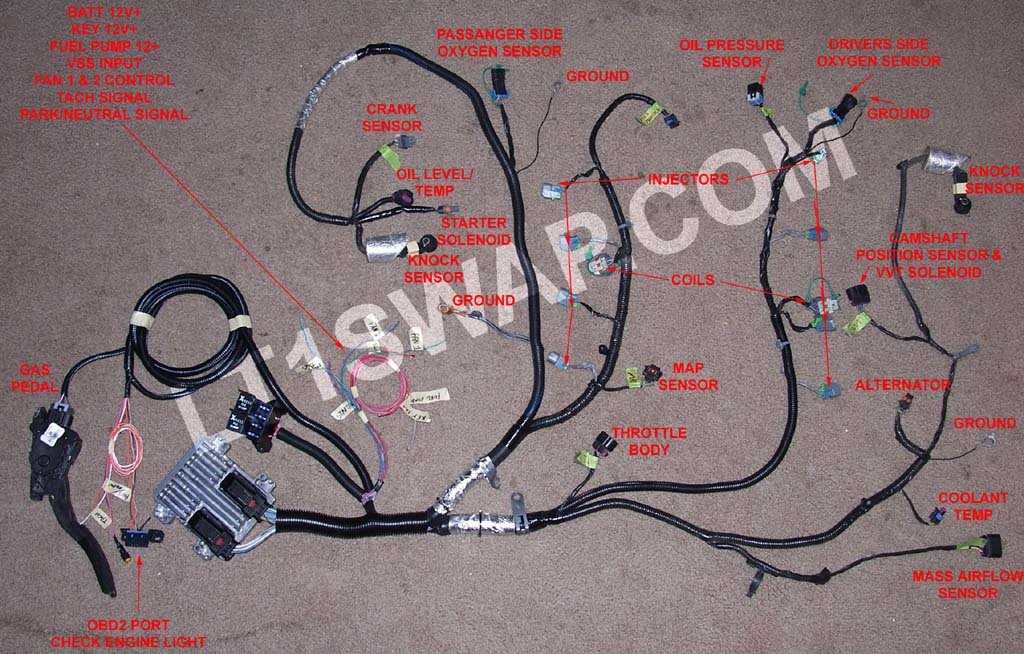

Engine Compartment Junctions
Pop the hood; the right front fender liner shelters the chassis harness splice toward the headlight. Remove the two Phillips screws holding the liner, then trace the thick white conduit upward–it merges into a twelve-way trapezoidal plug for fog lamps and horn. On the opposite side, a similar black conduit terminates at the auxiliary battery junction adjacent to the brake master cylinder reservoir.
Mid-engine firewall bulkhead houses a rubber-grommeted bundle; slice the grommet cautiously with a utility blade to expose three separate harnesses–powertrain control leads on the left, HVAC temperature sensors in the center, and park-assist ultrasonic module cables on the right. Tag each group before threading a pull-string for future reassembly.
Interior Connector Clusters
Under the center console, a single torx fastener secures a snap-in panel concealing the audio amplifier plug and OnStar module. Disconnect the double-stacked ten-pin connector; the upper row handles amplifier signals, lower row feeds antenna diversity switch. Passenger-side glove-box hinge hides the Supplemental Inflatable Restraint module plug–accessed via a single Phillips screw, revealing a twenty-six-pin yellow connector.

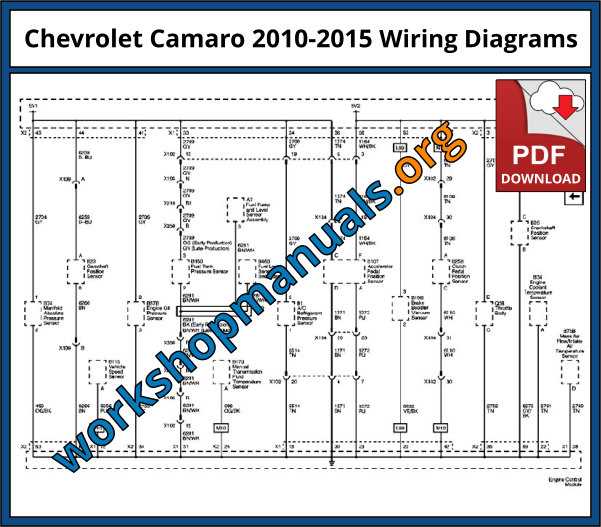

Mastering Electrical Blueprints: A Practical Approach
Locate the legend first–it decodes symbols found throughout the schematic. Ground points appear as triangular arrows, power feeds as straight lines with voltage markings (e.g., 12V, 5V). Switches show as breakable contacts; resistors, capacitors, and diodes carry standardized shapes. Verify each symbol against the legend before proceeding, as variations exist even among similar models.
Trace circuits methodically by following color-coded lines. Red typically denotes constant power, yellow ignition-switched, black ground, and blue or green signal paths. Mark each wire’s origin and destination in sequence–starting from the fuse block, moving through connectors, to the final component (e.g., headlamp, relay coil). Use a highlighter to isolate one circuit at a time, preventing overlap with adjacent paths.
Identify relay configurations by examining the coil, contacts, and pin assignments. The coil (pins 85-86) energizes when voltage is applied, closing contacts (pins 30-87). Check the schematic for relay numbers (e.g., K20) and cross-reference with the fuse box layout. Note whether the relay is normally open (NO) or normally closed (NC)–this determines its resting state under no power.
Measure continuity or voltage drops at key junctions to validate connections. Disconnect the battery before probing ground connections; use a multimeter set to ohms (Ω) to confirm zero resistance between chassis points and the negative terminal. For active circuits, reconnect power and set the meter to DC volts–compare readings against the annotated voltage (e.g., 12V at fuse output, 0V at ground). Deviations exceeding ±0.5V indicate faults.
Decoding Connector Pinouts
Connector diagrams list pin numbers alongside wire colors and functions. Pin 1 often carries power or signal input, while higher numbers (e.g., 12-16) handle outputs or grounds. Cross-check pin labels with corresponding component diagrams–for example, the T56 transmission module expects specific signals on pins 3 (speed sensor) and 8 (CAN bus). Mismatches here cause intermittent faults or complete system failure.
Document splices separately, as they branch current to multiple endpoints. A splice labeled S201 might split a single feed into three circuits: dashboard illumination, radio memory, and mirror defroster. Verify each branch with a load test–attach a test lamp or resistor to ensure all paths receive equal voltage. Overloaded splices melt insulation, creating shorts only detectable through thermal imaging or resistance checks.
Review the vehicle’s body control module (BCM) interactions last. The schematic maps BCM pins to sub-systems like lighting, relays, and sensor inputs. Pin C1-2 (gray/white wire) typically controls left low-beam, while C3-10 (red/black) monitors door ajar switches. Use a scan tool to pull BCM codes before physical inspection–correlating errors with the diagram narrows troubleshooting to specific fuses or connectors.
Resolving Electrical Gremlins with the OEM Schematic
Start by isolating the circuit causing issues–trace the power flow from the fuse panel to the component in question using the manufacturer’s blueprint. Check for voltage drops at each connection point: a multimeter set to 20V DC should read near battery voltage (12.6V–14.5V) at all junctions. If readings dip below 11V, inspect terminals for corrosion or loose crimps. Replace any connectors showing greenish oxidation; a wire brush and dielectric grease prevent recurrence.
For intermittent faults, focus on ground paths–often overlooked yet critical. Locate the chassis grounds marked on the schematic (usually near the battery or engine block) and verify conductivity with an ohmmeter. Resistance should measure under 0.2 ohms between the ground stud and bare metal; clean surfaces with sandpaper if readings exceed this threshold. Pay extra attention to aftermarket modifications, as improperly routed accessories can introduce parasitic draws.
When diagnosing lighting failures, compare the circuit’s current draw against the fuse rating. A 10A backup light fuse, for example, should handle approximately 120W (10A × 12V) of load. Exceeding this indicates a short or excessive resistance. Use the schematic to identify splices–particularly near door jambs or under carpets–where chafing against sharp edges is common. Solder and heat-shrink repairs here outlast twist-and-tape fixes.
Blown fuses often point to upstream shorts. Instead of swapping the fuse repeatedly, disconnect the load side of the circuit and test for continuity between the hot wire and ground. If continuity exists, the short lies in the harness–use the schematic to systematically unplug modules until the fault disappears. For HVAC or power window circuits, remove the control switch first, as burned contacts are a frequent culprit.
Noise in audio systems (static, whining) typically stems from poor grounding or voltage regulation. Refer to the factory diagram to locate the radio’s dedicated ground, usually a separate screw near the unit. If the issue persists, check the alternator’s output; a failing diode can introduce AC ripple into the electrical system. Scope probes or a cheap oscilloscope adapter reveal anomalies above 0.1V AC–replace the alternator if readings spike during revving.
For sensor-related ECM faults (e.g., erratic RPM, check engine lights), cross-reference the schematic with the DTC stored. A P0336 crankshaft sensor code, for instance, may trace to a damaged signal wire near the starter. Probe the sensor’s connector while wiggling the harness; signal voltage should remain steady (0.5V–4.5V typical). Shielded cables near ignition coils are prone to interference–reroute if necessary.
Always confirm repairs by simulating real-world conditions. After fixing a headlight flicker, drive at night with varying engine speeds to ensure the alternator’s voltage regulator maintains stable output. For accessory circuits (e.g., heated seats), activate the component for at least 10 minutes, monitoring for heat buildup at connectors–signs of excessive resistance demand rewiring with appropriately gauged wire (16–14AWG for most 12V accessories).
