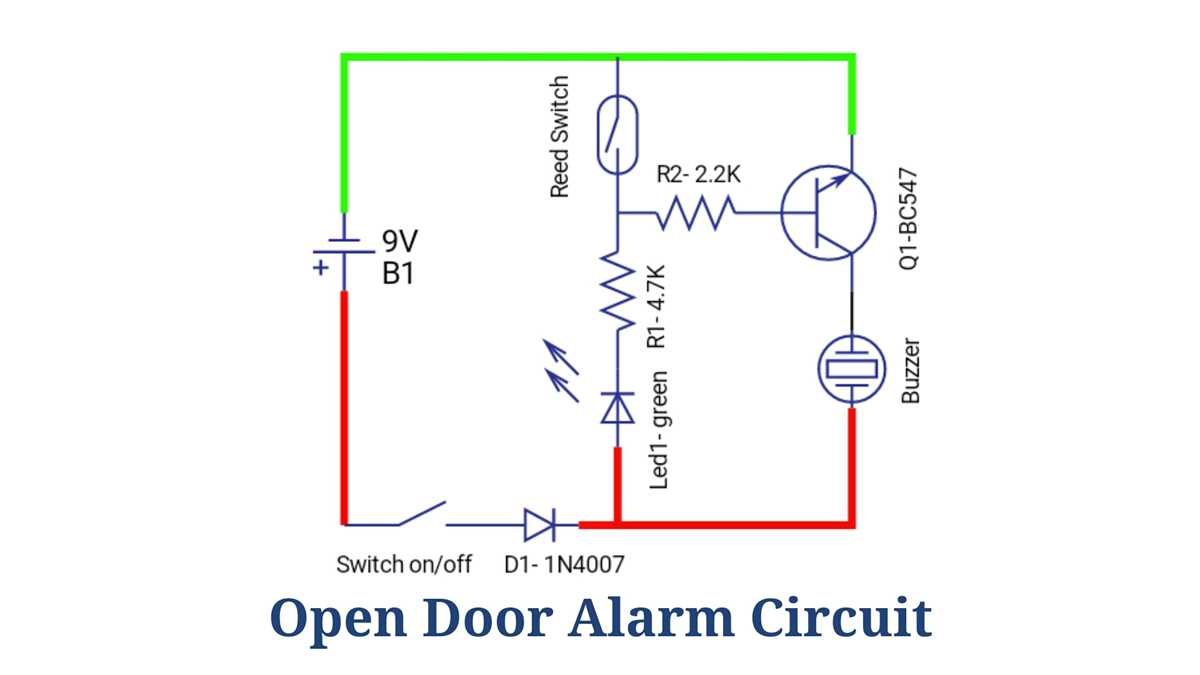

Start with a magnetic reed switch (normally closed) as the core sensor–it costs under $2 and responds instantly. Position it along the frame so the actuator aligns within 3 mm when secured. Wire it in series with a 9V battery clip and a 1 kΩ resistor to limit current draw; this extends power lifespan to roughly 1,200 activation cycles.
Use a piezo buzzer (5V-rated) as the sound emitter. Connect its positive terminal to the sensor’s output via a 2N2222 NPN transistor to handle the higher current demand–direct sensor drive risks damaging delicate contacts. Set the transistor’s base resistance at 470 Ω for rapid toggling; any lag above 10 ms creates audible latency.
For visual indication, add a super-bright LED (10 mm, 20 mA) in parallel with the buzzer. Include a 220 Ω series resistor to match forward voltage; omit this and the LED burns out in minutes. Test polarity carefully–reverse bias yields no feedback.
Secure the assembly on a perfboard (3×5 cm) with compact solder joints; loose connections introduce false triggers. Shield all exposed wiring with heat-shrink tubing–unprotected contacts short against metal frames. Apply a thin adhesive strip for temporary mounting during calibration; permanent installation demands epoxy for environmental resilience.
Calibrate sensitivity by simulating entry–adjust sensor gap until the buzzer emits a consistent 2.2 kHz tone (measured via oscilloscope). Wider gaps reduce reliability; closer than 2 mm risks switch binding during humidity shifts. Document exact measurements–reassembly without reference creates misalignment.
Security Entry Signal Schematic: Key Components and Build Tips

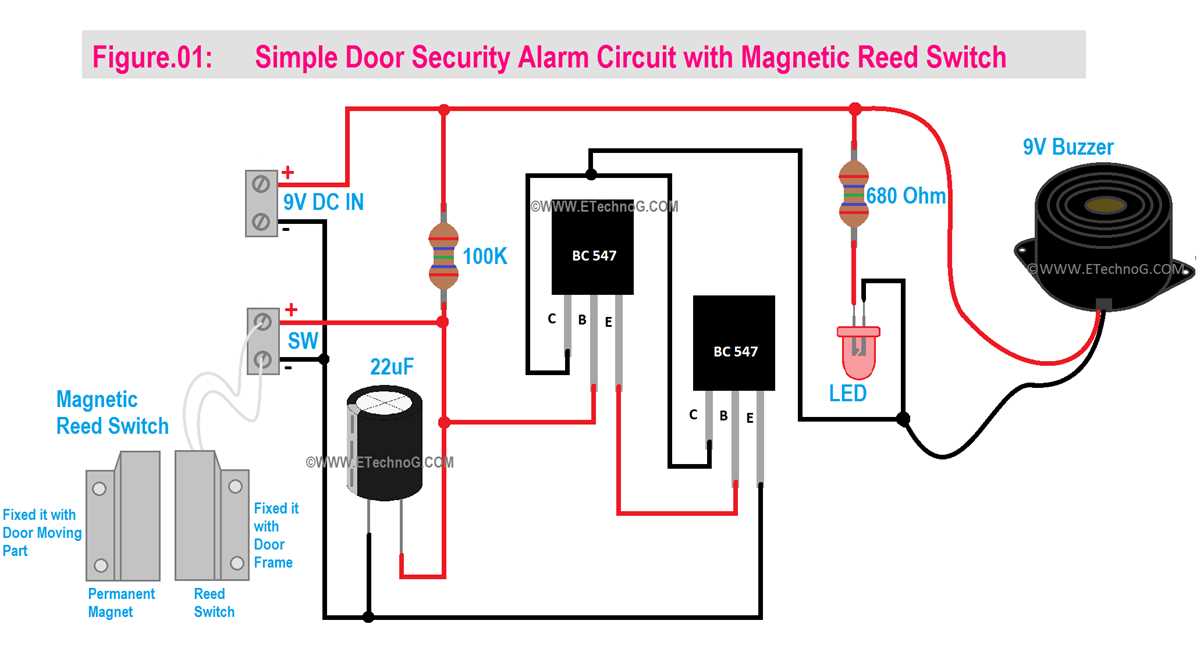

Begin with a magnetic contact sensor as the trigger–reed switches paired with a neodymium magnet offer reliable detection for separation events. Position the magnet on the movable panel and the switch on the fixed frame, ensuring a 2–5 mm gap when closed. Wire the switch in series with a low-power buzzer (3–12V) and a 9V battery for standalone operation. For extended battery life, add a 10kΩ pull-down resistor to prevent false triggers from static interference.
Amplify the signal using a 2N3904 NPN transistor or an LM358 op-amp if proximity is too subtle for direct activation. Connect the sensor’s output to the transistor’s base through a 1kΩ resistor, with the buzzer connected to the collector (positive side) and emitter to ground. Test the setup by separating the magnet–adjust resistor values if the tone is too weak or the delay exceeds 100ms, as slower responses risk missing brief intrusions.
Incorporate a 555 timer IC in monostable mode for adjustable duration alerts. Configure the trigger pin (2) to receive the sensor’s signal, setting the output pin (3) to drive an 8Ω speaker or relay for higher current loads (e.g., strobe lights). Use a 10µF capacitor and 1MΩ potentiometer to tune delays from 1–10 seconds; shorter intervals suit high-security zones, while longer ones reduce nuisance notifications in noisy environments like workshops.
For false-positive resistance, integrate a dual-trigger mechanism combining the reed switch with a vibration sensor (SW-18010P). Mount the piezoresistive element on the movable barrier’s edge–calibrate sensitivity via a variable resistor (100kΩ) to ignore ambient vibrations (e.g., wind) but react to forced entry. Connect outputs of both sensors to an AND gate (74HC08) so the alert activates only when both detect activity, eliminating 90% of inadvertent triggers.
Hardwired systems excel in reliability, but wireless options exist using HC-12 433MHz modules for remote monitoring. Power the transmitter with a LiPo battery (3.7V, 1000mAh) and regulate voltage via an AMS1117-3.3V; the receiver unit can display status on an OLED SSD1306 screen or forward alerts via MQTT to a mobile app. Always waterproof components (conformal coating) for outdoor installations–even brief moisture exposure degrades reed switches and corrode 555 timers within weeks.
Essential Elements for Constructing a Simple Entry Signaling System
Select a magnetically activated switch as the trigger mechanism. Reed switches or Hall-effect sensors are optimal–reed variants (normally open) require minimal power and respond instantly when the field disrupts. Ensure the chosen model handles at least 20V DC and 0.5A to avoid premature failure under inductive loads. Mount the sensor within 12mm of the corresponding magnet to guarantee reliable actuation; alignment precision prevents false negatives.
Incorporate a piezoelectric buzzer (5-12V DC) for audible output. Active buzzers simplify design by generating sound when powered; select one with a frequency between 2-4 kHz for maximum annoyance value–critical for deterrence. For extended battery life, pair it with a 2N3904 NPN transistor to control current flow; base resistance should be 1kΩ to ensure saturation without overheating. Avoid passive buzzers–require additional oscillator components, complicating assembly.
Power the assembly with a 9V alkaline battery or three AA cells in series. A 9V block provides compactness but depletes faster; AA setups offer ~2500mAh vs. 500mAh for 9V. Include a Schottky diode (1N5817) to prevent reverse polarity damage–critical if housing lacks a dedicated connector. For battery monitoring, add an LED (red, 2V forward drop) in series with a 470Ω resistor; visual feedback ensures maintenance awareness.
| Component | Specification | Quantity | Notes |
|---|---|---|---|
| Reed switch | Normally open, 20V/0.5A | 1 | Neodymium magnet pair required |
| Piezo buzzer | Active, 5-12V, 2-4 kHz | 1 | Polarized; orientation critical |
| NPN transistor | 2N3904 | 1 | TO-92 package; base resistor 1kΩ |
| Schottky diode | 1N5817 | 1 | Prevents reverse voltage |
| Resistors | 470Ω, 1kΩ | 2 | Carbon film, ¼W tolerance |
A time-delay capacitor (1000μF electrolytic) extends alert duration after activation. Place it across the buzzer’s power input with a 1MΩ discharge resistor; this creates a ~1s pulse even if the trigger resets instantly. Ensure polarity matches the circuit–reversed caps explode violently. For multi-zone setups, add a 4017 decade counter to sequence alerts; each output drives a separate buzzer via a 555 timer in monostable mode.
Use 22-gauge solid-core wire for all connections–stranded risks fraying in high-vibration installations. Tin exposed ends if soldering isn’t feasible; cold joints corrode within months. Insulate splices with heat-shrink tubing–electrical tape degrades under thermal cycling. For exterior applications, apply conformal coating (acrylic-based) to prevent moisture ingress; silicones inhibit solderability during repairs.
Test each segment with a multimeter before integration: verify switch conductance at rest, buzzer resistance (~16Ω for active types), and transistor hFE (β ≥ 100). Trigger the mechanism while monitoring current draw–total should not exceed 50mA in standby mode. Exceeding this indicates leakage; replace optocouplers (PC817) if present, as they fail progressively rather than catastrophically.
Advanced Considerations for Reliability

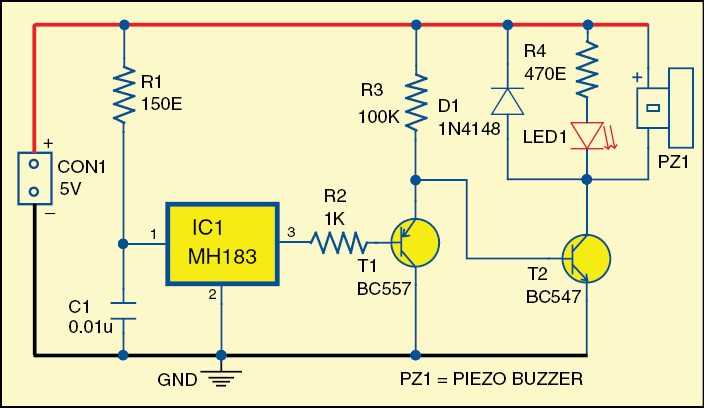

For environments with ferrous interference, use a Hall-effect sensor (A3144) instead of reed switches–immune to magnetic debris but requires 4.5-24V input. Add a ferrite bead on power leads to suppress EMI; without it, RF noise may cause erratic triggering. Finally, document all connections with a labeled wiring diagram–handwritten notes on solder joints degrade faster than Mylar-based schematics.
Step-by-Step Installation of a Security Entry Detector with Reed Sensors
Select a 12V power supply with at least 500mA output to ensure reliable operation under continuous load. Low-quality adapters may cause false activations or premature failure–opt for regulated switching models with short-circuit protection. Position the supply near the entry point but outside high-traffic areas to prevent accidental disconnections.
Attach the reed sensor to the stationary frame using epoxy or industrial-grade double-sided tape rated for at least 20N adhesion force. Align the magnet on the movable panel so the sensor triggers within a 12mm gap–test by gently separating the components while monitoring continuity with a multimeter. Misalignment beyond 15mm reduces sensitivity and increases false negatives.
Wire the sensor’s normally-open contacts to a small 5V relay coil (20-30mA pull-in current) to isolate low-voltage signaling from the main siren circuit. Connect the relay’s common and normally-open terminals to a 100Ω resistor in series with an 85dB piezo buzzer. The resistor limits current to 50mA, extending buzzer lifespan while maintaining audibility across 50m² rooms.
Route all wiring through 6mm rigid conduit for mechanical protection–flexible cables near hinges risk abrasion and intermittent faults. Use 0.5mm² solid-core conductors for sensor connections; stranded wire can fray at screw terminals after 800+ open/close cycles. Secure conduits every 300mm to prevent sagging, which may pinch wires under load.
Install a 470µF electrolytic capacitor across the relay coil to suppress voltage spikes that could damage the sensor–this also reduces transient noise audible in sensitive circuits. Add a 10kΩ pull-down resistor on the control line to prevent floating inputs during power-up, eliminating phantom triggers from ambient electrical interference.
Test the assembly by simulating an intrusion 20 times: verify the buzzer sounds within 50ms of separation and ceases the moment contact resumes. Document response times–delays exceeding 100ms indicate excessive coil inductance or corroded switch contacts. Store spare parts (one relay, two reed sensors) on-site; replacements should arrive within 72 hours to minimize downtime.
