Start by identifying the fuse block location–under the driver-side dashboard on earlier full-size truck variants. Pinpoint terminal 8 (12V constant) for direct battery access; this avoids parasitic draws when modifying circuits. Use a multimeter set to 20V DC to verify voltage at the harness connector before splicing any wires–readings below 11.8V indicate corrosion or a failed alternator.
Trace the red harness from the alternator to the voltage regulator; inspect for brittle insulation or green oxidation on copper strands. Replace the entire segment if resistance exceeds 0.2 ohms per foot. Secure connections with adhesive-lined heat shrink tubing–standard electrical tape degrades within 18 months under hood temperatures exceeding 90°C.
Locate the dimmer switch wiring behind the headlight knob; the light blue wire carries high-beam signal, while the brown wire routes to the parking brake circuit. Disconnect the battery negative terminal before probing these circuits to prevent shorting the instrument cluster. For turn signal repairs, focus on the flasher unit–mounted near the steering column–where the tan wire controls left-side illumination and dark green handles the right side.
Upgrade the factory ignition system by running a new 10-gauge wire from the starter solenoid to the ignition coil positive terminal. Route this wire away from the exhaust manifold to prevent heat damage. Confirm proper grounding by testing continuity between the battery negative post and the engine block–resistance should measure below 0.1 ohms.
Label every removed wire with masking tape and marker to avoid cross-connection during reassembly. Store original harness segments in sealed plastic bags with silica gel packets to prevent moisture absorption. For added reliability, solder all new connections and apply dielectric grease to terminals exposed to road salt or humidity.
Chevy Truck Electrical Blueprint: Hands-On Tips
Locate the fuse block under the dashboard on the driver’s side to start tracing circuits–it houses 10 blade-style fuses rated between 5 and 25 amps, labeled for specific systems like headlights, turn signals, and ignition.
Use a multimeter set to 20V DC to verify voltage at the battery terminals before inspecting connections. Corrosion on the positive terminal often mimics electrical failures; clean with a wire brush and apply dielectric grease to prevent recurrence.
- Headlight circuit: Follow the brown wire from the fuse block to the dimmer switch, then via a yellow/black stripe to the high beams or a yellow wire to the low beams.
- Ignition system: A red wire delivers 12V from the ignition switch to the coil; verify continuity with the ballast resistor bypassed if the engine cranks but won’t start.
- Turn signals: Orange wires feed the flasher relay; if both sides blink fast, check for a burnt-out bulb or grounded wire where insulation has rubbed through.
Replace the original voltage regulator with a solid-state model if the alternator overcharges–symptoms include dimming dash lights at idle and bulging electrolytic capacitors on the instrument cluster.
Trace the starter solenoid’s purple wire from the ignition switch; a clicking noise without engagement indicates a faulty solenoid or corroded battery cables–measure voltage drop across the cables while cranking (should not exceed 0.2V).
- Disconnect the battery negative terminal before probing wires to avoid shorting live circuits.
- Label each connection with masking tape when removing the dashboard to prevent miswiring during reassembly.
- Inspect the bulkhead connector behind the glove box for melted plastic or brittle seals, common failure points for interior lights and gauges.
If the fuel gauge reads erratically, ground the sending unit wire temporarily–if the gauge pegs full, the tank sender is faulty; if it stays at empty, the wire between the sender and gauge is open or shorted.
Finding Authentic 1970s Chevrolet Pickup Electrical Blueprint Origins
Begin with the manufacturer’s official service manuals, specifically the “Chevrolet Light Duty Truck Shop Manual” for the relevant model year, available through GM’s Heritage Center or authorized reprints like those from Helm Incorporated. These guides contain factory-approved schematics, including wire gauge specifications, color codes, and connector pinouts–details often omitted in aftermarket reproductions. Verify the edition matches the vehicle’s build sheet, as mid-year revisions introduced minor but critical changes to circuits like the alternator charging system or optional power accessories.
Repair Manuals from Specialized Publishers
Haynes, Chilton, and Motor Age published print manuals in the late 20th century that included simplified yet accurate reproductions of the original blueprints. Focus on editions labeled for the “third-generation” pickup series, particularly those with ISBNs referencing the exact powertrain configuration (e.g., 250cid inline-six vs. 305cid V8). Libraries in regions with strong automotive restoration communities, such as Detroit Public Library or the Petersen Automotive Museum Research Library, often hold physical copies. Request the “Chassis Electrical” chapter–it isolates the full-system schematic from body wiring.
Enthusiast forums like 67-72ChevyTrucks.com or ChevyTalk archive scans of vintage manuals donated by members. Use the forum’s search function with terms like “original harness routing” or “ignition switch wiring” to uncover threads where users upload high-resolution files. Prioritize posts from verified restorers; they often watermark images with the source manual’s page number (e.g., “GM Shop Manual p.12-46”). Cross-reference these with factory assembly line photos from GM’s media archives, which occasionally show harness installations before trim panels obscured them.
Visit salvage yards specializing in classic trucks, such as Arizona’s Desert Valley Auto Parts or North Carolina’s The Filling Station, to inspect original harnesses still attached to donor vehicles. Many yards allow on-site tracing of wires with a multimeter if the ignition is functional. Take note of non-standard modifications–common in fleet vehicles–which may deviate from factory diagrams. Document discrepancies with photos and label each wire’s terminal ends before removal. For unrestored examples, the firewall-to-cab harness grommet is a reliable benchmark; its connector types (e.g., Packard vs. Molex) often match specific schematic revisions.
Step-by-Step Wire Tracing for Engine Compartment Circuits
Locate the fuse block under the dashboard near the steering column and identify the hot wires using a multimeter set to 12V DC. Probe the terminals with the ignition off–any reading above 11V indicates a constant power source. Mark these wires with colored tape or labels matching the schematic’s color codes (e.g., red for power, orange for fused circuits). Disconnect the battery’s negative terminal before proceeding to prevent short circuits during testing.

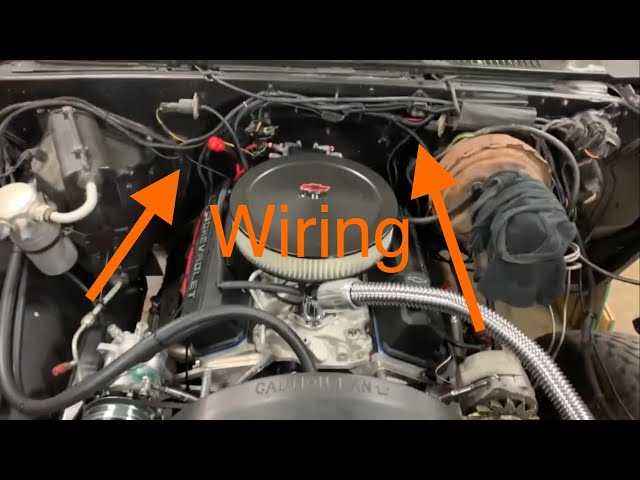

Trace the primary harness from the firewall to the alternator, ensuring the main feed (typically a thick gauge cable) connects to the alternator’s “BAT” terminal without corrosion. Check the inline fusible link–a melted or swollen segment signals a past overload. Replace the link with an identical gauge wire and crimp connectors rated for 30+ amps. For the voltage regulator circuit, verify the exciter wire (often yellow with a stripe) shows resistance between 3-5 ohms when probed at the regulator and alternator.
Inspect the ignition coil’s connections by measuring voltage at the positive terminal while cranking the engine. A reading below 9V suggests a faulty ballast resistor or corroded splice in the pink wire leading to the ignition switch. For electronic ignitions, verify the pickup coil’s resistance (300-1500 ohms) and confirm the control module receives 12V at terminal “R” when the key is in the “ON” position.
| Component | Expected Voltage (Key ON) | Test Point | Fault Indicator |
|---|---|---|---|
| Fuel Pump Relay | 12V at coil, 0.5V drop at contacts | Relay socket pins 85/86 and 30/87 | No click, melted contacts |
| Coolant Temp Sensor | 5V reference, 0.5-4.5V output | Sensor connector, ECU pin | Open circuit, stalled readings |
| Starter Solenoid | 10-12V at “S” terminal | Solenoid small terminal | No engagement, high current draw |
For emission controls, follow the vacuum lines from the ported solenoid valves to the intake manifold, ensuring no splits or loose fittings. Probe the solenoid’s electrical terminals: a 3-7 second pulse to ground during a cold start confirms proper operation. If the charcoal canister’s purge valve clicks but no vacuum is drawn, replace the valve or check for a collapsed hose between the valve and manifold.
Document each circuit’s path on a notepad, noting splice locations and terminal types (e.g., spade, bullet, ring). Use a tone generator to trace wires hidden behind panels or bundled in loom–attach the sender to a known endpoint and follow the audible signal. Reassemble connectors only after verifying no bare copper touches adjacent terminals or the chassis ground. Reconnect the battery and retest all systems with the engine running, logging voltage drops and amperage draw for baseline reference.
Color Codes and Terminal Markings for Electrical Linkages
Trace each harness branch using a multimeter in continuity mode to match factory color standards. Chevrolet’s late 70s–early 80s trucks rely on these primary color assignments for power feeds: orange (32V ignition-switched), red (constant battery), yellow (headlight feed), and dark green (parking/turn signal). Ground paths typically use black or black with colored stripes, while sensor circuits often employ purple or light blue with accompanying stripe codes. Verify stripe orientation–manufacturers apply them along the wire’s length in consistent positions (e.g., white stripe at top for “primary” function, red at bottom for “secondary”).
Label every connector terminal with heat-shrink tube or adhesive tags before disconnecting. Use the following system:
- A: Alternator excitation (usually brown)
- B: Brake switch (white/red stripe)
- C: Chassis ground (black)
- E: ECM reference (dark green/white stripe)
- F: Fuel pump (gray/black stripe)
- I: Instrument cluster (pink)
- S: Starter solenoid (purple/white stripe)
Observe connector gender and pin count–most GM harnesses from this era use 3-terminal weatherpack plugs for injectors (female) and 6-way bulkhead connectors (male) for the main powertrain linkages. Female terminals in these plugs are typically numbered 1-3 left to right, while male counterparts run 4-6 right to left when viewed from the wire side.
Cross-reference every identified circuit against the vehicle’s emission decal, located on the radiator support or inner fender. This decal often lists 13-16 critical circuit colors that override generic harness charts. For example, California-spec models may show tan (EVAP purge) where standard trucks use tan/black stripe (EGR). Always prioritize decal information over aftermarket manuals–tolerance deviations (±0.5 ohms) in wire gauge differences between model years can cause voltage drop issues in long runs like the rear taillight circuit (maximum 0.3V loss at full load).
