Selecting the right direct current machine for your application starts with understanding its operational principles and wiring. Permanent magnet variants deliver simplicity–ideal for low-power tasks like toys or small fans–while shunt, series, and compound configurations offer precise control for industrial machinery. Use shunt models when stable speed under varying loads is critical (e.g., conveyor belts). Opt for series designs when high starting torque is needed (e.g., electric vehicles or cranes). Compound versions combine advantages of both, excelling in applications requiring both torque and speed regulation (e.g., large pumps).
The permanent magnet dc electrical actuator relies on fixed magnetic fields, eliminating the need for field windings. Its circuit consists of armature terminals only, reducing complexity but limiting speed adjustment. Shunt machines split current between armature and field coils; the field winding connects in parallel, ensuring consistent magnetic flux. Series variants route all current through both armature and field windings in sequence, creating torque proportional to load. Compound layouts merge series and shunt windings, often with separate terminals for stable operation under diverse conditions.
Wiring diagrams reveal critical distinctions: Shunt circuits show field coils branching off the main supply, while series circuits depict a single path through armature and field. Compound diagrams combine both–series windings for torque, shunt for speed control. For high-performance applications, separately excited models provide independent field regulation, allowing fine-tuned adjustments. When designing systems, match the wiring to load characteristics: shunt for constant speed, series for heavy starting loads, compound for balancing both. Always verify coil polarities and terminal connections to prevent back EMF damage.
Permanent magnet variants dominate hobbyist and low-power designs due to their efficiency and minimal wiring. However, their lack of adjustability makes them unsuitable for dynamic loads. Shunt machines maintain speed well but suffer under heavy loads if field current drops. Series designs excel in torque-heavy starts but risk runaway speeds if unloaded. Compound configurations mitigate these weaknesses but add complexity. Prioritize: thermal limits for continuous duty, commutator condition for reliability, and voltage regulation for stable performance. Testing under real-world conditions confirms theoretical circuit behavior.

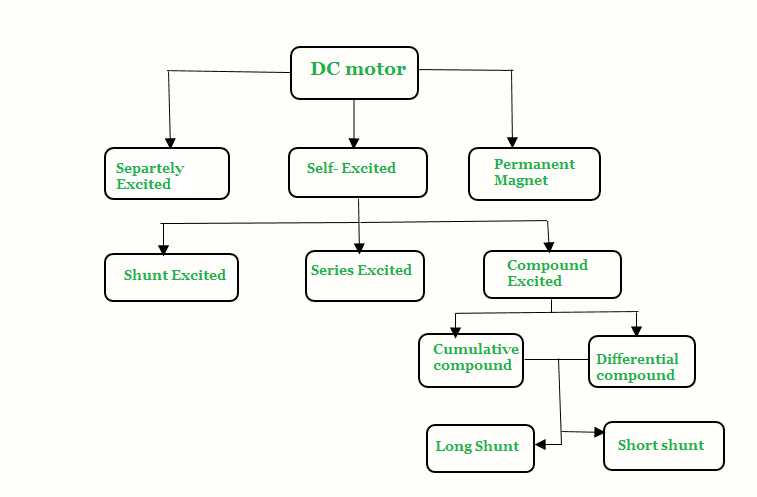

Key Varieties of Direct Current Machines and Their Circuit Representations
Select a separately excited DC machine for precise torque and speed control in industrial applications requiring isolated field windings. Its circuit features an armature connected to a variable voltage source (e.g., 0–240V DC) and a separate excitation winding powered by another source (typically 12–48V DC). Field current adjustment (If) directly modulates magnetic flux, allowing linear speed-torque characteristics–ideal for CNC spindles or traction systems where dynamic response is critical. Avoid brushless designs here; the physical commutation of this variant simplifies feedback integration with Hall sensors or encoders.
- Series-wound units demand cautious deployment in load-variant environments. Their field and armature windings share current (
Ia = If), producing torque proportional toI². This yields high startup torque (e.g., 300% of rated) but risks runaway speeds under light loads–never operate above 20% of rated load without a governor. Typical applications: cranes, locomotive starters. Circuit note: Add a 0.5Ω discharge resistor across field terminals to quench inductive spikes during power-off. - Shunt configurations maintain near-constant speed (±5%) across 25–100% load ranges, thanks to parallel field/armature connections. Field resistance (
Rf) must exceed armature resistance (Ra) by ≥100× to prevent crawling at low speeds. For 1 hp–10 hp machines, use PWM controllers with 2–5 kHz switching frequency to minimize iron losses. Critical: Isolate field circuit from armature during regenerative braking to avoid field demagnetization. - Compound machines merge series and shunt field windings for hybrid performance. Long-shunt (field in parallel with armature + series winding) smooths torque dips during acceleration; short-shunt (field in parallel with armature) boosts torque at low speeds. For 5 hp motors, set
If(shunt) ≈ 10–15% Ifull-loadandIf(series) ≈ 85–90% Ifull-load. Circuit requirement: Include reverse-voltage protection (e.g., flyback diodes) across all windings to handle transient surges.

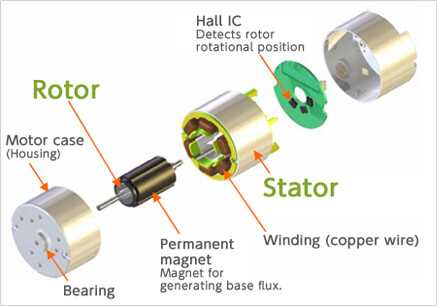

For permanent magnet (PM) DC variants, prioritize neodymium-iron-boron magnets (≥1.2 T remanence) to maximize power density in compact drives (e.g., robotics, electric bicycles). Their circuit omits field windings entirely, relying on fixed magnetic flux–simplified wiring but limited to speeds under 5000 rpm due to irreversible demagnetization risks from overcurrent (>3× rated) or overheating (>120°C). Key maintenance: Monitor brush wear; replace at 50% carbon length to prevent commutator scoring. For 12V–48V systems, pair with buck-boost converters to compensate for battery voltage sag during acceleration peaks.

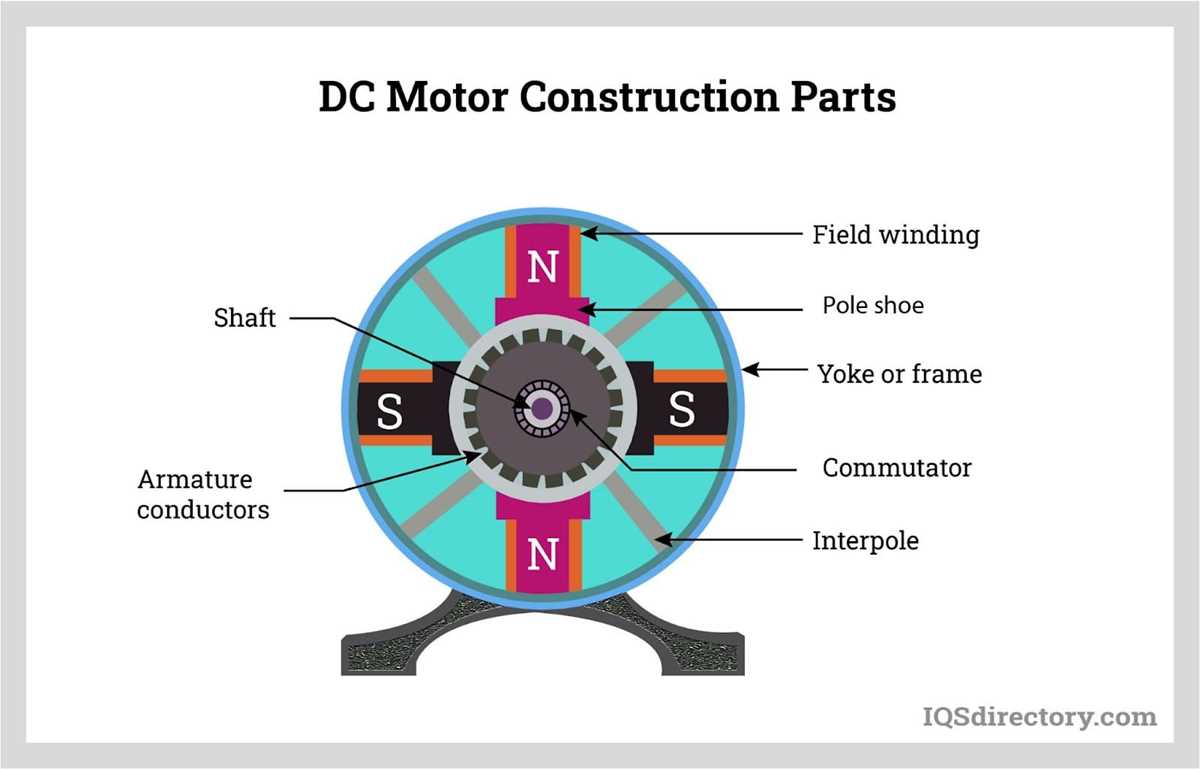

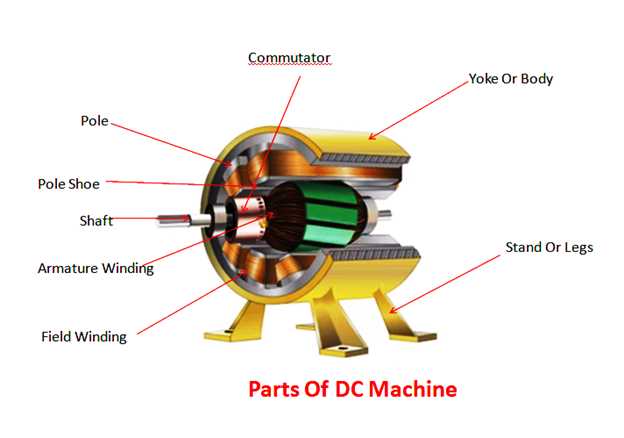

Brushed DC Mechanism and Internal Circuit Configuration
Align carbon brushes at exact 90° intervals along the commutator surface to minimize arcing–each brush pair must maintain ≤0.3mm clearance from segment edges during rotation. Voltage polarity reversals occur every half-turn: current enters through the positive brush, splits into armature windings via commutator bars, and exits via the grounded brush, generating Lorentz force vectors perpendicular to both field flux (φ=0.8–1.2T) and armature conductors. Copper losses in windings rise non-linearly with load–expect 5–8% power dissipation at rated torque, necessitating thermal sensors near end coils (operating limit: 130°C for Class B insulation).
Key Voltage-Current Relationships During Commutation
| Armature Position (°) | Brush-Commutator Contact | Induced EMF (V) | Current Path Resistance (mΩ) |
|---|---|---|---|
| 0 | Full segment alignment | Vs – 1.2IaRa | 85 |
| 45 | Partial bridging (arcing zone) | Vs – 1.7Ia(Ra+Rbrush) | 120 |
| 90 | Full transition (commutation complete) | Vs – 0.9IaRa | 75 |
Wire gauge selection depends on stall current–use 18AWG for ≤10A continuous loads; upsize to 14AWG if anticipated back-EMF exceeds 75% of Vs at 3000 RPM. Shunt fields typically employ 200–400 turn coils (26AWG, 40Ω cold resistance) to sustain constant flux; series fields use 4–6 turns of 12AWG to handle armature current directly. Bypass diodes (e.g., Schottky 1N5822) across brush terminals clamp inductive spikes during coast-down–obligatory if drive circuit lacks regenerative braking.
Critical Variations: Permanent Magnet vs. Series Wound DC Drives
Select permanent magnet (PM) configurations for applications demanding consistent torque output at low speeds, such as servo systems or precision actuators. Their magnetic field, generated by fixed rare-earth or ferrite magnets, eliminates the need for field windings, reducing energy losses by up to 30% compared to wound designs. RPM range typically caps at 3,000–5,000 due to magnet limitations, but torque remains flat across this band. Series wound alternatives, however, scale torque with current–ideal for traction applications like electric forklifts or starter generators where initial load spikes are frequent. Here, field coils connect in series with the armature, creating a self-regulating mechanism where torque peaks at stall and drops as speed increases.
Design considerations dictate material choices: PM rotors rely on sintered NdFeB magnets rated for 100–120°C, while series wound coils often use copper or aluminum windings with Class H insulation (180°C). Weight diverges sharply–PM variants achieve power densities of 1.5–2.0 kW/kg, whereas series wound units rarely exceed 0.8 kW/kg due to core and winding mass. Thermal behavior also contrasts: PM units risk demagnetization at sustained overloads (over 120% rated current), while series wound designs tolerate brief surges (up to 300%) but suffer efficiency drops at partial loads below 50%.
Efficiency and Control Trade-offs
PM configurations excel in steady-state operations, achieving 85–92% efficiency within their optimal speed band. Their speed-torque curve is inherently linear, simplifying closed-loop control via encoders or tachometers. Series wound units, in contrast, exhibit a hyperbolic speed-torque characteristic–speed collapses under load unless controlled with pulse-width modulation (PWM) or field weakening techniques. For example, a 1 hp PM unit may require 12–15A at full load, while a series equivalent demands 20–25A under the same conditions, with efficiency dipping to 65–75%. Prioritize PM for battery-operated systems: their lower current draw extends runtime by 20–40% compared to series wound equivalents.
Starting behaviors reveal another divide. Series wound drives deliver maximum torque at zero RPM, making them ideal for high-inertia loads like conveyor belts or rolling mills–no external controller is needed for initial acceleration. PM units, however, require a current-limited starter (soft starter or VFD) to avoid damaging inrush currents (up to 6–10x rated current). Maintenance intervals also differ: PM commutators and brushes last 5,000–10,000 hours under continuous duty, while series wound brushes degrade faster (3,000–7,000 hours) due to higher arcing. Cost scales inversely with performance: PM units carry a 30–50% premium over wound designs, but this gap narrows in high-volume production (e.g., automotive traction motors).
