Begin troubleshooting by locating fuse panel F6 under the driver-side dash–this controls the primary ignition feed to the powertrain control module. A blown fuse here mimics a dead short, stalling fuel injectors despite a functional starter. Probe terminals 18 and 26 on the instrument cluster connector C234 for a steady 12V signal; inconsistent readings point to corroded grounds near the rear left shock tower, a known failure point.
For auxiliary systems, reference wire harness W112 (teal/white stripe) running from the headlight switch to the multifunction relay. Intermittent high-beam failures often trace back to a broken splice inside the left A-pillar, where vibration fractures the conductor. Use a tone generator on pin 30 of the anti-lock brake module to isolate signal loss before inspecting connectors–disturbing factory seals risks moisture intrusion.
Transmission range sensor errors typically stem from frayed wires at the valve body plug. Peel back the transmission heat shield and inspect P201 (light green/black) for chafing against the torque converter housing. If resistance exceeds 3 ohms, replace the harness; temporary fixes with e-tape accelerate future failures under cyclic load.
For climate control diagnostics, prioritize the blend door actuator motor (8L3Z-19E616-A). Remove the glovebox to access connector C270–measure voltage drop across pins A and B during mode switch cycling. A 0V reading confirms a severed link to the HVAC control head, necessitating a full harness replacement rather than splicing.
When repairing the rear defrost grid, use a multimeter in continuity mode on each vertical bus bar segment. Gaps wider than 1/8″ require conductive adhesive (Permatex 22058), not solder–a common misstep that melts the defogger substrate under load. Verify the ground strap bolt torque to the trunk lid hinge before reinstalling trim panels to prevent voltage leakage.
Electrical Schematic for the 2002-2004 Full-Size Ford Sedan
Locate the fuse box under the instrument panel on the driver’s side–removing the knee bolster panel (held by two 7mm bolts) grants access. Pin 30 on the ignition switch (black/orange wire) feeds constant power to the PCM, while pin 56 (light blue/yellow) carries the starter solenoid signal; trace both wires back to connector C202 behind the fuse box to diagnose no-crank conditions. The alternator’s voltage regulator connects via a 4-pin plug; white/yellow (pin A) delivers field current, and dark green/red (pin S) monitors battery voltage–probe these with a multimeter at 14.2–14.8V during engine operation to confirm charging output.
For rear lighting issues, the tail lamp assembly uses two ground points: G300 (black wire, left rear quarter panel) and G400 (black/white, right side). The brake switch (eight-pin connector) routes power through the stop lamp fuse (10A, position 29 in the central junction box) to the red/yellow wire–test for 12V input when the pedal is depressed. If turn signals flash abnormally, inspect the hazard flasher relay (relay K14, integral to the fuse box) and the purple/white wire leading to the multifunction switch, where corrosion often disrupts signal continuity.
Finding Primary Electrical Bundle Connectors Beneath the Instrument Panel
Remove the driver’s knee bolster by unfastening two bolts near the pedal assembly; this exposes the upper steering column support bracket and primary wiring clusters. The largest harness enters through a firewall grommet on the left, branching into three key junctions–label them A (black 68-pin, near brake pedal), B (white 32-pin, above fuse box), and C (blue 44-pin, behind ignition switch)–before any disassembly.
| Junction | Pin Count | Color Code | Primary Functions |
|---|---|---|---|
| A | 68 | Black | Powertrain control, ABS, transmission modules |
| B | 32 | White | Instrument cluster, lighting circuits |
| C | 44 | Blue | Ignition, starter relay, HVAC controls |
Trace junction A’s main loom along the firewall downward–it splits at a cylindrical clamp near the parking brake; the lower branch connects to the powertrain computer mounted behind the glove box, secured by a single T20 screw. Junction B sits directly under the fuse panel, clipped to the dash frame; disengage its latch by prying upward with a trim tool, avoiding metal tools that may short adjacent terminals.
Critical Safety Steps Before Probe Procedures
Disarm the supplemental restraint system by disconnecting the battery and waiting 10 minutes; retainers on junction C’s connector use gold-plated pins susceptible to static discharge. Verify ground continuity at bolt G103 (below the steering column) with a multimeter–readings above 0.2 ohms indicate corrosion requiring dielectric grease application.
Smaller harnesses often hide behind the airbag module or climate control housing; release two Torx T15 screws on the latter’s lower edge to access junction D (22-pin gray) handling seat belt sensors and evap solenoids. Label each connector with masking tape indicating position–factory harnesses lack color differentiation past 15 cm from connectors, complicating reassembly.

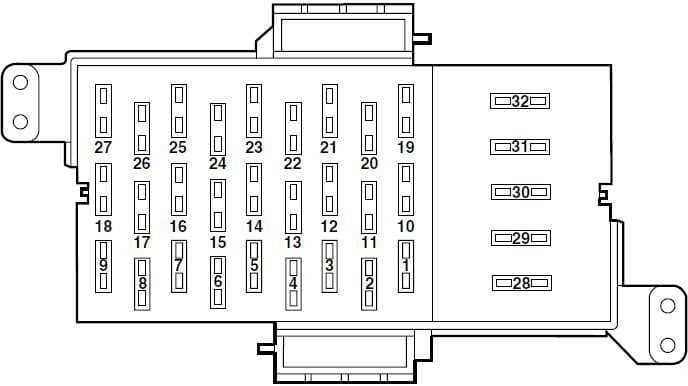

Locating Fuse Panel and Relay Slots Using Printed Circuit Tags
Start by flipping the interior fuse cover downward to expose the slot map on its underside. Each slot number corresponds directly to labels molded into the plastic housing–match these to the legend without assuming adjacent positions mirror similar systems.
Label interpretations differ even between model years: slot 28 may control the powertrain control module in earlier versions, while later builds reroute it to slot 42. Verify the tiny engraved text near each fuse socket instead of relying on owner’s manual illustrations alone.
High-Current Relays and Their Bolt-Down Points
Relays handling starter solenoid, cooling fan cluster, and anti-lock brake pump sit on a separate metal bracket above the driver’s side kick panel. Use a 10mm socket to remove the single securing bolt to access them, noting the embossed numbers on the relay casings (R1, R2, R3) to cross-reference with the printed index.
Fan control relays R4 and R5 are notorious for heat deformation–gently pry them with a small flat-head and inspect the bottom of the plastic slot for corroded traces if the cooling cycles erratically.
Auxiliary Fusible Link Locations
Three heavy-gauge links sit inline beneath the brake master cylinder reservoir: L1 protects the ignition feed, L2 handles the alternator output, and L3 safeguards the anti-lock pump motor harness. Tag each link with colored tape (red, yellow, blue) before disconnecting the negative battery cable to avoid reversing post-repair.
A quick continuity test between L2’s input and output terminals using a multimeter on diode-check mode confirms intact integrity–readings above 0.5V indicate imminent failure requiring replacement with a 120mm 8-gauge jumper link.
Under-hood relay center positions shift laterally between LHD and RHD builds–rotate the entire assembly counterclockwise 15 degrees to expose hidden slots marked with star symbols for horn, daytime running lights, and headlamp delay modules in right-hand drive variants.
Fuse 17 (10A) often masquerades as a redundant circuit but actually bridges the instrument cluster illumination and automatic headlight sensor–test it by toggling the dimmer stalk while monitoring volt drop with a back-probe at slot 17.
Mapping Electrical Circuits for Power Windows and Door Mechanisms
Locate the fuse block beneath the instrument panel–right-side kick panel–marked “PWR WDO” (20A) and “DR LK” (15A). These feeds branch to the left-rear door module first, then split: one line ascends to the window motor regulator connectors (pins 1-2), the other descends to the actuator solenoid (pins 3-5). Disconnect the battery negative cable before probing terminals to avoid shorting fused circuits.
Follow these steps for each door’s harness bundle:
- Remove the interior door panel by prying off plastic retainers (eight clips, T25 Torx screws).
- Peel back the vapor barrier–adhesive sealant–to expose the conduit bundle. The six-wire harness (color-coded: YL/GN, BU, VT, TN/WH, PK/BK, RD/WH) routes behind the latch assembly.
- Trace the YL/GN (window up) and BU (window down) wires to the regulator motor–verify continuity with a multimeter (resistance should read 3-5 ohms).
- For locks, test PK/BK (unlock) and TN/WH (lock) at the actuator–apply 12V directly to confirm solenoid operation (audible click).
- Check the door jamb switch harness (white plug, four pins) for corrosion–clean with electrical contact cleaner if voltage drop exceeds 0.3V.
- Reassemble with dielectric grease on all connectors to prevent oxidation.
Understanding Engine Bay Sensor Connector Codes and Terminal Layouts
Locate the oxygen sensor harness on the left side of the intake manifold–its connector uses four wires: black (signal return), white (signal ground), gray (reference voltage), and dark green/yellow stripe (heater control). Cross-reference with a 5V reference voltage pin (typically pin 54 on the PCM) to verify circuits before probing.
Identify the throttle position sensor (TPS) by its three-wire bundle: tan/light blue (5V ref), brown/white (signal), and black/white (ground). Pin 28 on the powertrain control module (PCM) correlates to the signal wire–measure voltage between 0.5V (closed) and 4.5V (wide open throttle) at idle with a multimeter.
The coolant temperature sender uses a two-wire configuration: yellow (signal) and brown (ground). At operating temperature (90°C/194°F), expect 0.5–1.5V on the signal wire when tested with a scan tool or voltmeter. Compare readings to a known-good resistance table (e.g., 32°F = 10k ohms, 212°F = 200 ohms).
Inspect the mass air flow (MAF) sensor’s six-pin connector: red (battery voltage), black/white (ground), orange/pink (5V ref), tan/light blue (signal), and two unused pins. The signal wire (pin C1647-4) should fluctuate between 0.5V and 3.5V during snap-throttle tests–numbers below 0.5V indicate intake leaks or dirty sensors.
Check the camshaft position sensor’s wiring–pink/black (5V ref), tan/red (signal), and black/red (ground). Signal voltage spikes from 0V to 5V at camshaft rotation; missing pulses confirm sensor or reluctor ring failure. Use an oscilloscope for waveform analysis where a voltmeter may miss intermittent faults.
For the knock sensor, trace the single-wire signal (dark blue/yellow stripe) to pin 23 on the PCM. Proper function exhibits 2.5V at idle, dropping to 0V during engine knock. Test by tapping the manifold near the sensor–voltage should spike briefly but return to baseline within milliseconds.
Verify the vehicle speed sensor (VSS) by probing the light green/red stripe wire (pin 30 on the PCM) while spinning a rear wheel in neutral. Voltage should toggle between 0V and 8V at 1,000 RPM of wheel rotation–no toggles indicate a broken tone ring or wiring opens. Replace the rear axle-mounted sensor before assuming transmission faults.
Cross-check all sensor grounds at the engine block’s main grounding strap (near the starter). Corrosion or loose connections here mimic sensor failures–clean terminals with a wire brush and apply dielectric grease to prevent oxidation. For modules like the PCM, ensure chassis and signal grounds maintain less than 0.1V drop under load.
