Begin by identifying the voltage regulator connector–typically a four-pin design labeled IG, L, S, and B. The IG terminal connects to the ignition switch, signaling the regulator when the engine starts. Ensure continuity between this pin and the 12V power source to prevent erratic charging cycles. A multimeter set to DC voltage should read between 10.5V and 14.5V when the engine is running; deviations indicate regulator failure or incorrect wiring.
The L terminal controls the charge warning light. Trace its path from the dashboard indicator to the generator’s internal circuit. If the light remains on after startup, check for a grounded L wire or a faulty diode trio. Use a test lamp to verify current flow–no illumination means an open circuit, while excessive brightness signals a short. Replace the rectifier assembly if diode resistance exceeds 0.5 ohms in both forward and reverse polarity tests.
For the S terminal–used in newer models to monitor battery voltage–connect a parallel line to the battery’s positive terminal. A missing or improper S connection forces the regulator into default mode, reducing efficiency. Measure voltage drop across the S and B terminals; a difference above 0.3V suggests corroded connections or undersized wiring. Use 10-gauge wire for the B terminal to handle sustained currents up to 80 amperes.
Inspect the stator windings for resistance. Set your multimeter to the 200-ohm range and probe between each phase terminal (U, V, W). Readings should match within 0.2 ohms of each other. Higher resistance points to burnt coils or insulation breakdown–requiring full stator replacement. Avoid splicing damaged windings; temporary fixes lead to overheating and fire risks.
Grounding faults are a common failure point. Scrape paint from the generator’s mounting surface and clean the chassis ground point with a wire brush. Secure connections with star washers to prevent loosening from vibration. A poor ground results in noisy signal readings and fluctuating voltage output. Test by running the engine at 2000 RPM; voltage should stabilize within 30 seconds–prolonged instability confirms a ground issue.
For integrated units with internal voltage regulators, bypassing external regulators requires recalibrating the ECU. Disconnect the ECU’s charging control pin before wiring, then reconnect after installation. Failure to recalibrate causes overcharging–diagnosed by battery electrolyte evaporation or swollen casing. Always use dielectric grease on connectors to prevent corrosion in humid environments.
Electric Generator Connection Schematics for Vehicle Power Systems

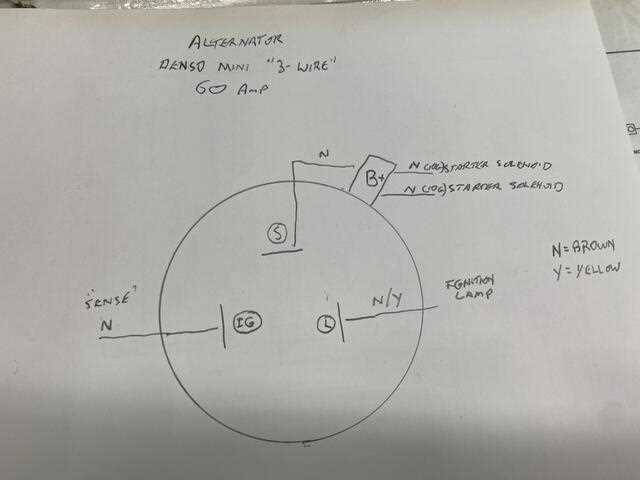

Start by identifying the three primary terminals on the unit: B (battery), IG (ignition), and S (sensing). Connect the B terminal directly to the positive battery post using 8-10 AWG cable rated for at least 60A. The IG terminal should link to the ignition switch with 16-18 AWG wiring, ensuring minimal voltage drop during startup sequences. For precise voltage regulation, route the S terminal to the battery positive through a dedicated 12-14 AWG wire – this prevents false readings from accessories sharing the same circuit.
Below are critical resistance values for standard components in the charging circuit:
| Component | Resistance (Ω) | Voltage Drop Limit (V) |
|---|---|---|
| Positive cable (8 AWG) | <0.1 | 0.2 |
| Excitation circuit (16 AWG) | 0.8-1.2 | 0.8 |
| Ground strap (10 AWG) | <0.05 | 0.1 |
Use a multimeter to verify all connections before energizing the system. Set the meter to 20V DC and measure between the battery positive and the generator housing – readings should match battery voltage within ±0.1V. If discrepancies appear, inspect for corroded connections, frayed strands, or incorrect gauge sizes. For high-output variants (120A+), add a fusible link (40A) between the main output and battery to protect against short circuits.
For troubleshooting no-charge conditions, check the diode trio by probing the stator wires with a diode tester. Reverse bias readings should exceed 0.4V, while forward bias should show 0.2-0.6V. Replace the rectifier assembly if readings fall outside these ranges. In dual-voltage systems (e.g., 12V/24V hybrids), isolate the excitation solenoid coils – these often require separate 2Ω ballast resistors to prevent overcurrent during mode transitions.
Key Terminals on Your Vehicle’s Charging Unit for Proper Hookup

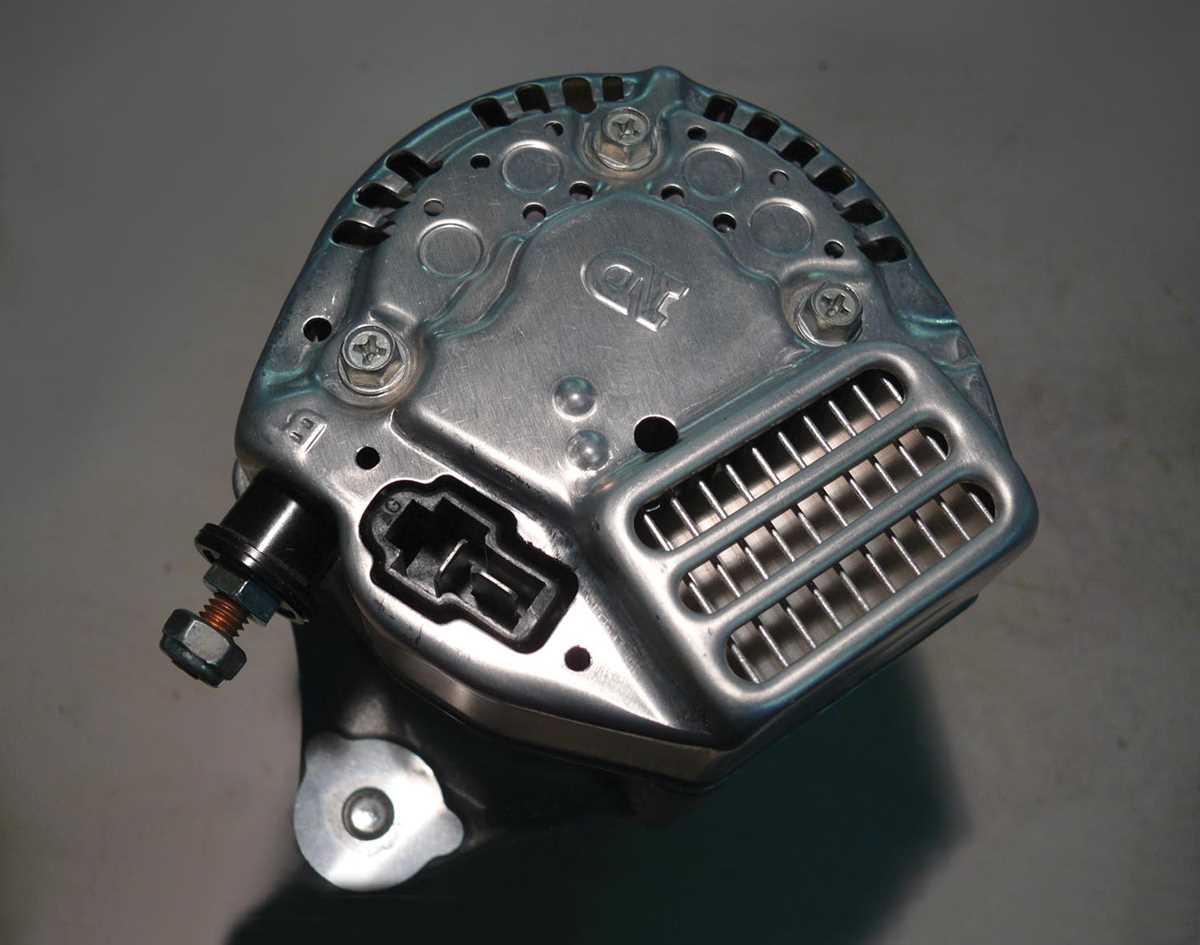

Locate the B+ output stud first–this is the primary power terminal supplying voltage to the battery and electrical system. It typically features a heavy-gauge cable secured with a nut and washer. Ensure the connection is clean, tight, and free of corrosion to prevent voltage drop. A loose or dirty joint here can cause intermittent charging or excessive heat buildup.
Inspect the IG or ignition terminal next. This small post activates the regulator when the key turns to “run.” Wiring mistakes here often lead to no-charge conditions. Verify connectivity by probing the terminal with a multimeter while cycling the key–expect battery voltage during operation. Some models combine this with a L terminal for warning light control; check service notes for your specific build.
The S (sense) terminal monitors system voltage at the battery, eliminating resistance losses over long cable runs. Never splice into this wire–it must run directly to the battery’s positive post for accurate regulation. A broken or corroded S connection causes overcharging; test continuity with the engine off to isolate faults.
Identify the L terminal if present–this drives the dashboard charge indicator. Connect it to the warning lamp circuit via a 12V feed that drops to ground when charging starts. Reverse-polarity hookups here drain the bulb unnecessarily. Probe the wire with a test light while cranking: the light should extinguish once charging begins.
Note the FR or field regulator terminal on older models–this seldom-used contact lets the ECU adjust voltage output dynamically. If your build lacks this feature, cap the wire securely to prevent shorts. For systems with smart charging, consult factory schematics; incorrect routing can trigger fault codes or limp-mode conditions.
Ground straps typically attach near the housing’s rear or side. Clean both mating surfaces to bare metal and torque mounting bolts to spec–poor grounding mimics failure symptoms. Test continuity from the ground post to the engine block with an ohmmeter; readings above 0.2 ohms indicate corrosion or paint interference.
Verify all connections against the manufacturer’s pinout–terminal positions vary between models. Label wires during disassembly to avoid mix-ups. When reinstalling, apply dielectric grease to threaded studs and blade connectors to repel moisture and oxidation. Recheck output at 2,000 RPM: voltage should stabilize between 13.8–14.5V under normal load.
Step-by-Step Guide to Connecting the Battery and Sensing Terminals Properly
First, identify the main power output terminal (B+) on the charging unit–it’s typically a thick stud with a nut, marked in red or labeled for high-current flow. Use a 4-gauge or thicker cable for this connection, ensuring the wire diameter matches the system’s amperage rating. Strip 12mm of insulation from the cable end, crimp on a copper ring terminal, and secure it tightly with a wrench, torquing the nut to 10-12 Nm to prevent loosening under vibration. Avoid using damaged or undersized wires, as resistance here directly reduces charging efficiency and risks overheating.
Critical steps for the sensing terminal (S):
- Locate the smaller S-terminal, usually a spade or bullet connector, often color-coded blue or yellow. This line must connect directly to the battery’s positive post–not through relays, fuses, or switches–to provide accurate voltage feedback.
- Use a 14-16 gauge wire for this link, keeping the length under 1 meter to minimize voltage drop. Strip 8mm of insulation, attach a spade connector, and insert it firmly into the terminal. Double-check for a snug fit; a loose connection here skews voltage readings, causing undercharging or overcharging.
- If the vehicle’s electrical system includes a smart charge controller, route this wire away from high-frequency noise sources (e.g., ignition coils, injector harnesses) to prevent false voltage signals. Shielded cable is recommended in noisy environments.
Testing and Verification
After securing both terminals, measure the voltage at the battery with a multimeter while the engine runs. The B+ line should read within 0.2V of the battery’s voltage at idle, increasing slightly as RPMs rise. If the difference exceeds 0.5V, inspect the cable, connections, and ground path for resistance. The S-terminal must mirror the battery’s voltage exactly; deviations indicate a faulty connection or compromised wire integrity. Use a load tester to confirm the charging system maintains 13.8-14.5V under full electrical load (headlights, fans, etc.).
For systems with external voltage regulators, the S-terminal’s role expands to smoothing transient spikes. In such cases, add a 0.1µF ceramic capacitor between the S-line and ground near the charging unit to filter noise. This step is non-negotiable for sensitive electronics in modern vehicles. If the system includes a “remote sense” feature–common in luxury or performance applications–run a separate 18-gauge sense wire from the battery’s negative post to the regulator’s ground reference point to eliminate ground-loop errors.
Finalize the setup by sealing all connections with heat-shrink tubing or dielectric grease to block moisture and corrosion. Label each wire with its function for future troubleshooting. Recheck torque values after 100 operational hours, as initial stress can loosen fasteners. Install an inline fuse (max 10A) on the S-terminal if routed near sharp edges or moving parts, but place it after the voltage-divider point to avoid interrupting feedback. Document the voltage readings under various conditions (idle, 2000 RPM, full load) for baseline reference.
